Gigabyte GA-A320M-S2H V2 (rev. 1.1) Motherboard



Features

  • Supports AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Ultra-FastPCIe Gen3 x4M.2 withPCIe NVMe& SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard
  • RealtekGigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • GIGABYTE UEFI BIOS
  • All New GIGABYTE APP Center, Simple and Easy Use

GET READY FOR AMD RYZEN 3000-SERIES

GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen 3000 Processors and are backwards compatible with AMD Ryzen 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable Armor for PCIe/ memory slots, USB Type-C interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems.

AMD Ryzen 2000, 1000 Series Compatible

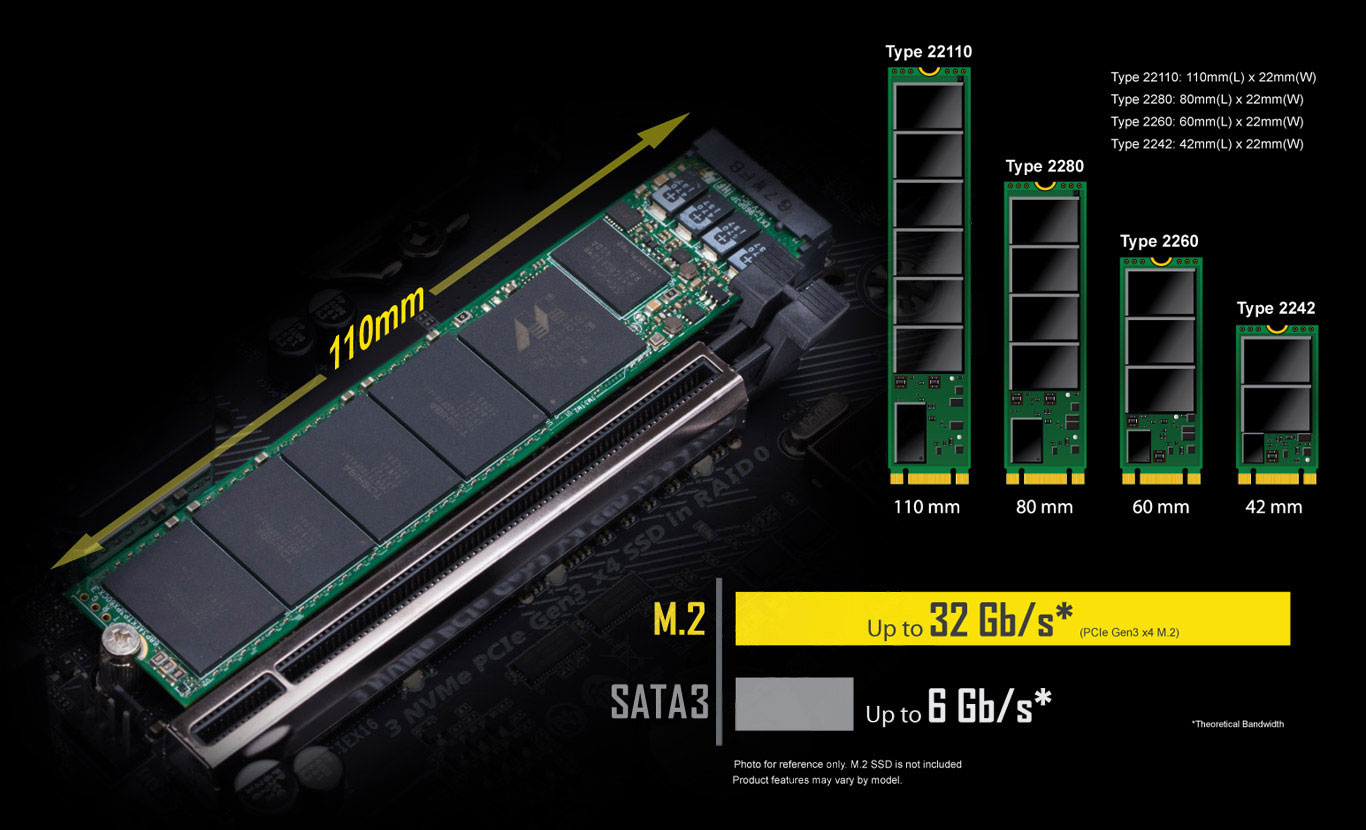

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces* for M.2 SSD devices.

High Definition Digital Outputs

Enjoy true HD display capability using the most commonly integrated digital output technologies on todays HD displays and TVs.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD RadeonGraphics via HDMI.

HDMI- The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

 Temperature Sensors

 Fan Pin Headers

Temperature Sensors

Hybrid Fan Headers

  • 5 Temperature Sensors
  • 2 Fan Pin Headers
  • All Fan Pin Headers Upgraded to Hybrid Fan Headers
  • Supports High Current Fans up to 24W (2Ax12V) with Over-Current Protection
  • Intuitive UI for Fan Control

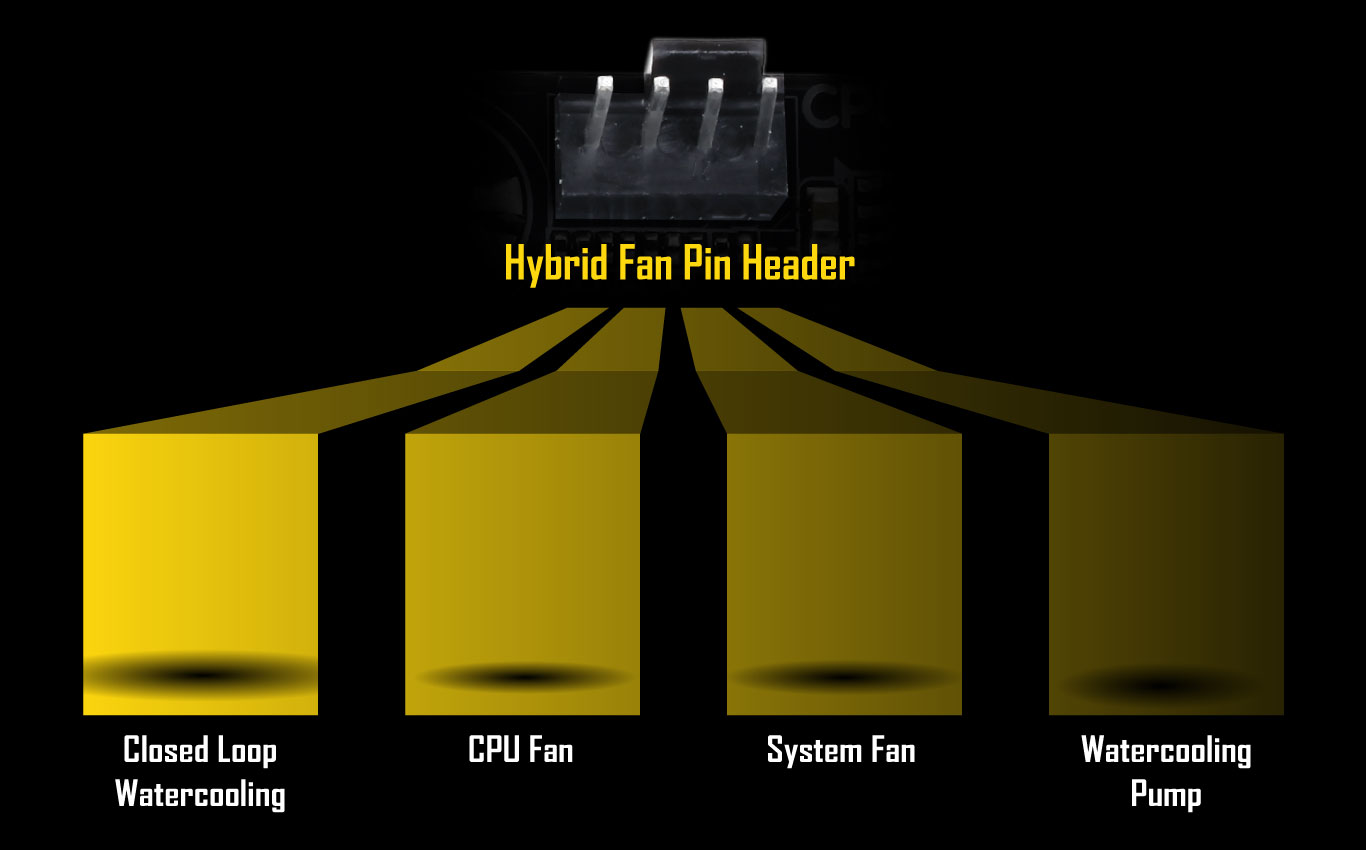

All Hybrid Fan Pin Headers

  • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
  • Supports up to 2 amps with built-in overcurrent protectiona must for high-end high current fans.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans

Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve

Customize fan curves based on specific temperatures with the intuitive graphical UI.

Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature changeall without having to load Windows.

Realtek GbE LAN with cFosSpeed Internet Accelerator Software

Realtek Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

GIGABYTE PatentedDouble Locking Bracket

Anti-Sulfur Resistor Design

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

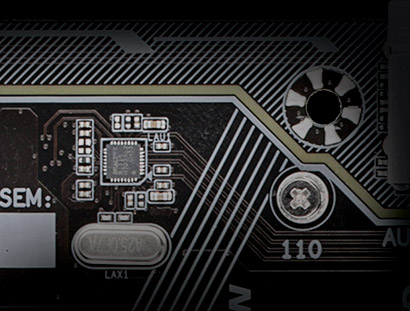

Audio Noise Guard

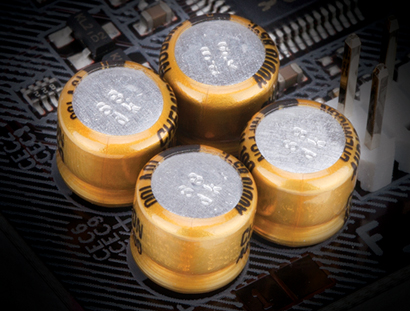

High-End Audio Components

Humidity Protection Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High Temperature Protection Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

Refreshed BIOSEasy, Smart, and Friendly

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

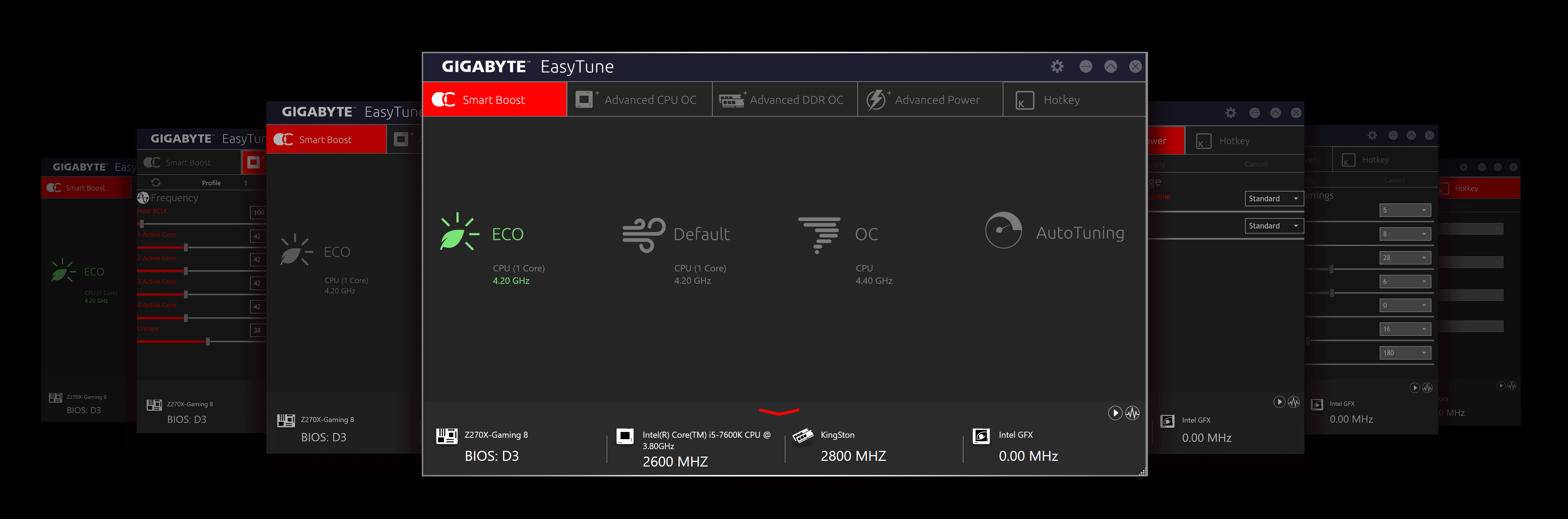

EasyTune

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

Overclocking to Boost Your Frame Rates

Get the highest levels of performance from your PC with easy-to-use GIGABYTE overclocking features.

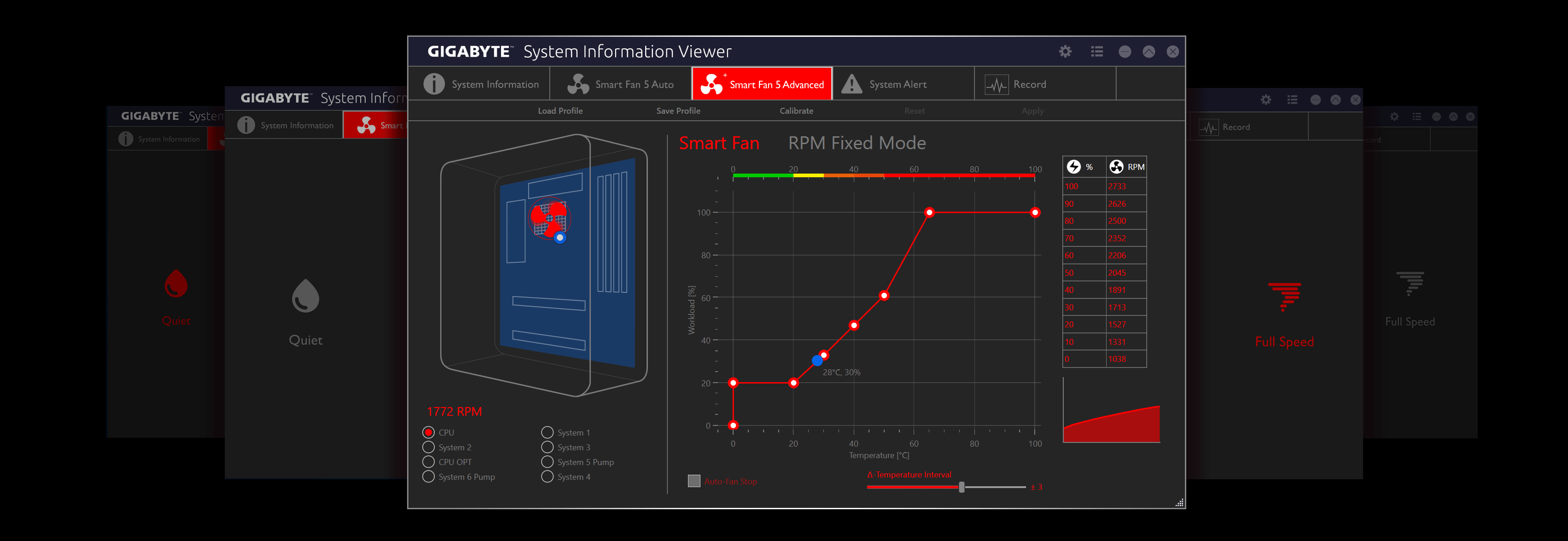

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your systems behavior; these are the possibilities of the System Information Viewer.

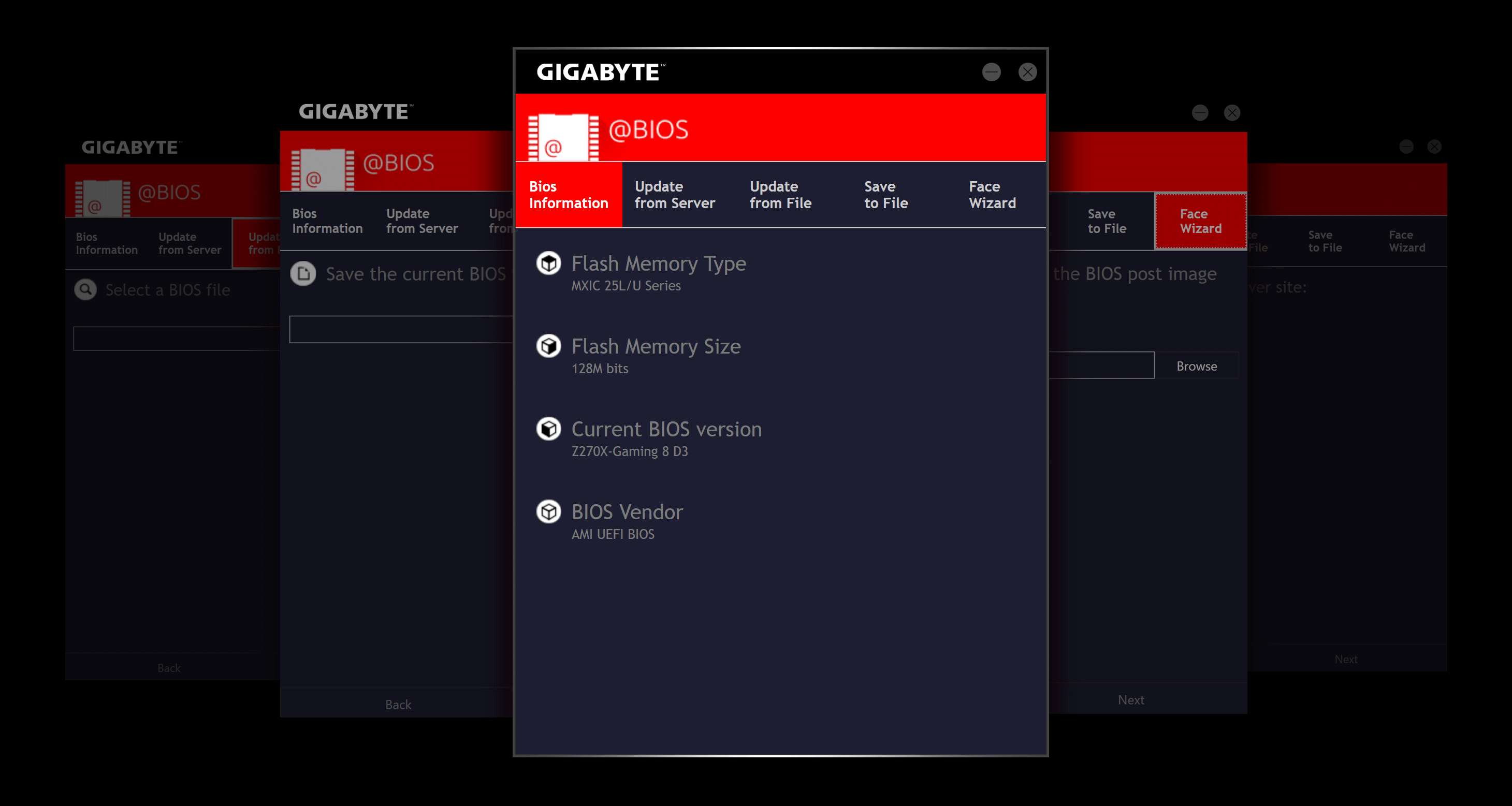

@BIOS

The GIGABYTE @BIOS app allows you to update your systems BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE serversor you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

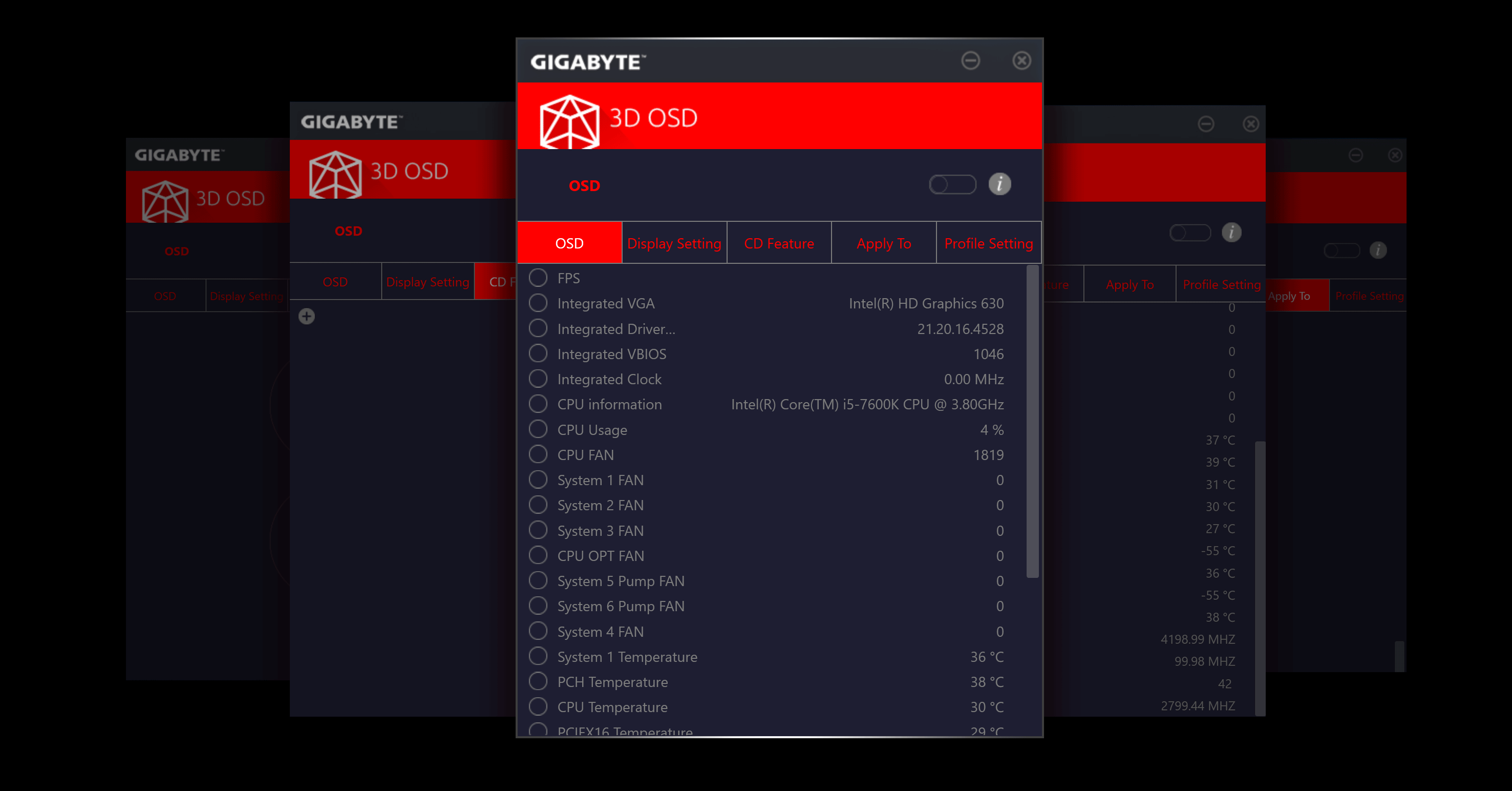

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chatskeeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

Specifications

CPU

AM4 Socket: Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation/ 7th Generation A-series/ Athlon X4 Processors

(Please refer "CPU Support List" for more information.)

Chipset

AMD B350

Memory

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules

* Actual support may vary by CPU.

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor:

1 x D-Sub port, supporting a maximum resolution of [email protected] Hz

1 x DVI-D port, supporting a maximum resolution of [email protected] Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of [email protected] Hz

* Support for HDMI 1.4 version.

Maximum shared memory of 2 GB

* Actual support may vary by CPU.

Audio

Realtek ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN

Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* Actual support may vary by CPU.

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)

* Actual support may vary by CPU.

* Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU.

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.

USB

Chipset:

2 x USB 3.1 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

CPU:

4 x USB 3.1 Gen 1 ports on the back panel

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)

1 x speaker header

1 x Clear CMOS jumper

1 x chassis intrusion header

Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

4 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

3D OSD

AutoGreen

Cloud Station

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

Smart Backup

Smart Keyboard

Smart TimeLock

System Information Viewer

USB Blocker

Support for Q-Flash

Support for Xpress Install

Bundled Software

Norton Internet Security (OEM version)

cFosSpeed

Operating System

Support for Windows 10 64-bit

Support for Windows 7 64-bit

* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.

* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor

Micro ATX Form Factor; 24.4cm x 19.5cm

Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
