All stock codes associated to this product
WDS500G3XHC, 4447862, 10718037866649, 718037866642

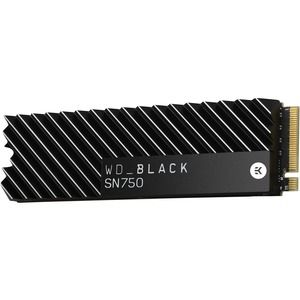

Western Digital WDS500G3XHC SN750 NVMe SSD - 500GB,
Black
Overview
Level Up to NVMe SSD Performance
The WD BLACKTMSN750
NVMeTMSSD
delivers top tier performance for gaming and hardware enthusiasts looking to
upgrade their gaming or custom PC. Available in capacities ranging from 250GB to
2TB3,
the WD BLACK SN750 NVMe SSD rivals some of the best performing drives on the
market to help give gamers that competitive edge. Complementary features improve
system responsiveness, such as Gaming Mode in the WD BLACK SSD Dashboard, and
our heatsink model keeps things cool helping to deliver consistent sustained
performance. The WD BLACK SN750 NVMe SSD pushes the boundaries of ordinary SSD
performance.
Fueled By Darkness
- Speed - Sequential Read/Write speeds up to 3,470/3,000MB/s2
- Capacity - Up to 2TB capacity for extended storage
- Performance - Heatsink model intensifies PC design and helps maintain
performance
Highlights
- Read speeds up to 3,470MB/s2 (1TB model) for improved load times
- Available in capacities ranging from 250GB to 2TB
- Sleek heatsink design to customize and intensify your gaming rig while
helping to maintain peak performance
- An exclusive WD BLACK SSD dashboard with gaming mode improves game
performance
- 5-year warranty
Applications and Workload
- PC Gaming
- Creative Professionals
- High-Performance PCs and Laptops
PERFORMANCE MATTERS
Live life in the fast lane, whether youre looking to boost your systems
overall responsiveness or load games and levels quickly, the WD BLACK drive cuts
down on your wait time to get back into action and gets you ahead of the
game.
SPACE TO PLAY
At the core of the WD BLACK drive is its revolutionary NAND technology. By
doubling the storage density from its previous generation, our 3D NAND pushes
the limitations of storage and showcases the amazing feat of NAND innovation.
This means extended capacity on a single-sided drive thats roughly the size of a
gumstick, enough to store your large files and video games.

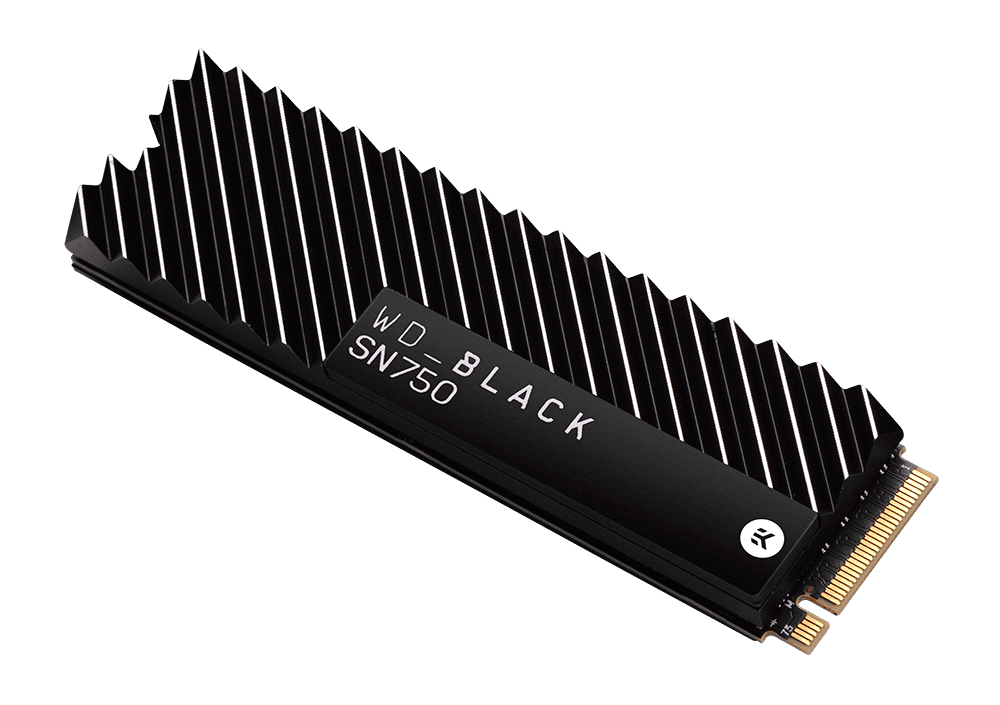

SLEEK HEATSINK DESIGN
Every system is not created equal. From different graphics cards and CPUs to
DRAM and storage, PCs all differ in performance and appearance. The WD BLACK
SSDs sleek and modern heatsink model10goes
well with desktop PC builds that support the M.2 form factor and is the perfect
component to complement systems with RGB lighting and other cooling
technologies, such as water cooling.
SN750 is available with or without heatsink
WD BLACK SSD DASHBOARD
The WD BLACK SSD Dashboard gives you the ability to optimize performance by
enabling the gaming mode feature. This disables the low power mode function on
the SSD, which keeps your drive firing on all cylinders during intense gaming
sessions.

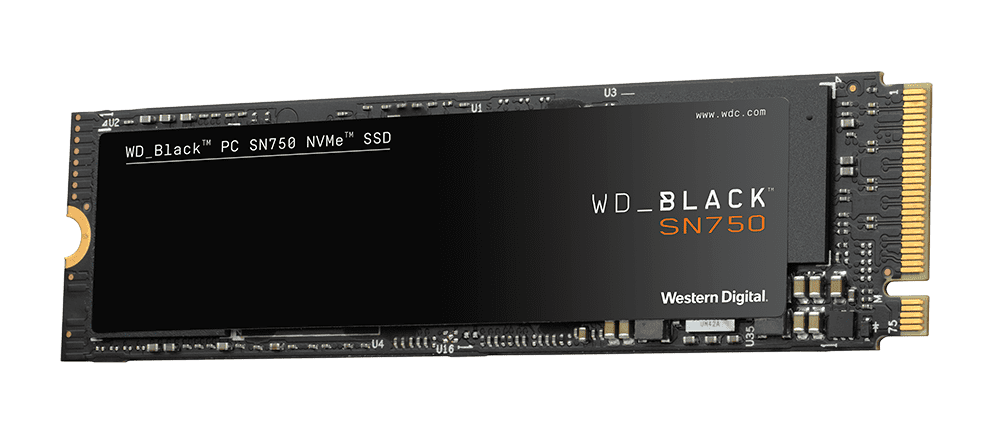

Without Heatsink
- Read speeds up to 3,470MB/s2 (1TB model)
- Available in capacities ranging from 250GB to 2TB for extended storage
- Exclusive WD BLACK SSD dashboard with gaming mode to improve
performance
- Read speeds up to 3,470MB/s (1TB model)
- Available in capacities ranging from 500GB to 2TB for extended storage
- Exclusive WD BLACK SSD dashboard with gaming mode to improve performance
- Sleek design to customize and intensify your gaming system
- Helps maintain optimal levels of performance with passive cooling
features
Specifications
Genearal |
|
Capacity |
500GB |
Interface |
PCIe Gen3 8Gb/s, up to
4 lanes |
Formatted
Capacity |
500GB |
|
|
Performance
|
|
Sequential Read MB/s up
to (Q=32, T=1) |
3,430 |
Sequential Write MB/s
up to (Q=32, T=1) |
2,600 |
Random Read 4KB IOPS up
to (Q=32, T=8) |
420K |
Random Write 4KB IOPS
up to (Q=32, T=8) |
380K |
Endurance
(TBW) |
300 |
|
|
Power |
|
Peak Power
(10us) |
2.8A |
PS3 (low
power) |
70mW |
Sleep (PS4) (low
power) |
2.5mW |
|
|
Reliability |
|
MTTF |
1,750,000 hours
(Telcordia SR-332, GB, 40oC) |
|
|
Environmental |
|
Operating
Temperature |
32oF to 158oF (0oC to
70oC) |
Non-operating
Temperature8 |
-67oF to 185oF (-55oC
to 85oC) |
Certifications |
FCC, UL, TUV, KCC,
BSMI, VCCI, C-Tick |
Limited
Warranty |
5
years |
|
|
Physical Dimensions
- M.2 2280 with Heatsink |
|
Form
Factor |
M.2 2280-S3-M with
Heatsink |
Length |
80
0.15mm |
Width |
24.2
0.30mm |
Height |
8.1mm |
Weight |
33.2g
1g |
