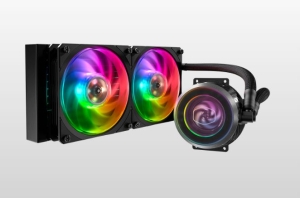

CoolerMaster MasterLiquid ML240P Mirage Liquid Cooler
  • LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, LGA1366, LGA775, TR4, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1, 120mm Fan(2)

IMG 1 of 1
No Longer Available
Part Number:
448337
(?) Brand:
CoolerMaster Web Site
Manuf No:
MLY-D24M-A20PA-R1
MLYD24MA20PAR1
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
8/9/2019
Details Files Images & Video
All stock codes associated to this product
MLYD24MA20PAR1, MLY-D24M-A20PA-R1, 4719512078204, 884102050695

Coolermaster MasterLiquid ML240P Mirage Liquid Cooler



Overview

Hypnotizing Cool

  • Transparent Pump Design
  • Addressable RGB LED
  • Exclusive ML240P Mirage Fans
  • 240mm Radiator
  • Exclusive Wired ARGB Controller

PUMP | TRANSPARENT PUMP DESIGN

Transparent pump cover allows you to see the movement inside the pump while the high performance impeller is spinning

  • Light Guide Device - Stacked fin array ensures least airflow resistance which allows cooler air flow into the heatsink
  • RGB LED Module - Increases the brightness of the RGB while perfecting the color balance. The RGB is certified to sync with RGB Motherboard or controlled by Cooler Master software Lighting Control
  • PPS + Glassfiber housing & nozzle - Temperature and Liquid resistance to increase life expectancy of the pump
  • High performance impeller - Exclusive in-house design for enhanced liquid pressure
  • O-Ring made of high quality EPDM rubber - Eliminates and prevent liquid emission
  • Tri-phase/PWM motor with silent driver - Minimizing operating current while keeping a low dBA
  • Microchannel Cold Plate - Microchannels maximize contact surface area for efficient heat dissipation

STYLISH RADIATOR

Custom design low resistance radiator allows higher flow rate, heat exchange efficiency and provides unmatched cooling performance

DOUBLE TUBING

FEP tubing makes it durable yet flexible. Sleeved tubing on the exterior to give it a premium look

EXCLUSIVE SQUARE FANS FOR ML240P MIRAGE

An outer-ring connecting the fan blades together reduces fan distortion and improves fan rotation stability

Specifications

PRODUCT NUMBER

MLY-D24M-A20PA-R1

CPU SOCKET

LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, LGA1366, LGA775, TR4, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1

WATERBLOCK DIMENSIONS

85 x 80 x 41.7 mm

RADIATOR DIMENSIONS

277 x 120 x 27 mm

RADIATOR MATERIAL

Aluminum

FAN DIMENSIONS (L X W X H)

120 x 120 x 26 mm / 4.7 x 4.7 x 1 inch

FAN SPEED

2000 10% RPM (Max)

FAN AIRFLOW

60.95 CFM (Max)

FAN AIR PRESSURE

2.33 mm H2O (Max)

FAN MTTF

160,000 Hours

FAN NOISE LEVEL

27dBA (1m)

FAN POWER CONNECTOR

4-Pin (PWM), ARGB 3-Pin

FAN RATED VOLTAGE

12V DC

FAN RATED CURRENT

0.30 A

FAN POWER CONSUMPTION

3.60W

FAN LED COLOR

ARGB

PUMP MTTF

160,000 Hours

PUMP NOISE LEVEL

< 20 dBA (1m)

PUMP RATED VOLTAGE

12 VDC

PUMP POWER CONSUMPTION

3.96W

CONNECTOR

4-Pin

SERIE

MasterLiquid

COOLER TYPE

Liquid Cooler



No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.
