HOME / Back -> Hard Drives - Internal -> Serial ATA (SATA) - 3.5" -> Seagate

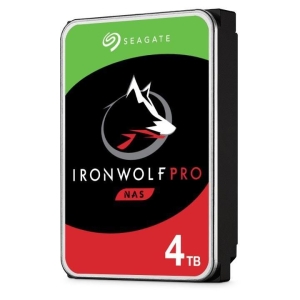

Seagate 4000GB (4TB) 7200RPM 3.5" SATA 6Gb/s w. 128MB Cache - IronWolf Pro Series

IMG 1 of 1
No Longer Available
Part Number:
448356
(?) Brand:
Seagate Web Site
Manuf No:
ST40000NE001
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
13/9/2019
Details Files Images & Video
All stock codes associated to this product
ST40000NE001, 4542559

Seagate ST400NE001 Ironwolf Pro 4 TB



Key Advantages

  • Optimised for NAS with AgileArray. AgileArray enables dual-plane balancing and RAID optimisation in multi-bay environments, with the most advanced power management possible.
  • Actively protect your NAS with IronWolf Health Management focusing on prevention, intervention, and recovery.
  • High performance means no lag time or downtime for users during workload traffic for the NAS. Seagate leads the competition with the highest-performing NAS drive portfolio.
  • Seagate Rescue Data Recovery. 3 IronWolf Pro comes with extra peace of mind for any mechanical, accidental, or natural disaster. With a 90% success rate of in-house recovery, Seagate has your back with a 2-year included Rescue Data Recovery plan.
  • Rotational Vibration (RV) sensors. First in its class of drives to include RV sensors to maintain high performance in multi-drive NAS enclosures.
  • Range of capacities up to 16 TB. More capacity options means more choices that will fit within the budget. Seagate provides a scalable solution for any NAS use-case scenario.
  • Do more in multi-user environments. IronWolf provides a workload rate of 300 TB/year. Multiple users can confidently upload and download data to the NAS server, knowing IronWolf can handle the workload, whether you are a creative professionalor a small business.
  • Designed for always on, always accessible 247 performance. Access data on your NAS any time, remotely or on site.
  • 1.2 M hours MTBF, 5-year limited warranty represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs.

Specifications

General

Capacity

4TB

Standard Model Number

ST4000NE001

Interface

SATA 6Gb/s

Features

Drive Bays Supported

Up to 24-bay

Multi-User Technology (TB/yr)

300

Rotational Vibration (RV) Sensors

Yes

Hot-Plug Support

Yes

Cache (MB)

128

Reliability/Data Integrity

Mean Time Between Failures (MTBF, hours)

1,200,000

Reliability Rating @ Full 247 Operation (AFR)

0.73%

Non-recoverable Read Errors per Bits Read, Max

1 per 10E15

Power-On Hours per Year (247)

8,760

Sector Size (Bytes per Logical Sector)

512E

Rescue Services3

Yes

Limited Warranty (years)

5

Performance

Spindle Speed (RPM)

7,200

Interface Access Speed (Gb/s)

6.0, 3.0, 1.5

Max. Sustained Transfer Rate OD (MB/s)

214MB/s

Average Latency (ms)

4.16

Interface Ports

Single

Rotational Vibration @ 10-1,500 Hz (rad/s2)

12.5

Power Consumption

Startup Current, Typical (12V, A)

2

Idle Power, Average (W)

5.5

Average Operating Power (W)

9 W

Standby Mode (W)

1

Sleep Mode (W)

1

Power Supply Requirements

+12 V and +5 V

Environmental/Temperature

Operating (ambient, min C)

5

Operating (drive case, max C)

60

Non-operating (ambient, min C)

-40

Non-operating (ambient max C)

70

Environmental/Acoustics

Vibration, Non-operating: 10 Hz to 500 Hz (Grms)

3

Idle (typical)3

2.7 bels

Seek (typical)

2.8 bels

Environmental/Shock

Shock, Operating 2 ms (Read/Write) (Gs)

70/40 Gs

Shock, Non-operating, 1 ms and 2 ms (Gs)

300

Physical

Height (mm/in)

26.11 mm/1.028 in

Width (mm/in, max)

101.85 mm/4.01 in

Depth (mm/in, max)

146.99 mm/5.787 in

Weight (lb/g)

643 g/1.42 lb

Carton Unit Quantity

20

Cartons per Pallet / Cartons per Layer

40/8



No additional files, specification sheets, guides or documentation found for product.

Warranty: 60 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers (Seagate) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
