Aten 2L-2801 305M Low Skew Cat 5e Cable



Overview

  • Contains 305 m/1000 ft of low skew cable
  • 350 MHz bandwidth
  • Delay Skew: 1 ~ 350 MHz 20nS/100m Max.
  • Compatible with ATEN analog Cat 5 video extenders, KVM extenders, and Cat 5 KVM switches

What is skew??

Analog video presents a high quality image when the computer is directly connected to the monitor by short cables. However, in todays data centers, labs, stores, as well as in digital signage installalations, video cables may be long, bulky, and expensive. To overcome these practical video cable length limits, KVM switchesin addition to both KVM extenders and VGA-only extendersare used that send video through Cat 5e cables. "Skew" is the color phase and time errors that occur when R/G/B video signals are sent long distance over Cat 5e cables, and this can result in smeared, unsharp, color-fringed images that become visibly worse the longer the cables.

Why you need Low Skew Cat 5e Cable ?

To remedy this skew distortion, ATEN has developed the Low skew Cat 5e cable 2L-2801. This 305 m/ 1000 ft, high performance Cat 5e cable is suitable for the audio and video transmission of a wide range of video and KVM Extenders. This low skew cable is specifi cally designed for RGB video applications such as digital signage, and supports video transmissions to longer distances than traditional twisted pair Cat 5e cable does. To eliminate blur and bleeding images and to ensure the clarity of your video transmissions in all video-related applications, use 2L-2801 Low Skew Cat 5e Cable.

Features

  • Supports high quality RGB video transmission
  • 350 MHz bandwidth
  • Contains 305 m/1000 ft of low skew cable
  • Delay Skew: 1 ~ 350 MHz 20nS/100m Max.
  • Outer Jacket Material: FR PVC
  • Outer Shield Material: Unshielded
  • Conductor Material: 24 AWG solid bare copper
  • Compatible with ATEN analog Cat 5 video extenders, KVM extenders, and Cat 5 KVM switches
  • UL, ETL approved

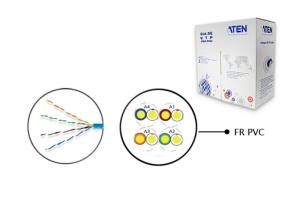

Diagram

Specifications

Item

24AWG 4p

Cable Length

305 m/ 1000 ft

Conductor Resistance

9.38 Ohm/100m/20C Max.

Mutual Capacitance

56 Pf/M Max.

Dielectric strength

Ac 1.5 Kv/2 Sec.

Spark Test

2.5 Kv

Insulation

Unaged

Tensile Strength: 2400 Psi Min. (1.69 Kg/M(mxm))

Elongation: 300% Min.

Aged

Tensile Strength: Unaged Min. 75%(100C48hrs)

Elongation: Unaged Min. 75%(100C48hrs)

Jacketed

Unaged

Tensile Strength: 2000 Psi Min.(1.41 Kg/M(mxm))

Elongation: 100% Min.

Aged

Tensile Strength: Unaged Min. 85%(100C240hrs)

Elongation: Unaged Min. 50%(100C240hrs)

Insulation Shrinkback

150m/M, 121C1C1hr9.5m/M

Cold Bend Test

-20C4hrs No.Crack

Flame Retardant Test

CMR

Ac Leakage Current Througt Overall Jacket

Ac 1500v10 Ma

Dc Resistance Unbalance

5% Max.

Pair-To-Ground Capacitance Unbalance

330 Pf/100m Max.

Characteristic Impedance

1 - 350 Mhz 10015 Ohms

Structural Return Loss

350 Mhz 10.6db Min.

Propagation Delay

350 Mhz 536ns/100m Max.

Delay Skew

1 - 350 Mhz 20ns/100m Max.

Physical Properties

Weight

9.80 kg

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
