All stock codes associated to this product
121SXE296KR, 121-SX-E296-KR, 21EX299MICROATXV2, 21E-X299-MICRO-ATX-V2, 4250812422576

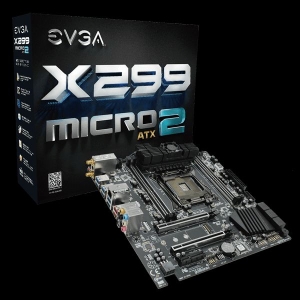

EVGA 121-SX-E296-KR X299 MICRO ATX 2, 121-SX-E296-KR, LGA 2066, Intel
X299, SATA 6Gb/s, USB 3.1 Gen2, USB 3.1 Gen1, mATX, Intel
Motherboard
Overview
Specifications
- Chipset Intel X299
- SLI 2-Way
- SATA 6 SATA 6.0Gb/s Ports
- RAID 0, 1, 5, 10
- USB 8 USB 3.1 Gen.1 / 4 USB 2.0
- Memory Support Up to 4 DIMM Quad-Channel (up to 64GB) DDR4
4000MHz+
- Capacitors Solid State
- Ethernet 1x Intel Gigabit NIC
- Audio 7.1 Channel High Definition Audio + Optical
- Fan Headers 6 PWM
- PCB 8 Layers
- PCI-E Slot Arrangement 2x16, 1x4
- NVMe Support Yes (PCIe)
Form Factor
- mATX Form Factor
- Length: 9.6in - 244mm
- Width: 9.6in - 244mm
Features
- 100% Solid State Capacitors
- 150% Increased Socket Gold Content
- 1x M.2 Key E (32mm) + 1x M.2 Key M (80mm)
- Dual 8 Pin CPU Power
- EVGA E-LEET X Tuning Support
- EVGA's Latest GUI BIOS Featuring OC Robot and In-BIOS Stress
Testing
- External Clock Gen.
- Highly-Efficient 14 Phase Digital VRM
- Included Intel Dual-band WiFi / BT4.2 with external antenna
- Intel VROC Support
- Intel Optane Memory Ready
- New Integrated EVGA WiFi/BT Module
- Onboard CPU Temp Monitor
- Onboard Power, Reset, and Clear CMOS
- Reinforced PCIe and DIMM slots
- SPI flashing via USB allows you to flash your BIOS without a
CPU
- Supports Intel Core X-series Cascade Lake-X and Skylake-X
Processors
Operating System Support
- Windows 10 32/64bit
- Windows 8 32/64bit
- Windows 7 32/64bit
Product Warranty
This product comes with a 3 year warranty. Registration is
recommended.
