All stock codes associated to this product
123CSE397KR, 123-CS-E397-KR, 21EZ390FTW, 21E-Z390-FTW, 4250812422576

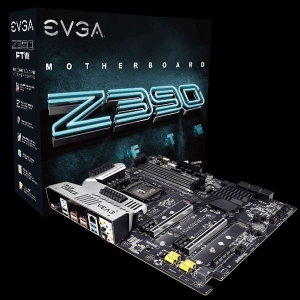

EVGA Z390 FTW, 123-CS-E397-KR, LGA 1151, Intel Z390, SATA 6Gb/s, USB
3.1, USB 3.0, ATX, Intel Motherboard
Overview
Specifications
Specifications
- Chipset Intel Z390
- SLI 2-Way SLI
- SATA 6x SATA 6Gb/s
- RAID 0, 1, 5, 10, JBOD
- USB 6x USB 2.0 (2x Rear I/O, 4x from 2 Internal Headers)
- Memory Support 4 DIMM Dual-Channel DDR4 4133MHz+ (up to 64GB)
- Capacitors 100% Solid State
- Ethernet Intel i219V Gigabit NIC
- Audio Realtek ALC1220 7.1 Channel HD Audio + Nu Audio
- Fan Headers 6 (2 CPU PWM, 4 PWM/DC)
- PCB 6 Layers
- PCI-E Slot Arrangement 2x16, 1x4, 2x1
- NVMe Support Yes (PCIe)
Form Factor
- ATX Form Factor
- Length: 12in - 305mm
- Width: 9.6in - 244mm
Features
- 100% Solid State Capacitors
- 150% Increased Socket Gold Content
- 3 Year Warranty
- EVGA E-LEET X Tuning Support
- Highly-Efficient 11 Phase Digital VRM
- Intel Optane Memory Ready
- Onboard Clear CMOS, Power and Reset Buttons
- Onboard CPU Temperature Monitor
- Realtek 7.1 Channel HD Audio + EVGA NU Audio
- Reinforced PCIe and DIMM slots
- RGB Header Support
- SPI flashing via USB allows you to flash your BIOS without a
CPU
Operating System Support
- Windows 10 32/64bit
- Windows 8 32/64bit*
- Windows 7 32/64bit*
- *Intel Kaby Lake-S CPUs only support Windows 10.
- Intel Skylake CPUs support:
- Windows 10
- Windows 8
- Windows 7
Product Warranty
This product comes with a 3 year warranty. Registration is
recommended.
