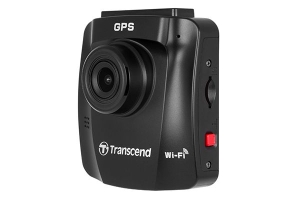

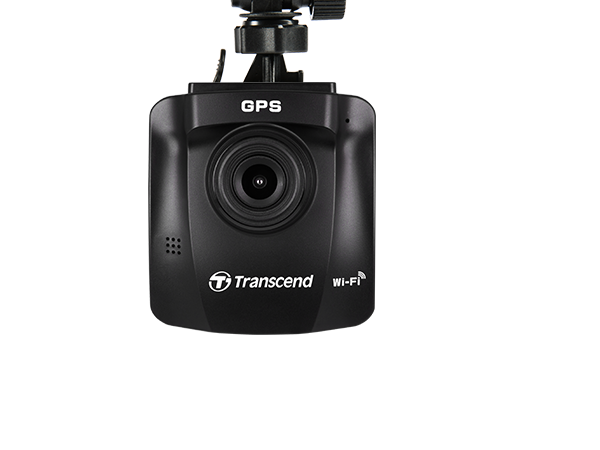

Transcend TS-DP230M-32G DrivePro 230 Suction Mount
Overview
Transcend's DrivePro 230 dashcam was designed with both style and safety in
mind. The DrivePro 230 features a Exmor image sensor to capture high-resolution
videos with extremely fine tonal gradation even in low light. In addition, it
features a GPS/GLONASS receiver, a built-in battery, a handy snapshot button,
and Wi-Fi connectivity. More than just a safety device, Transcend's DrivePro 230
is a fellow traveler ready to explore more of the world with you.

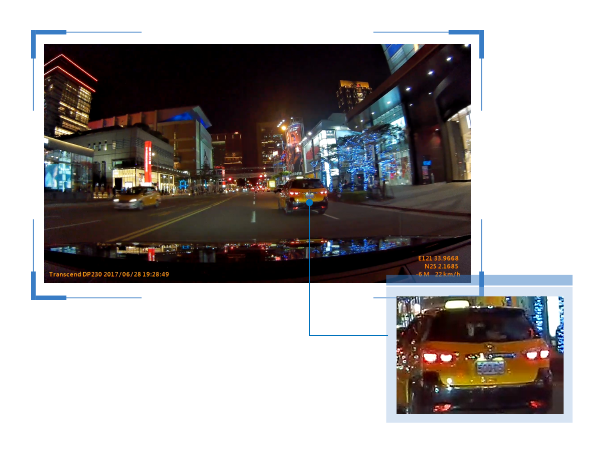

Exmor high-sensitivity image sensor
The DrivePro 230 uses a Exmor sensor to capture high-resolution images with
superb, rich color even in low light. Its built-in Wide Dynamic Range (WDR)
technology balances the light and dark areas of captured images, ensuring that
every critical shot is as clear as possible.
GPS/GLONASS receiver
The DrivePro 230's GPS/GLONASS receiver can log coordinates, date, and time
into recorded video footage. The coordinates precisely locate where an incident
happened so that emergency road services, police, or an insurance representative
can respond more quickly.

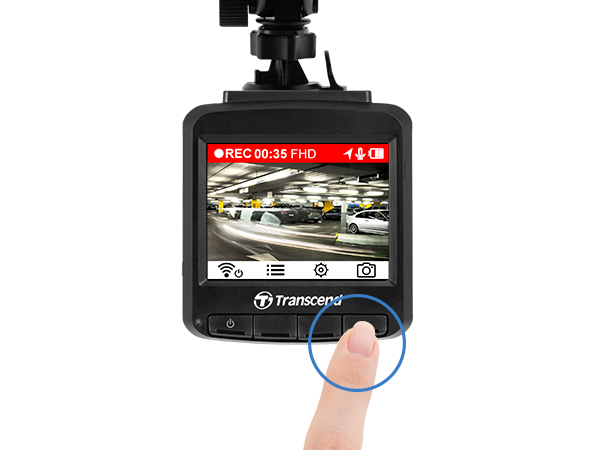

Handy snapshot function
The snapshot button allows you to take photos while still recording video.
During an incident, you can remove the DrivePro 230 from the vehicle to create a
photographic record of collision damage.
Built-in battery
A built-in Li-Polymer battery ensures uninterrupted power to the device.
Video will continue to be recorded and stored in the event of an accident or
when the engine is off.

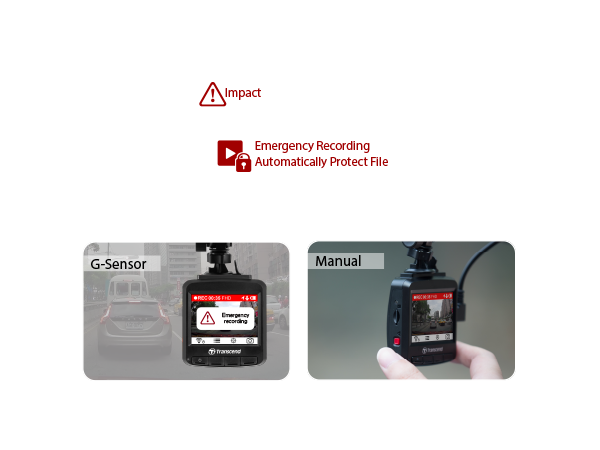

Emergency recording
In the event of a collision, the DrivePro 230's motion G-sensor detects the
impact and triggers emergency recording mode. This prevents overwriting of the
file being recorded at the time. This feature can also be manually activated by
pressing the red button on the side of the unit.

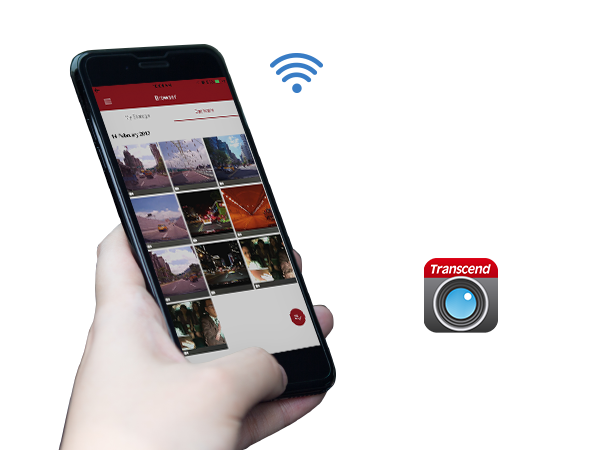

Wi-Fi connectivity
The DrivePro 230 features Wi-Fi connectivity that works with the exclusive
DrivePro App to provide real-time footage playback and download. This means ease
of access to video evidence for reporting incidents to law enforcement and
insurance companies without the need to pull out the memory card.
Stay protected when away
In addition to on-the-road safety, the DrivePro 230 stands sentry when the
vehicle is parked at a public parking lot. While the vehicle is parked, you can
enable the parking mode or the time-lapse video recording function. The former
activates recording when motion is detected; the latter enables you to get right
to the heart of the matter without needing to view hours of incident-free
footage.
Note: These two features require external power supply after the car engine
is switched off.
Lane Departure Warning System
The Lane Departure Warning System (LDWS) helps to prevent accidents by
issuing a warning when a vehicle veers out of a lane. The system monitors lane
markings, and displays an onscreen alert while making a warning sound whenever
the vehicle's speed exceeds a preset value or when the vehicle deviates from its
path.

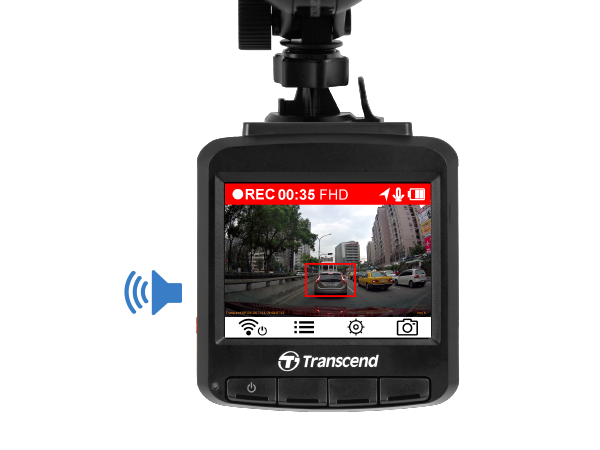

Forward Collision Warning System
The Forward Collision Warning System (FCWS) warns the driver when the driving
speed exceeds a preset value, such that the vehicle is getting too close to the
car ahead. The system will in either case alert the driver with a warning sound
and an onscreen alert.

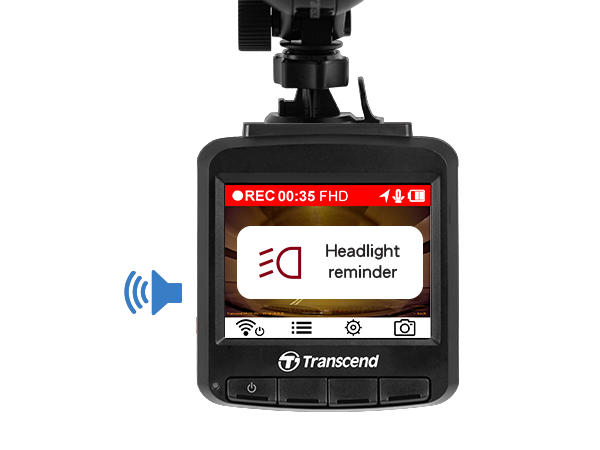

Headlight reminder
When the DrivePro detects poor lighting conditions, for example at dusk, or
in dark places such as a tunnel and basement, the headlight reminder will
automatically activate.

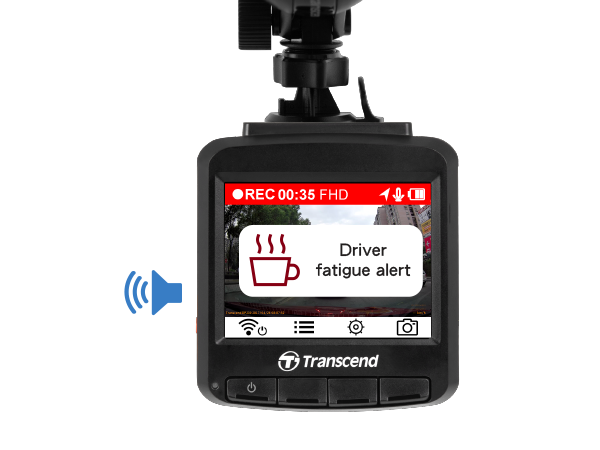

Driver fatigue alert
To help prevent tired drivers from getting into an accident, the driver
fatigue alert regularly reminds the driver of the need to rest after driving for
a preset, driver-determined period of time.
Exclusive DrivePro Toolbox software
In addition to playback, Transcend's DrivePro Toolbox features a sorting
function to quickly locate video clips by file name, recording date, or group.
The DrivePro Toolbox also provides a screenshot function allowing for the
capture of a single frame. For DrivePro models with a GPS/GLONASS receiver, the
Toolbox can display driving paths on maps along with the recorded video.
A microSD card included
The DrivePro 230 comes bundled with a Transcend memory card built of
high-quality NAND flash, and tested under harsh environmental conditions.

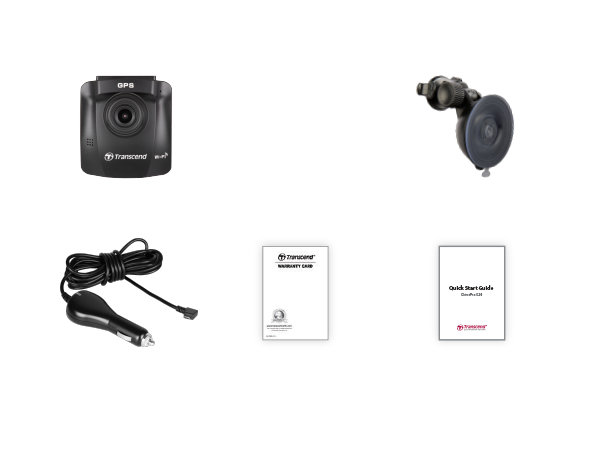

Inside the package
- DrivePro 230
- microSD memory card
- Suction Car mount
- Car lighter adapter
- Warranty card
- Quick Start Guide

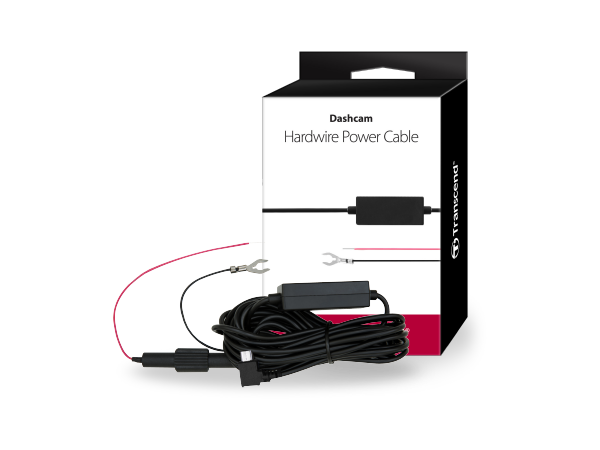

Optional Hardwire Power Cable (micro-USB)
Transcend's hardwire power cable allows users to wire their DrivePro dashcams
directly into their vehicle's fuse box. Transcend's hardwire power cable has
built-in power protection circuitry to prevent damage to either your vehicle or
your DrivePro dashcam in the case of a short circuit or power
surge.
Specifications
Appearance |

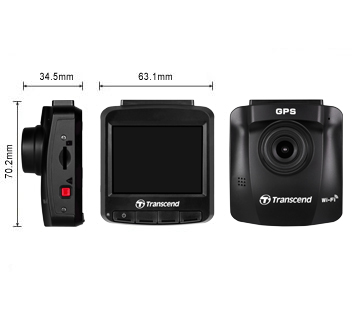

Dimensions |
70.2 mm x 63.1 mm x
34.5 mm (2.76" x 2.48" x 1.36") |
Weight |
81 g (2.86
oz) |
Interface |
USB
Type |
micro USB to car
lighter adapter |
Connection
Interface |
USB
2.0 |
Network
Interface |
Wi-Fi
802.11n |
Hardware |
Display |
2.4" color TFT
LCD |
Viewing Angle for
Lens |
130
(diagonal) |
Aperture |
F/2.0 |
Operating
Environment |
Operating
Temperature |
-20C (-4F) ~ 65C
(149F) |
Storage
Temperature |
-25C (-13F) ~ 70C
(158F) |
Input
Voltage |
12V ~
24V |
Output
Voltage |
5V /
1A |
Note |
Do not operate the
DrivePro dashcam while driving. |
If the lighter socket
in your car continues to provide power after the engine is switched off,
unplug the DrivePro when the engine is off or idling to reduce unnecessary
power consumption and prevent malfunction. |
Format |
Resolution |
Full HD
1080P |
Frame
Rate |
30
fps |
Video
Format |
MOV
(H.264) |
Warranty |
Certificate |
CE/ |
FCC/ |
BSMI/ |
NCC/ |
MIC/ |
KC |
Warranty |
Two-year Limited
Warranty |
Warranty
Policy |
Please click here for more
information about the Transcend Warranty
Policy. |
Transcend's warranty
does not apply to the improper usage of product, including the following
conditions: |
Use of a non-Transcend
car adapter |
Product
modifications |
Use of product in
abnormal temperatures |
Package |
Package
Contents |
Full
unit/ |
microSD memory
card/ |
Car
mount/ |
Car lighter
adapter/ |
Warranty
card/ |
Quick Start
Guide |
System
Requirement |
Operating
System |
Microsoft Windows
7 |
Microsoft Windows
8 |
Microsoft Windows
10 |
OS X Mountain Lion
10.8.2 or later |
Linux Kernel 2.6.38 or
later |
Memory Card
Supported |
32
GB/ |
Note |
In addition to the
bundled microSD card, we recommend Transcends High Endurance microSD cards
or MLC-based memory cards to ensure the best recording
performance. |
16GB/32GB High
Endurance microSDHC card (TS16GUSDHC10V /
TS32GUSDHC10V) |
