All stock codes associated to this product
GAMMAXXL120V2, GAMMAXX L120 V2, CFDGAMMAXXL120V2, CFD-GAMMAXXL120-V2, 6933412726647

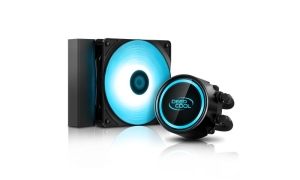

Deepcool Gammaxx L120 V2 RGB LED Liquid Cooler
Design
GAMMAXX L series AIO coolers are known for their powerful performance, neat
appearance, and tempting cost efficiency. The GAMMAXX L120 V2 upgraded the its
reliability with Anti-leak Tech Inside system, so users can enjoy extreme
processor performance without any leakage concerns.
About Anti-leak Tech Inside
After 3 years of R&D, DEEPCOOL launched the new standard of liquid
cooling system - The Anti-leak Tech. The technology helps the system achieve an
automated pressure balance, which will significantly improve operation safety of
AIO liquid cooling systems. With this technology, Deepcool is setting a new
standard for liquid cooling systems.
Optimized Micro Water-channel
E-shaped micro water-channel design can effectively enhance the heat
circulation efficiency and enlarge the thermal contact area.
Motherboard RGB Control
The brand new water block and fan built-in 12V RGB lighting system fulfill
your aesthetic desires and supports mainstream motherboards with synchronized
lighting control.
Support Mainstream Intel & AMD Socket
Ready for easy mounting and unrestricted direction installation on mainstream
sockets of Intel/AMD.
The included 120mm RGB fan comes with 6 ultra-bright RGB LED lights and PWM
control with super silent performance.
Features
- Anti-leak Tech Inside system equipped.
- Brand new water-block and fan built-in 12V RGB lighting system supports
mainstream motherboards with synchronized lighting control
- E-shaped micro water-channel design can effectively enhance the heat
circulation efficiency and enlarge the thermal contact area.
- 1*120mm fans coming with 6 ultra-bright RGB LED lights and meteor and PWM
control with super silent performance
- Ultra-large, pure copper CPU block provides effective coverage and heat
dissipation for CPUs of any size
- The ceramic axle bearings and axle cores guarantee an ultra-long service
life.
- Support Mainstream Intel & AMD Socket
Specifications
Application For
- Intel
- AMD
- AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
|
Net
Weight |
990
g |
|
Radiator
Dimensions |
15912027
mm |
|
Radiator
Material |
Aluminum |
|
Tube
Length |
310
mm |
|
Pump
Dimensions |
917947
mm |
|
Pump
Speed |
2400
RPM10% |
|
Pump
Noise |
17.8
dB(A) |
|
Pump
Connector |
3-pin |
|
Pump Rated
Voltage |
12
VDC |
|
Pump Rated
Current |
0.2 A |
|
Pump Power
Consumption |
2.4
W |
|
Fan
Dimension |
120x120x25
mm |
|
Fan
Speed |
500-1800
RPM10% |
|
Fan
Airflow |
69.34
CFM |
|
Fan Air
Pressure |
2.42
mmAq |
|
Fan
Noise |
30
dB(A) |
|
Fan
Connector |
4-pin |
|
Bearing
Type |
Hydro
Bearing |
|
Fan Rated
Voltage |
12
VDC |
|
Fan Rated
Current |
0.17
A |
|
Fan Power
Consumption |
2.04
W |
|
LED
Type |
RGB
LED |
|
LED
Connector |
4-pin(+12V-G-R-B) |
|
LED Rated
Voltage |
12
VDC |
|
LED Power
Consumption |
0.84 W (PUMP) / 1.44 W
(FAN) |
|
P/N |
DP-H12RF-GL120V2 |

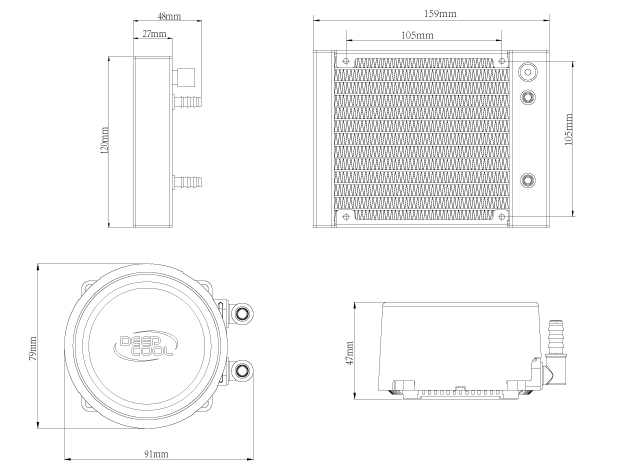

Product Dimension
