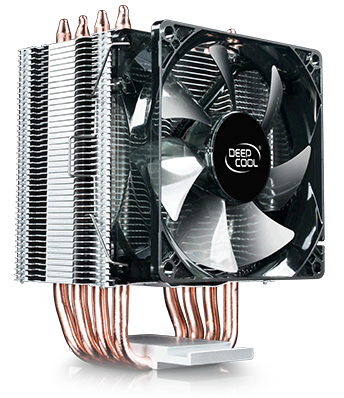

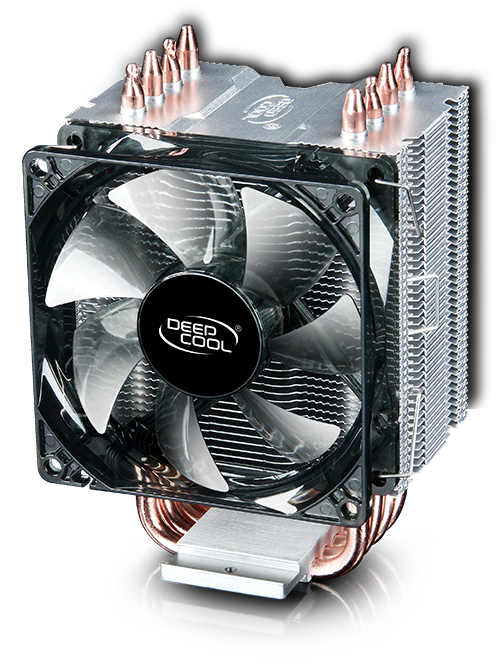

Deepcool GAMMAXX C40 CPU Air Cooler



Description

M-ATX and ITX build fans have long been suffering from size or price mismatching when choosing CPU coolers. To cure the headache, Deepcool brings the ultimate cooling solution that combines all advantages - Gammaxx C40.

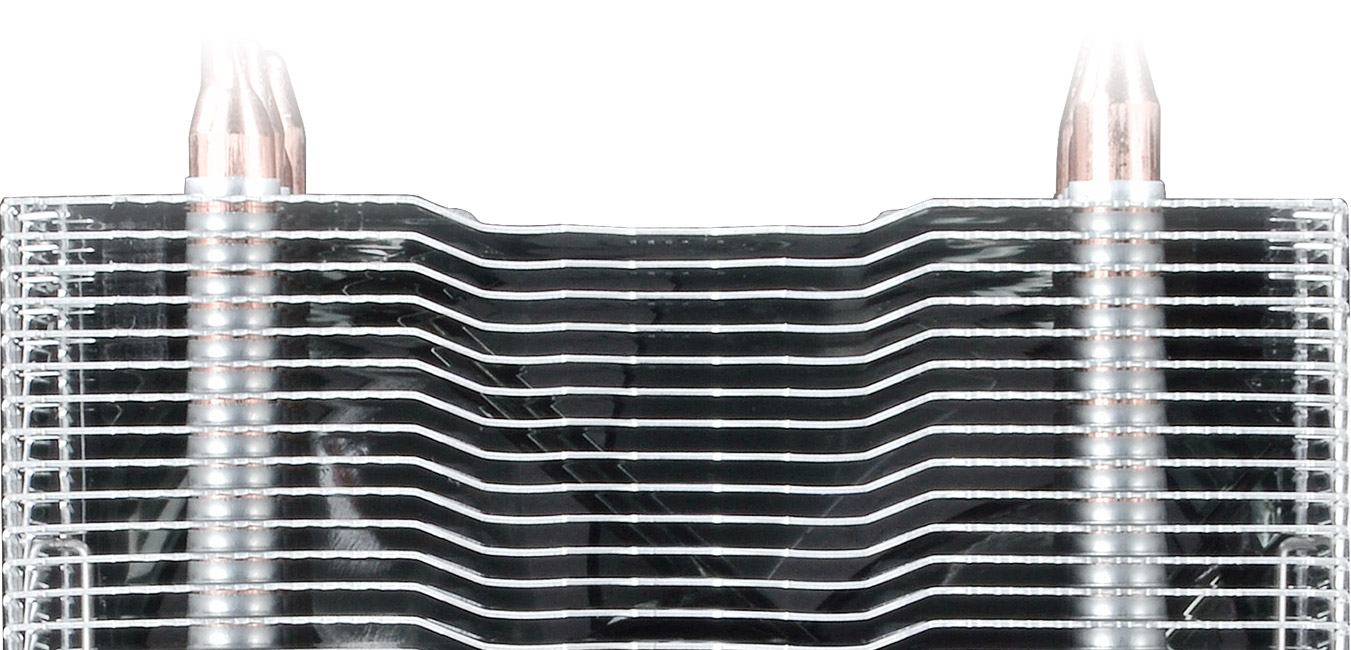

Compact but Powerful

Gammaxx C40 is only 137mm tall, but the specially designed compact fin and the 92mm powerful fan make it marvelous in performance, able to support chipsets of TDP up to 130W.

Offcenter to Avoid RAM Interference

To avoid interference, the heat sink of Gammaxx C40 is designed to lean away from RAM. The offcenter design allows the users to enjoy fully-loaded RAM and the cooling solution at the same time.

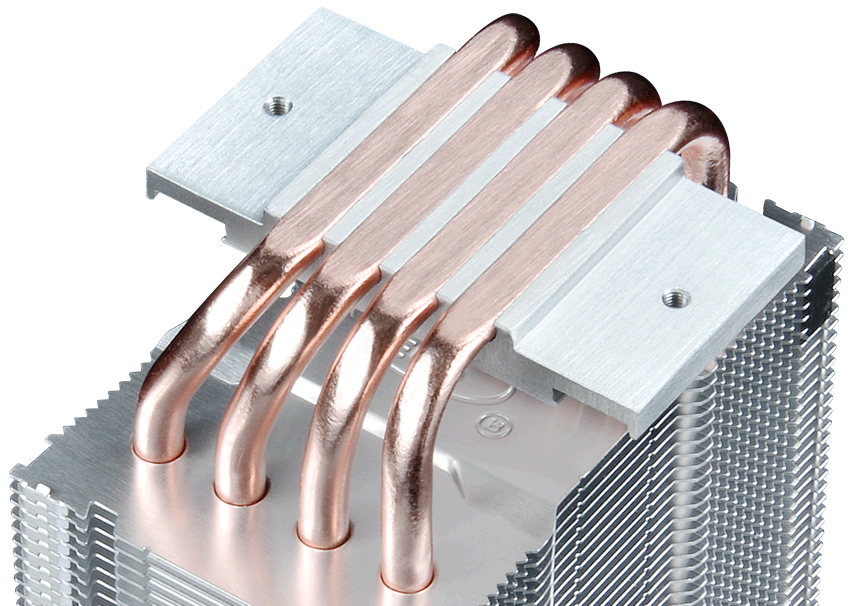

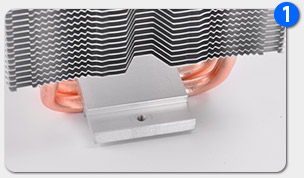

4 Heatpipes Directly Touching the Core

4*6 mm heatpipes are constructed with Core Touch Technology (CTT) for direct contact on the chipset. Thus the heat can be carried out directly by the heatpipes and dissipated efficiently through the aluminum fins.

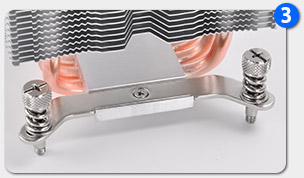

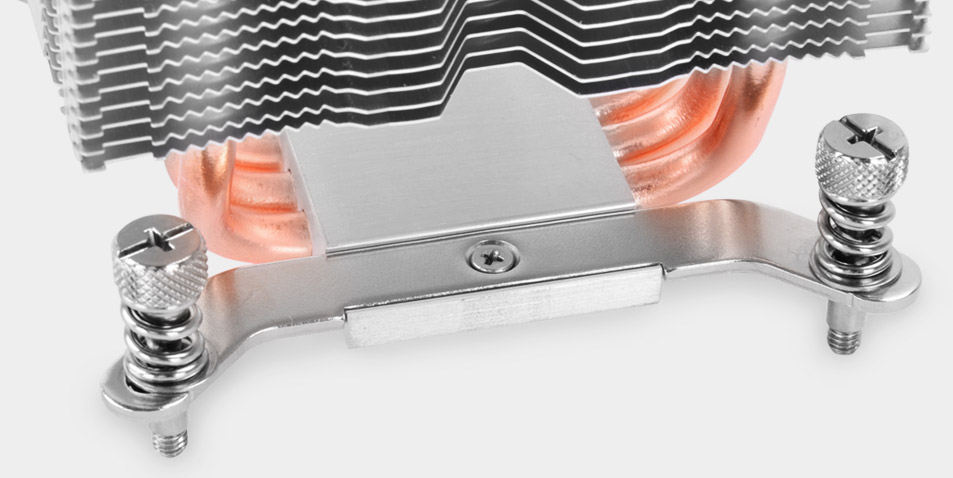

Easy Installation, Strong Structure

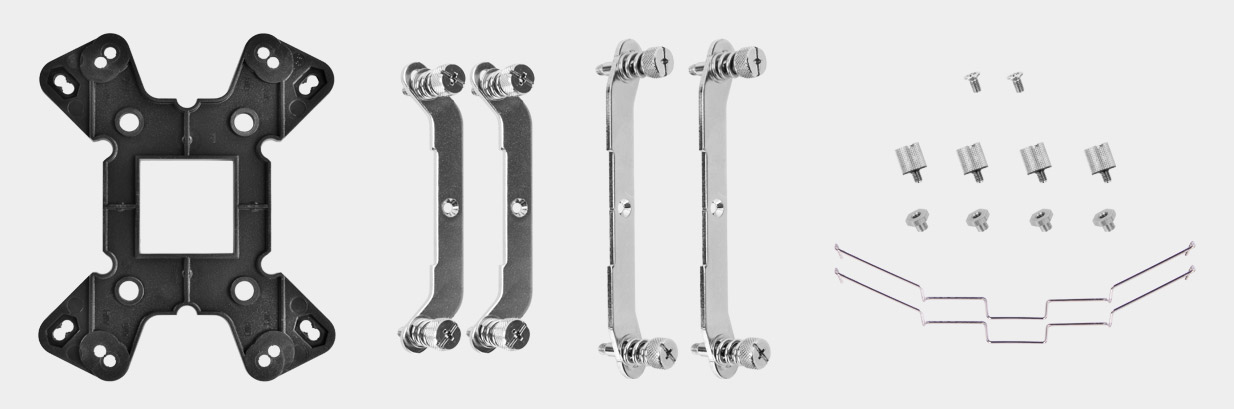

The metal adapter frame is simple to install, and the backplate bracket provides a steady fixation against any motion

Features

  • Small in size with height of 137mm, using 92mm fan.
  • Powerful performance, Compact fin design + powerful fan makes it capable to support chipsets up to TDP 130W.
  • Offcenter heatsink structure to avoid interference with RAM.
  • 4*6 mm heatpipes directly in contact with CPU, absorbing and dissipating the heat more efficiently.
  • Special backplate bracket and metal adapter frame makes the mounting easy and structure strong.

Specifications

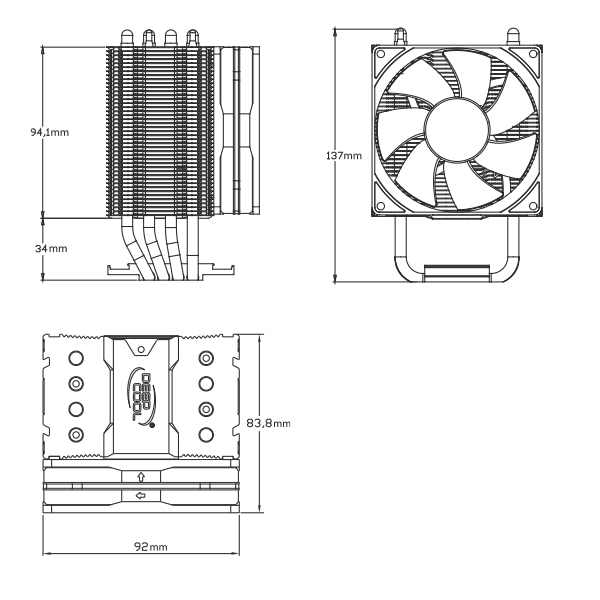

Product Dimension

92x83.8x137 mm

Heatsink Dimension

92x58.5x137 mm

Net Weight

595 g

Heatsink Weight

377 g

Heatpipe

6 mm4 pcs

Fan Dimension

92x92x25 mm

Fan Speed

500~2000 RPM10%

Fan Airflow

33 CFM

Fan Air Pressure

2.31 mmAq

Fan Noise

23.9 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Hydro Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.06 A

Fan Power Consumption

0.72W

Socket Compatibility

Intel LGA20XX/1151/1150/1155/LGA1366; AMD AM4/AM3+/AM3/AM2+/AM2/ FM2+/FM2/FM1.

EAN

6933412726548

P/N

DP-MCH4-GMX-C40P

Product Dimension

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12

Full manufacturers warranty details are available at the manufacturers web site.
