All stock codes associated to this product
AS6404T, BAAS6404T, BA-AS6404T, 887372000865
Asustor 4 Bay NAS
Overview
A comprehensive 4 bay NAS equipped with an Intel Celeron (Apollo Lake)
quad-core processor for powerful output. Economical and perfect for both home
and personal use.
- Enhanced CPU and GPU provides comprehensive performance
upgrades
- 8 GB of expandable dual-channel memory
- Utilizes the latest HDMI 2.0 and USB 3.0 Type-C specifications
- Unique WOW (Wake-on-WAN) function provides flexible power control and
access

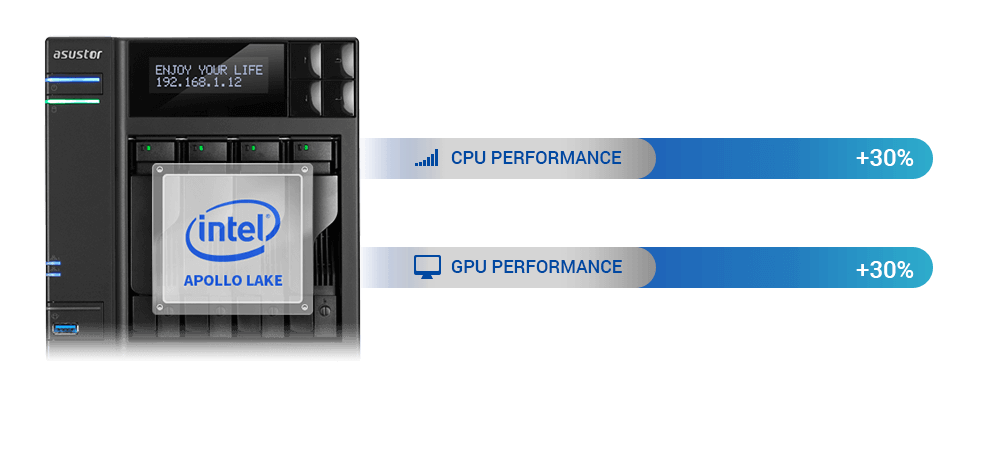

Apollo Lake Processor Maximized Computing
Power
The all new AS6404T is equipped with the Intel Celeron (Apollo Lake) sixth
generation 14nm process built quad-core processor. It features overclocking to
2.3GHz and overall performance that is enhanced by 30% when compared with
previous generations, satisfying the needs for 24/7 access in small business
environments.
Enhanced GPU Increased Multimedia Processing
Power
The AS6404T features a built-in Intel HD graphics engine, supporting HEVC and
VP9 hardware transcoding that significantly enhances multimedia and image
processing performance by 30%. This provides an
unparalleled fluid usage experience for professionals and prosumers
alike.

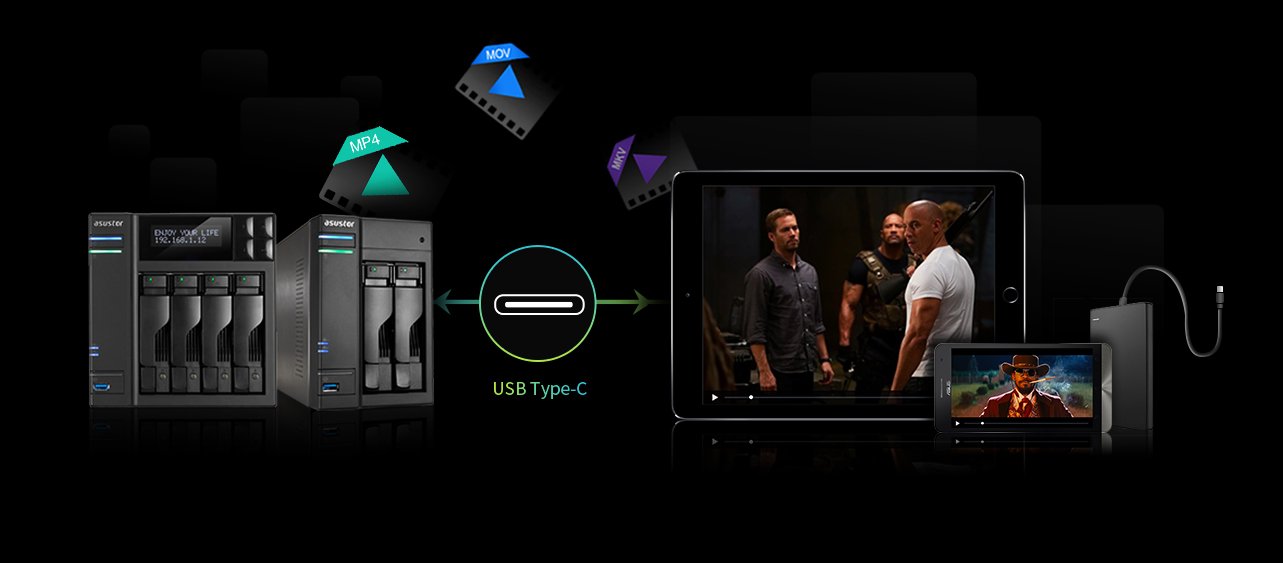

USB Type-C Ports Allow you to Connect to a New Generation of
Devices
In addition to the existing USB 3.0 Type-A ports, the AS63/64 series devices
have added two-way Type-C ports that allow your NAS to easily connect to a new
generation of devices, quickly completing transfers of large multimedia
files.
HDMI 2.0 Combined with 4K/UHD Output Provides Crystal Clear Quality
Displayed Perfectly
The AS63/64 series supports next generation HDMI 2.0 specifications,
featuring up to 60/50P 4K resolution video which provides twice the fluidity of
4K 30P. Combined with built-in 2GB/8GB dual channel memory, this allows for the
playback of 4K/UHD with unparalleled smoothness. No matter if its your treasured
collection of Blu-ray quality movies or videos that you have recorded with
professional quality cameras, ASUSTOR NAS can perfectly display all of it in
crystal clear quality.
WOW (Wake on WAN) Always on Standby
Want to access the data on your NAS at any time, but worried that leaving it
powered on for a long period of time will result in costly power bills, wear and
tear on your hard disks and NAS or that you will become the target of hackers?
ASUSTOR has provided the AS63/64 series devices with two types of unique network
wake (WOL/WOW) functions easing all of the doubts mentioned above! WOL (Wake on
LAN) allows you to wake the NAS from sleep mode or when its powered off as long
as you are in the same network. WOW (Wake on WAN) allows you to enable all NAS
services via the Internet, providing added flexibility for powering on/off the
NAS and data access. These two types of network wake functions allow you to save
power, extend the life of your NAS and hard disks, and lower your chances of
being randomly hacked, ensuring data security.

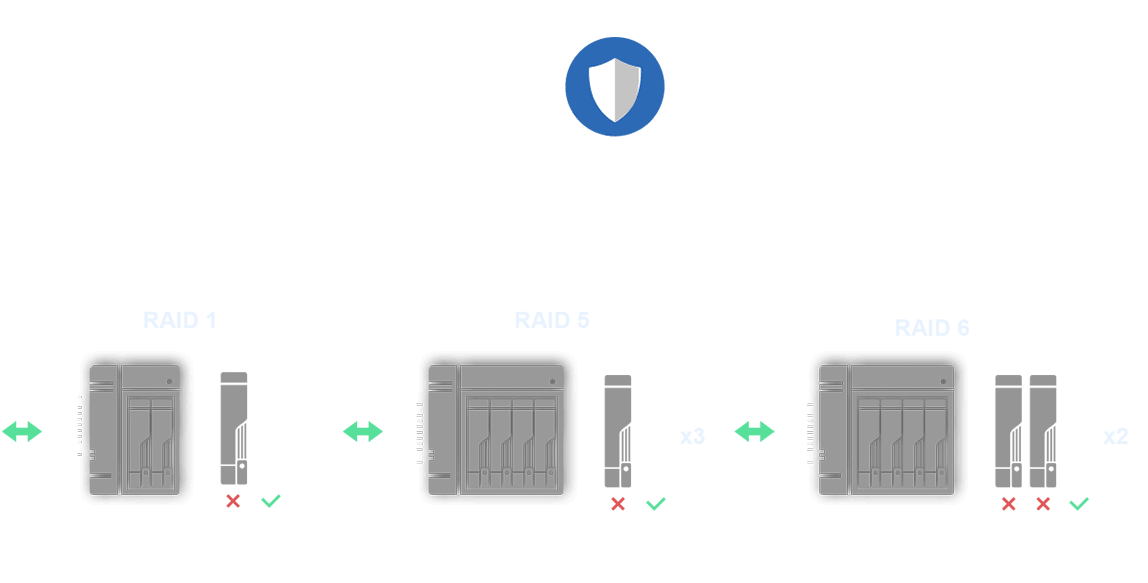

Data Protection Starts with Storage
ASUSTOR understands that your data is priceless, therefore ASUSTOR NAS
provides different RAID Volume options, giving your data various levels of
protection from the moment it is first stored on the NAS. We recommend you plan
your storage protection based on your NAS model and number of hard disks. Data
protection has never been so simple.
Apollo Lake Processor Green Energy Efficiency
All ASUSTOR NAS products are designed and developed around ecologically
friendly concepts. Not only do ASUSTOR NAS devices consume far less power than
the average computer or server, but ASUSTORs power saving and management
functions allows users to plan out a whole weeks power control schedule. Power
scheduling can allow the NAS to power on, power off, sleep or perform other
tasks at specified times of the day. This function can help to save a
considerable amount of power while also prolonging the life of hard disks.
Additionally, the new advanced WOW (Wake-On-WAN) function allows users to wake
their NAS and access their files at any time.
Comprehensive Backup Solutions
The AS63 /64 provides over 12 different backup options and is connected to a
variety of public cloud storage services including Amazon S3, Dropbox, Google
Drive, OneDrive, Box.net, HiDrive, Ralus, WonderBox, xCloud and CrashPlan. You
can also use FTP Explorer, USB external hard drive enclosures, external hard
drives and local backup to ensure proper backup for your data. No matter if you
are using Windows, Mac or Linux, ASUSTOR provides the proper tools for your
backup needs.

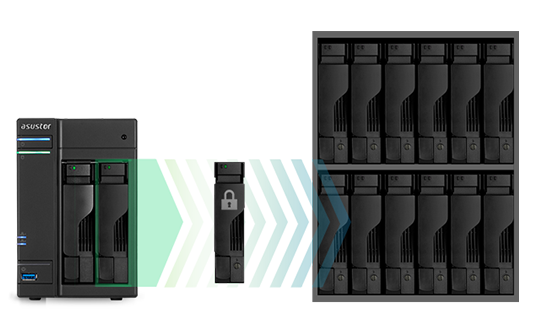

MyArchive cold backup technology turns NAS hard disks into removable storage
archives. Directly insert a MyArchive hard disk into the NAS to easily access,
backup and share terabytes of content.
Comprehensive Backup Solutions
The AS63 /64 provides over 12 different backup options and is connected to a
variety of public cloud storage services including Amazon S3, Dropbox, Google
Drive, OneDrive, Box.net, HiDrive, Ralus, WonderBox, xCloud and CrashPlan. You
can also use FTP Explorer, USB external hard drive enclosures, external hard
drives and local backup to ensure proper backup for your data. No matter if you
are using Windows, Mac or Linux, ASUSTOR provides the proper tools for your
backup needs.
MyArchive cold backup technology turns NAS hard disks into removable storage
archives. Directly insert a MyArchive hard disk into the NAS to easily access,
backup and share terabytes of content.
- Saves power during system standby
- Create an unlimited number of MyArchive hard disks
- Utilizes built-in SATA 6 GB/s interface for faster data
transfers
- Compatible with add-on NFS/EXT4/HFS+ file system devices
- Supports AES 256-bit encryption
- Decryption via physical USB key
Integrates a Variety of Enterprise Applications

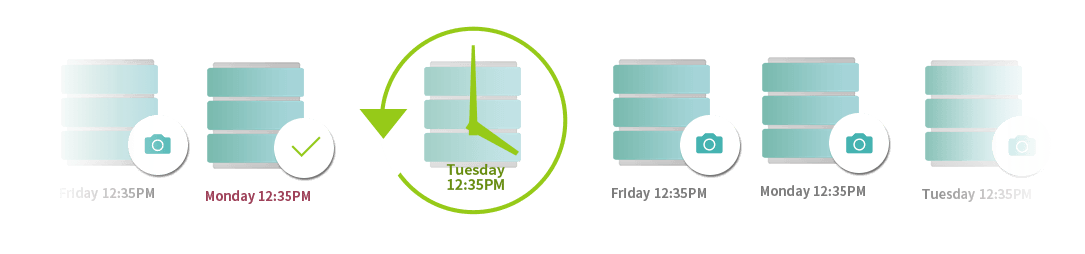

iSCSI LUN Snapshots
ASUSTORs snapshot technology provides almost instantaneous creation of
snapshots. It saves a significant amount of time and storage capacity when
compared with traditional LUN backups. Should files become damaged or corrupted,
the simple and intuitive interface allows administrators to quickly restore
data, completing disaster recovery in the fastest time possible and providing
uninterrupted service.

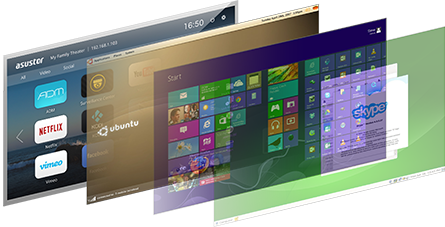

Virtual Machine Applications
Turning your NAS into a computer with 24/7 availability and tremendous energy
efficiency is no longer just a dream. You will be able to use VirtualBox to
install different types of operating systems to your NAS, creating virtual
machines. After creating a virtual machine, your NAS can become your companys
backup computer, allowing IT staff maximize resources and achieve optimal
effectiveness.
Multi-Layered Protection from the Outside in
ASUSTOR NAS ensures data security by creating an in-depth data protection
plan that protects your data from the outside in. Utilization of a multi-layered
deployment scheme allows for the achievement of active network, system and data
protection.

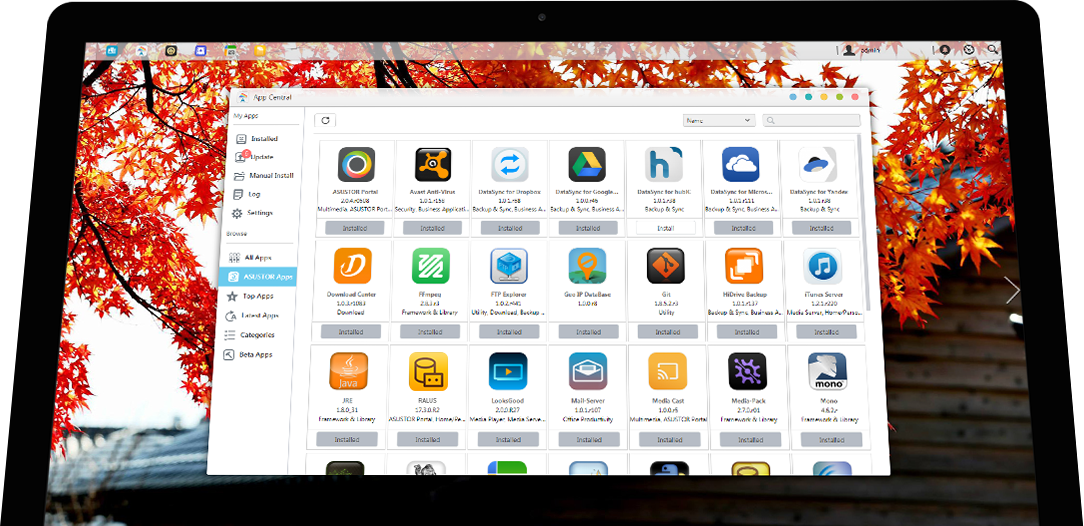

App Central
Unleash the unlimited potential of ASUSTOR NAS. The applications that come
pre-installed with each ASUSTOR NAS device are just the beginning. At your
convenience, you can browse through and download any applications that pique
your interest from App Central. Whether your interests lie in business, website
construction or even digital home entertainment, App Central has got you
covered. With over 200 unique Apps, App Central provides you with the boundless
variety of applications that you require to satisfy your digital lifestyle
needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a
personalized NAS device for yourself.

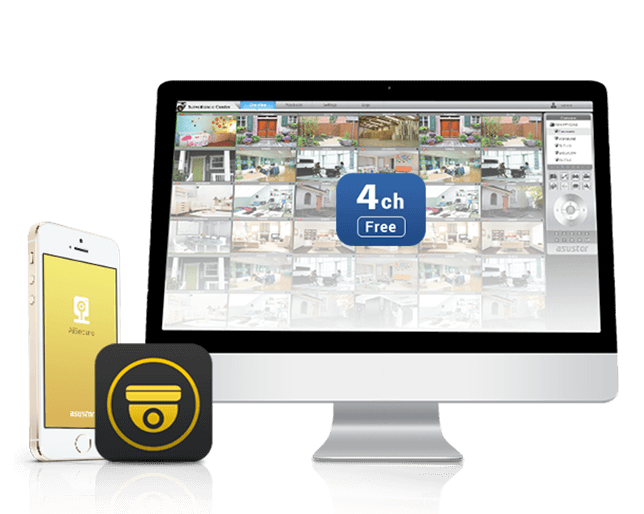

Comprehensive Surveillance System
The powerful ASUSTOR NAS provides optimal reliability for home and SMB users
looking to set up a surveillance system. 4 free camera channels are offered,
making it an extremely cost-effective surveillance solution for users with
smaller demands. For users with larger demands, the number of camera channels
can be expanded up to 36 via purchasable camera licenses. After installing
Surveillance Center and its corresponding mobile app AiSecure, users will also
be able to stream live surveillance feeds to their smartphones while on the go,
keeping an eye on their most valued assets from anywhere.
Created for the Digital Home
ASUSTOR NAS allows you to enjoy thrilling digital entertainment at any time.
Via the built-in HDMI port and various multimedia Apps the NAS can be connected
directly to ultra high resolution TVs and players. Enjoy multimedia with family
and friends or use the UPnP multimedia server to stream your favorite media to
compatible computers and mobile devices.

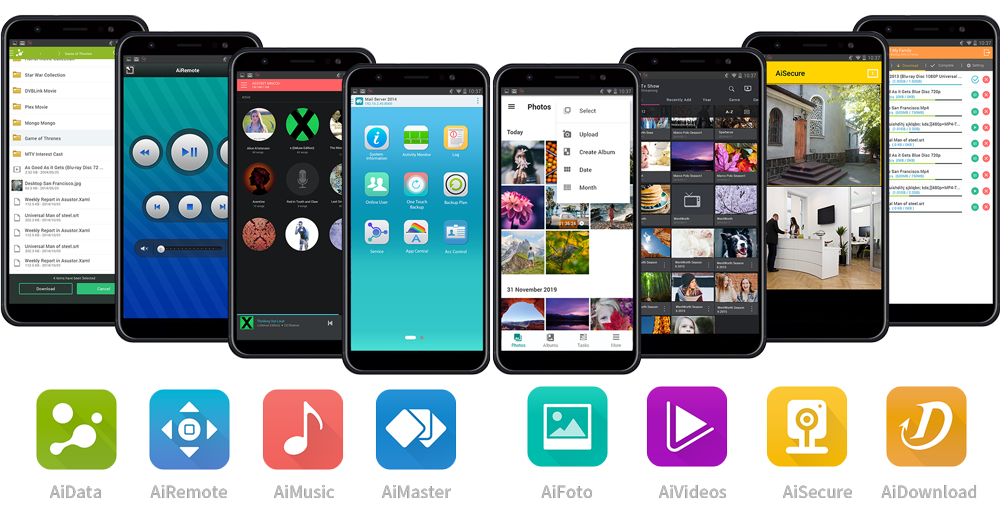

Mobile Apps
ASUSTORs exclusive EZ Connect technology allows you to connect to your NAS
from anywhere with your Mobile device in order to access and share your files.
ASUSTOR mobile apps provide pass code lock functions in order to protect your
privacy and data. You can also make use of HTTPS connections for even more added
security.
First-Class Product Warranty
All ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to
make customer service a priority in providing the highest standard of
after-sales service and technical support.
Specifications
HARDWARE |
|
CPU |
|
CPU
Model |
Intel Celeron
J3455 |
CPU
Architecture |
x64
64-bit |
CPU
Frequency |
Quad Core 1.5 GHz
(burst up 2.3GHz) |
AES-NI hardware
encryption engine integrated |
Yes |
Memory |
|
Memory |
8GB SO-DIMM
DDR3L |
Memory Module
Pre-installed |
8GB (2 x
4GB) |
Total Memory
Slots |
2 |
Memory Expandable up
to |
8GB (2 x
4GB) |
Support mixed
capacity |
Flash
Memory |
8GB
eMMC |
Storage |
|
HDD |
4 x SATA3 6Gb/s;
3.5"/2.5" HDD/SSD Compatibility |
Maximum Internal Raw
Capacity |
64 TB (16 TB HDD
X 4, Capacity may vary by RAID types) |
Maximum Drive Bays
with Expansion Unit |
16 |
Maximum Raw Capacity
with Expansion Units |
256 TB (16 TB HDD
X 16, Capacity may vary by RAID types) |
External
Ports |
|
Expansion |
USB 3.0 x 4 (Type A x3,
Type C x1) |
Network |
Gigabit Ethernet x
2 |
HDMI
Output |
HDMI 2.0 x 1, S/PDIF
x1 |
Others |
|
System
Fan |
120mm x
1 |
LCD
Panel |
Yes |
Infrared
Receiver |
Yes |
Power Supply Unit /
Adapter |
90W
x1 |
Input Power
Voltage |
100V to 240V
AC |
Certification |
FCC, CE, VCCI, BSMI,
C-TICK |
Operation |
|
Power
Consumption |
24 W
(Operation); |
11.2 W (Disk
Hibernation); |
0.44 W (Sleep Mode)
|
Noise
Level |
17.6dB (HDD
idle) |
Operation
Temperature |
0C~40C
(32F~104F) |
Humidity |
5% to 95%
RH |
Size and
Weight |
|
Size |
185.5(H) x 170(W) x
230(D) mm |
Weight |
2.9 kg / 6.39
lb |
|
|
SOFTWARE |
|
General
Specifications |
|
Supported
OS |
Windows XP, Vista, 7,
8, 10, Server 2003, Server 2008, Server 2012 |
Mac OS X 10.6
Onwards |
UNIX, Linux, and
BSD |
Supported
Languages |
Deutsch, English,
Franais, Italiano, Nederlands,, ,
,
,
,
esk,Polski, Svenska, Dansk, Norsk, Suomi, Portugus,Trke, Espaol,
Magyar |
Supported
Browsers |
Internet Explore 11
Onwards |
FireFox |
Chrome |
Safari |
Microsoft
Edge |
Network |
|
Network
Protocols |
CIFS / SMB, SMB 2.0 /
3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH,
SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog |
Connection and
transmission |
TCP/IP (IPv4 &
IPv6) |
Link Aggregation:
Supports 802.3ad and Six Other Modes for Load Balancing and/or Network
Failover |
Jumbo Frame
(MTU) |
VLAN |
EZ
Connect |
Wireless
Network |
DDNS and
EZ-RouterCompatibility |
Supports Wake-on-LAN
(WOL) |
Supports Wake-on-WAN
(WOW) |
File Management
& Sharing |
|
File
System |
Internal Disk: EXT4
,Btrfs |
External Disk: FAT32,
NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs |
File
Explorer |
Web-based File
Management |
ISO File
Mounting |
Share
Links |
Task
Monitor |
Browse Files on Local
PC |
Thumbnail
Previews |
Data Access via
External Optical Drive |
Supports video
playback |
Network Recycle
Bin |
Share
folder-based |
Maintains original
directory structure and file permission |
On-click
restore |
Supports scheduled
emptying |
Filtering
rules |
1. File
size |
2. File
extension |
Deletion
Settings |
1. File
size |
2. File
date |
Storage
management |
|
RAID |
Support Multiple
Volumes with Spare Disks |
Volume Type: Single
disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
Support for Online RAID
Level Migration |
MyArchive |
Insert Hard Disk &
Immediately Access Files |
Transfer or Exchange
Terabytes of Data via the Internal Hot-Swap SATA
Interface |
Up to N-1 Bays Reserved
for MyArchive Docking Purposes |
Compatible with add-on
NFS/EXT4/HFS+ file system devices |
Supports AES 256-bit
encryption |
Decryption via physical
USB key |
iSCSI/IP-SAN |
Maximum Targets:
256 |
Maximum LUNs:
256 |
Maximum Snapshot
Versions of a Single LUN: 256 |
Target
Masking |
LUN
Mapping |
ISO File
Mounting |
Supports
MPIO |
Persistent (SCSI-3)
Reservations |
Disk
Management |
Scheduled Bad Block
Scans |
Scheduled S.M.A.R.T
Scans |
Access &
Security |
|
Access
Control |
Maximum Number of
Users: 4096 |
Maximum Number of
Groups: 512 |
Maximum Number of
Shared Folders: 512 |
Maximum Number of
Concurrent Connections: 512 |
Supports Windows Active
Directory |
Supports Windows Active
Directory / LDAP |
ACL |
Provides both Windows
ACL and Linux ACL permission configuration methods |
Can enable Windows ACL
for specific shared folders |
Comprehensive support
for Windows 13 types of advanced permission settings |
Can view Windows ACL
permission settings from within ADM |
Supports local users
and groups |
Exclusive permission
reset function allows users to quickly restore default
permissions |
SSD
Cache |
SSD-like performance
with traditional hard drives |
Supports read-only
access and read-write cache mode |
2.5" SSD supported
Models: AS31/32/50/51/52/53/61/62/63/64/65/70 series |
M.2 SSD supported
Models: AS65 series |
System
Administration |
Log Type: System Log,
Connection Log, File Access Log |
Real-time Online User
Monitor |
Real-time System
Monitor |
User
Quota |
Virtual Drive (ISO
Mounting, Maximum 16) |
UPS
SupportCompatibility |
Security |
AES 256-Bit
Encryption |
Firewall: Prevent
Unauthorized Access |
Alert Notifications:
E-mail, SMS |
Encrypted Connections:
HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH |
Built-in Hardware
Encryption Engine: AS10/31/32/40/52/53/6/61/62/63/64/65/70
Series |
RAID Scrubbing: detects
the integrity and consistency of RAID 5 and RAID 6 drive
data. |
Network
Defender |
Auto black
list |
Trusted
list |
Black/White
list |
Supports IP/IP
range/geolocation |
Backup |
|
Backup
Solutions |
Rsync (Remote Sync)
Backup |
Cloud
Backup |
FTP
Backup |
External
Backup |
One Touch
Backup |
EZ
Sync |
Snapshots |
Btrfs
Snapshots |
256
snapshots |
iSCSI
LUNs |
Support model:
AS31/32/40/50/51/52/53/61/62/63/64/65/70. Snapshot Center will not display
Volume snapshots information in other models. |
Others |
|
ASUSTOR
Hightlight |
System
Migration |
EZ
Connect |
Dr.ASUSTOR |
2-way
Backup |
Task
Monitor |
Eco-Friendly
Design |
System Automatically
Enters Sleep Mode (Schedule S3) |
Auto-Standby for Both
Internal and External Disks |
Auto Fan
Control |
LED Night
Mode |
Power Schedule: On,
Off, Restart, and Sleep. |
Energy
Control |
Configurable Disk
Hibernation and Sleep Mode Wait Time |
Configurable Time
Period for Sleep Mode Activation |
Automatic
Sleep |
