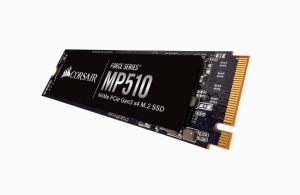

Corsair CSSD-F240GBMP510 Force Series MP510 240GB M.2
SSD

Overview
The CORSAIR Force MP510 NVMe PCIe Gen3 x4 M.2 SSD provides extreme storage
performance with blazing fast read speeds of up to 3,480MB/sec.
EXTREME STORAGE PERFORMANCE
All-new extreme data performance controller delivers up to 3,480MB/sec
sequential read, and up to 3,000MB/s sequential write, for blazing fast read,
write and response times.
HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE
For simple connection and maximum bandwidth.
HIGH-DENSITY 3D TLC NAND
Provides the ideal mix of performance, endurance and value to keep your drive
performing at its best for years.
COMPACT M.2 2280 FORM FACTOR
Ultra-compact M.2 2280 size fits directly into your notebook or motherboard
with no additional cables or connectors.
COMPREHENSIVE FIVE-YEAR CORSAIR WARRANTY
Long-term reliability and industry leading customer support for peace of
mind.
Specifications


    | SSD Unformatted
      Capacity | 240
  GB |

    | SSD Smart
      Support | Yes |

    | Weight | 0.055kg |

    | SSD
      Interface | PCIe Gen 3.0
      x4 |

    | SSD Max Sequential
      Read CDM | Up to
      3,100MB/s |

    | SSD Max Sequential
      Write CDM | Up to
      1,050MB/s |

    | Max Random Write
      QD32 IOMeter | Up to 240K
      IOPS |

    | Max Random Read QD32
      IOMeter | Up to 180K
      IOPS |

    | Form
      Factor | M.2
    2280 |

    | Dimension | 80mm x 22mm x
      3mm |

    | Application
      Consumer | Client |

    | NAND
      Technology | 3D TLC
      NAND |

    | Voltage | 3.3V, +/-
      5% |

    | Endurance | 400 TBW |

    | TBW | 400 |

    | MTBF | 1,800,000
      Hours |

    | DEVSLP | L1.2 <
      2mW |

    | Encryption | AES 256-bit
      Encryption |

    | Storage
      Temperature | -40C to
      +85C |

    | SSD Operating
      Temperature | 0C to
      +70C |

    | SSD
      Shock | 1500
  G |

    | Storage
      Humidity | 93% RH (40
      C) |

    | Operating
      Humidity | 90% RH (40
      C) |

    | Vibration | 20Hz~80Hz/1.52mm,
      80Hz~2000Hz/20G |
