All stock codes associated to this product
CSSDF480GBMP510, CSSD-F480GBMP510, HBCSF480GBMP510, HBCS-F480GBMP510, 843591024341, 840006623052

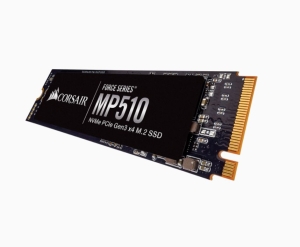

Corsair CSSD-F480GBMP510 Force Series MP510 480GB M.2
SSD
Overview
The CORSAIR Force MP510 NVMe PCIe Gen3 x4 M.2 SSD provides extreme storage
performance with blazing fast read speeds of up to 3,480MB/sec.
EXTREME STORAGE PERFORMANCE
All-new extreme data performance controller delivers up to 3,480MB/sec
sequential read, and up to 3,000MB/s sequential write, for blazing fast read,
write and response times.
HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE
For simple connection and maximum bandwidth.
HIGH-DENSITY 3D TLC NAND
Provides the ideal mix of performance, endurance and value to keep your drive
performing at its best for years.
COMPACT M.2 2280 FORM FACTOR
Ultra-compact M.2 2280 size fits directly into your notebook or motherboard
with no additional cables or connectors.
COMPREHENSIVE FIVE-YEAR CORSAIR WARRANTY
Long-term reliability and industry leading customer support for peace of
mind.
Specifications
SSD Unformatted
Capacity |
480
GB |
SSD Smart
Support |
Yes |
Weight |
0.055kg |
SSD
Interface |
PCIe Gen 3.0
x4 |
SSD Max Sequential
Read CDM |
Up to
3,480MB/s |
SSD Max Sequential
Write CDM |
Up to
2,000MB/s |
Max Random Write
QD32 IOMeter |
Up to 440K
IOPS |
Max Random Read QD32
IOMeter |
Up to 360K
IOPS |
Form
Factor |
M.2
2280 |
Dimension |
80mm x 22mm x
3mm |
Application
Consumer |
Client |
NAND
Technology |
3D TLC
NAND |
Voltage |
3.3V, +/-
5% |
Endurance |
800 TBW |
TBW |
800 |
MTBF |
1,800,000
Hours |
DEVSLP |
L1.2 <
2mW |
Encryption |
AES 256-bit
Encryption |
Storage
Temperature |
-40C to
+85C |
SSD Operating
Temperature |
0C to
+70C |
SSD
Shock |
1500
G |
Storage
Humidity |
93% RH (40
C) |
Operating
Humidity |
90% RH (40
C) |
Vibration |
20Hz~80Hz/1.52mm,
80Hz~2000Hz/20G |
