All stock codes associated to this product
GPASACNE2512GTTDR, GP-ASACNE2512GTTDR, 4719331804930
Gigabyte AORUS RGB AIC NVMe SSD 512GB
Features
- Form Factor: PCl Express Card
- Interface: PCI-Express 3.0 x4, NVMe 1.3
- Total Capacity: 1TB
- Sequential Read Speed : up to 3480 MB/s
- Sequential Write speed : up to 3080 MB/s
- TRIM & S.M.A.R.T supported
- AES 256-bit Hardware Encryption Self-Encrypting Drive (SED)
- Warranty: Limited 5-years
DESIGN CONCEPT DOMINANT IN DARKNESS
In the dark, starless night, the falcon strikes fear into the heart of its
prey. Even with minimal visibility, the falcon pinpoints its prey and patiently
anticipates the perfect moment to swoop in for the kill. The falcon with its
laser sharp gaze dominates the darkness of night in the same manner that AORUS
Core Lighting illuminates the vast AORUS ecosystem.
Engineering for Xtreme Performance | New Standard of Thermal
Engineering
- High density aluminum heatsinks takes away heat efficiently.
- Adopt high conductivity thermal pad on both sides make sure heat
dissipation.
- Unique design of light diffuser make light effect more smoother.

Exclusive Double Sided Heat Spreaders allow SSDs to Deliver Xtreme
Performance at all times

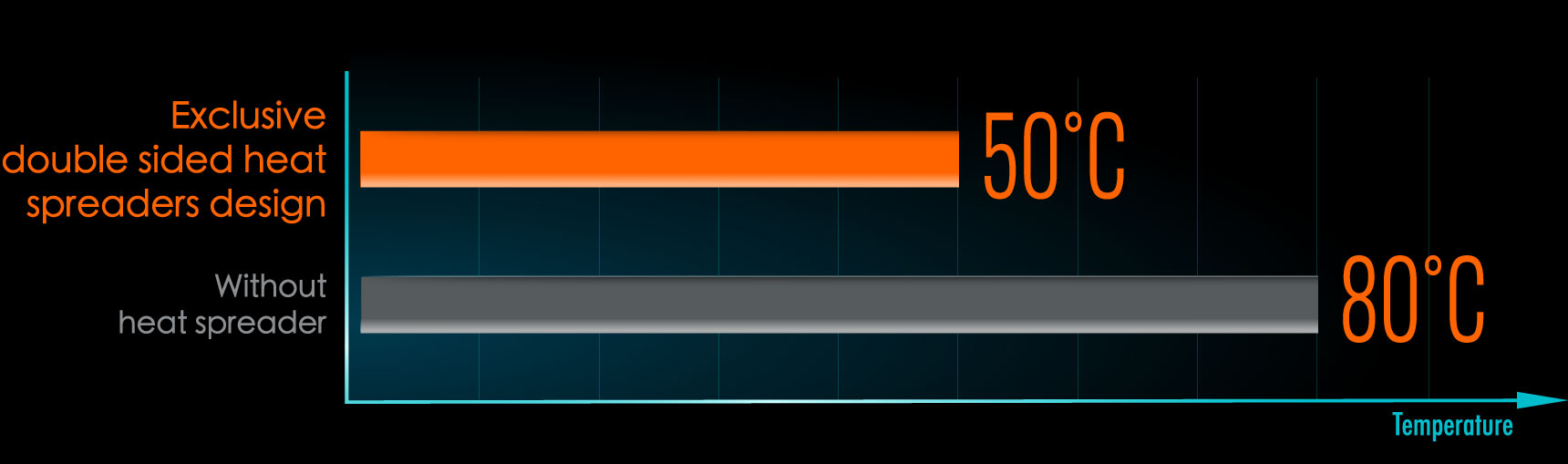

Why is keeping an SSD at lower temperature so
important?
Higher working temperature may cause data loss. The degradation factor of
data loss could be a hundred times higher.
With double sided heat spreaders, AORUS RGB AIC SSD can operate at lower
working temperature to improve data storage reliability. Furthermore, SSDs can
deliver extreme performance for longer periods

Xtreme Storage Performance
With the new NVMe interface controller, AORUS RGB AIC SSD delivers blazing
speeds: up to 3480 MB/sec for sequential read, and up to 3080MB/s sequential
write. Sequential Read/Write performance of PCIe SSDs is up to 6x faster than
SATA SSDs. Furthermore, the heatsink keeps controller and memory temperature
low, ensuring that SSD performance won't be compromised. Get ready to enter the
next generation of computing with faster and smoother In gaming Streaming and
graphics intensive rendering.

RGB FUSION 2.0 | 6 Exclusive Lighting Effects
AORUS RGB AIC SSD supports 6 lighting modes. Modes are static, pulse, flash,
double flash and color cycle.
RGB Fusion 2.0 Utility
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you
a better solution for customizing the lighting effects across all supported
devices. From motherboards, graphics cards to the peripheral products, you can
personalize your gaming rig with your own style and show off your build by
sharing the profiles. In addition, the new gaming mode makes the lighting
effects interactive with selected games to bring you the most immersive gaming
experience

SSD Tool Box
The newly updated SSD Tool Box* is an application that helps users monitor
SSD Status, provides general information such as model name, FW version, health
condition, drive optimization and also detects sensor temperature. Moreover,
users can clear all the data with the Secure Erase function. You can download
the SSD Tool Box from the Support.

Quality Guaranteed

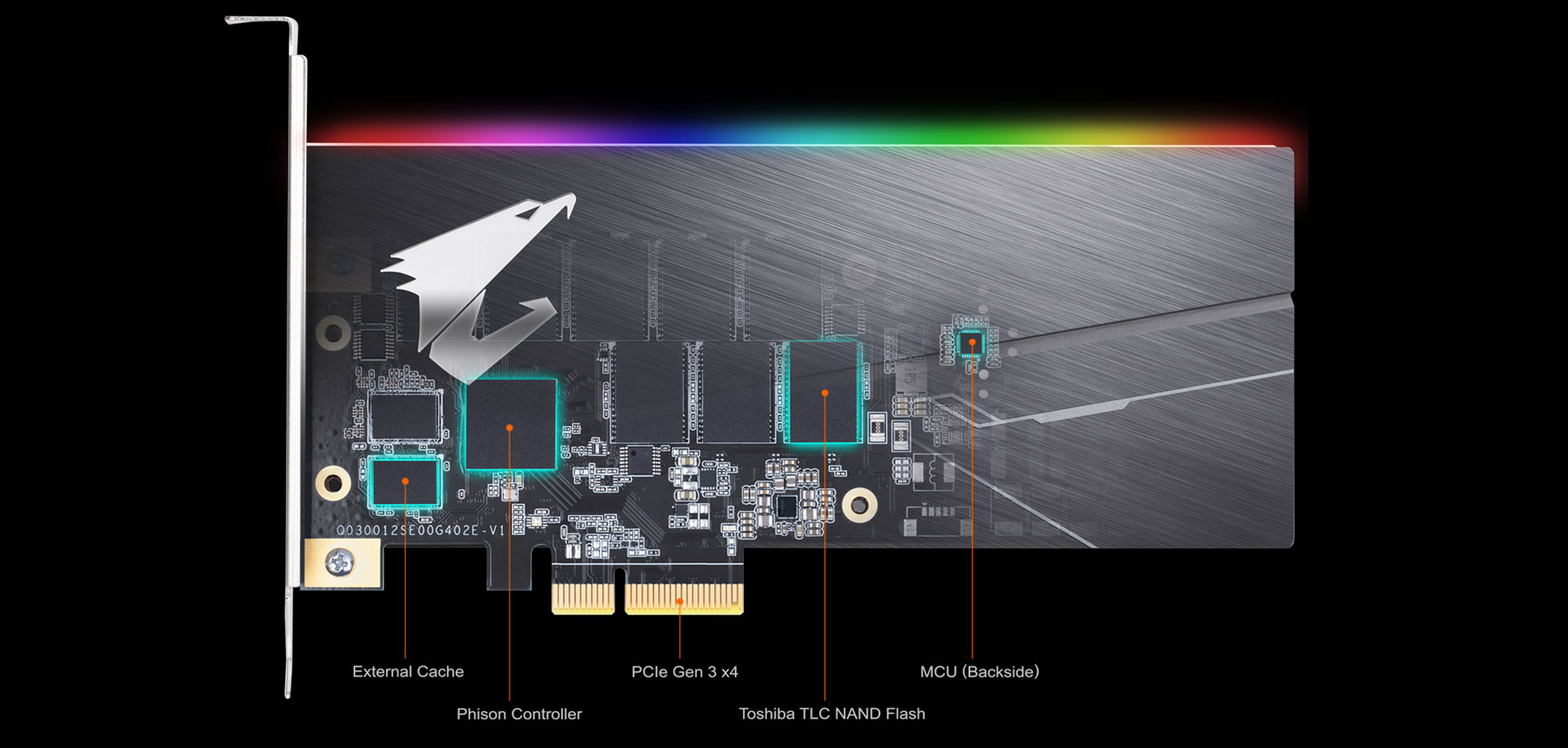

COMPOSITION

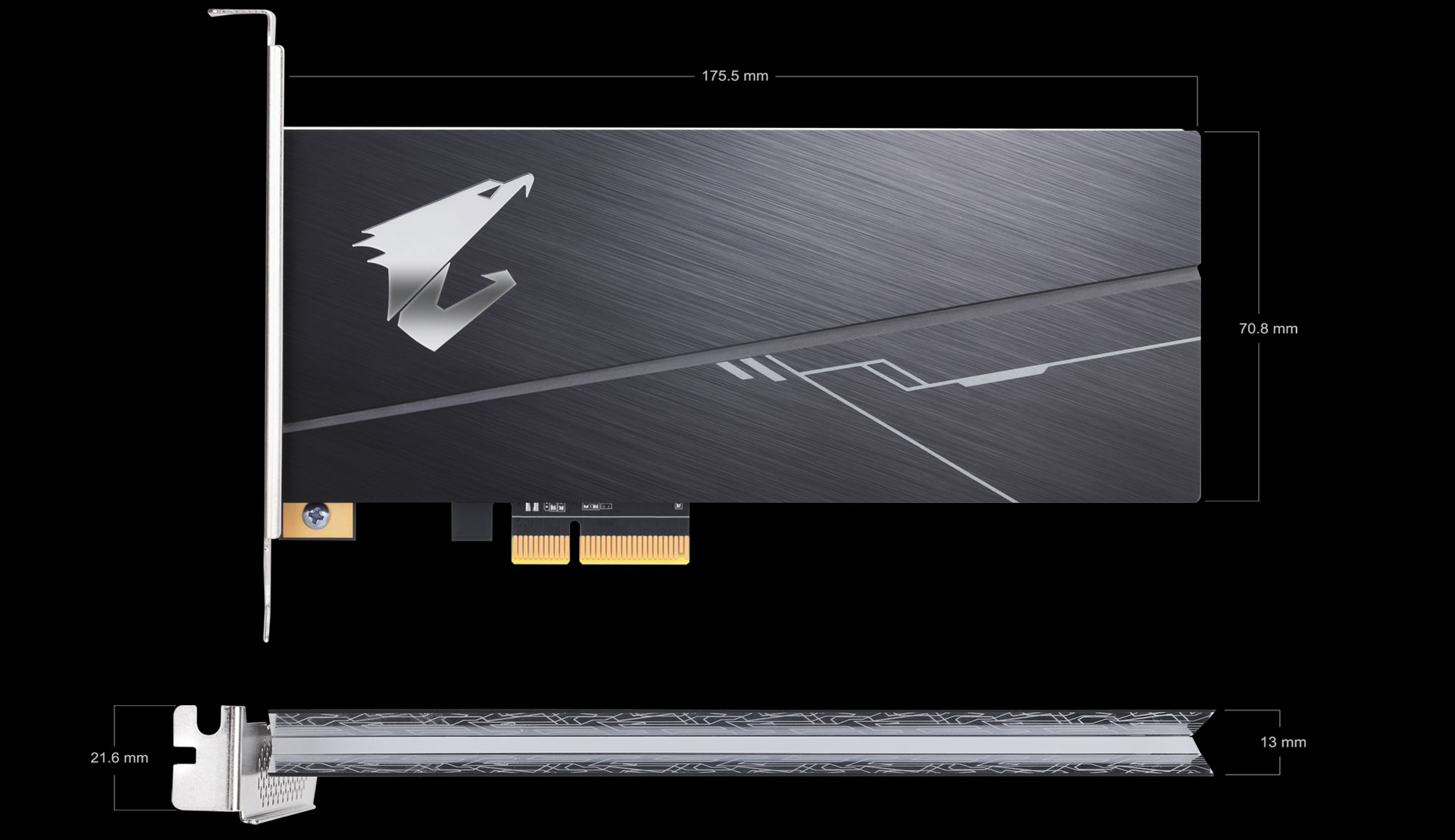

DIMENSION
Specifications
Interface |
PCI-Express 3.0 x4,
NVMe 1.3 |
Form
Factor |
PCl Express
Card |
Total
Capacity |
512GB |
Warranty |
Limited 5-years or
1600TBW |
NAND |
3D TLC ToshiBa
BiCS3 |
External DDR
Cache |
512MB |
Sequential Read
speed |
Up to 3480
MB/s |
Sequential Write
speed |
Up to 2100
MB/s |
Random Read
IOPS |
Up to
360K |
Random Write
IOPS |
Up to
510K |
Mean time between
failure (MTBF) |
1.8 million
hours |
Power Consumption
(Active) |
Average : R : 65.9W :
4.6W |
Power Consumption
(Idle) |
485mW |
Temperature
(Operating) |
0C to
70C |
Temperature
(Storage) |
-40C to
85C |
Note |
* Test system
configuration: configuration may vary by models, we will choose the latest
platform for verification. |
|
* Performance may vary
based on SSD's firmware version and system hardware & configuration.
Sequential performance measurements based on CrystalDiskMark v.5.1.2 and
I0meter 1.1.0. |
|
* Speeds based on
internal testing. Actual performance may vary. |
|
* TBW (Terabyte
Written):Terabytes Written" is the total amount of data that can be
written into an SSD before it is likely to fail. |
|
* 1GB = 1 billion
bytes. Actual useable capacity may vary. |
|
* 5 years or 1600 TBW,
whichever comes
first. |
