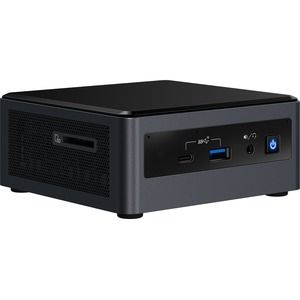

Intel NUC 10 Performance kit - NUC10i7FNH



Specifications

Essentials

Product Collection

Intel NUC Kit with 10th Generation Intel Core Processors

Code Name

Products formerly Frost Canyon

Status

Launched

Launch Date

Q4'19

Supported Operating Systems

Windows 10, 64-bit*

Board Number

NUC10i7FNB

Board Form Factor

UCFF (4" x 4")

Socket

Soldered-down BGA

Internal Drive Form Factor

M.2 and 2.5" Drive

# of Internal Drives Supported

2

Off Roadmap

No

Lithography

14 nm

TDP

25 W

DC Input Voltage Supported

19 VDC

Processor Included

Intel Core i7-10710U Processor (12M Cache, up to 4.7 GHz)

Warranty Period

3 yrs

Supplemental Information

Embedded Options Available

No

Description

Other features: Includes far-field quad array microphones

Memory & Storage

Max Memory Size (dependent on memory type)

64 GB

Memory Types

DDR4-2666 1.2V SO-DIMM

Max # of Memory Channels

2

Max Memory Bandwidth

42.6 GB/s

Max # of DIMMs

2

ECC Memory Supported

No

Processor Graphics

Processor Graphics

Intel UHD Graphics

Integrated Graphics

Yes

Graphics Output

HDMI 2.0a; USB-C (DP1.2)

# of Displays Supported

3

Expansion Options

PCI Express Revision

Gen3

PCI Express Configurations

M.2 slot with PCIe X4 lanes

Removable Memory Card Slot

SDXC with UHS-II support

M.2 Card Slot (storage)

22x42/80

I/O Specifications

# of USB Ports

7

USB Configuration

2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers

USB Revision

2.0, 3.1 Gen2

USB 2.0 Configuration (External + Internal)

0 + 2

USB 3.0 Configuration (External + Internal)

2B 2F + 0

Total # of SATA Ports

2

Max # of SATA 6.0 Gb/s Ports

2

RAID Configuration

2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)

Audio (back channel + front channel)

7.1 digital (HDMI mDP); L+R mic (F)

Integrated LAN

Intel Ethernet Connection I219-V

Integrated Wireless

Intel Wireless-AX MAC

Integrated Bluetooth

Yes

Consumer Infrared Rx Sensor

Yes

Additional Headers

CEC, 2x USB2.0, FRONT_PANEL

# of Thunderbolt 3 Ports

1

Package Specifications

Chassis Dimensions

117 x 112 x 51mm

Advanced Technologies

Intel Optane Memory Supported

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

TPM

No

Intel HD Audio Technology

Yes

Intel Rapid Storage Technology

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel Platform Trust Technology (Intel PTT)

Yes

Security & Reliability

Intel AES New Instructions

Yes
