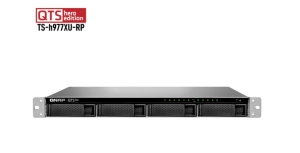

QNAP TS-h977XU-RP-3700X-32G AMD Ryzen 7 3700X 8 cores/16 threads 3.4
GHz processor (Turbo Core 4.4 GHz), 32 GB DDR4 memory (2 x 16 GB), redundant
power supply
Overview
The QTS hero NAS TS-h977XU-RP is powered by an AMD Ryzen 7 processor that
delivers supreme system performance with up to 8 cores/16 threads and Turbo Core
up to 4.4 GHz. Running the brand new QTS hero operating system that incorporates
ZFS, the TS-h977XU-RP supports near-limitless snapshots, SnapSync, block-level
inline data deduplication, and inline data compression. The TS-h977XU-RP helps
your business achieve reliable service-level agreement performance, whether in
mission-critical file server, virtualization server, VDI, collaborative video
editing, or efficient file backup and recovery applications.
Provides two built-in 10GbE SFP+ ports and pre-installed with a dual-port
10GbE RJ45 adapter for bandwidth-demanding applications.
SSD cache acceleration improves random read/write performance to meet
IPOS-demanding applications.
Supports virtualization storage for VMware, Citrix, Microsoft Hyper-V and
Windows Server 2019, and hosts virtual machines and containers.
Supports block-based and file-based cloud storage gateways with local cache
for low-latency access to cloud data.
(This feature will be available in QTS hero soon.)
QTS App Center includes feature-rich apps for expanding NAS applications
without extra costs.
Comprehensive security management, providing a NAS security portal to help
you to stay informed of NAS status at all times
Absolute performance with AMD Ryzen processor
Powered by a high-performance AMD Ryzen 7 3700X 8 cores/16 threads 3.4 GHz
processor (Turbo Core 4.4 GHz) with AES-NI encryption acceleration and up to 128
GB DDR4 RAM, the TS-h977XU-RP delivers aggressive yet power-smart performance to
meet your multi-tasking demands and is capable of running multiple virtual
machines simultaneously. For resource-demanding business applications such as
VDI, R&D, private cloud, and server virtualization, the TS-h977XU-RP
delivers high performance and dependable reliability for rugged business IT
environments as a cost-efficient NAS solution.
Dual-channel memory to deliver power-smart
performance
The TS-h977XU-RP supports dual-channel DDR4 memory and four Long-DIMM slots.
When using paired memory modules, the TS-h977XU-RP can leverage the power of
dual-channel architecture to boost performance. You can also customize the
memory configuration (supports up to 128 GB RAM) of the TS-h977XU-RP, making it
the most ideal and cost-efficient storage solution for environments including
virtualization that contain dynamically-changing workloads.
Top-class hardware engineering with high I/O
expandability
The TS-h977XU-RP features outstanding hardware and expandable architecture,
enabling optimal performance and flexibility to meet business application
diversification demands.
The brand-new ZFS-based QTS hero operating system enhances NAS
performance and data integrity
QTS hero operating system combines the app-based QTS with a 128-bit ZFS file
system to provide flexible storage management, comprehensive data protection,
and optimized performance to tackle the complexity and performance demands of
modern IT. From storage management, virtualization, to collaborative media
workflows, QTS hero streamlines your business-critical tasks.
Tiered storage configuration for a QTS hero
NAS
Follow these steps to acquire optimal storage efficiency and performance for
QTS hero.
Step 1: System Drive
The first Storage Pool you create will be the system drive. Create an SSD
RAID with at least two SSDs for the system drive. You must allocate at least two
SSDs for create the RAID.
Step 2: Read/Write Cache
Use more SSDs for a read/write cache. You can also install QM2 expansion
cards to add M.2 SSDs for expanding cache space.
Step 3: Data Storage
Allocate HDDs/SSDs to create a RAID for storing files and application data.
If needed, you can configure an all-flash configuration for optimal
performance.
10GbE connectivity optimizes high-speed data
transfer
The TS-h977XU-RP provides two Gigabit RJ45 ports, two 10GbE SFP+ ports, and
comes with a dual-port 10GbE RJ45 expansion card pre-installed in a PCIe slot.
The sufficient 10GbE connectivity improves overall network performance to
streamline bandwidth-demanding applications, such as virtualization, large file
sharing, and high-speed backup and recovery.
Abundant I/O capability with PCIe expansion
The TS-h977XU-RP features 1 PCIe slot that enables deployment of numerous
expansion cards for expanding application potential.
SSD caching to accelerate IOPS performance
The TS-h977XU-RP features an HDD and SSD hybrid structure (including five
2.5-inch and four 3.5-inch drive bays), allowing you to leverage the benefits of
both hard drives and SSDs to provide high storage capacity and high performance.
Adding an SSD cache to the TS-h977XU-RP is an easy way to increase IOPS
performance and reducing storage volume latency. It is perfect for
IOPS-demanding applications, including databases and virtualization, and can
significantly improve overall workflows. You can launch, stop, or change
settings to meet your needs at any moment without shutting down the
system.
Block-based iSCSI LUN: Ideal choice for virtualization
storage
- Supports block-based iSCSI LUN as a high-performance, reliable, and
affordable storage solution for VMware, Citrix, Microsoft Hyper-V and Windows
Server 2019 virtualization environments.
- Supports VMware VAAI and Microsoft ODX to increase performance by
offloading server loading for ESXi server and Hyper-V respectively, and
supports QNAP vSphere Client plug-in with enhanced operational efficiency and
management in virtualization applications.
All-in-one solution for hosting virtual machines and
containers
Regardless of your virtualization needs, you can count on Virtualization
Station and Container Station for comprehensive virtualization support. Coupled
with Network & Virtual Switch app that boosts interoperability between
virtual machines, containers, QNAP NAS, and other physical devices on the
network, allowing you to flexibly allocate physical and virtual network
resources to simplify network deployment.
Virtualization Station
Run multiple Windows, Linux, UNIX, Android, and vQTS virtual machines and
access them via a web browser or Virtual Network Computing (VNC ). Businesses
can run virtualized server applications on a single NAS without the need for
additional physical servers.
Container Station
Experience LXC and Docker lightweight virtualization technologies, and
download apps from the built-in Docker Hub Registry, import or export containers
to create multiple microservices.
Complete backup planning
QNAP provides a reliable, flexible backup and disaster recovery solution to
assist organizations in routine backup jobs cost-effectively and with high
productivity.
HBS
Consolidates backup, restoration and synchronization functions for easily
transferring data to local, remote and cloud storage spaces as a comprehensive
data storage and disaster recovery plan. QuDedup technology deduplicates backup
data at the source to accelerate multi-version backups
Snapshots
Snapshots are essential for NAS data protection, and the block-level feature
makes them a dependable method for protecting data in the face of growing
ransomware threat. QTS hero supports near-limitless snapshots to reinforce your
multi-version backups.
VM backup
With high performance, potentially huge storage capacities, integrated
virtualization solutions, and snapshot support for recording the system state at
any specific time, the TS-h977XU-RP is perfect for backing up virtual
machines.
Cloud Storage Gateway provides low latency access to data on the
cloud
The TS-h977XU-RP perfectly integrates NAS with mainstream cloud services. By
deploying cloud storage gateways and enabling local caching on the NAS, you can
seamlessly use the cloud for storage, backup, and data recovery with low-latency
access, providing an innovative hybrid cloud experience.
HybridMount File-based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can
leverage QTS hero apps to manage and edit your cloud files or monitor multimedia
files. HybridMount is ideal for file server online collaboration and file-level
data analysis.
VJBOD Cloud Block-based Cloud Gateway
Supports mounting object cloud storage as a block-based volume or LUN on a
NAS. Block-based data transmission uploads random data and large files to the
cloud in blocks, and only block-based volume or LUN changes, such as addition,
modification, or deletion will be transmitted. This is ideal for
enterprise-level applications with large file transfer requirements, such as
databases, VM volumes, and videos.
Build an affordable Fibre Channel SAN
environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly.
Now you have more budge-friendly options to easily add your NAS to a SAN
environment. By installing a Marvell, ATTO or QNAP Fibre Channel card in the
TS-h977XU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre
Channel app. Moreover, the LUN Masking and Port Binding features provide an
additional layer of data security.
Specifications
|
CPU |
AMD Ryzen 7 3700X
8-core/16-thread 3.4 GHz |
|
processor, Turbo Core
4.4 GHz |
|
CPU
Architecture |
64-bit
x86 |
|
Encryption
Engine |
(AES-NI) |
|
System
Memory |
32 GB UDIMM DDR4 (2 x
16GB) |
|
Maximum
Memory |
128 GB (4 x 32
GB) |
|
Memory
Slot |
4 x Long-DIMM
DDR4 |
|
Flash
Memory |
5 GB (Dual boot OS
protection) |
|
Drive
Bay |
4 x 3.5-inch + 5 x
2.5-inch SATA 6Gb/s, 3Gb/s |
|
Drive
Compatibility |
3.5-inch SATA hard disk
drives |
|
2.5-inch SATA hard disk
drives |
|
2.5-inch SATA solid
state drives |
|
Hot-swappable |
Yes |
|
SSD Cache
Acceleration Support |
Yes |
|
Gigabit Ethernet
Port (RJ45) |
2 |
|
10 Gigabit Ethernet
Port |
2 x 10GbE SFP+ SmartNIC
port, 2 x 10GBase-T port |
|
Jumbo
Frame |
Yes |
|
PCIe
Slot |
1 |
|
Slot 1: PCIe Gen 3 x16
|
|
PCIe slot is
preinstalled with a 10GbE network adapter |
|
USB 3.0
port |
4 |
|
USB 3.1 Gen 2
(10Gbps) Port |
1 x Type-A USB 3.1 Gen2
5V/1A 10Gbps |
|
Form
Factor |
1U
Rackmount |
|
LED
Indicators |
HDD 1-9, Status, LAN,
storage expansion port status |
|
Buttons |
Power,
Reset |
|
Dimensions
(HxWxD) |
43.3 482.6 505.54
mm |
|
Weight
(Net) |
8.62
kg |
|
Operating
temperature |
0 - 40 C (32F -
104F) |
|
Relative
Humidity |
5-95% RH
non-condensing, wet bulb: 27C (80.6F) |
|
Power Supply
Unit |
300W(x2),
100-240V |
|
Power Consumption:
Operating Mode, Typical |
76.43
W |
|
Fan |
System fan: 3 x 40mm,
12VDC |
|
Sound
Level |
43.8
db(A) |
|
System
Warning |
Buzzer |
