All stock codes associated to this product

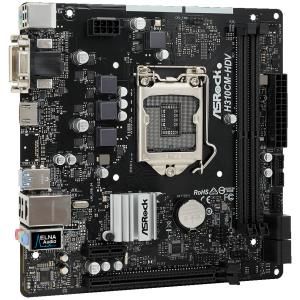

H310CMHDV, H310CM-HDV, 4311403
Supports 8th Generation Intel Core Processors (Socket 1151)
Supports DDR4 2666
1 PCIe 3.0 x16, 1 PCIe 2.0 x1
Graphics Output Options: DVI-D, D-Sub, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
4 SATA3
4 USB 3.1 Gen1 (2 Front, 2 Rear)
Supports Full Spike Protection, ASRock Live Update &APP Shop
HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.
4K x 2K
Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboards components from being damaged by these unexpected voltage spikes.
Live Update &APP Shop
ASRock Live Update &APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update &APP Shop
| Specifications |
|---|
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps |
| Chipset | Intel® H310 |
| Form Factor | Micro ATX Form Factor: 19.1 cm x 18.8 cm |
| I/O Connectors | 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, 4 x USB 2.0 Ports , 2 x USB 3.1 Gen1 Ports , 1 x RJ-45 LAN Port with LED , |
| Integrated CPU Graphics | Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| Memory/Type/Bus/Max. | 2 x DDR4 DIMM Slots, Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, Max. capacity of system memory: 32GB |
| PCI Slots | 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, 4 x USB 2.0 Ports , 2 x USB 3.1 Gen1 , 1 x RJ-45 LAN Port with LED , HD Audio Jacks: Line in / Front Speaker / Microphone |
| Processor Support | Supports 8th Generation Intel® Core™ Processors (Socket 1151) |
| Raid | |
| RAM Type/Bus/Max. | |
| Socket | Supports 8th Generation Intel® Core™ Processors (Socket 1151) |
| Storage Interface | 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Warranty | 3 Years |
