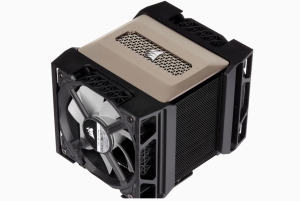

Corsair A500 Dual Fan CPU Cooler
Overview
Bring your CPU temperatures down with the CORSAIR A500 High Performance Dual
Fan CPU Cooler, equipped with four direct-contact copper heat pipes and two
CORSAIR ML120 fans.
GAME, RENDER, AND ENCODE FASTER
Drop your temperatures and get the maximum performance from your processor.
The CORSAIR A500 boasts quad direct-contact copper heat pipes to draw heat away
from your CPU, dual magnetic levitation bearing fans for provide superb
customizable airflow and pre-applied CORSAIR XTM50 thermal material for optimal
heat transfer.
HIGH TECH, LOW TEMPS
The CORSAIR A500 boasts quad direct-contact copper heat pipes to draw heat
away from your CPU, dual magnetic levitation bearing fans for provide superb
customizable airflow and pre-applied CORSAIR XTM50 thermal material for optimal
heat transfer.

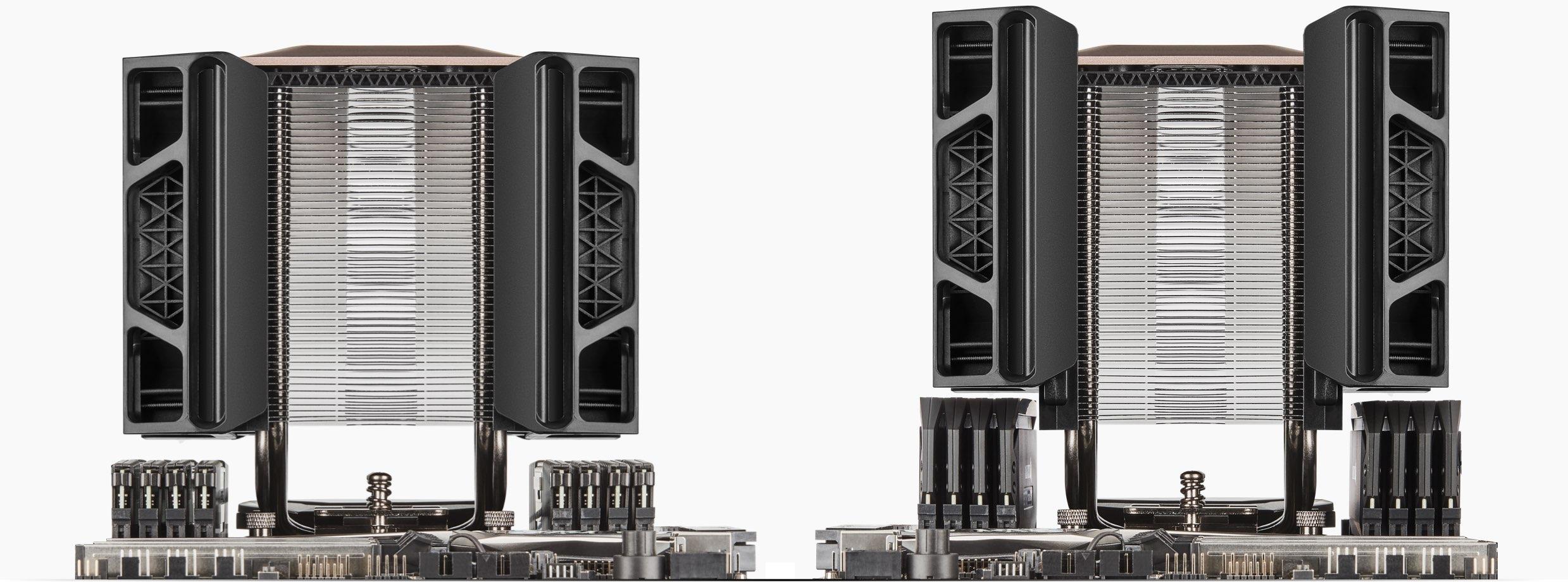

INTUITIVE SLIDE-AND-LOCK FAN MOUNT SYSTEM
Variable mounting height for wide DRAM compatibility and easy
installation.
COOL, QUIET, AND EVERYTHING IN-BETWEEN
Adjust the two included high-performance ML120 PWM fans anywhere from 400 RPM
to 2,400 RPM and strike your perfect balance between ultra-quiet operation and
extreme cooling.
HOLDFAST RETENTION SYSTEM
Easy to install, ensuring consistent thermal performance with a secure and
reliable fit on almost all modern AMD & Intel CPUs.*
*Supports:
AMD AM4, AM3, FM2
Intel LGA115x, LGA20xx
EFFICIENT HEAT TRANSFER
Pre-applied high-performance CORSAIR XTM50 Thermal Paste applied in an
optimized pattern ensures even heat transfer. And just in case you want to
re-apply it or re-install your A500, we've included an extra tube in the
box.
Specifications
Cooling
Warranty |
Five
years |
PWM |
Yes |
Heatsink
Dimensions |
137mm x 169mm x
103mm |
CORSAIR iCUE
Compatibility |
No |
Heatsink Dimensions
w/ Fan |
144mm x 169mm x
171mm |
Cold Plate
Type |
Direct-Contact
Heatpipe |
Fan
Dimensions |
120mm x 120mm x
25mm |
Fan
Speed |
2400
RPM |
Weight |
1460g |
Number of
Fans |
2 |
Cooling Socket
Support |
Intel
1150/1151/1155/1156 |
|
Intel
2011/2011-3/2066 |
|
AMD
AM4 |
|
AMD
AM3/AM2 |
Lighting |
None |
Fan
Model |
ML
Series |
Heatpipe
Material |
Copper |
Heatsink
Material |
Aluminum |
Maximum RAM Height
(Stock Fan Position) |
45mm |
Maximum RAM Height
(mITX Motherboard) |
45mm |
Fan
Airflow |
75
CFM |
Noise
Level |
36
dBA |
Fan Static
Pressure |
4.2
mm-H2O |
