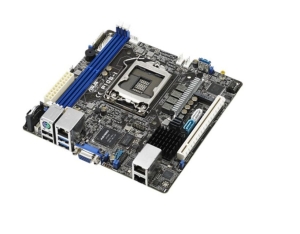

Asus P10S-1 Commercial Server Workstations
Overview
Best Storage and High Density Computing Candidate
- Streamline airflow design with smallest Mini-ITX small form
factor
- Rich I/O capability with 6 SATA3,1 M.2 Type 2242 and 3 USB3.0
support
- Platinum-grade power efficiency with ultra longevity solid CAP & Beat
Thermal Choke III
- Complete remote management saving time and efforts
Rack-Optimized Mini-ITX compact form factor increases
density
As a slim size serverboard, the 6.7 x 6.7 Mini ITX form factor of P10S-I fits
for various small form factor appliance servers. In addition, its layout is
rack-optimized placement, the CPU and memory are placed in a parallel
arrangement directly behind the fan inlet to promote maximum cooling for
excellent thermal efficiency. Therefore, P10S-I can be easily integrated in
short depth chassis, thus P10S-I no doubt increases the density in a rack
cabinet to provide higher computing power per rack than before.
Onboard M.2 up to 32Gb/s Speeds
With x4 PCI Express 3.0/2.0 bandwidth, one M.2 supports up to 32Gbit/s
data-transfer speeds. It is the perfect choice for an operating system or
application drive. In addition, the special design on the edge for M.2, it will
increase more choices for M.2 expansion, even if up to 22110.
Next-Gen Storage NVMe Support
Next-Gen Storage technology NVMe is where the industry is headed. By taking
new NVM technology closer to the CPU with the benefits of less latency and
higher maximum bandwidth, NVMe solution is the fastest internal storage
interface today.
There are two solutions to implement NVMe application on P10S series. One is
PCIe interface solution directly plug the PCIe NVMe devices or through ASUS-made
PCIe to U.2 adapter (ASUS PCIE-NVME1). The other is M.2 interface solution
through ASUS-made M.2 to U.2 adapter (ASUS M2-NVME1). By using mini-SAS HD to
min-SAS HD cable or mini-SAS HD to SFF-8639 cable, the ASUS-made PCIe to U.2 or
M.2 to U.2 adapters offer flexible NVMe upgrade package on different usage
scenario.
High Power Efficiency with Platinum Power
Solution
ASUS P10S-I server board is designed with the platinum power solution with
the hand-chosen components and provide platinum efficiency which is up to 94%.
The platinum power solution consists 3 pillars to achieve the 94% platinum
efficiency: 12K Ultra Longevity Solid Capacitor ,Beat Thermal Choke III and
Digi+ VRM. 12K solid capacitors which is able to withstand up to 1,200,000 hours
of temperatures as high as 65C (12K hours@105C). The 3rd generation Beat Thermal
Choke with lower DCR and result in 3-lower
choke temperatures enhance power efficiency. ASUS DIGI+ VRM is digital VR
controller precisely provide the accurate voltage/current that CPU require to
reduce switching loss. Therefore, using in non-stop server machine running 24
hours per day, it will reduce electronic cost for customers in this generation
products.
Serviceability Quick Boot
The ASUS P10 Series features quick initialization guidance which let users
realize system initialization state in seconds; Turn on the power button comes
with 3 key information showing on the screen at the same time: (1) progress bar
showcases the booting status, (2) BMC IP address if ASMB module is mounted on
the server and (3) 2-digit POST code messages are available to give users a
total understanding of startup process and to clearly indicate boot-up status
which is easy for troubleshooting.
Optional PIKE II 3x08 Series SAS 12Gb/s
solution
ASUS PIKE II 3x08 series is the latest 12Gb/s SAS and PCI-E 3.0 high
reliability enterprise storage solution. It meets users needs with support
12Gb/s SAS storage and various RAID levels data protection. Just placing the
PIKE II card, P10S Series can immediately enlarge the capacity and improve the
performance, making it the great upgrade option.
Complete remote server management
The optional IPMI 2.0-compliant ASMB8-iKVM module enables remote BIOS
updates, backup and restore configurations, SNMP agent support (MIBs files),
audit log, and BIOS post code. With out-of-band management ASMB8-iKVM provides
round-the-clock remote monitoring and diagnosis even if the server operating
system is down or offline, and all through a user-friendly web-based graphical
interface that works with all major browsers. In addition, ASWM Enterprise
software provides one-to-multiple centralized management including BIOS flash,
software dispatch, task scheduler, remote control and power control, via
colorful and informative graphical interface.
