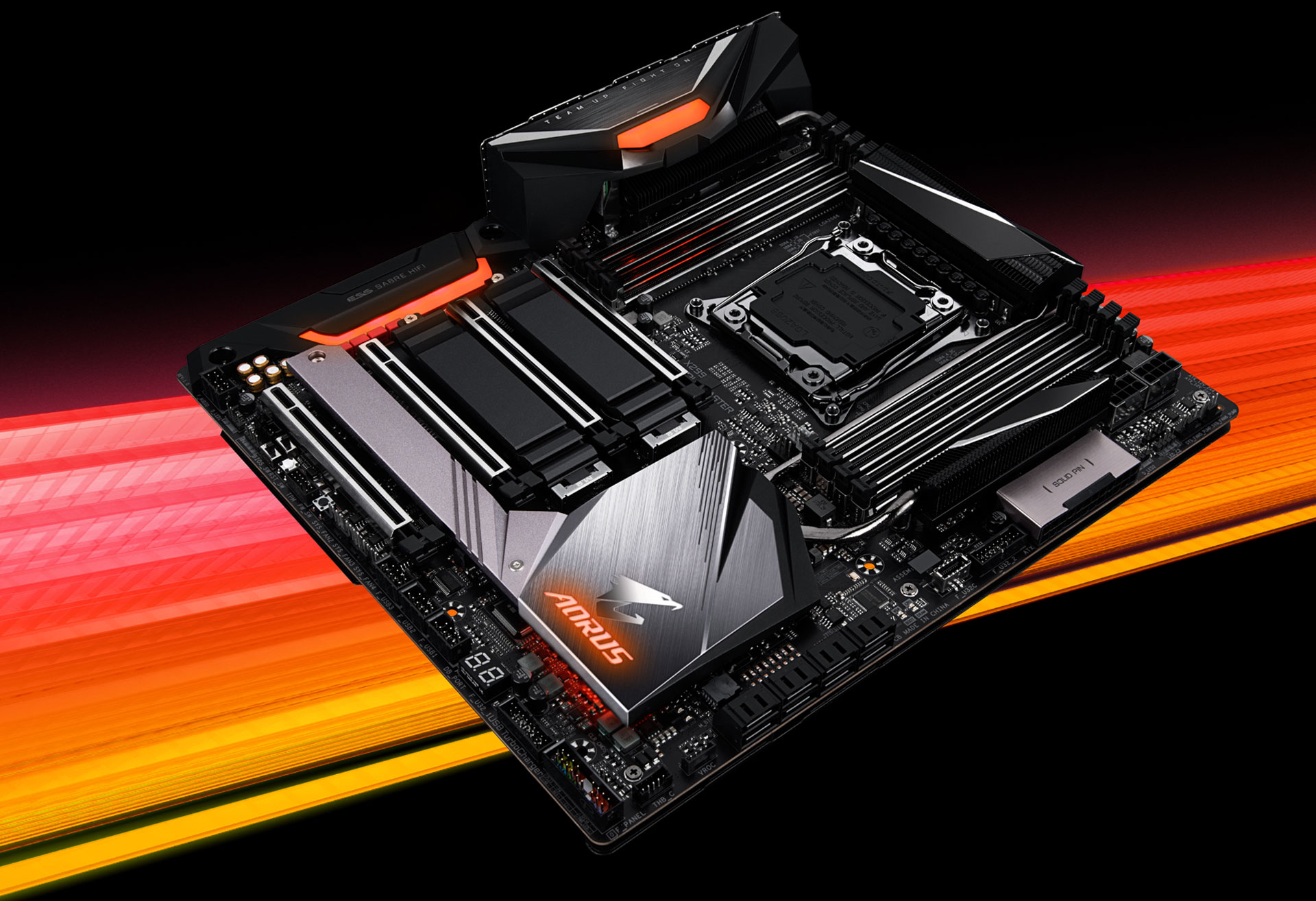

Gigabyte X299X Aorus Master (rev. 1.0) Motherboard



Overview

Intel X299 AORUS Motherboard with 12 Phases IR Digital VRM, Advanced Thermal Solution with Triple Fins-Array and Heatpipes, Intel WiFi 6 802.11ax, ESS SABRE HiFi 9218 DAC, AQUANTIA 5GbE LAN, Q-Flash for Easier BIOS Update

  • Supports Intel Core X-series Processor Family
  • Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
  • Intel Optane Memory Ready
  • 12 Phases IR Digital VRM Solution with 70A Power Stage
  • Onboard Intel WiFi 6 802.11ax 2T2R & BT 5 with AORUS Antenna
  • 130dB SNR AMP-UP Audio with High-End ESS SABRE 9218 DAC, ALC1220 and WIMA Audio Capacitors
  • Onboard AQUANTIA 5GbE BASE-T LAN and Intel Gigabit LAN with cFosSpeed
  • Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Triple Thermal Guards
  • USB TurboCharger for Mobile Device Fast Charge Support
  • RGB FUSION 2.0 supported with Multi-Zone Addressable LED Light Show Design, support Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Front USB 3.2 Gen2 Type-C Header
  • Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
  • Supports 4 Way Dual Wide PCIe Slots

DESIGN CONCEPT | WINGS OF EXCELLENCE

The falcon utilizes its powerful wings to soar through the skies and lock down its prey. The AORUS Core takes inspiration from the falcons aerodynamic wings, incorporating a multi-layered design which features wing shaped contours and also resembles the falcons high velocity ascension and dive through the skies. With sleek and metallic armor, the AORUS Core symbolizes advancement in technology with its futuristic style.

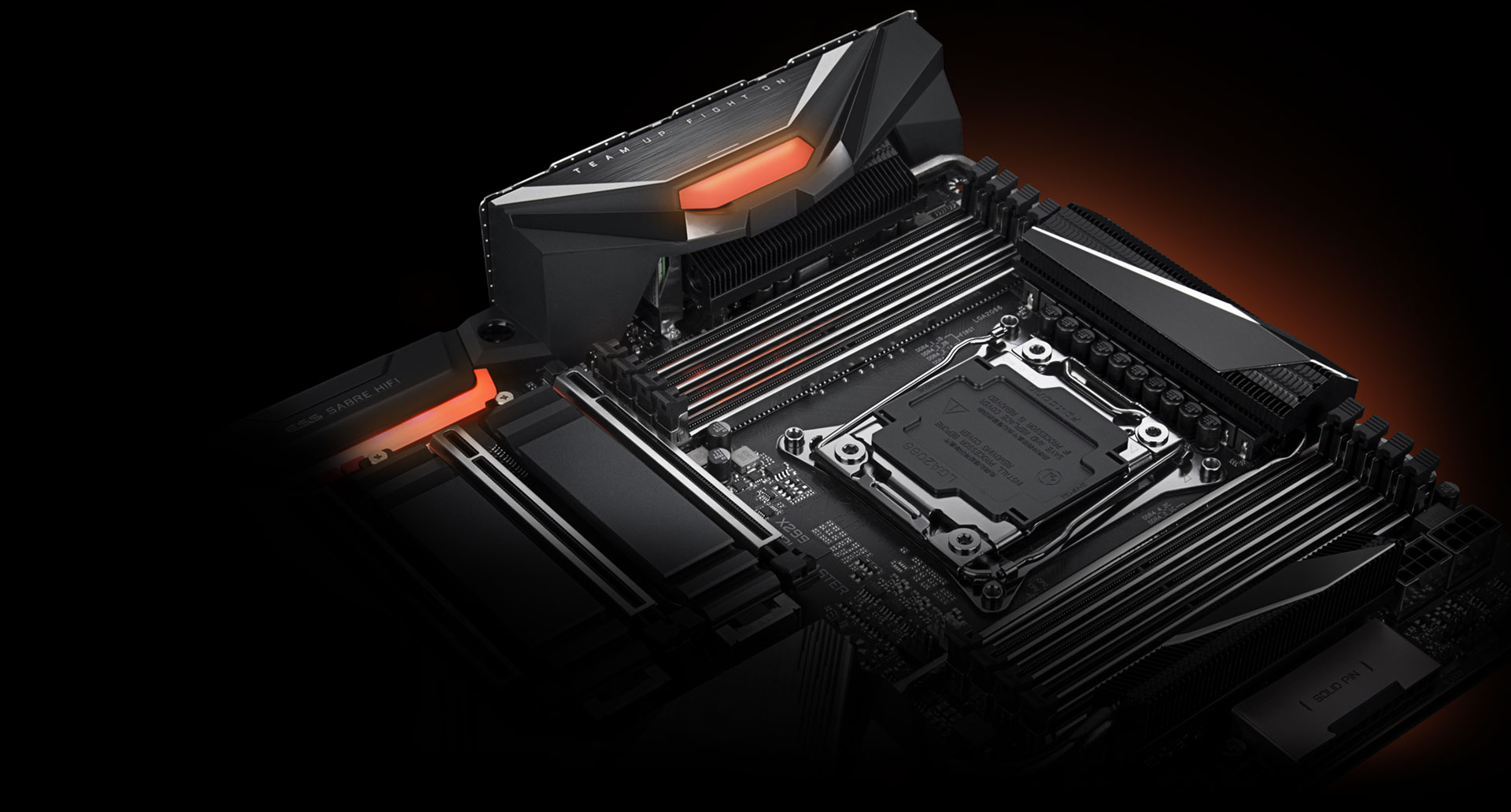

UNPARALLELED PERFORMANCE

Powerful VRM design, memory OC capability, multiple PCIe and M.2 slots makes a full function board with possibility and scalability.

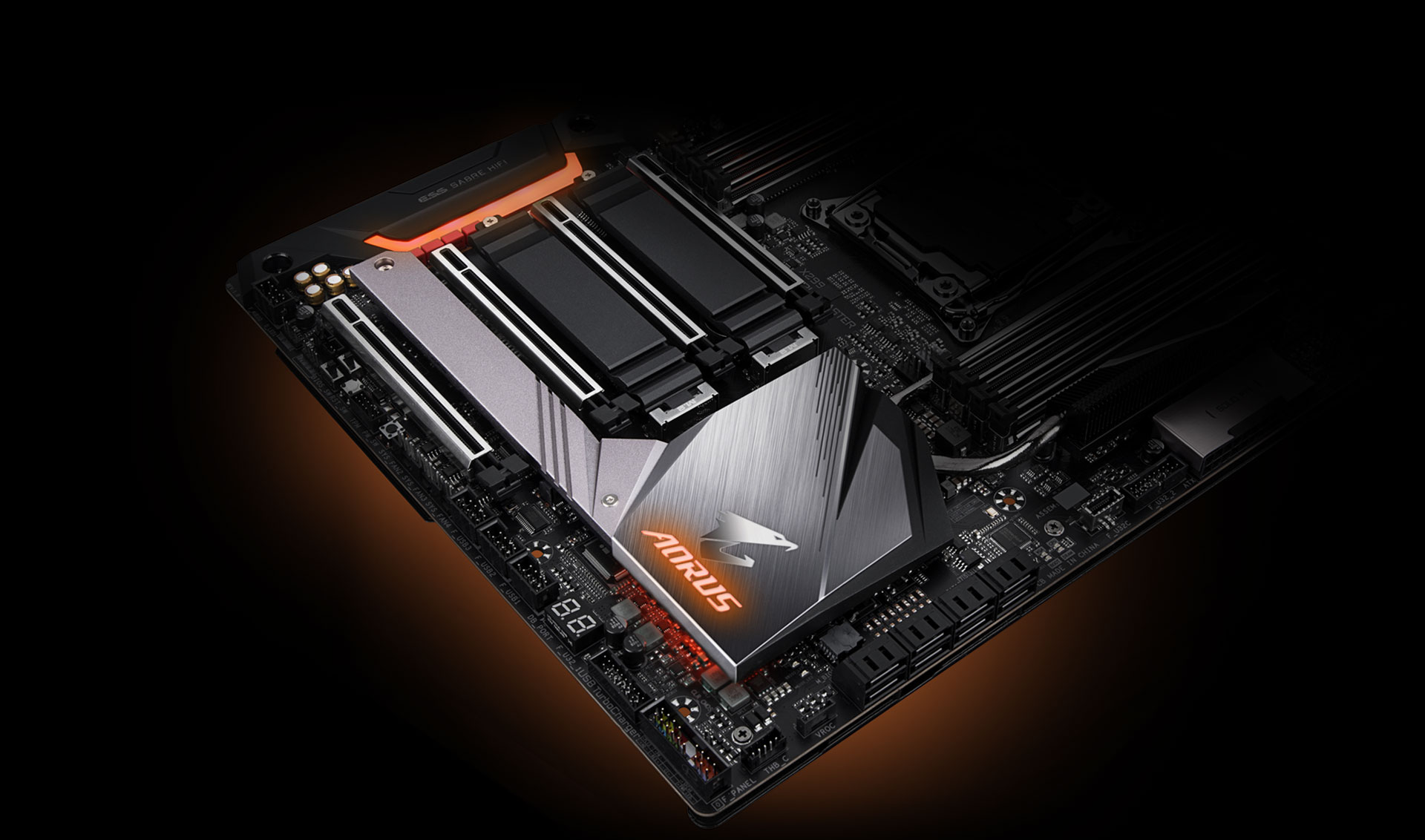

REENGINEERED THERMAL SOLUTION

As processors draws more power, RDs trying hard to keep VRM stays cool preventing it from throttle with efficient thermal solution. Along with SMART FAN 5, real time monitor temperatures changes and adjust fan speed accordingly, to keep certain level of performance without too much noise.

NEXT GENERATION CONNECTIVITY

A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X299X AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

AESTHETICS

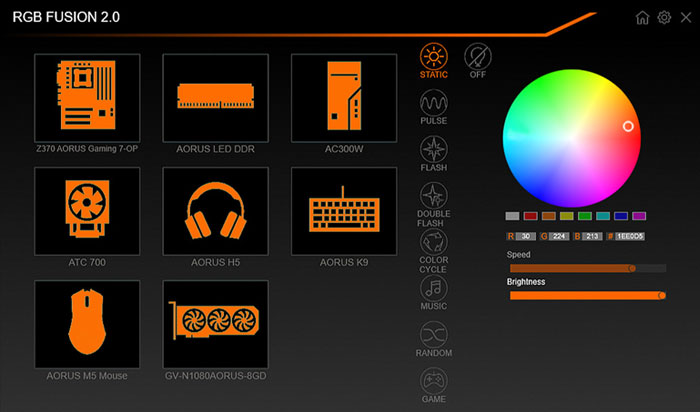

RGB Fusion 2.0

With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X299 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Motherboards will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

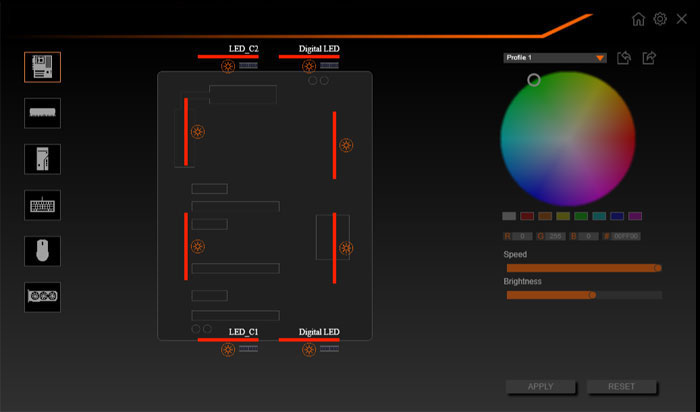

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

Sync with one click

Individual control as you wish

HI-FI AUDIO SYSTEM- AS A BUILT-IN SOUND CARD

For Hi-Fi Audio Solution, can be grouped into 2 parts.

Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog converter with 130dB SNR, 112dB THD+N and supports higher impedance up to 600 headphone. Further, audiophile grade capacitor and gold plated audio jack ensures the non-compensated audio performance. Audio Signal Optimization, TXC Oscillator provides precise time triggers to Digital-Analog Converters. WIMA Capacitors to deliver crystal and balanced sound.

Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS codecs.

DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization.

ULTRA DURABLE

GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the X299X AORUS MASTER and reinforce every slot to make each of them solid and durable.

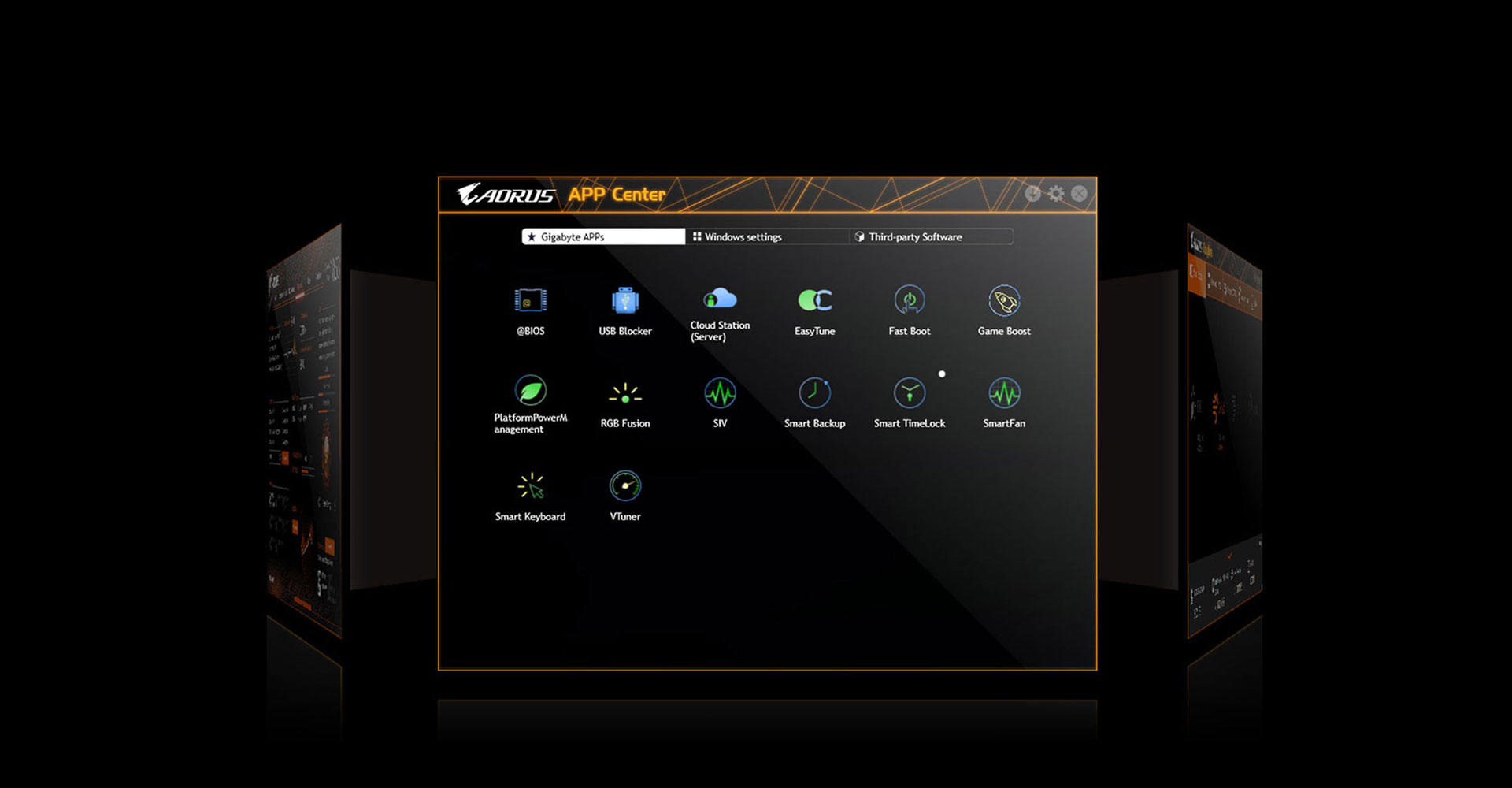

GIGABYTE BIOS & APP CENTER

Good software goes hand in hand with perfect hardware. X299X AORUS MASTER bundled several useful and intuitive software to help users to control every aspect of motherboard.

Specifications

CPU

1. Support for Intel Core i7-7800X and above X series processors/Intel Core i9 X series processors in the LGA2066 package

2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

1. IntelX299 Express Chipset

Memory

Intel Core X series 48-lane processors:

1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory

2. Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules

Intel Core X series 44-lane/28-lane processors:

1. 8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory

2. Support for DDR4 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666/2400/2133 MHz memory modules

4 channel memory architecture

Support for non-ECC Un-buffered DIMM memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Audio

1. Realtek ALC1220-VB codec

* The front panel line out jack supports DSD audio.

2. ESS SABRE9218 DAC chip

3. High Definition Audio

4. 2/4/5.1/7.1-channel

5. Support for S/PDIF Out

LAN

1. 1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)

2. 1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN2)

Wireless Communication module

1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band

2. BLUETOOTH 5.0

3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots

Intel Core X series 48-lane processors:

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)

* The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode.

Intel Core X series 44-lane processors:

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

2. 1 x PCI Express x16 slot, running at x8 (PCIEX8_1)

3. 1 x PCI Express x16 slot, running at x4 (PCIEX8_2)

* The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode.

Intel Core X series 28-lane processors:

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16_1)

2. 1 x PCI Express x16 slot, running at x8 (PCIEX16_2)

3. 1 x PCI Express x16 slot, running at x4 (PCIEX8_2)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.

(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)

Multi-Graphics Technology

1. Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies

2. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Storage Interface

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)

2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)

* The M2M and M2Q connectors become unavailable when an Intel Core X series 28-lane processor is used.

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P)

8 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

1. The M2M and M2Q connectors must work with an Intel VROC Upgrade Key to support RAID configuration. If you want to use VROC, refer to Chapter 3-4, "Configuring Intel Virtual RAID on CPU (Intel VROC)," for setup instructions.

2. * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel Optane Memory Ready

1. * Only Intel Core X series 48-lane processors support Intel Optane Memory.

Intel VROC Ready

USB

Chipset+2 ASMedia USB 3.2 Gen 2 Controllers:

1. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

2. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset+Realtek USB 3.2 Gen 1 Hub:

1. 2 x USB 3.2 Gen 1 ports on the back panel

2. 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset:

1. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

2. 2 x USB 2.0/1.1 ports available through the internal USB header

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2. 2 x 8-pin ATX 12V power connectors

3. 1 x CPU fan header

4. 1 x water cooling CPU fan header

5. 4 x system fan headers

6. 2 x system fan/water cooling pump headers

7. 2 x addressable LED strip headers

8. 2 x RGB LED strip headers

9. 3 x M.2 Socket 3 connectors

10. 8 x SATA 6Gb/s connectors

11. 1 x Intel VROC Upgrade Key header

12. 1 x front panel header

13. 1 x front panel audio header

14. 1 x USB Type-C port, with USB 3.2 Gen 2 support

15. 2 x USB 3.2 Gen 1 headers

16. 3 x USB 2.0/1.1 headers

17. 1 x noise detection header

18. 1 x Thunderbolt add-in card connector

19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

20. 1 x power button

21. 1 x reset button

22. 2 x temperature sensor headers

23. 1 x Clear CMOS jumper

24. 2 x BIOS switches

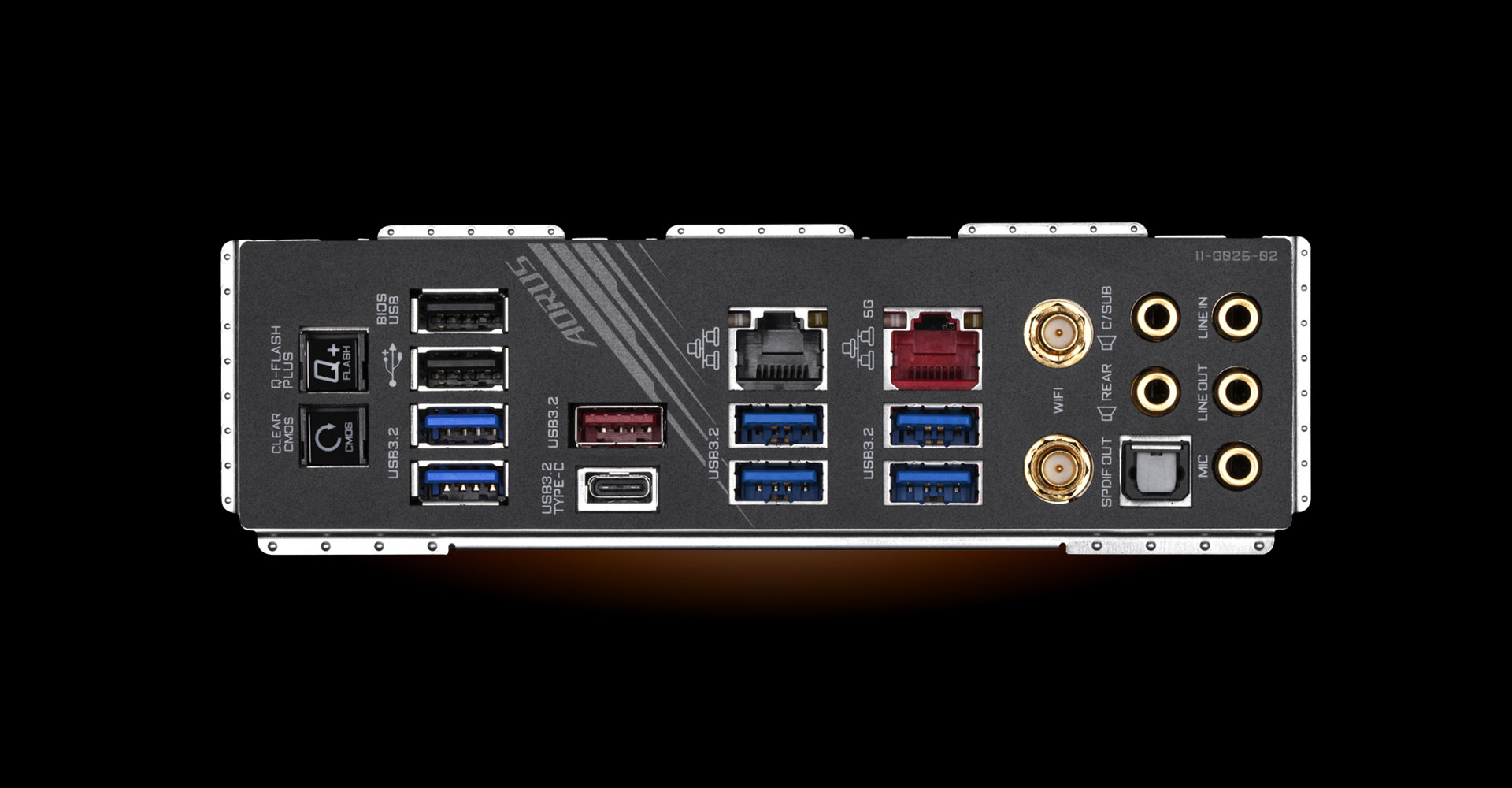

Back Panel Connectors

1. 1 x Q-Flash Plus button

2. 1 x Clear CMOS button

3. 1 x USB Type-C port, with USB 3.2 Gen 2 support

4. 1 x USB 3.2 Gen 2 Type-A port (red)

5. 6 x USB 3.2 Gen 1 ports

6. 2 x USB 2.0/1.1 ports

7. 2 x RJ-45 ports

8. 2 x SMA antenna connectors (2T2R)

9. 1 x optical S/PDIF Out connector

10. 5 x audio jacks

I/O Controller

1. iTE I/O Controller Chip

H/W Monitoring

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Overheating warning

6. Fan fail warning

7. Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

8. Noise Detection

BIOS

1. 2 x 128 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. Support for DualBIOS

4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

AutoGreen

Cloud Station

EasyTune

Easy RAID

Fast Boot

Game Boost

Platform Power Management

RGB Fusion

Smart Backup

Smart Keyboard

Smart Survey

System Information Viewer

USB Blocker

USB TurboCharger

2. Support for Q-Flash Plus

3. Support for Q-Flash

4. Support for Xpress Install

Bundled Software

1. Norton Internet Security (OEM version)

2. cFosSpeed

3. XSplit Gamecaster + Broadcaster (12 months license)

Operating System

1. Support for Windows 10 64-bit

Form Factor

1. E-ATX Form Factor; 30.5cm x 26.9cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
