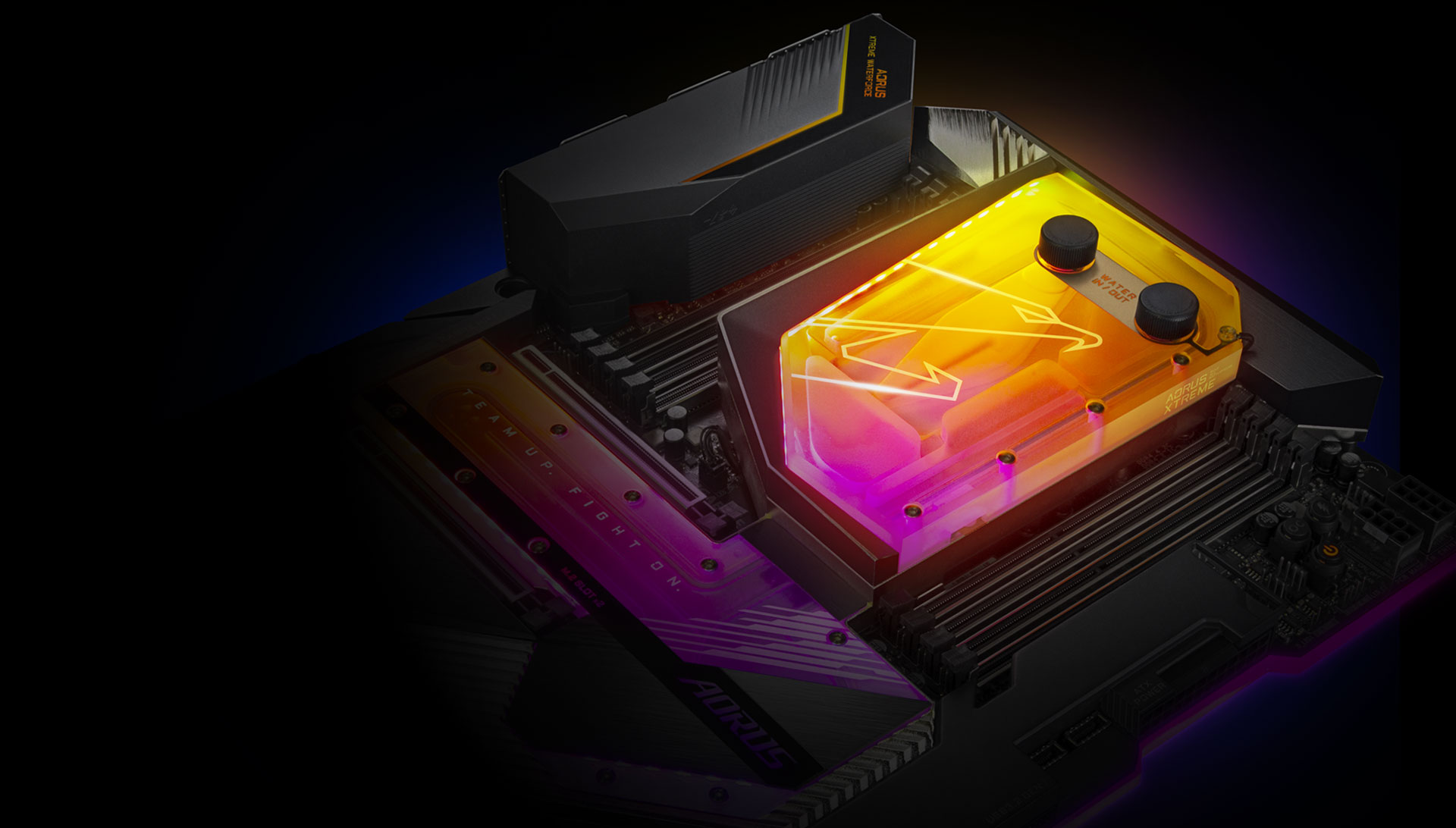

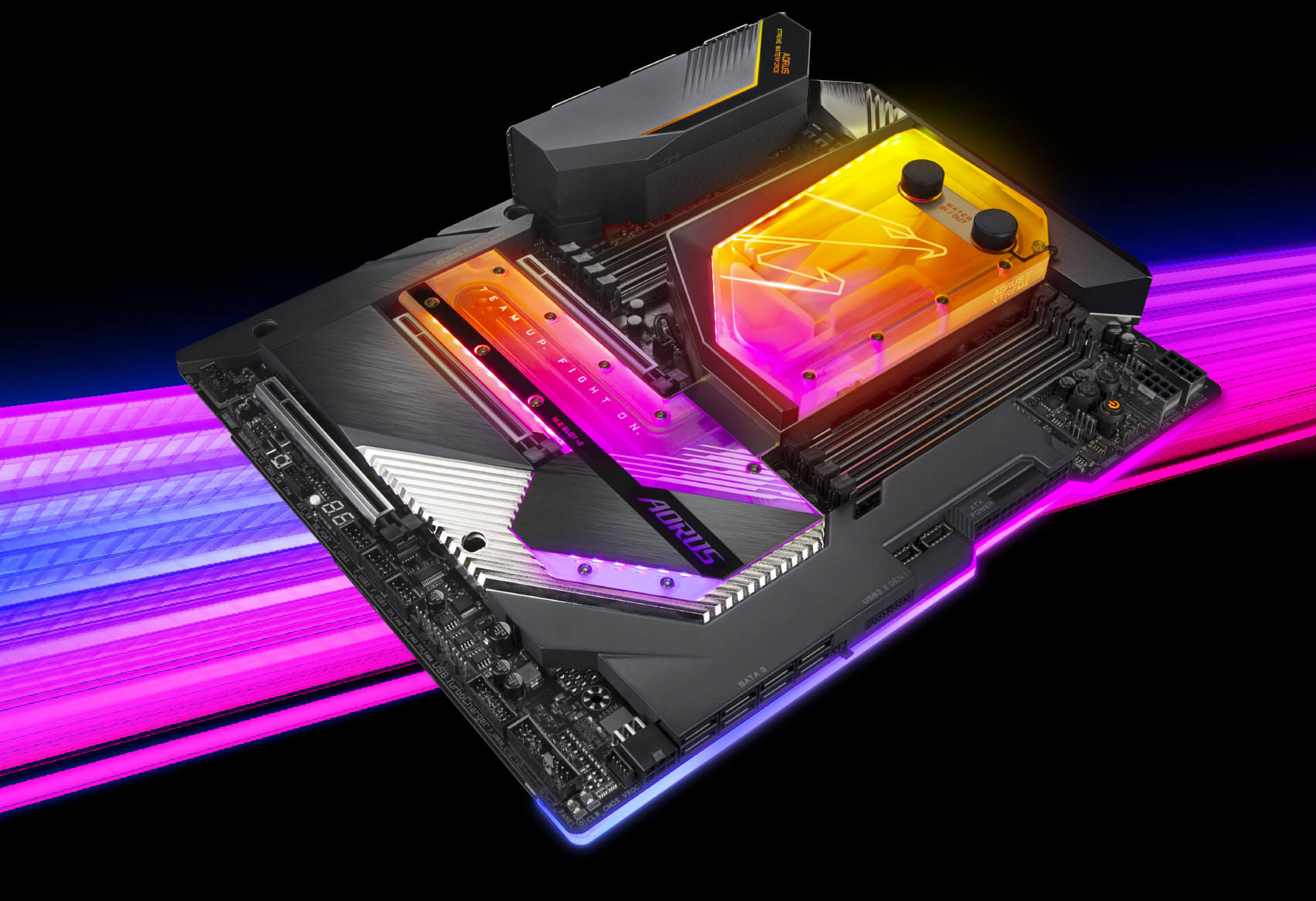

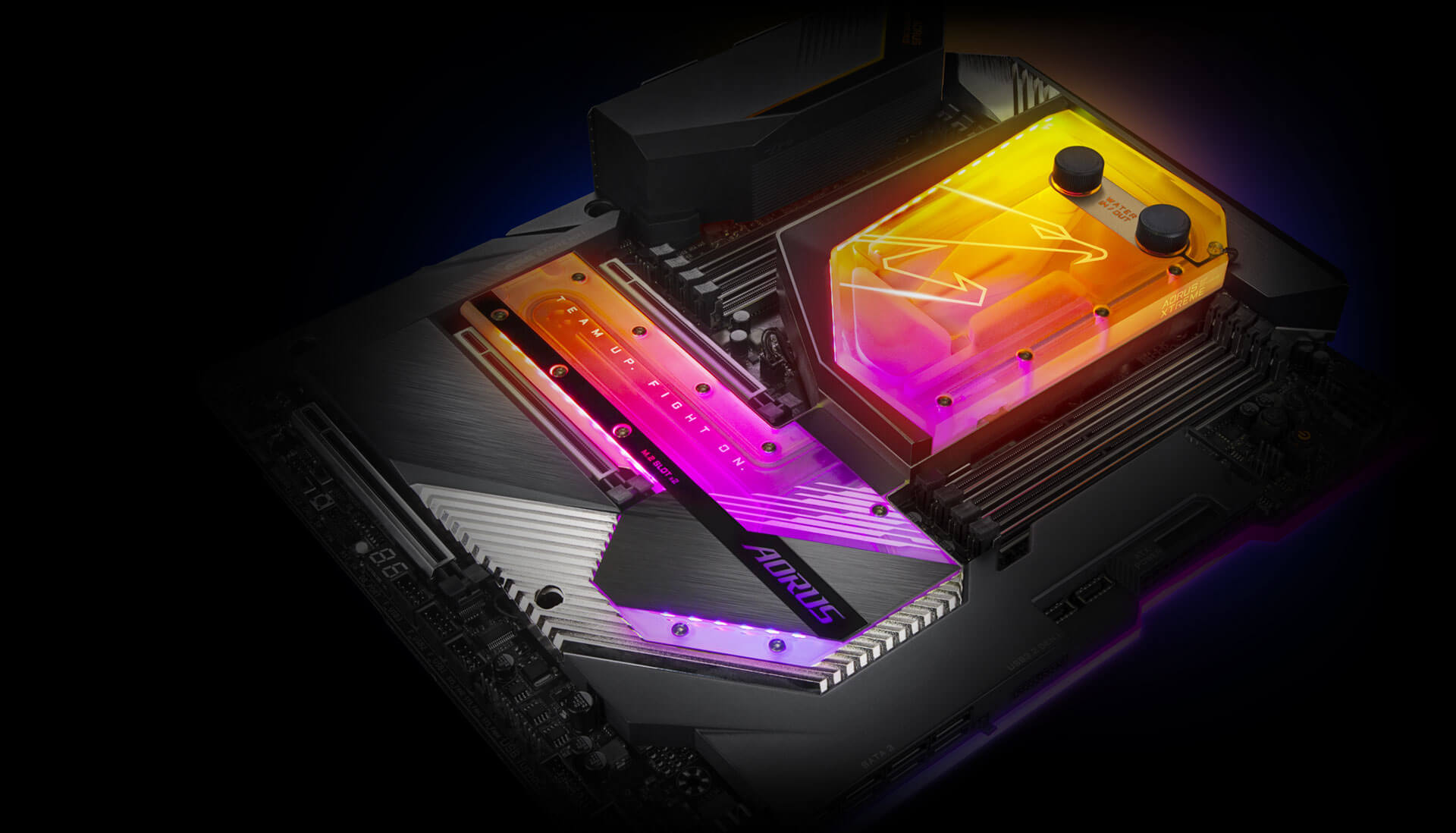

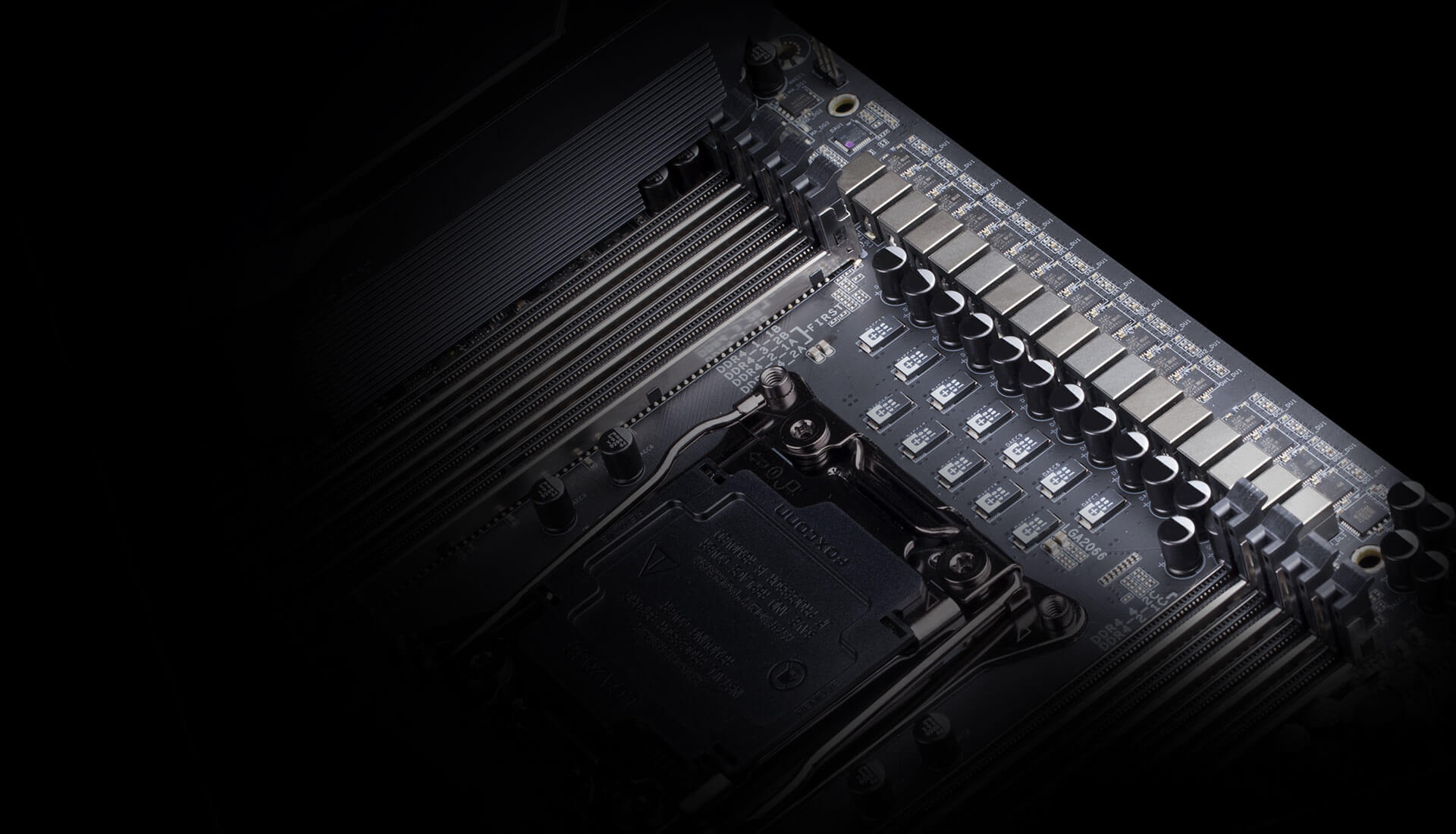

CPU |
1. Support for
Intel Core i7-7800X and above X series processors/Intel Core i9
X series processors in the LGA2066 package |
|
2. L3 cache varies with
CPU |
|
(Please refer "CPU
Support List" for more information.) |
Chipset |
1. Intel X299
Express Chipset |
Memory |
Intel Core X
series 48-lane processors: |
|
1. 8 x DDR4 DIMM
sockets supporting up to 256 GB (32 GB single DIMM capacity) of system
memory |
|
2. Support for DDR4
4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) /
3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) /
3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) /
2933/2666/2400/2133 MHz memory modules |
|
Intel Core X
series 44-lane/28-lane processors: |
|
1. 8 x DDR4 DIMM
sockets supporting up to 128 GB (16 GB single DIMM capacity) of system
memory |
|
2. Support for DDR4
4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) /
3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) /
3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666/2400/2133 MHz
memory modules |
|
4 channel memory
architecture |
|
Support for non-ECC
Un-buffered DIMM memory modules |
|
Support for Extreme
Memory Profile (XMP) memory modules |
|
(Please refer "Memory
Support List" for more information.) |
Onboard
Graphics |
Intel Thunderbolt
3 Controller: |
|
1. 2 x
Intel Thunderbolt 3 connectors (USB Type-C ports), supporting
DisplayPort and Thunderbolt video outputs and a maximum resolution of
4096x2304@60 Hz |
|
* Because of the
limited I/O resources of the PC architecture, the number of Thunderbolt
devices that can be used is dependent on the number of the PCI Express
devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors,"
for more information.) |
|
* Support for
DisplayPort 1.4 version. |
|
Maximum shared memory
of 1 GB |

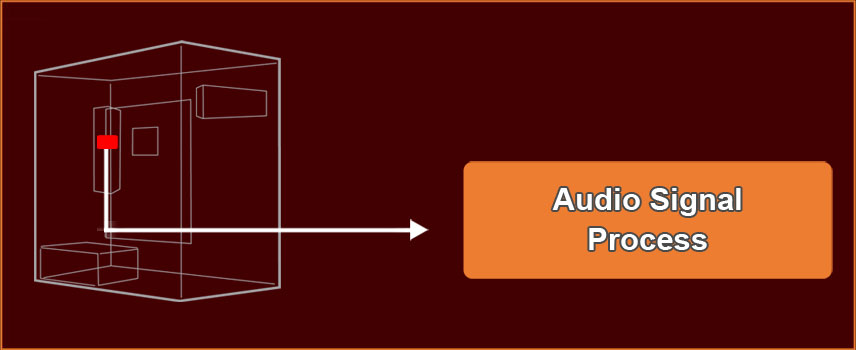

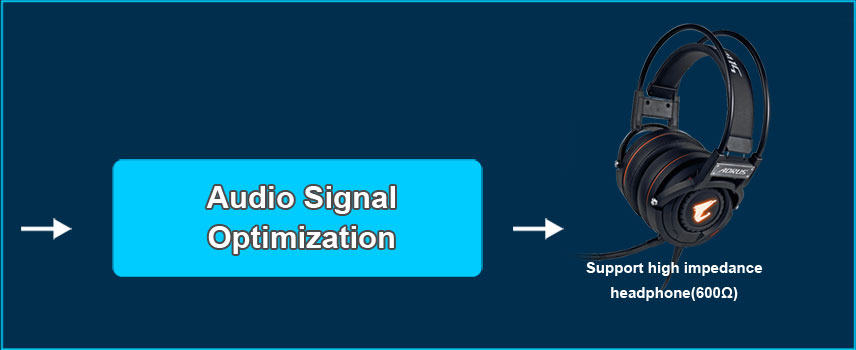

Audio |
1. 2 x
Realtek ALC1220-VB codecs |
|
2. 2 x ESS SABRE9218
DAC chips |
|
3. High Definition
Audio |
|
4.
2/4/5.1/7.1-channel |
|
5. Support for S/PDIF
Out |
LAN |
1. 1 x Aquantia 10GbE
LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit)
(LAN1) |
|
2. 1 x Intel GbE
LAN chip (10/100/1000 Mbit) (LAN2) |
Wireless
Communication module |
1. Wi-Fi
802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band |
|
2. BLUETOOTH
5.0 |
|
3. Support for 11ax
160MHz wireless standard and up to 2.4 Gbps data rate |
|
* Actual data rate may
vary depending on environment and equipment. |
Expansion
Slots |
Intel Core X
series 48-lane processors: |
|
1. 3 x PCI Express x16
slots, running at x16 |
|
Intel Core X
series 44-lane processors: |
|
1. 2 x PCI Express x16
slots, running at x16 (PCIEX16_1, PCIEX16_2) |
|
2. 1 x PCI Express x16
slot, running at x8 (PCIEX16_3) |
|
Intel Core X
series 28-lane processors: |
|
1. 1 x PCI Express x16
slot, running at x16 (PCIEX16_1) |
|
2. 1 x PCI Express x16
slot, running at x8 (PCIEX16_2) |
|
* For optimum
performance, if only one PCI Express graphics card is to be installed, be
sure to install it in the PCIEX16_1 slot. |
|
(All of the PCI Express
x16 slots conform to PCI Express 3.0 standard.) |
Multi-Graphics
Technology |
1. Support for
NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI
technologies |
|
2. Support for AMD
Quad-GPU CrossFire and 2-Way AMD CrossFire
technologies |
Storage
Interface |

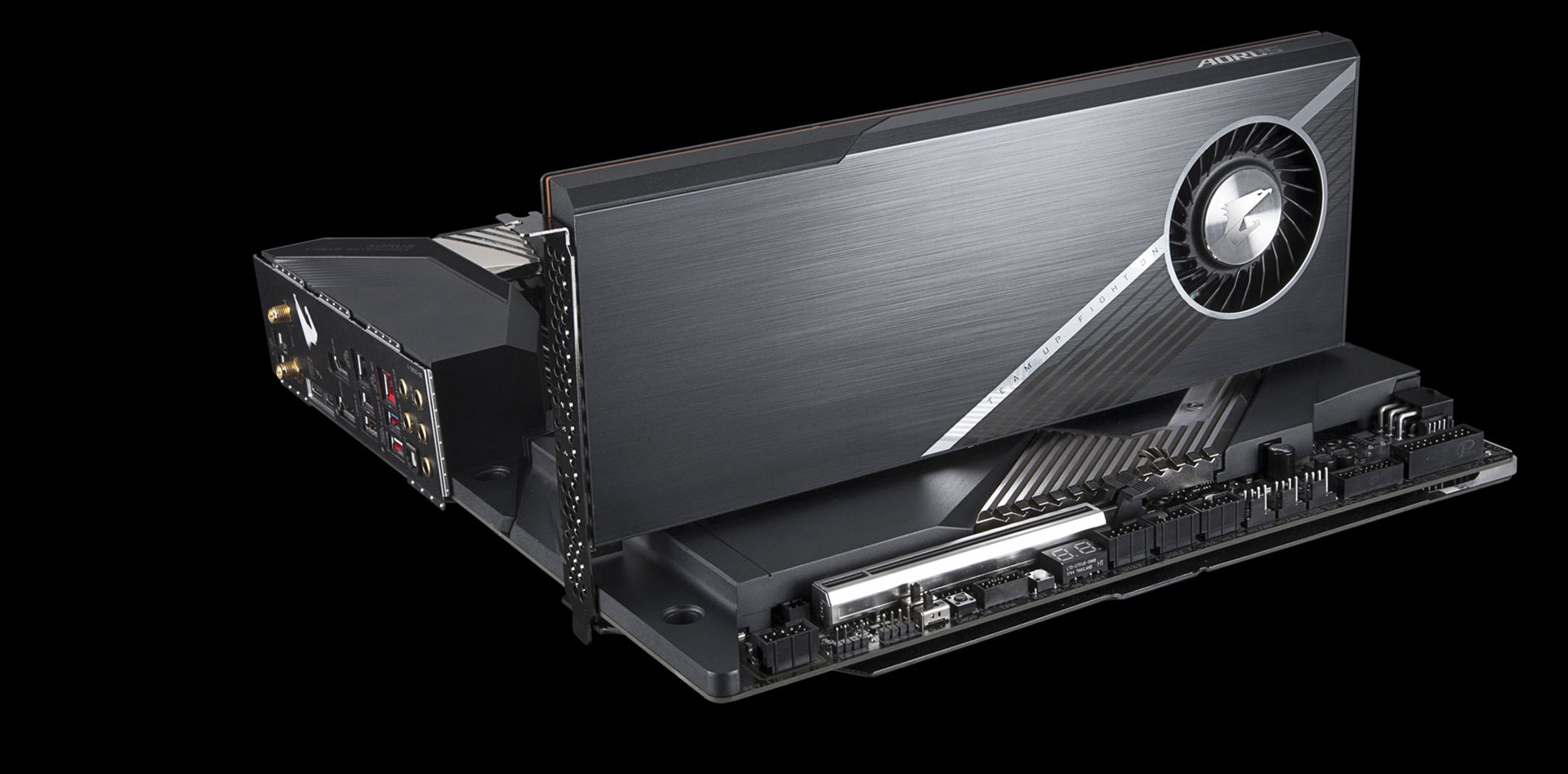

1. 2 x M.2 connectors
(Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD
support) |
|
2. 8 x SATA 6Gb/s
connectors |
|
3. Support for RAID 0,
RAID 1, RAID 5, and RAID 10 |
|
* The M2P and M2Q
connectors must work with an Intel VROC Upgrade Key to support RAID
configuration. |
|
* Refer to "1-9
Internal Connectors," for the installation notices for the M.2 and SATA
connectors. |
|
4. Intel Optane
Memory Ready |
|
* Only Intel Core
X series 48-lane processors support Intel Optane
Memory. |
|
5. Intel VROC
Ready |
USB |
Chipset+Intel Thunderbolt3
Controller: |
|
1. 2 x USB Type-C ports
on the back panel, with USB 3.2 Gen 2 support |
|
Chipset+2
ASMedia USB 3.2 Gen 2 Controllers: |
|
1. 2 x USB Type-C ports
with USB 3.2 Gen 2 support, available through the internal USB
headers |
|
2. 2 x USB 3.2 Gen 2
Type-A ports (red) on the back panel |
|
Chipset: |
|
1. 6 x USB 3.2 Gen 1
ports (2 ports on the back panel, 4 ports available through the internal
USB headers) |
|
2. 2 x USB 2.0/1.1
ports on the back panel |
|
Chipset+2 USB 2.0
Hubs: |
|
1. 6 x USB 2.0/1.1
ports available through the internal USB headers |
Internal I/O
Connectors |
1. 1 x 24-pin ATX main
power connector |
|
2. 2 x 8-pin ATX 12V
power connectors |
|
3. 1 x VGA_PW power
connector |
|
4. 1 x CPU fan
header |
|
5. 1 x water cooling
CPU fan header |
|
6. 1 x water cooling
kit CPU LED header (LED_CPU) |
|
7. 1 x water cooling
kit Chipset LED header (LED_PCH) |
|
8. 4 x system fan
headers |
|
9. 2 x system fan/water
cooling pump headers |
|
10. 2 x addressable LED
strip headers |
|
11. 2 x RGB LED strip
headers |
|
12. 2 x M.2 Socket 3
connectors |
|
13. 8 x SATA 6Gb/s
connectors |
|
14. 1 x Intel VROC
Upgrade Key header |
|
15. 1 x front panel
header |
|
16. 1 x front panel
audio header |
|
17. 2 x USB Type-C
ports, with USB 3.2 Gen 2 support |
|
18. 2 x USB 3.2 Gen 1
headers |
|
19. 3 x USB 2.0/1.1
headers |
|
20. 1 x noise detection
header |
|
21. 1 x Trusted
Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module
only) |
|
22. 1 x Clear CMOS
jumper |
|
23. 1 x power
button |
|
24. 1 x OC Ignition
button |
|
25. 1 x OC
button |
|
26. 1 x reset
button |
|
27. 1 x Clear CMOS
button |
|
28. 2 x temperature
sensor headers |
|
29. 2 x BIOS
switches |

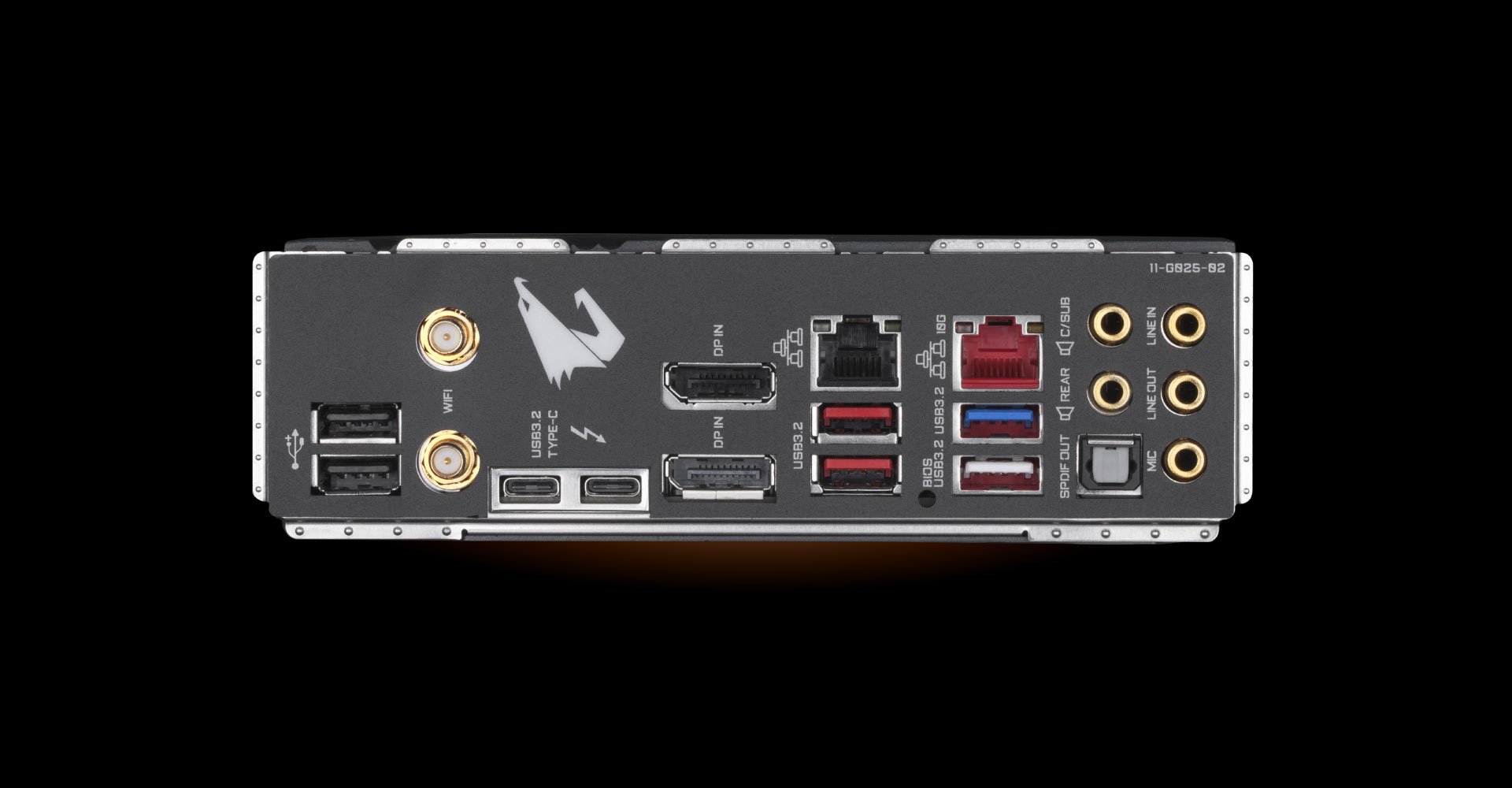

Back Panel
Connectors |
1. 2 x Thunderbolt 3
connectors (USB Type-C ports, with USB 3.2 Gen 2
support) |
|
2. 2 x USB 3.2 Gen 2
Type-A ports (red) |
|
3. 2 x USB 3.2 Gen 1
ports |
|
4. 2 x USB 2.0/1.1
ports |
|
5. 2 x DisplayPort In
ports |
|
6. 2 x RJ-45
ports |
|
7. 2 x SMA antenna
connectors (2T2R) |
|
8. 1 x optical S/PDIF
Out connector |
|
9. 5 x audio
jacks |
I/O
Controller |
1. iTE I/O
Controller Chip |
H/W
Monitoring |
1. Voltage
detection |
|
2. Temperature
detection |
|
3. Fan speed
detection |
|
4. Water cooling flow
rate detection |
|
5. Overheating
warning |
|
6. Fan fail
warning |
|
7. Fan speed
control |
|
* Whether the fan
(pump) speed control function is supported will depend on the fan (pump)
you install. |
|
8. Noise
detection |
BIOS |
1. 2 x 128 Mbit
flash |
|
2. Use of licensed AMI
UEFI BIOS |
|
3. Support for
DualBIOS |
|
4. PnP 1.0a, DMI 2.7,
WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique
Features |

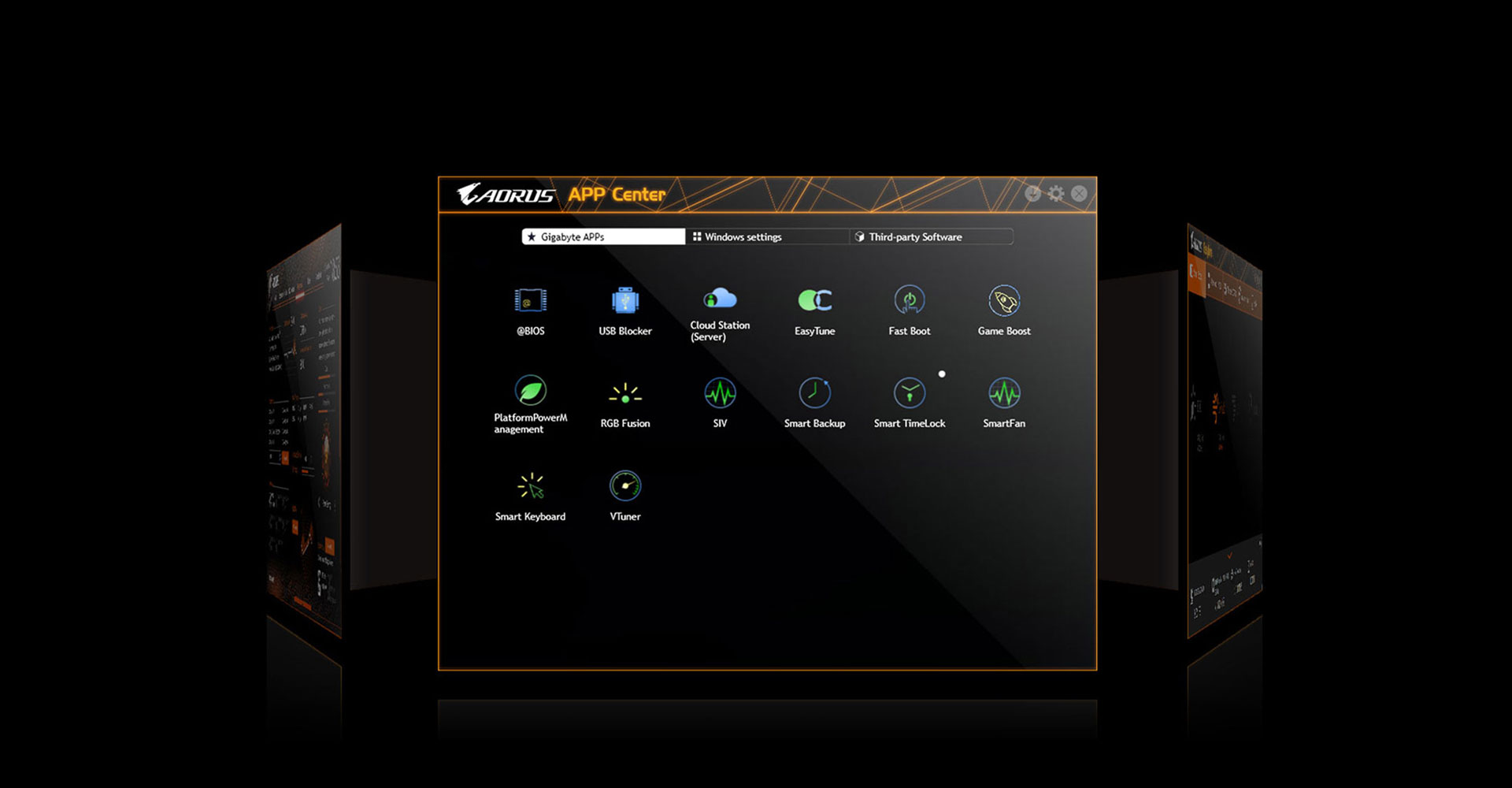

1. Support for APP
Center |
|
* Available
applications in APP Center may vary by motherboard model. Supported
functions of each application may also vary depending on motherboard
specifications. |
|
@BIOS |
|
AutoGreen |
|
Cloud
Station |
|
EasyTune |
|
Easy
RAID |
|
Fast
Boot |
|
Game
Boost |
|
Platform Power
Management |
|
RGB
Fusion |
|
Smart
Backup |
|
Smart
Keyboard |
|
Smart
Survey |
|
System Information
Viewer |
|
USB
Blocker |
|
USB
TurboCharger |
|
2. Support for Q-Flash
Plus |
|
3. Support for
Q-Flash |
|
4. Support for Xpress
Install |
Bundled
Software |
1. Norton Internet
Security (OEM version) |
|
2.
cFosSpeed |
|
3. XSplit Gamecaster +
Broadcaster (12 months license) |
Operating
System |
1. Support for Windows
10 64-bit |
Form
Factor |
1. XL-ATX Form Factor;
32.5cm x 27.5cm |
Remark |
1. Due to different
Linux support condition provided by chipset vendors, please download Linux
driver from chipset vendors' website or 3rd party
website. |
|
2. Most
hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will
update them on the GIGABYTE
website. |
