Essentials |
|
|
Product
Collection |

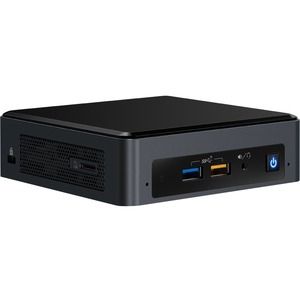

Intel NUC Kit with 8th
Generation Intel Core Processors |
|
Code
Name |
Products formerly BEAN
CANYON |
|
Status |
Launched |
|
Launch
Date |
Q3'18 |
|
Supported Operating
Systems |
Windows 10,
64-bit* |
|
Board
Number |
NUC8BEB |
|
Board Form
Factor |
UCFF (4" x
4") |
|
Socket |
Soldered-down
BGA |
|
Internal Drive Form
Factor |
M.2
SSD |
|
# of Internal Drives
Supported |
1 |
|
Lithography |
14
nm |
|
TDP |
28
W |
|
DC Input Voltage
Supported |
12-19
VDC |
|
Processor
Included |
Intel Core i3-8109U
Processor (4M Cache, up to 3.60 GHz) |
|
Intel vPro Platform
Eligibility |
No |
|
# of
Cores |
2 |
|
# of
Threads |
4 |
|
Processor Base
Frequency |
3.00
GHz |
|
Max Turbo
Frequency |
3.60
GHz |
|
Warranty
Period |
3
yrs |
|
Supplemental
Information |
|
|
Embedded Options
Available |
No |
|
Description |
Other features:
Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via
USB-C; also includes microSDXC card slot, dual
microphones |
|
Memory &
Storage |
|
|
Max Memory Size
(dependent on memory type) |
32
GB |
|
Memory
Types |
DDR4-2400 1.2V
SO-DIMM |
|
Max # of Memory
Channels |
2 |
|
Max Memory
Bandwidth |
38.4
GB/s |
|
Max # of
DIMMs |
2 |
|
ECC Memory Supported
|
No |
|
Processor
Graphics |
|
|
Processor Graphics
|
Intel Iris Plus
Graphics 655 |
|
Integrated Graphics
|
Yes |
|
Graphics
Output |
HDMI 2.0a; USB-C
(DP1.2) |
|
# of Displays Supported
|
3 |
|
Expansion
Options |
|
|
PCI Express
Revision |
Gen3 |
|
PCI Express
Configurations |
M.2 slot with PCIe X4
lanes |
|
Removable Memory Card
Slot |
microSDXC with UHS-I
support |
|
M.2 Card Slot
(storage) |
22x42/80 |
|
I/O
Specifications |
|
|
# of USB
Ports |
6 |
|
USB
Configuration |
2x front and 3x rear
USB 3.1 Gen2; 2x USB 2.0 via internal headers |
|
USB
Revision |
2.0, 3.1
Gen2 |
|
USB 2.0 Configuration
(External + Internal) |
0 +
2 |
|
USB 3.0 Configuration
(External + Internal) |
2B 2F +
0 |
|
Total # of SATA
Ports |
2 |
|
Max # of SATA 6.0 Gb/s
Ports |
2 |
|
Audio (back channel +
front channel) |
7.1 digital (HDMI mDP);
L+R mic (F) |
|
Integrated
LAN |
Intel Ethernet
Connection I219-V |
|
Integrated
Wireless |
Intel Wireless-AC 9560
+ Bluetooth 5.0 |
|
Integrated
Bluetooth |
Yes |
|
Consumer Infrared Rx
Sensor |
Yes |
|
Additional
Headers |
CEC, 2x USB2.0,
FRONT_PANEL |
|
# of Thunderbolt 3
Ports |
1 |
|
Package
Specifications |
|
|
Chassis
Dimensions |
117 x 112 x
36mm |
|
Advanced
Technologies |
|
|
Intel Optane Memory
Supported |
Yes |
|
Intel Virtualization
Technology for Directed I/O (VT-d) |
Yes |
|
Intel vPro Platform
Eligibility |
No |
|
TPM |
No |
|
Intel HD Audio
Technology |
Yes |
|
Intel Rapid Storage
Technology |
Yes |
|
Intel Virtualization
Technology (VT-x) |
Yes |
|
Intel Platform Trust
Technology (Intel PTT) |
Yes |
|
Security &
Reliability |
|
|
Intel AES New
Instructions |
Yes |
