Gigabyte B360N WIFI (rev. 1.0) Motherboard
Overview
Intel B360 Ultra Durable motherboard with Intel CNVi 802.11ac Wave2 2T2R
WIFI, Dual Intel GbE LAN with 25KV protection, PCIe Gen3 x4 M.2, 7 colors RGB
LED strips support, DualBIOS, CEC 2019 ready
- Supports 9th and 8th Gen Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4
- New Hybrid Digital PWM Design
- Intel CNVi 802.11ac Wave2 2T2R WIFI
- High Quality Audio Capacitors and Audio Noise Guard
- Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
- RGB FUSION supports RGB LED strips in 7 colors
- Dual Intel GbE LAN with cFosSpeed Internet Accelerator Software
- CEC 2019 Ready, Save the Power as Easy as One Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
with FAN STOP
- Anti-Sulfur Resistors Design
- Ultra Durable 25KV ESD and 15KV Surge LAN Protection
- Intel Optane Memory Ready
- GIGABYTE UEFI DualBIOS
CONNECTIVITY
Smashes the GbE Barrier! | Integrated Intel 802.11ac Wave2 CNVi
WIFI
Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables
gigabit wireless performance, provides smooth video streaming, better gaming
experience, few dropped connections and speeds up to 1.73Gbps. Double the speed
compared to the previous generation.
NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32
Gb/s)
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts
who want to maximize their systems potential.
PERFORMANCE FUELED BY OPTANE
The H370/B360 Platform supports Intel's latest Optane technology. Optane
fuels storage performance by acting as a cache drive giving users a significant
boost compared to traditional mechanical drives.
Dual Intel Gbe LAN with cFosSpeed Internet Accelerator
Software
Dual Intel Gigabit LAN features cFosSpeed, a network traffic management
application which helps to improve network latency and maintain low ping times
to deliver better responsiveness in crowded LAN environments.
The Industry's Leading LAN Static-Electricity & Surge
Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels
compared to traditional ICs. This helps to better protect the motherboard and
its components against potential damage caused by static electricity. GIGABYTE
motherboards also feature special anti-surge ICs that protect your motherboard,
and your PC from any surge in power delivery that may occur, helping to ensure
that your PC is equipped to deal with any potentially irregular and inconsistent
power delivery.
COOLING
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its
performance while staying cool. Smart Fan 5 allows users to interchange their
fan headers to reflect different thermal sensors at different locations on the
motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that
support both PWM and Voltage mode fans have been introduced to make the
motherboard more liquid cooling friendly.
Temperature
Sensors
Fan
Pin Headers
Temperature Sensors
Hybrid Fan Headers
- 4 Temperature Sensors
- 3 Fan Pin Headers
- All Fan Pin Headers Upgraded to Hybrid Fan Headers
- Interoperable Fans and Sensors
- Intuitive UI for Fan Control
FAN STOP
Achieve fan silence. With Fan Stop map any fan to stop completely when
temperatures drop below a specified threshold. Which fan stops, based on
readings from which sensor, and at what temperatureall of it can be customized
to your liking.
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives
up-to-the-second information on flow-rate through the Hybrid Fan Pin
Headersgiving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device
whether it be fan or pump with different PWM or Voltage mode.
PERFORMANCE
Immersive VR Gaming Experience
> VR requires more performance than Full HD graphics for a steady 90FPS or
greater.
> Only Gaming PCs can provide the best VR experience.
- Recommended configuration for VR Gaming PC*
- Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI
1.4 video output.
- CPU: Intel i5 equivalent or greater
- Motherboard: GIGABYTE H370 / B360 / H310 series motherboards
- Memory: 8GB RAM or greater
- USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
- OS: Windows 10 64-bit or newer
AUDIO
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality
capacitors help deliver high resolution and high fidelity audio to provide the
most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates
the board's sensitive analog audio components from potential noise pollution at
the PCB level.
LIGHTING
Supports RGB Light Strips in 7 Colors
Personalize your next PC rig to your liking by selecting the color of your
choice to illuminate the external RGB light strip. A total of 7 colors are
available to make your system appearance unique!
RGB Fusion (Advanced mode)
RGB Calibration
Different light strips sometimes have different RGB pin definitions, RGB
Fusion softwear can relocate each pin location for the best
compatibility.
Lighting Profile
Save, export and import profiles to quickly change effects based on you
perference and to share with others.
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy.
With the GIGABYTE RGB Fusion mobile app users can watch as they control the
lighting within their gaming PC. This gives users ease of access as they try and
adjust colors and speeds for different modes, all this can be achieved away from
the keyboard and monitor of their PC.
ULTRA DURABLE
GIGABYTE Patented Double Locking Bracket
GIGABYTE Patented DualBIOS
Design
GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive
technology from GIGABYTE that protects arguably one of your PC's most crucial
components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a
'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to
virus, hardware malfunction, improper OC settings or power failure during the
update process.

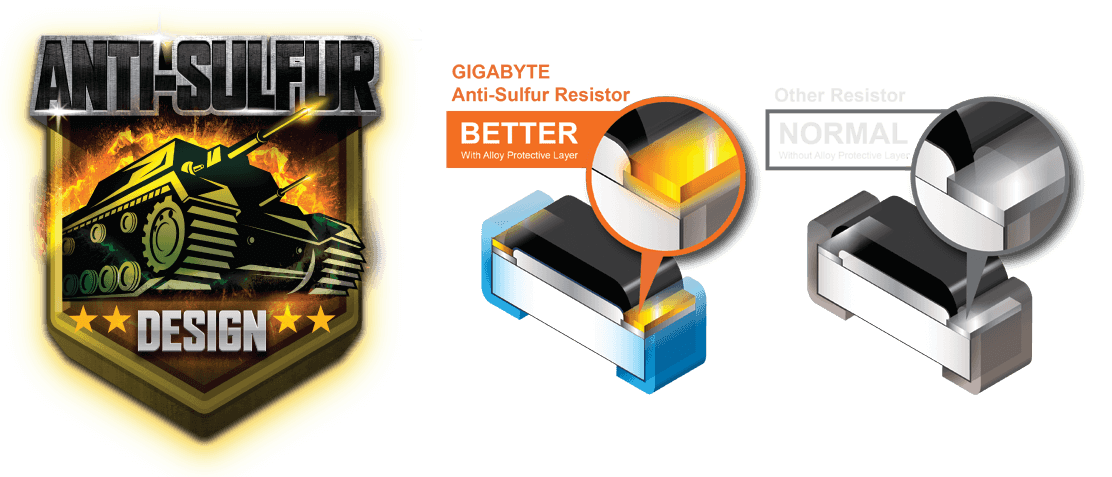

START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating
chemical change and causing these resistors to open or short. If either of these
occurs the motherboard will fail to function. By equipping resistors with an
Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new
meaning.
GIGABYTE EXCELLENCE
CEC 2019 Ready
Save the power as easy as one click

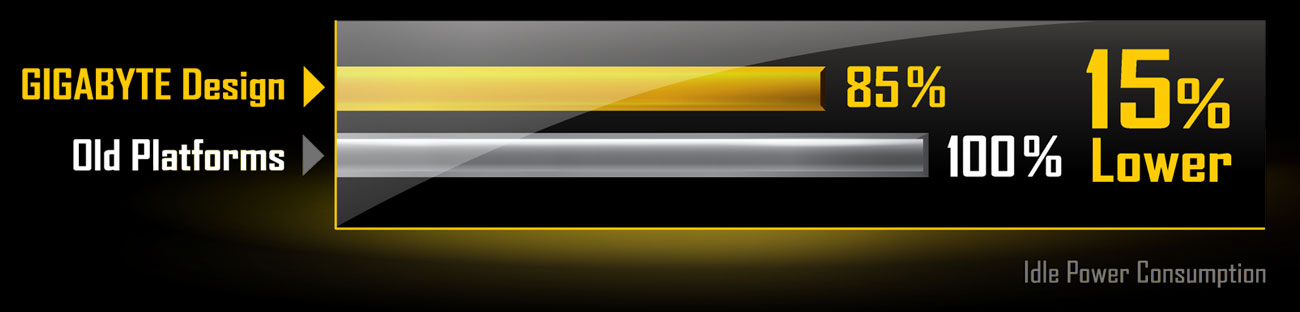

CEC Requirement : PC power consumption must be under a certain level when
it's in off mode, idle mode, stand-by mode. With high power efficiency hardware
components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power
consumption under idle mode and fully comply with new CEC 2019 (California
Energy Commission) power consumption requirement.
GIGABYTE BIOS & Applications

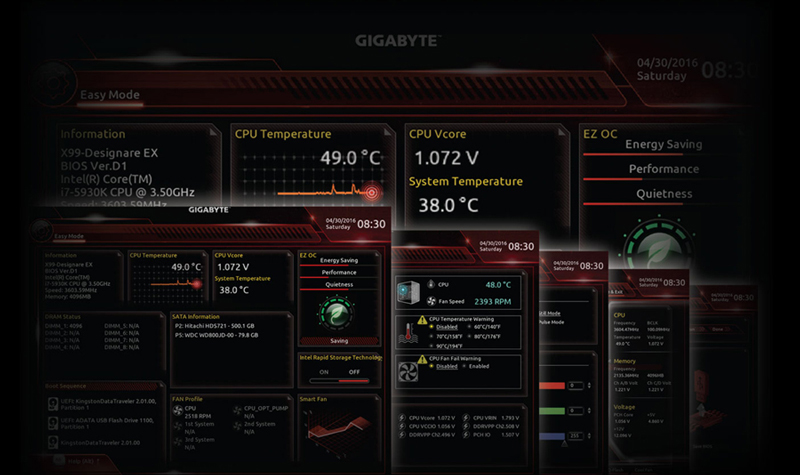

Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most
optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has
been able to reinvent the BIOS to give users a better experience while setting
up their new system.

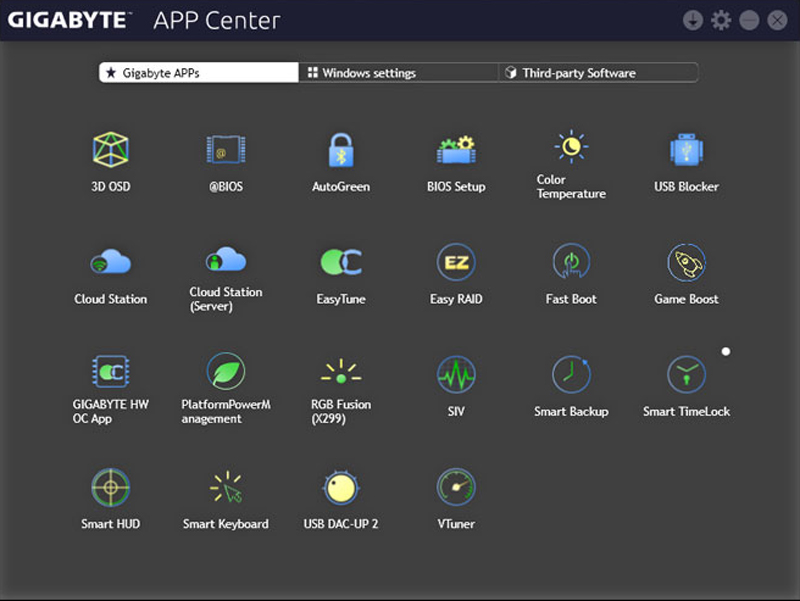

GIGABYTE APP Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps
that help you get the most from your GIGABYTE motherboard. Using a simple,
unified user interface, GIGABYTE APP Center allows you to easily launch all
GIGABYTE apps installed on your system, check related updates online, and
download the latest apps, drivers, and BIOS.

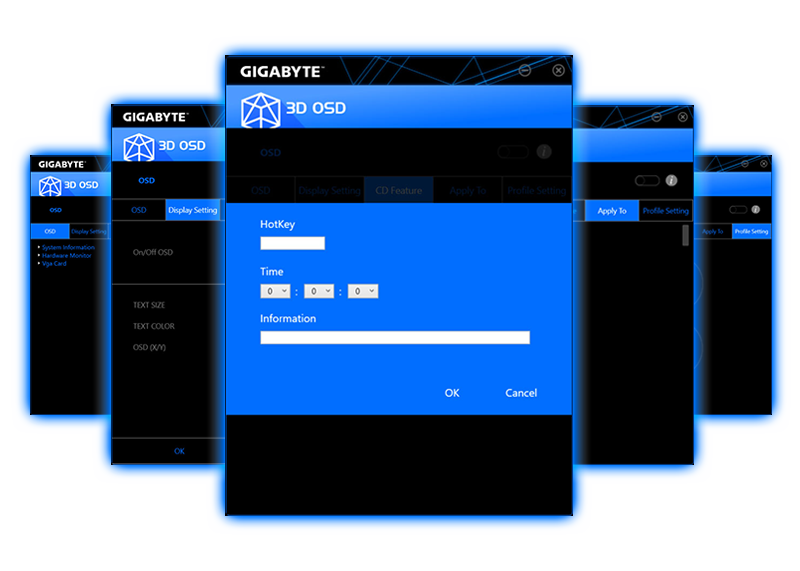

3D OSD
3D OSD automatically detects and displays your system information during
games, allowing you to easily get a hold of your system information without
switching between screens.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime,
Anywhere
Now set up your stage and share the greatest gaming moments with XSplit
Gamecaster + Broadcaster! Fully optimized social media integration is ready for
real-time chatskeeping you notified yet focused in the game. It takes just one
click to stream your gameplay to Twitch. Host your game like a pro!
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content
delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than
four times today's standard HD pixel density. GIGABYTE motherboards provide
native 4K support with integrated Intel HD Graphics via HDMI.
HDMI - The Next Generation Multimedia
Interface
HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s
video transmitting bandwidth and 8-channel high quality audio all through a
single cable. Able to transmit superior, uncompressed digital video and audio,
HDMI ensures the crispest rendering of digital content up to 1080p without the
quality losses associated with analog interfaces and their digital-to-analog
conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital
Content Protection), allowing the playback of Blu-ray/HD DVD and other protected
media content.
Specifications
|
CPU |
1. Support for 9th and
8th Generation Intel Core i7 processors/Intel Core i5
processors/Intel Core i3
processors/Intel Pentium processors/Intel Celeron processors
in the LGA1151 package |
|
2. L3 cache varies with
CPU |
|
(Please refer "CPU
Support List" for more information.) |
|
Chipset |
1. Intel B360
Express Chipset |
|
Memory |
1. 2 x DDR4 DIMM
sockets supporting up to 32 GB of system memory |
|
2. Dual channel memory
architecture |
|
3. Support for DDR4
2666/2400/2133 MHz memory modules |
|
4. Support for ECC
Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC
mode) |
|
5. Support for non-ECC
Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
6. Support for Extreme
Memory Profile (XMP) memory modules |
|
* To support 2666 MHz
or XMP memory, you must install an 8th Generation Intel Core
i7/i5 processor. |
|
(Please refer "Memory
Support List" for more information.) |
|
Onboard
Graphics |
Integrated Graphics
Processor-Intel HD Graphics support: |
|
1. 2 x HDMI ports,
supporting a maximum resolution of 4096x2160@30 Hz |
|
* Support for HDMI 1.4
version and HDCP 2.2. |
|
Maximum shared memory
of 1 GB |
|
Actual support may vary
by CPU |
|
Audio |
1. Realtek ALC887
codec |
|
2. High Definition
Audio |
|
3.
2/4/5.1/7.1-channel |
|
4. Support for S/PDIF
Out |
|
LAN |
1. 2 x Intel GbE
LAN chips (10/100/1000 Mbit) |
|
Wireless
Communication module |
1. Intel CNVi
interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz
Dual-Band |
|
2. BLUETOOTH
5 |
|
3. Support for 11ac 160
MHz wireless standard and up to 1.73 Gbps data rate |
|
* Actual data rate may
vary depending on environment and equipment. |
|
Expansion
Slots |
1. 1 x PCI Express x16
slot, running at x16 |
|
(The PCIEX16 slot
conforms to PCI Express 3.0 standard.) |
|
Storage
Interface |
|
|
Chipset: |
1. 1 x M.2 connector on
the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe
x4/x2 SSD support) |
|
2. 4 x SATA 6Gb/s
connectors |
|
Intel Optane
Memory Ready |
|
USB |
|
|
Chipset: |
1. 6 x USB 3.1 Gen 1
ports (4 ports on the back panel, 2 ports available through the internal
USB header) |
|
2. 4 x USB 2.0/1.1
ports (2 ports on the back panel, 2 ports available through the internal
USB header) |
|
Internal I/O
Connectors |
1. 1 x 24-pin ATX main
power connector |
|
2. 1 x 4-pin ATX 12V
power connector |
|
3. 4 x SATA 6Gb/s
connectors |
|
4. 1 x M.2 Socket 3
connector |
|
5. 1 x CPU fan
header |
|
6. 2 x system fan
headers |
|
7. 1 x RGB LED strip
header |
|
8. 1 x front panel
header |
|
9. 1 x front panel
audio header |
|
10. 1 x S/PDIF Out
header |
|
11. 1 x USB 3.1 Gen 1
header |
|
12. 1 x USB 2.0/1.1
header |
|
13. 4 x serial port
headers |
|
14. 1 x speaker
header |
|
15. 1 x Clear CMOS
jumper |
|
16. 1 x chassis
intrusion header |
|
Back Panel
Connectors |
1. 1 x PS/2
keyboard/mouse port |
|
2. 2 x HDMI
ports |
|
3. 4 x USB 3.1 Gen 1
ports |
|
4. 2 x USB 2.0/1.1
ports |
|
5. 2 x RJ-45
ports |
|
6. 2 x SMA antenna
connectors (2T2R) |
|
7. 6 x audio
jacks |
|
I/O
Controller |
1. iTE I/O
Controller Chip |
|
H/W
Monitoring |
1. Voltage
detection |
|
2. Temperature
detection |
|
3. Fan speed
detection |
|
4. Overheating
warning |
|
5. Fan fail
warning |
|
6. Fan speed
control |
|
* Whether the fan speed
control function is supported will depend on the cooler you
install. |
|
BIOS |
1. 2 x 128 Mbit
flash |
|
2. Use of licensed AMI
UEFI BIOS |
|
3. Support for
DualBIOS |
|
4. PnP 1.0a, DMI 2.7,
WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique
Features |
1. Support for APP
Center |
|
* Available
applications in APP Center may vary by motherboard model. Supported
functions of each application may also vary depending on motherboard
specifications. |
|
3D
OSD |
|
@BIOS |
|
AutoGreen |
|
Cloud
Station |
|
EasyTune |
|
Fast
Boot |
|
Game
Boost |
|
ON/OFF
Charge |
|
Platform Power
Management |
|
RGB
Fusion |
|
Smart
Backup |
|
Smart
Keyboard |
|
Smart
TimeLock |
|
Smart
HUD |
|
System Information
Viewer |
|
USB
Blocker |
|
V-Tuner |
|
2. Support for
Q-Flash |
|
3. Support for Xpress
Install |
|
Bundled
Software |
1. Norton Internet
Security (OEM version) |
|
2.
cFosSpeed |
|
Operating
System |
1. Support for Windows
10 64-bit |
|
Form
Factor |
1. Mini-ITX Form
Factor; 17.0cm x 17.0cm |
|
Remark |
1. Due to different
Linux support condition provided by chipset vendors, please download Linux
driver from chipset vendors' website or 3rd party
website. |
|
2. Most
hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will
update them on the GIGABYTE
website. |
