All stock codes associated to this product
GAMMAXXL240V2, GAMMAXX L240 V2, CFDGAMMAXXL240V2, CFD-GAMMAXXL240V2, 6933412726623

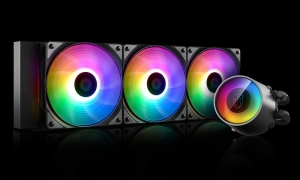

Deepcool Gammaxx L240 V2
Design
GAMMAXX L series AIO coolers are known for their powerful performance, neat
appearance, and tempting cost efficiency. The GAMMAXX L240 V2 upgraded its
reliability with Anti-leak Tech Inside system, so users can enjoy extreme
processor performance without any leakage concerns.
About Anti-leak Tech Inside
After 3 years of R&D, DEEPCOOL launched the new standard of liquid
cooling system - The Anti-leak Tech.
The technology helps the system achieve an automated pressure balance, which
will significantly improve operation safety of AIO liquid cooling systems. With
this technology, Deepcool is setting a new standard for liquid cooling
systems.
Optimized Micro Water-channel
E-shaped micro water-channel design can effectively enhance the heat
circulation efficiency and enlarge the thermal contact area.
Motherboard Control RGB SYNC
The brand new water block and fans built-in 12V RGB lighting system fulfill
your aesthetic desires and supports mainstream motherboards with synchronized
lighting control.
Support Mainstream Intel & AMD Socket
Ready for easy mounting and unrestricted direction installation on mainstream
sockets of Intel/AMD.
The 2 included 120mm RGB fans come with 6 ultra-bright RGB LED lights and PWM
control with super silent performance.
Features
- Anti-leak Tech Inside system equipped.
- Brand new water-block and fans built-in 12V RGB lighting system supports
mainstream motherboards with synchronized lighting control
- E-shaped micro water-channel design can effectively enhance the heat
circulation efficiency and enlarge the thermal contact area.
- 2*120mm fans coming with 6 ultra-bright RGB LED lights and meteor and PWM
control with super silent performance
- Ultra-large, pure copper CPU block provides effective coverage and heat
dissipation for CPUs of any size
- The ceramic axle bearings and axle cores guarantee an ultra-long service
life.
- Support Mainstream Intel & AMD Socket
Application For
Intel 165W
LGA20XX/LGA1366/LGA1200/115X
AMD 250W
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Specifications
Net
Weight |
1320
g |
Radiator
Dimensions |
28212027
mm |
Radiator
Material |
Aluminum |
Tube
Length |
310
mm |
Pump
Dimensions |
917947
mm |
Pump
Speed |
2400
RPM10% |
Pump
Noise |
17.8
dB(A) |
Pump
Connector |
3-pin |
Pump Rated
Voltage |
12
VDC |
Pump Rated
Current |
0.2 A |
Pump Power
Consumption |
2.4
W |
Fan
Dimension |
12012025
mm |
Fan
Speed |
500-1800
RPM10% |
Fan
Airflow |
69.34
CFM |
Fan Air
Pressure |
2.42
mmAq |
Fan
Noise |
30
dB(A) |
Fan
Connector |
4-pin |
Bearing
Type |
Hydro
Bearing |
Fan Rated
Voltage |
12
VDC |
Fan Rated
Current |
0.17
A |
Fan Power
Consumption |
2.04
W |
LED
Type |
RGB
LED |
LED
Connector |
4-pin(+12V-G-R-B) |
LED Rated
Voltage |
12
VDC |
LED Power
Consumption |
0.84 W (PUMP) / 2.88 W
(FAN2) |
EAN |
6933412726623 |
P/N |
DP-H12RF-GL240V2 |

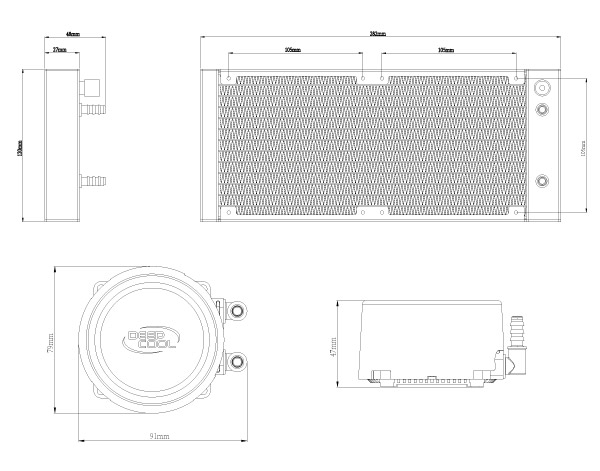

Product Dimension
