All stock codes associated to this product
DBM10JNP2SB, 5032037175791

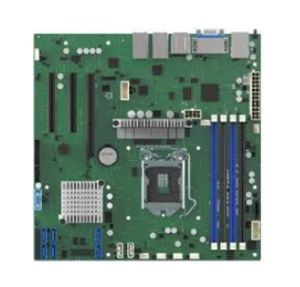

Intel Server Board M10JNP2SB
Single socket solution for entry level servers in SMB, web hosting, content delivery, storage enterprise and embedded applications. Optimized for use with Intel® Xeon® E processor family. Flexible uATX form factor fitting into rack and pedestal chassis.
Specifications
Essentials |
|
Product
Collection |
Intel Server Board
M10JNP Family |
Code
Name |
Products formerly
Juniper Pass |
Status |
Launched |
Launch
Date |
Q4'19 |
Expected
Discontinuance |
2022 |
Compatible Product
Series |
Intel Xeon E
Processor |
Board Form
Factor |
uATX |
Socket |
Socket H4, FCLGA
1151 |
TDP |
95
W |
Included
Items |
Intel Server Board
M10JNP2SB I/O shield |
Board
Chipset |
Intel C246
Chipset |
Supplemental
Information |
|
Description |
Single socket solution
for entry level servers in SMB, web hosting, content delivery, storage
enterprise and embedded applications. Optimized for use with Intel Xeon E
processor family. Flexible uATX form factor fitting into rack and pedestal
chassis. |
Additional Information
URL |
View
now |
Memory
Specifications |
|
Max Memory Size
(dependent on memory type) |
128
GB |
Memory
Types |
DDR4 UDIMM ECC, 2666
MT/s, 1.2V |
Max # of Memory
Channels |
2 |
Max # of
DIMMs |
4 |
ECC Memory Supported
|
Yes |
Processor
Graphics |
|
Graphics
Output |
DDI
ports |
Expansion
Options |
|
PCIe x4 Gen
3 |
1 |
PCIe x8 Gen
3 |
2 |
I/O
Specifications |
|
USB
Configuration |
4 x External USB 3.1
Gen2 ports 2 x USB 3.1 Gen1 ports (via 2x10 pin
connector) |
USB
Revision |
3.1 |
Total # of SATA
Ports |
8 |
RAID
Configuration |
RAID 0/1/10/5 (Intel
RSTe) |
Integrated
LAN |
4 x 1Gbps LAN ports + 1
x 1Gbps management port |
Package
Specifications |
|
Max CPU
Configuration |
1 |
Intel Transparent
Supply Chain |
|
TPM
Version |
2.0
support |
