All stock codes associated to this product
65UH7FB, 65UH7F-B
LG 65” UH7F-B Series UHD Slim Indoor Digital Display with 700 nits
brightness and LG webOS Smart Signage Platform
Overview
- Brightness (Typ.) : 700 nits
- Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
- Depth : 39.9 mm
- Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
- Built-in Speaker and Detachable Logo
- 30 Tilting Installation
LG UHD Signage Provides Information
Effectively
The UH7F series is a UHD signage that has been optimized for various indoor
environments. It features superior UHD quality, slim design, external dust
protection, and various convenience for users.
SUPERB PICTURE QUALITY
ULTRA HD Resolution
UHD resolution is 4 times higher than FHD, which makes the color and details
of the contents more vivid and realistic. In addition, the IPS Panel allows for
wider viewing angles and provides clearer content with no
distortion.
High Efficiency Video Coding
The UH7F series supports High Efficiency Video Coding (HEVC) which
efficiently compresses/decompresses high-capacity UHD contents, playing
ultra-high quality videos with half the network traffic when compared to the
existing H.264 codec.
SLEEK AND PRACTICAL DESIGN
Narrow Bezel & Slim Depth
The UH7F series has a smaller bezel size and thickness, which saves space and
enables easy installation. In addition, it increases the immersive experience
from the screen and provides a sophisticated design, improving the dcor of the
space where the product is installed.
Detachable Logo and Built-in Speaker
The UH7F-B series contents will be enriched with sound effects from built-in
speakers. The LG logo on this display series is transparent and removable,
giving flexibility for installation.
PRODUCT RELIABILITY
IP5x Certified Design
The UH7F-B series is IP5x Dust-Proof Certified which ensures that the product
is completely protected from dust, eliminating the risk of performance
degradation.
30 Tilting Installation
When a display is installed at high places, it is usually tilted for the
user's comfort viewing. In consideration of this, the UH7F series supports the
installation with 30 degrees of tilt*.
EASY INSTALLATION
Auto Screen Rotation
The UH7F-B series automatically detects its orientation (landscape or
portrait mode) in the initial installation step, so manual rotation set-up
process isn't required. The direction of the on-screen display and background
contents will be set when you turn on a display for the first
time.
Fine Adjustment
The UH7F-B series is equipped with a "horizontal sensor" which shows users
the degree of tilt the display has, allowing for precise
installation.
USER CONVENIENCE
Remote Monitoring
With remote monitoring, the UH7F-B series can email notification to the user
when there is a problem, such as tilting from external impact. The user is able
to operate the product in a safer manner and get information quickly when a
problem arises.
Simple Accessibility
Unlike previous models where various buttons have to be pressed for control,
the UH7F series provides a single joystick to easily facilitate power on/off,
input/setting operation, volume control, etc.
SMART FUNCTION
High-Performance with webOS
Built-in Quad Core SoC can execute several tasks at once while providing
smooth content playback without the need for a media player. Also LG webOS
platform enhances user convenience with intuitive GUI and simple app development
tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external
sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The
overall cost for maintenance is reduced as there's no need to purchase
additional software or media players for creating value-added
solutions.
Compatibility with AV Control System
The UH7F-B series displays have been certified Crestron Connected for high
compatibility with professional AV controls. This helps to achieve seamless
integration and automated control*, boosting business management
efficiency.

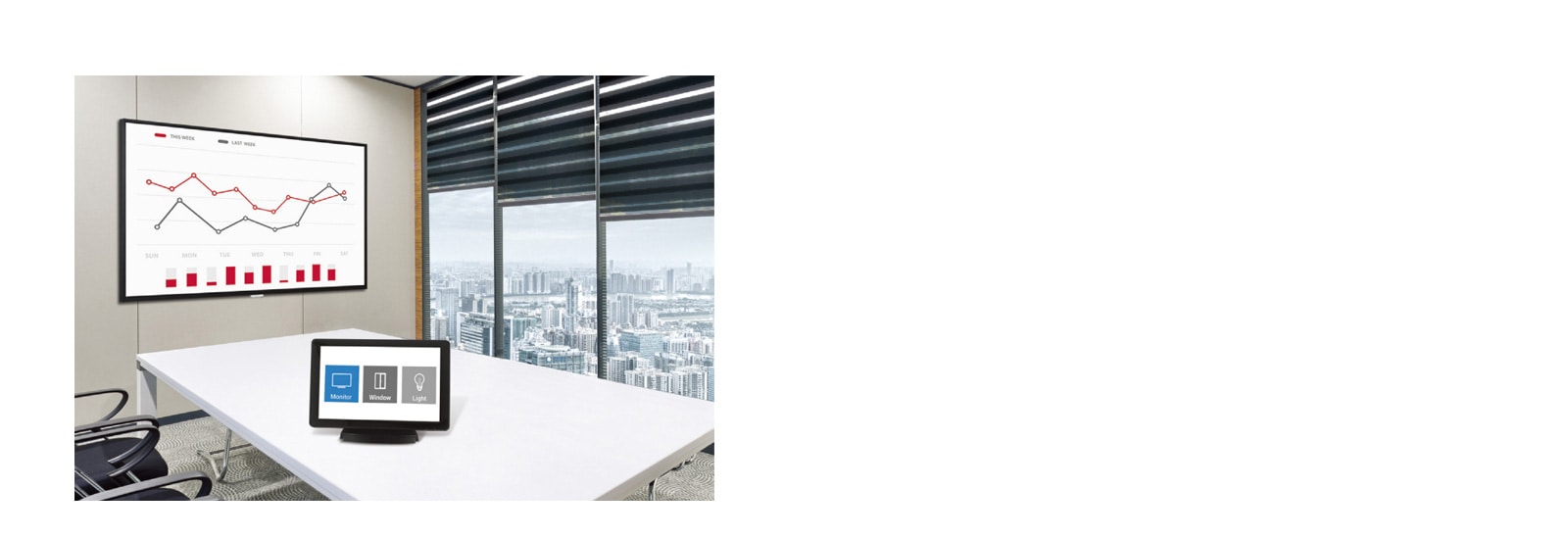

Compatibility with Video Conference System
For the optimal visual meeting, the UH7F series has certified its
compatibility with Cisco System. They offer powerful, integrated control* for a
smarter video conference, making meeting set up easier and faster.
Specifications
|
PANEL |
|
|
Screen
Size |
65' |
|
Panel
Technology |
IPS |
|
Aspect
Ratio |
- |
|
Native
Resolution |
3,840 x 2,160 (UHD,
RGB) |
|
Brightness(Typ.,cd/m) |
700 |
|
Contrast
Ratio |
1,100:1 |
|
Viewing Angle (H x
V) |
178 x
178 |
|
Response
Time |
8ms (G to
G) |
|
Surface Treatment
(Haze) |
Haze
3% |
|
Life Time
(Typ.) |
50,000
Hrs |
|
Operation
Hours |
24
hrs |
|
Orientation |
Portrait &
Landscape |
|
CONNECTIVITY |
|
|
Input |
HDMI (3), DP, DVI-D,
Audio, USB 2.0 |
|
Output |
DP, Audio
(Off/Fixed/Variable) |
|
External
Control |
RS232C In/out, RJ45
(LAN) In, IR In |
|
MECHANICAL
SPECIFICATIONS |
|
|
Bezel
Color |
Black |
|
Bezel
Width |
9.9mm(T/R/L),
14.4mm(B) |
|
Monitor Dimension (W x
H x D) |
1,453.3mm x 844mm x
39.9mm |
|
Weight
(Head) |
28.2
kg |
|
Carton Dimensions (W x
H x D) |
1,600mm x 1,095mm
x175mm |
|
Packed
Weight |
35.0
kg |
|
Handle |
No |
|
VESA Standard Mount
Interface |
300 x
300 |
|
SPECIAL
FEATURE |
|
|
Tilt
(Facedown) |
Max. 30 *In conditions
within 30C temperature, 50% humidity |
|
IP
Rating |
IP5x |
|
ENVIRONMENT
CONDITIONS |
|
|
Operation
Temperature |
0C to
40C |
|
Operation
Humidity |
10 % to 80
% |
|
POWER |
|
|
Power
Supply |
100-240V~,
50/60Hz |
|
Power
Type |
Built-in
Power |
|
POWER
CONSUMPTION |
|
|
Typ. /
Max. |
130W /
180W |
|
Smart Energy
Saving |
100W |
|
CERTIFICATION |
|
|
Safety |
CB /
NRTL |
|
EMC |
FCC Class "A" / CE /
KC |
|
ErP |
Yes (EU
Only) |
|
MEDIA PLAYER
COMPATIBILITY |
|
|
OPS type
compatible |
Yes |
|
SOFTWARE
COMPATIBILITY |
|
|
Content Management
Software |
SuperSign
CMS |
|
Control and Monitoring
Software |
SuperSign
Control/Control+ |
|
Signage365Care |
Yes |
