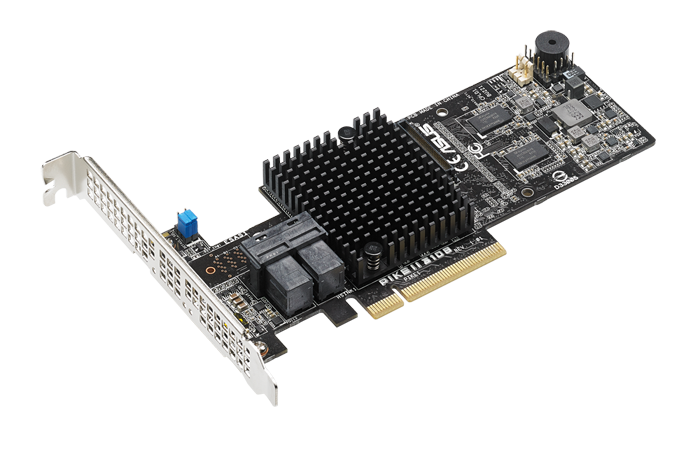

Asus PIKE II 3108-8I/16PD/2G SAS 12Gb/s Storage Solution with 8
Internal Ports
Overview
ASUS PIKE II 3108-8i/16PD/2G (Max. PhysicalDisk Qty for RAID: 16) is the
latest 12Gb/s SAS and PCI-E 3.0 high reliabilityenterprise storage solution. It
meets user needs with support for 6Gb/s SATAand 12Gb/s SAS storage and
integrated RAID 0, RAID 1, RAID 10, RAID 5, RAID 50,RAID 6 and RAID 60 data
protection. Just placing the PIKE card can immediatelyenlarge the capacity and
improve the performance, making it the great upgradeoption.
SAS 12Gb/s Storage Solution with 8 Internal Ports
ASUS PIKE II 3108-8i/16PD/2G (Max. Physical Disk Qty for RAID: 16) is the
latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It
meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and
integrated RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6 and RAID 60 data
protection. Just placing the PIKE card can immediately enlarge the capacity and
improve the performance, making it the great upgrade option.
Storage solution with eight ports of internal 12Gb/s SAS
connectivity

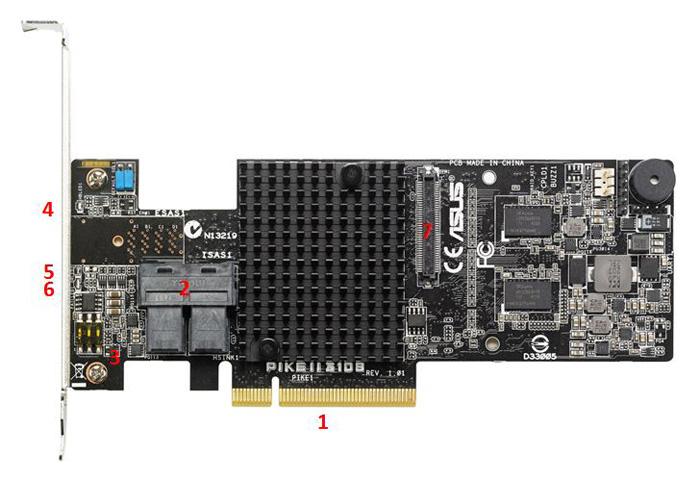

- PCI-E x8 interface
- Internal mini-SAS HD connectors
- Switch (for more than one card)
- HBLED1(HEARTBEAT LED): The LED shows the firmware heartbeat
information.(blinking)
- DRLED1(Dirty cache LED): Write Pending(light)
- FAILLED1(Global Drive Fault LED): Drive Fault
Detected(light)
- CacheVault connector
Package Content
- ASUS PIKE II 3108-8i/16PD/2G SAS RAID card
- Support DVD
System Requirement
- ASUS Server motherboard
- PCI-E Gen3 slot
- SAS or SATA hard disk drives
- Mini-SAS HD cable
- Supporting Windows and Linux Operating systems
- Appropriate thermal solution
- Certified power supply module
- Ensure to update BIOS to the latest version before using PIKE II 3108
series on ASUS Z9 or P9 series platform
Specifications
Controller
|
Broadcom (LSI)
SAS3108 |
Host Interface
|
PCIe 3.0
x8 |
Ports
|
8 internal ports by 2
Mini-SAS HD connectors |
RAID Level Supported
|
0, 1, 10, 5, 6, 50,
60 |
Devices Supported
|
SATA
Devices |
|
SAS
Devices |
Data Transfer Rate
|
Max. SAS
12Gb/s |
|
Max. SATA
6Gb/s |
Embedded Memory
|
2GB
DDR3 |
JBOD Mode
|
Yes/ |
Cache Protection
|
Optional LSI CacheVault
2G |
|
ASUS Ordering Part
Number: 90SKC000-M13AN0 |
Form Factor
|
Low-profile
Card |
Dimensions
|
6.6 x 2.71
Inch |
Package Content
|
1 x Full-height Bracket
(Default) |
|
1 x Low-profile
Bracket |
|
1 x Driver
Disc |
Note
|
* Max. physical Disk
qty for RAID: 16 |
|
* The card only works
with ASUS Server/Workstation motherboards and
systems. |
|
* Support Physical Key
for MegaRAID CacheCade Pro 2.0 Software |
|
Broadcom Physical Key
Ordering Part Number: LSI00290 |
|
https://www.broadcom.com/products/storage/raid-controllers/megaraid-cachecade-pro-software#specifications |
