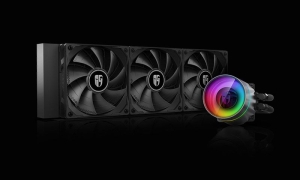

Deepcool Castle 360EX CPU Liquid Cooler
Design
EXCLUSIVELY SAFE
CASTLE 360EX is equipped with Deepcools exclusive Anti-leak
Technology.
The technology helps the system achieve an automated pressure balance, which
will significantly improve operation safety of AIO liquid cooling systems. With
this technology, Deepcool is setting a new standard for liquid cooling
systems.
STRONGER MOTOR
Driven by a 3-phase, x-life motor, and a pressure charging impeller, CASTLE
360EXs pump is more powerful yet more quiet.
MORE EFFICIENT FLOW
With more rounded corners and optimized flow route, the upgraded double
chamber design increases the heat exchange efficiency, and decreases the
operation noise and energy loss.
MORE EFFICIENT FLOW
With 25% more skived fins on backside of the copper base, the heat
absorption area is extensively increased.
BEST MATCHING FANS
3 specially tuned TF120 S fans are included (in matching the radiators
properties). The fans are also equipped with patented two-layer fan blades and
flow-amplifying & noise-canceling frames.
Features
- Anti-Leak Technology
- Large copper cold plate with 25% more skived fins (Supports
TR4)
- Efficient pump design optimized for performance and noise
- Swappable custom logo
- 5V Addressable RGB with motherboard software support
Features
- Anti-leak Tech Inside, exclusively safe.
- 25% more skived fins on the back side of the copper base, the heat
absorption area extensively increased.
- Flow route optimized to reduce operation noise and energy loss.
- 3 specially tuned TF120 S fans are included (in matching the radiator's
properties).
- Customizable Logo, exciting DIY experience.
- Ultra large copper base, extensive compatibility (including
TR4).
- 5V Addressable RGB, adjustable through motherboard or the included
controller.
Specifications
|
Application
For |
|
|
Intel |
LGA20XX/LGA1200/1151/1150/1155/LGA1366 |
|
AMD |
TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 |
|
|
|
Technical
Spec |
|
|
Radiator
Dimensions |
402x120x27
mm |
|
Radiator
Material |
Aluminum |
|
Net
Weight |
1705
g |
|
Tube
length |
465
mm |
|
Pump
Dimensions |
867571
mm |
|
Pump
Speed |
2550
RPM10% |
|
Pump
Noise |
17.8
dB(A) |
|
Pump
Connector |
3-pin |
|
Pump
Rated Voltage |
12
VDC |
|
Pump
Rated Current |
0.2 A |
|
Pump
Power Consumption |
2.4
W |
|
Fan
Dimensions |
12012025
mm |
|
Fan
Speed |
500~1800
RPM10% |
|
Fan
Airflow |
64.4
CFM |
|
Fan
Air Pressure |
2.33
mmAq |
|
Fan
Noise |
32.1
dB(A) |
|
Fan
Connector |
4-pin
PWM |
|
Bearing
Type |
Hydro
Bearing |
|
Fan
Rated Voltage |
12
VDC |
|
Fan
Rated Current |
0.15
A |
|
Fan
Power Consumption |
1.8
W |
|
LED
Type |
Addressable
RGB LED |
|
LED
Connector |
3-pin(+5V-D-G) |
|
LED
Rated Voltage |
5
VDC |
|
LED
Power Consumption |
2.25
WPUMP |
|
EAN |
6933412726760 |
|
P/N |
DP-GS-H12-CSL360EX |
