All stock codes associated to this product
ASS2NAVY, AS S2 NAVY, MNAS2, MNA-S2, 4718017171861

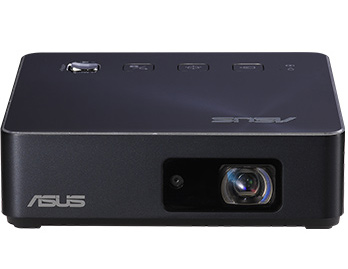

Asus ZenBeam S2 Portable LED Projector - Navy
Overview
ASUS ZenBeam S2 Portable LED Projector, 500 Lumens, 720P, USB-C, Built-in
6000mAh Battery, Up to 3.5-hour Projection, Power Bank, Short Throw, Horizontal
& Vertical Keystone Adjustment, Auto Focus, HDMI
- Up to 500 lumens light output with 720p native resolution, 100% NTSC color
saturation short throw lens provides 40@1m to 120@3m projection
- As a portable power backup (6000mAh) to charge mobile devices (ECO mode:
3.5 hours)
- Fast 3ms Auto focus and 2D Keystone with Corner Correction
- Offer a comprehensive set of connectivity: USB-C (signal input and power
delivery), USB output, wireless mirroring, and HDMI.

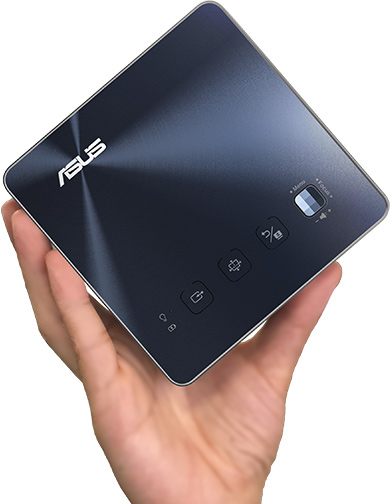

- Palm size and lightweight (497g)
Palm Size: W120 x H35 x D120 mm
497 g: Light Weight
Bright and Crisp 120 Projections
ZenBeam S2 with 500-lumen light output and 720P (1280 x 720) with 100% NTSC
color space coverage it can provide crisp and bright image. Maximize big-screen
thrills in minimum space with short-throw that require as little as 40'' (1m) to
project stunning 120'' (3m) images.
Built-in 6000mAh Long-Lasting Battery
ZenBeam S2 features a built-in 6000mAh battery that delivers up to 3.5 hours
of operation on a single charge, plenty of time for even the longest
presentations and movies. The battery and built-in USB-A port with 5V/1A power
output also enables ZenBeam S2 to act as a portable power source for charging a
phone or other mobile device.
2D Auto Keystone Correction & Auto Focus
Automatic horizontal and vertical keystone adjustments of up to 30 degrees to
correct for trapezoidal distortion that can occur when projecting at an angle.
This automatic correction allows the projector to be placed off-center, so
presenters can stand in front of the screen without blocking the image. Built in
focus sensor measuring the distance between the projector and the screen, the
ZenBeam S2 can adjust the focus of the projected images automatically. It's
perfect to set up easily and quickly in various environments.
Comprehensive USB-C and HDMI Connectivity
ZenBeam S2 features USB-C and HDMI ports to provide maximum compatibility
with external devices. The reversible USB-C port supports signal and support
5V/1.5A power output simultaneously via one cable. USB-A also provides 5V/1A
power output for devices charging.
Project in a Variety of Ways Wireless
Projection
Wireless projection eliminates the hassle and extra cost of running long
cables, letting you effortlessly stream content from your smartphone, tablet or
other mobile devices for high-definition entertainment or presentations
anywhere.
Built-in Speaker with ASUS SonicMaster
Technology
ZenBeam S2 built-in 2W stereo speaker with ASUS SonicMaster certified, it s
developed by the ASUS Golden Ear team, delivery with a wider frequency range for
clearer vocals and rich, deep bass.
SonicMaster is a tailored mix of superior hardware and clever software
designed to give you full audio controls for truly immersive sound for movies,
music, and games.
Specifications
Display
|
Display
Technology: 0.3" DLP |
|
Light
Source: R/G/B LED |
|
Light
Source Life (max): 30000 hours |
|
True
Resolution (native): HD (1280 x 720) |
|
Maximum
Input Resolution: Full HD (1920 x 1080) |
|
Light
Output (max): 500 lumens |
|
Color
Saturation :100%(NTSC) |
|
Display
Colors :16.7M |
Projection
Lens |
Throw
Ratio: 1.12 |
|
Projection
Distance: 1.5 ~3 meters |
|
Projection/Screen
Size: 60 ~120 inchs |
|
Projection
Offset: 1005% |
|
Zoom
Ratio: Fixed |
|
Focus:Auto
Focus |
Video
Feature |
Modes: 4 Modes, (Presentation Mode/Theater Mode/Standard Mode/Eco Mode),
*1 |
|
Keystone
Adjustment : (H/V) Horizontal / Vertical
Keystone |
|
Auto
Keystone : Yes, Vertical |
|
Quick
4 Corner Adjustment |
|
Aspect
Ratio: Auto/4:3 /16:9/16:10 |
|
3D
Ready |
|
Projector
Placement: Front Table/Front Ceiling/Rear Table/Rear
Ceiling |
|
Wireless
Projection Ready |
Audio
Features |
Built-in
Speaker:2 W (with ASUS SonicMaster Technology) |
Power
|
Power
Consumption: |
|
Power
On Mode: 65 W |
|
Standby
Mode: <0.5 W |
|
Internal
Battery: 5 V, 6000 mAh |
Noise
Level |
32dBA
(Standard mode), 28dBA (Theater mode) |
I/O
Ports |
Signal
Input : HDMI , USB-C, |
|
USB
Port : 1 x Type A port*2 |
|
Earphone
Jack : 3.5mm Mini-Jack |
Mechanical
Design |
Chassis
Colors: Navy/White |
Dimensions
|
Phys.
Dimension (WxHxD) : 120 x 35 x 120 mm |
|
Box
Dimension (WxHxD) : 224 x 190 x 142 mm |
Weight
|
Net
Weight (Esti.) : 497 g |
|
Gross
Weight (Esti.) : 1.6 kg |
Operation
Temperature |
0
~ 40 |
Operation
Humidity |
20
~ 90 % |
Accessories
|
Carrying
Bag |
|
HDMI
cable |
|
Power
Cord |
|
Power
Adapter |
|
Quick
Start Guide |
|
Remote
Control |
|
Warranty
card |
Compliance
and Standards |
CB,
CE, FCC, ERP, IC, CU/EAC, FTA, RCM, VCCI, IEC62471, MIC, CCC, BSMI, NCC,
CEC, Reach, RoHS |
Note
|
*Picture
Modes will be available when connected to power adapter. When not
connected to power adapter, the S2 will be switched to Battery Modes: High
/ Middle / Eco / Flash Light / SOS |
|
*2
For power charge usage |
|
*Wireless
projection support Android 4.2 with Miracast and above version, and
Windows 10 |
|
*Flashlight
and SOS modes are available when in Power Bank |
|
*The
battery has a lifespan and ages every time when it is charged and
discharged. It will gradually loose its charging capability as it
ages |
|
*White
color chassis is available in selective
region |
