All stock codes associated to this product
GPGSM2NE3256GNTDGB, GP-GSM2NE3256GNTD-GB
Gigabyte NVMe SSD 256GB
Overview
- Form Factor: M.2 2280
- Interface: PCI-Express 3.0 x4, NVMe 1.3
- Total Capacity: 256GB*
- Warranty: Limited 5-year or 300TBW
- Sequential Read Speed : up to 1700 MB/s
- Sequential Write speed : up to 1100 MB/s
- HMB (Host Memory Buffer) supported
- TRIM & S.M.A.R.T supported

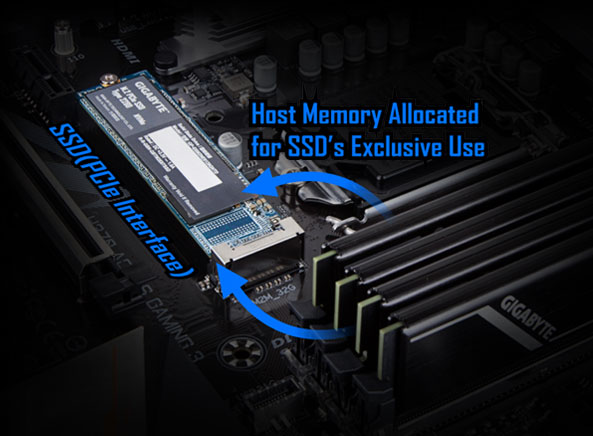

Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access)
of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of
requiring the SSD to bring its own DRAM.
Breaking the barriers of SATA limitations (256GB) Outstanding
performance
GIGABYTE NVMe SSD provides performance for your daily computing tasks, boast
of best controller & NAND flash that provide.
- Sequential read speeds up to 1700 MB/s.
- Sequential write speeds up to 1100 MB/s.
GIGABYTE M.2 PCIe SSD gives you faster data transferring experience compared
to 2.5" SATA solid state drive.
SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD
Status, provides general information such as model name, FW version, health
condition, drive optimization and also detects sensor temperature. Moreover,
users can clear all the data with the Secure Erase function. You can download
the SSD Tool Box from the Support.
Reliability You Can Trust - 5 Years Limited
Warranty
GIGABYTE NVMe SSDs possess both high data transferring speed and enhanced
endurance, providing durable MTBF* of 1.5 million hours and 5 years or 300TBW**
limited warranty.
Specifications
Interface |
PCI-Express
3.0 x4, NVMe 1.3 |
Form
Factor |
M.2
2280 |
Total
Capacity |
256GB |
Warranty |
Limited
5-year or 300TBW |
NAND |
NAND
Flash |
External
DDR Cache |
N/A |
Sequential
Read speed |
Up
to 1700 MB/s |
Sequential
Write speed |
Up
to 1100 MB/s |
Random
Read IOPS |
Up
to 180k |
Random
Write IOPS |
Up
to 250k |
Dimension |
80
x 22 x 2.3 mm |
Mean
time between failure (MTBF) |
1.5M
hours |
Power
Consumption (Active) |
Avg.
read : 2.6W ; Write : 2.4W |
Power
Consumption (Idle) |
1.9mw |
Temperature
(Operating) |
0C
to 70C |
Temperature
(Storage) |
-40C
to 85C |
Note |
*
Test system configuration: configuration may vary by models, we will
choose the latest platform for verification. |
|
*
Performance may vary based on SSD's firmware version and system hardware
& configuration. Sequential performance measurements based on
CrystalDiskMark v.5.1.2 and I0meter 1.1.0. |
|
*
Speeds based on internal testing. Actual performance may
vary. |
|
*
TBW (Terabyte Written):Terabytes Written" is the total amount of data that
can be written into an SSD before it is likely to
fail. |
|
*
1GB = 1 billion bytes. Actual useable capacity may
vary. |
|
*
5-years or 300TBW, whichever comes
first. |
