CPU |
1.
AMD Socket AM4, support for: Ryzen 5000 Series / 3rd Generation AMD Ryzen
processors/ 3rd Gen AMD Ryzen with Radeon Graphics
processors |
|
(Please
refer "CPU Support List" for more
information.) |
Chipset |
1.
AMD B550 |
Memory |
1.
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
of system memory |
|
2.
3rd Gen AMD Ryzen Processors: |
|
Support
for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) /
4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory
modules |
|
3.
3rd Gen AMD Ryzen with Radeon Graphics
processors: |
|
Support
for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) /
4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.)
/3200/2933/2667/2400/2133 MHz memory modules |
|
4.
Dual channel memory architecture |
|
5.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory
modules |
|
6.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules |
|
7.
Support for Extreme Memory Profile (XMP) memory
modules |
|
(Please
refer "Memory Support List" for more
information.) |
Onboard
Graphics |
Integrated
in the 3rd Generation AMD Ryzen with Radeon Graphics
processors: |
|
1.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60
Hz |
|
*
Support for HDMI 2.1 version, HDCP 2.3, and
HDR. |
|
Maximum
shared memory of 16 GB |

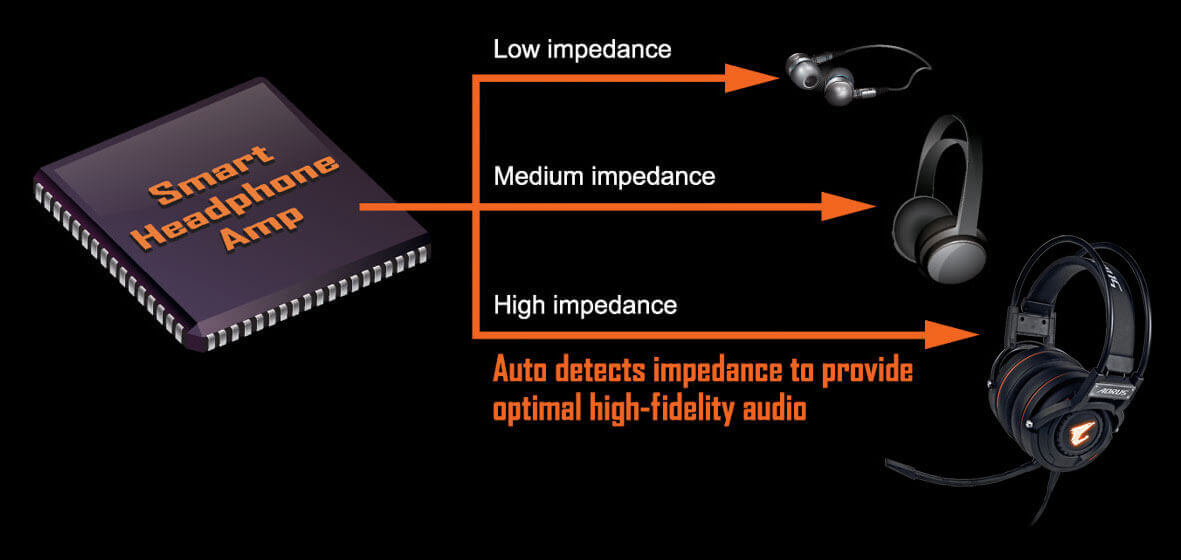

Audio |
1.
Realtek ALC1220-VB codec |
|
*
The back panel line out jack supports DSD
audio. |
|
2.
High Definition Audio |
|
3.
2/4/5.1/7.1-channel |
|
4.
Support for S/PDIF Out |

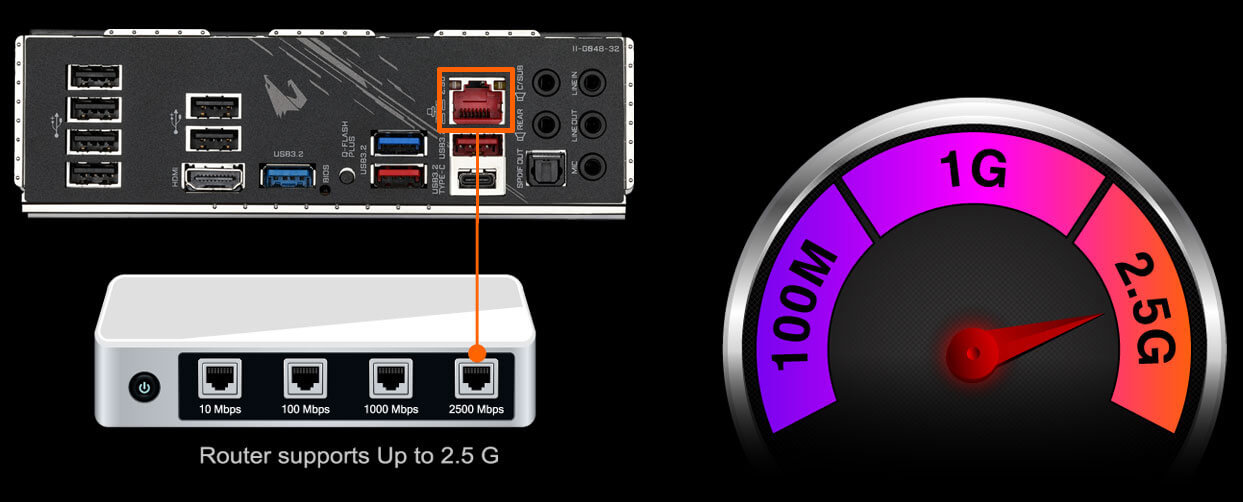

LAN |
1.
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100
Mbit) |

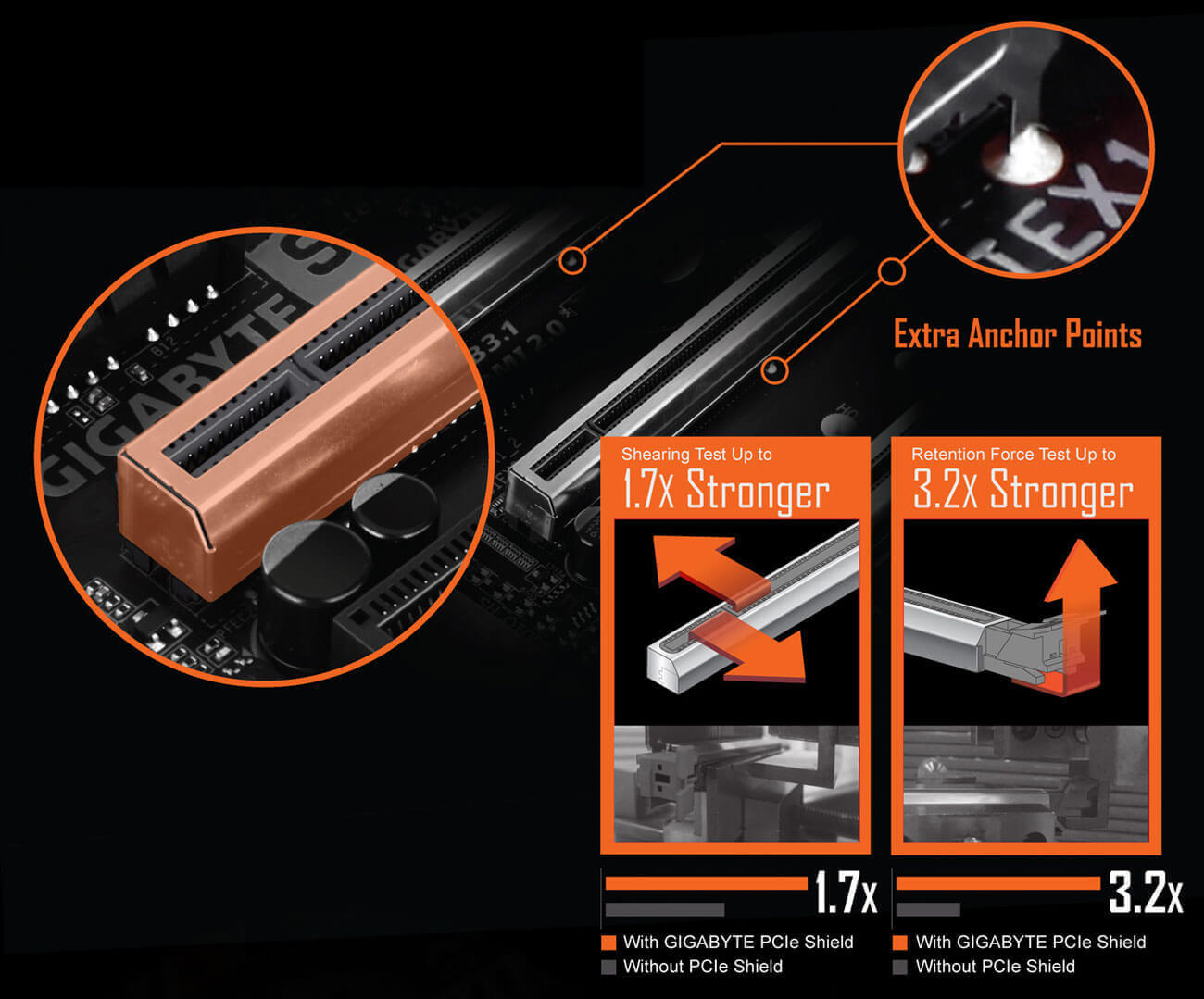

Expansion
Slots |
1
x PCI Express x16 slot (PCIEX16), integrated in the
CPU: |
|
1.
3rd Generation AMD Ryzen processors support PCIe 4.0 x16
mode |
|
2.
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0
x16 mode |
|
*
For optimum performance, if only one PCI Express graphics card is to be
installed, be sure to install it in the PCIEX16
slot. |
|
1
x PCI Express x16 slot (PCIEX4), integrated in the
Chipset: |
|
1.
Supporting PCIe 3.0 x4 mode |
|
*
The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4
slot will become unavailable when an SSD is installed in the M2B_SB
connectors. |
|
1
x PCI Express x16 slot (PCIEX2), integrated in the
Chipset: |
|
1.
Supporting PCIe 3.0 x2 mode |
|
*
The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The
PCIEX2 slot will become unavailable when a device is installed in the
SATA3 4 or SATA3 5 connector. |
|
2
x PCI Express x1 slots |

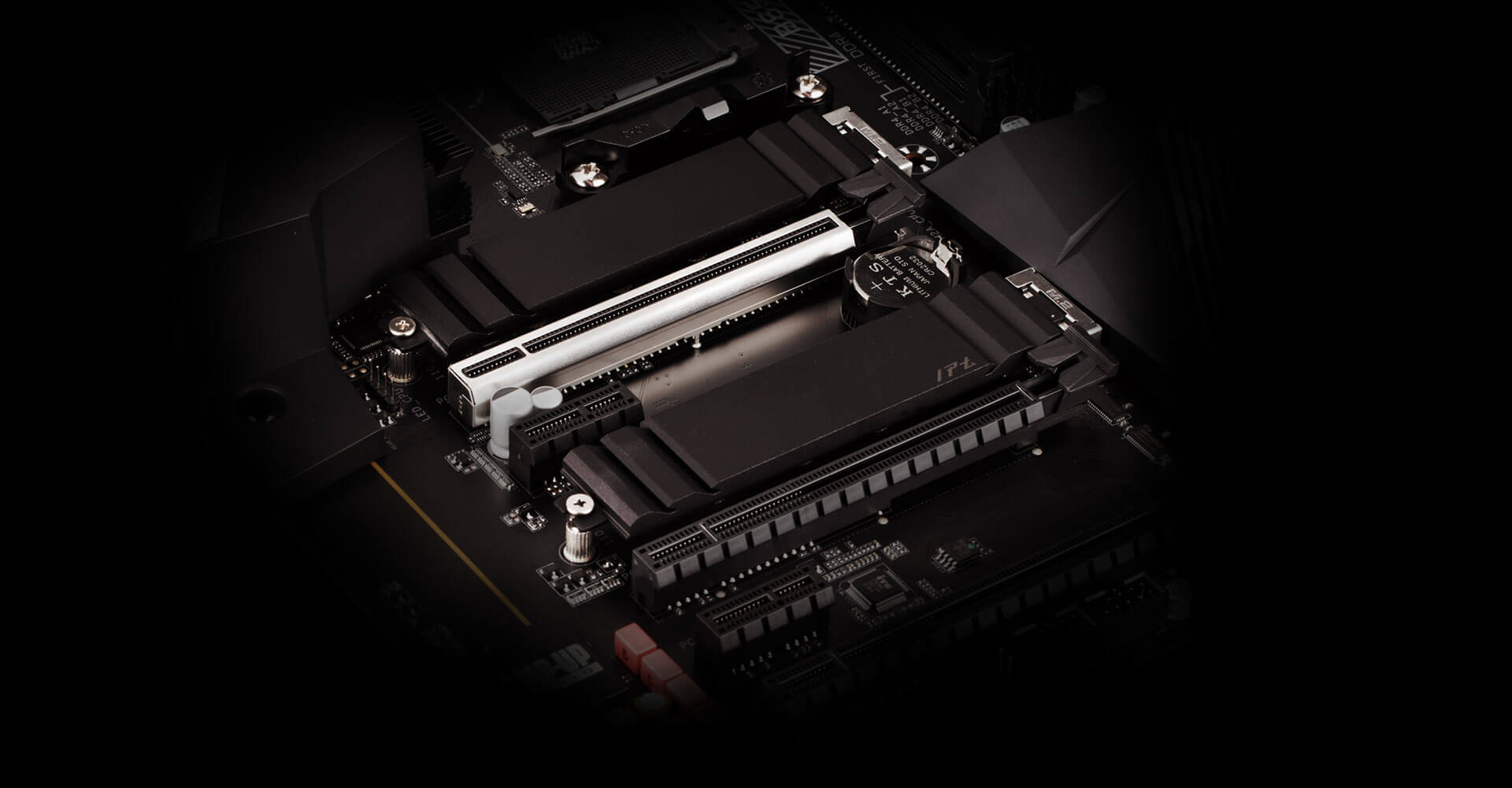

Storage
Interface |
1
x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M
key, type 2242/2260/2280/22110 SSDs: |
|
1.
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2
SSDs |
|
2.
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and
PCIe 3.0 x4/x2 SSDs |
|
1
x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3,
M key, type 2242/2260/2280/22110 SSDs: |
|
1.
support PCIe 3.0 x4/x2 SSDs |
|
6
x SATA 6Gb/s connectors, integrated in the
Chipset: |
|
1.
Support for RAID 0, RAID 1, and RAID 10 |
USB |
CPU: |
|
1.
2 x USB 3.2 Gen 1 ports on the back panel |
|
2.
1 x USB 3.2 Gen 2 Type-A port (red) on the back
panel |
|
Chipset: |
|
1.
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2
support |
|
2.
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the
internal USB header |
|
3.
1 x USB 3.2 Gen 2 Type-A port (red) on the back
panel |
|
4.
2 x USB 3.2 Gen 1 ports available through the internal USB
header |
|
5.
2 x USB 2.0/1.1 ports on the back panel |
|
Chipset+2
USB 2.0 Hubs: |
|
1.
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available
through the internal USB headers) |
Internal
I/O Connectors |
1.
1 x 24-pin ATX main power connector |
|
2.
1 x 8-pin ATX 12V power connector |
|
3.
2 x M.2 Socket 3 connectors |
|
4.
6 x SATA 6Gb/s connectors |
|
5.
1 x CPU fan header |
|
6.
1 x water cooling CPU fan header |
|
7.
4 x system fan headers |
|
8.
2 x system fan/water cooling pump headers |
|
9.
1 x CPU cooler LED strip/RGB LED strip header |
|
10.
2 x addressable LED strip headers |
|
11.
2 x RGB LED strip headers |
|
12.
1 x front panel header |
|
13.
1 x front panel audio header |
|
14.
1 x USB Type-C port, with USB 3.2 Gen 1
support |
|
15.
1 x USB 3.2 Gen 1 header |
|
16.
2 x USB 2.0/1.1 headers |
|
17.
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S
module only) |
|
18.
2 x temperature sensor headers |
|
19.
1 x Clear CMOS jumper |

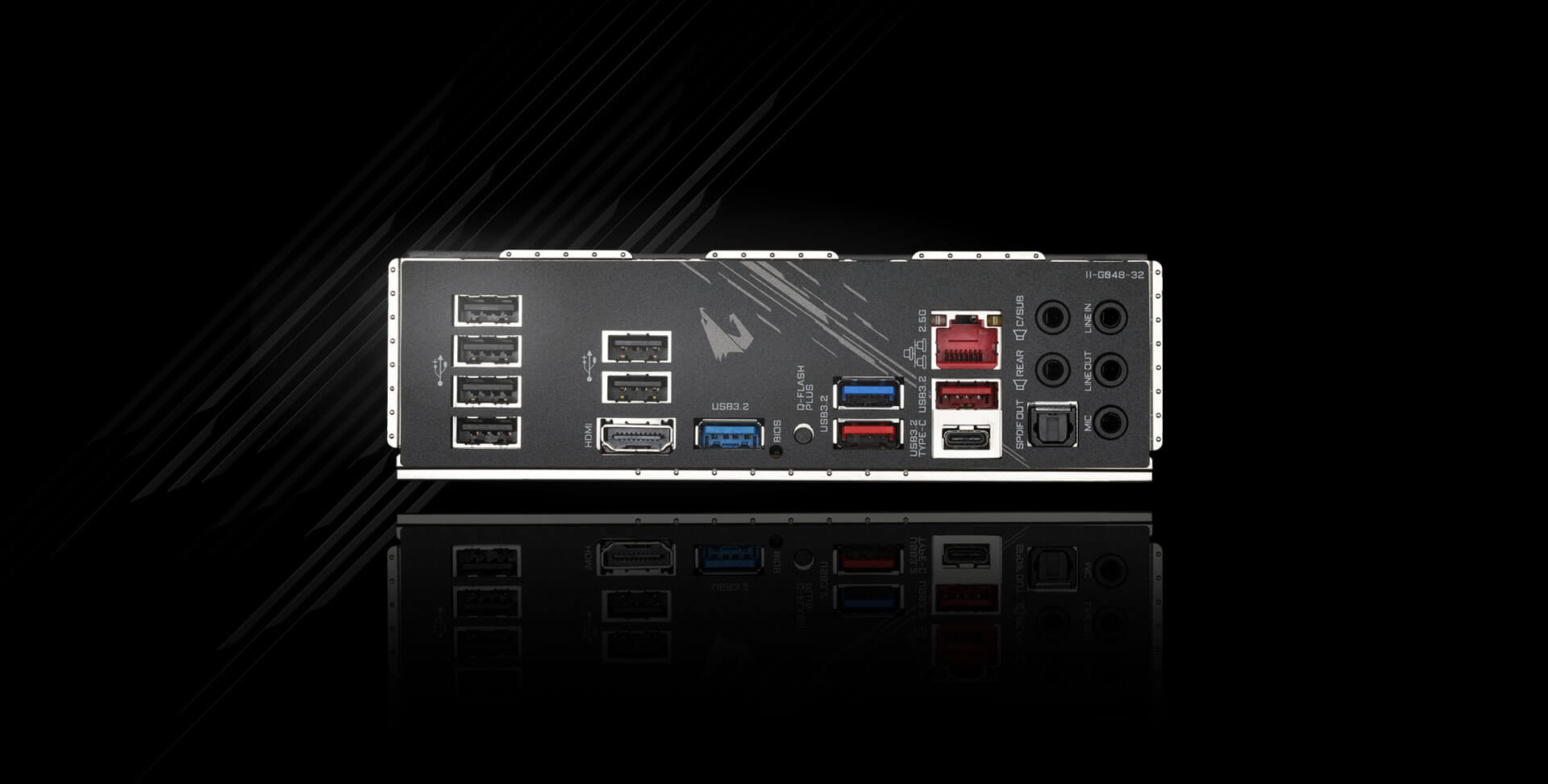

Back
Panel Connectors |
1.
1 x HDMI port |
|
2.
2 x USB 3.2 Gen 1 ports |
|
3.
1 x USB Type-C port, with USB 3.2 Gen 2
support |
|
4.
2 x USB 3.2 Gen 2 Type-A ports (red) |
|
5.
6 x USB 2.0/1.1 ports |
|
6.
1 x Q-Flash Plus button |
|
7.
1 x RJ-45 port |
|
8.
1 x optical S/PDIF Out connector |
|
9.
5 x audio jacks |
I/O
Controller |
1.
iTE I/O Controller Chip |
H/W
Monitoring |
1.
Voltage detection |
|
2.
Temperature detection |
|
3.
Fan speed detection |
|
4.
Water cooling flow rate detection |
|
5.
Overheating warning |
|
6.
Fan fail warning |
|
7.
Fan speed control |
|
*
Whether the fan (pump) speed control function is supported will depend on
the fan (pump) you install. |
BIOS |
1.
1 x 256 Mbit flash |
|
2.
Use of licensed AMI UEFI BIOS |
|
3.
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI
5.0 |
Unique
Features |
1.
Support for APP Center |
|
*
Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications. |
|
@BIOS |
|
EasyTune |
|
Fast
Boot |
|
Game
Boost |
|
ON/OFF
Charge |
|
RGB
Fusion |
|
Smart
Backup |
|
System
Information Viewer |
|
2.
Support for Q-Flash Plus |
|
3.
Support for Q-Flash |
|
4.
Support for Xpress Install |
Bundled
Software |
1.
Norton Internet Security (OEM version) |
|
2.
XSplit Gamecaster + Broadcaster (12 months
license) |
|
3.
Realtek 8125 Gaming LAN Bandwidth Control
Utility |
Operating
System |
1.
Support for Windows 10 64-bit |
Form
Factor |
1.
ATX Form Factor; 30.5cm x 24.4cm |
Remark |
1.
Due to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party
website. |
|
2.
Most hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will
update them on the GIGABYTE
website. |
