All stock codes associated to this product
GAH410MS2H, GA-H410M-S2H, 4719331808839
Gigabyte H410M S2H (rev. 1.0) Motherboard
Key Features
Intel H410 Ultra Durable Motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3
x2 M.2, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor,
Smart Fan 5
- Supports 10th Gen Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 8-Channel HD Audio with High Quality Audio Capacitors
- Ultra-Fast M.2 with PCIe Gen3 X2 & SATA Interface
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI /DVI-D/D-Sub Ports for Multiple Display
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
High Speed Gigabit LAN with Automatic Bandwidth
Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming
players with automatic bandwidth allocation to ensure the highest network
priority of the game or application. It can provide users the most comprehensive
features and the fastest and smoothest Internet experience.
Program On Top Gets Highest Priority

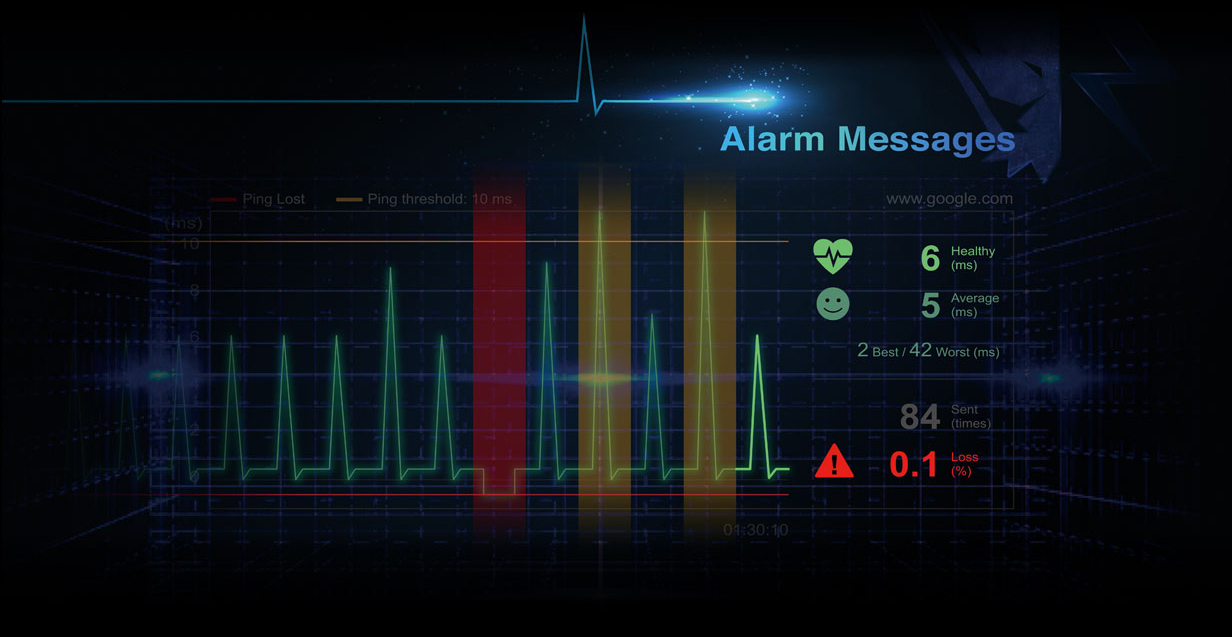

Real-Time Network Monitoring

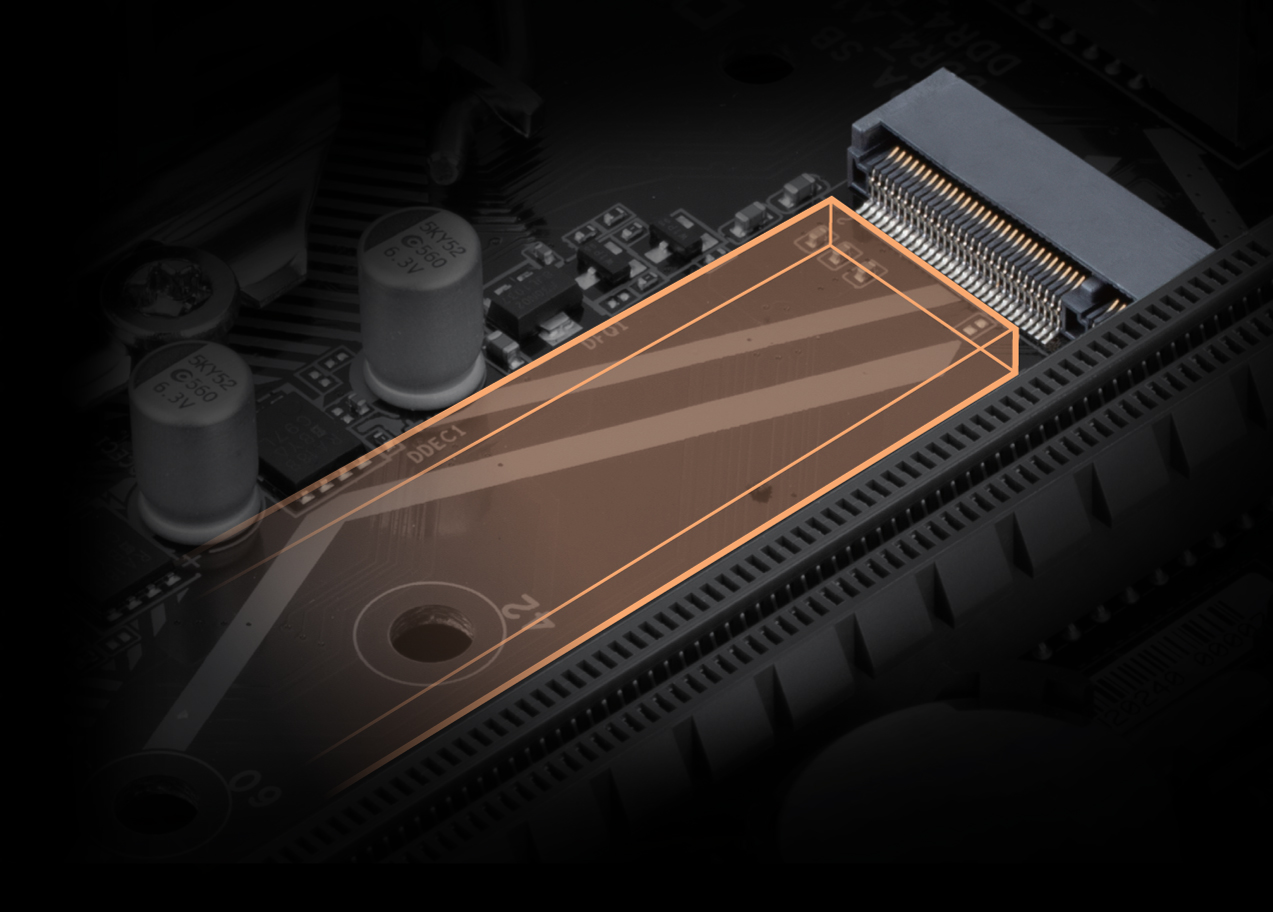

NVMe PCIe Gen3 x2 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts
who want to maximize their systems potential.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital
output technologies on todays HD displays and TVs.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its
performance while staying cool. Smart Fan 5 allows users to interchange their
fan headers to reflect different thermal sensors at different locations on the
motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that
support both PWM and Voltage mode fans have been introduced to make the
motherboard more liquid cooling friendly.
FAN STOP
Achieve fan silence. With Fan Stop, map any fan to stop completely when
temperatures drop below a specified threshold. Which fan stops, based on
readings from which sensor, and at what temperatureall of it can be customized
to your liking.
Intelligent Fan Control Design

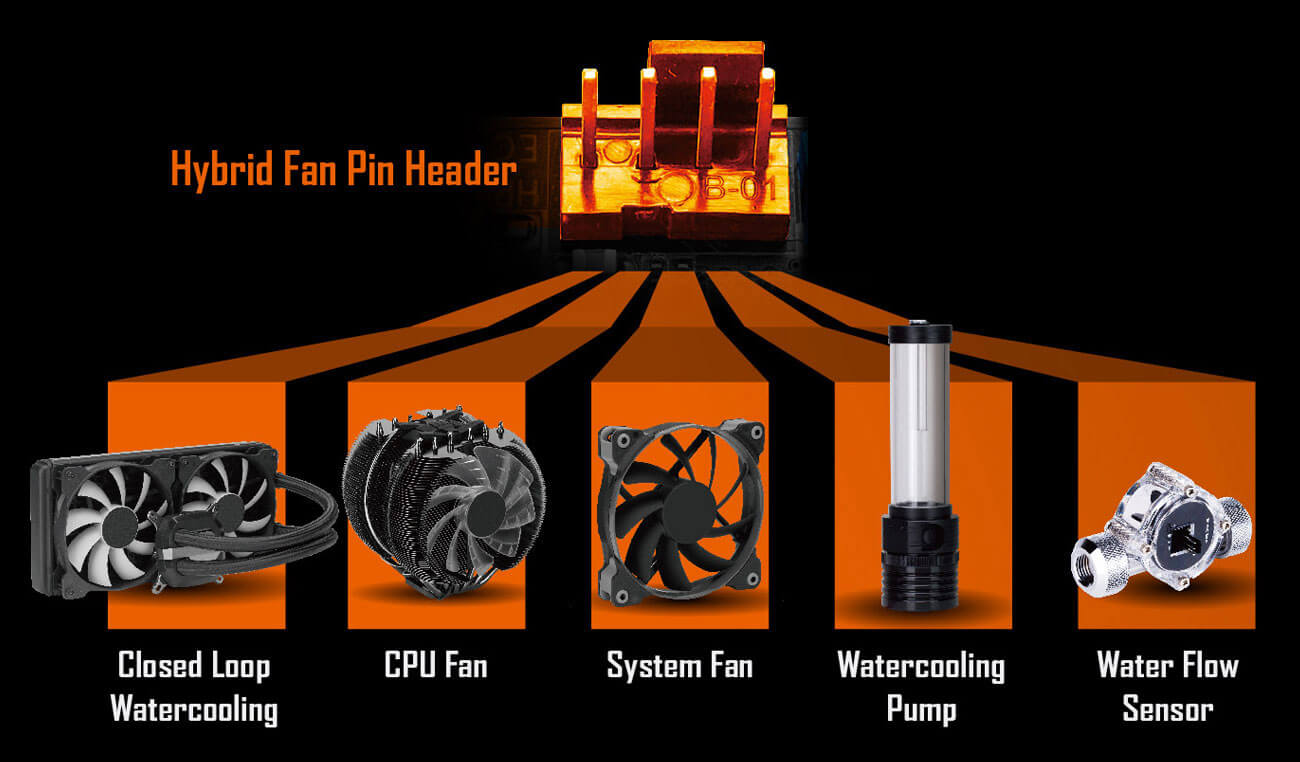

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives
up-to-the-second information on flow-rate and water-temperature through the
Hybrid Fan Pin Headers or external thermistor sensorsgiving you absolute mastery
over your PC.
- All Hybrid Fan Headers can automatically detect the type of cooling device
whether it be fan or pump with different PWM or Voltage mode.

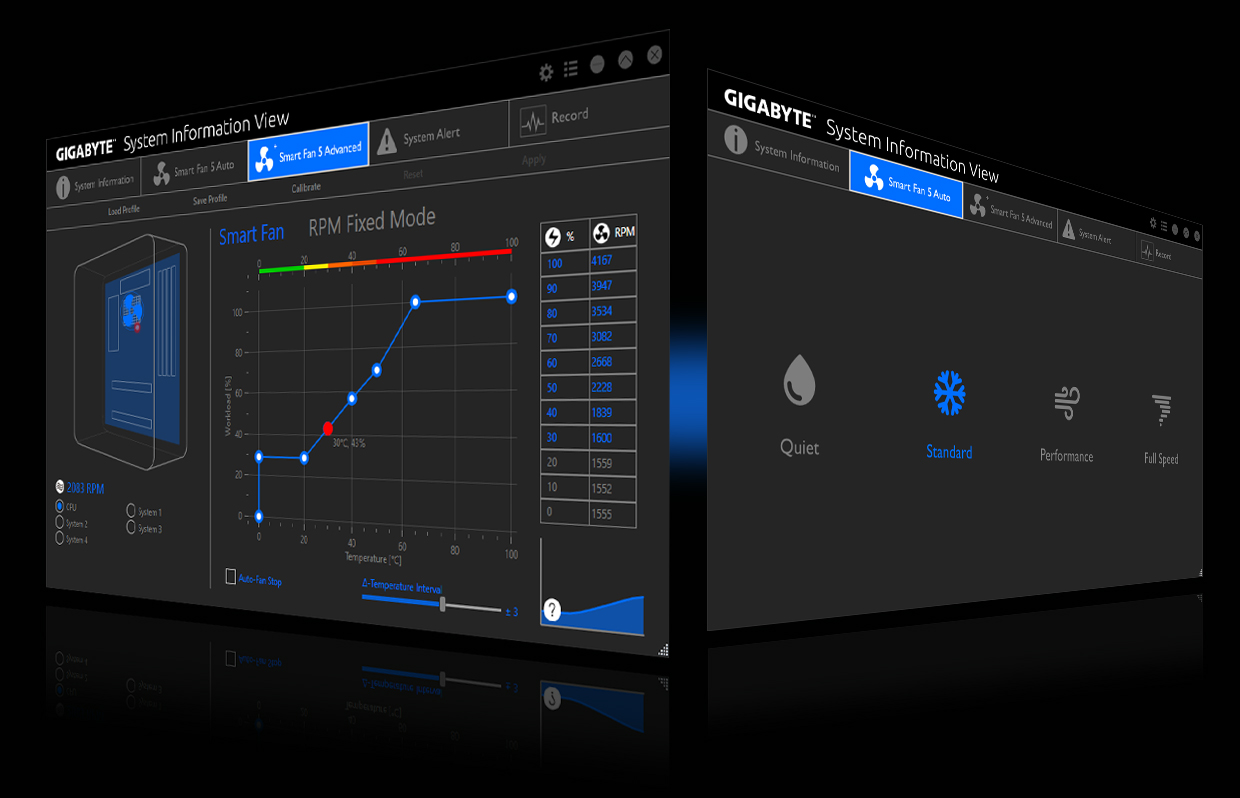

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage
preferences.

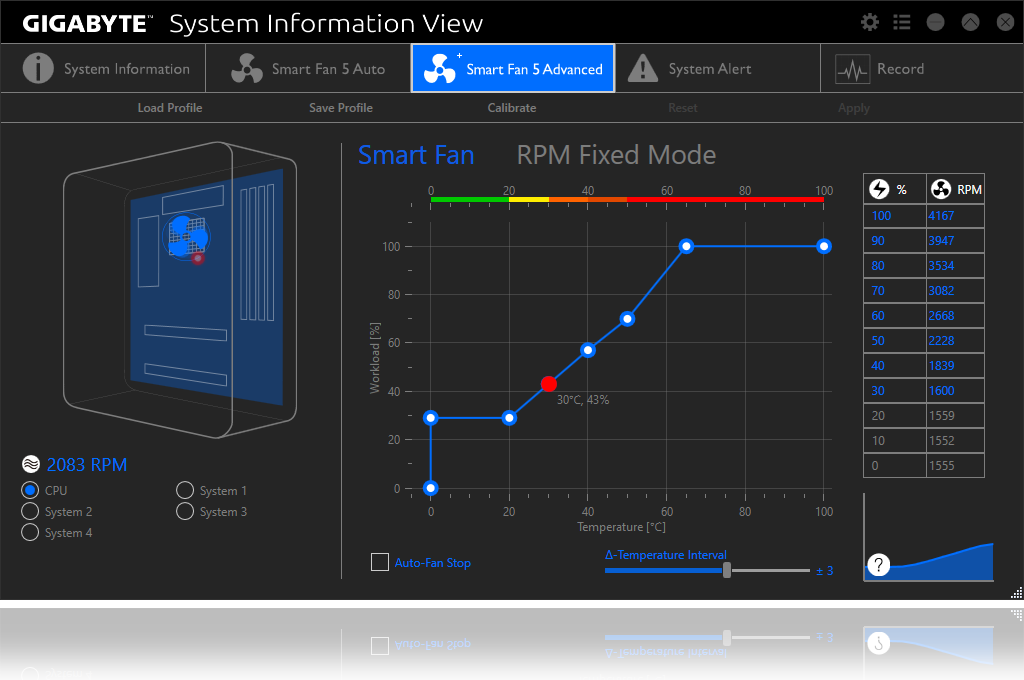

For each fan or pump, you can use the intuitive fan curve to define trigger
thresholds and corresponding fan speeds.

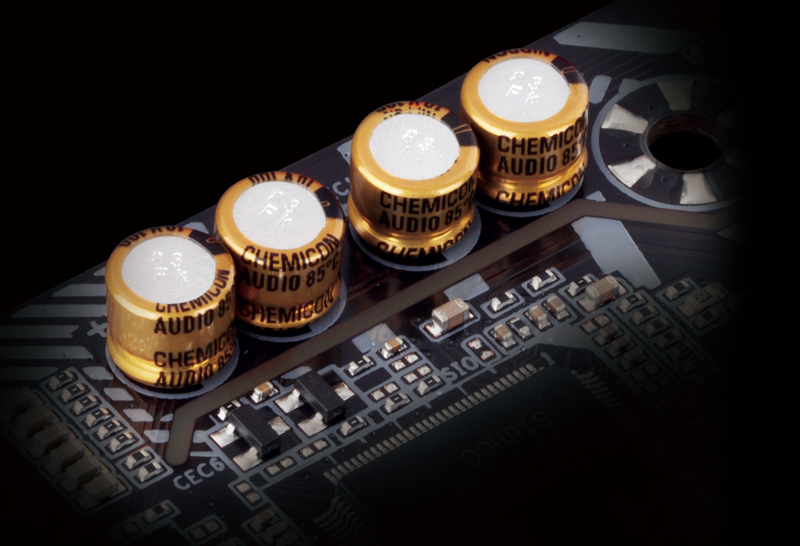

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality
capacitors help deliver high resolution and high fidelity audio to provide the
most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates
the boards sensitive analog audio components from potential noise pollution at
the PCB level.

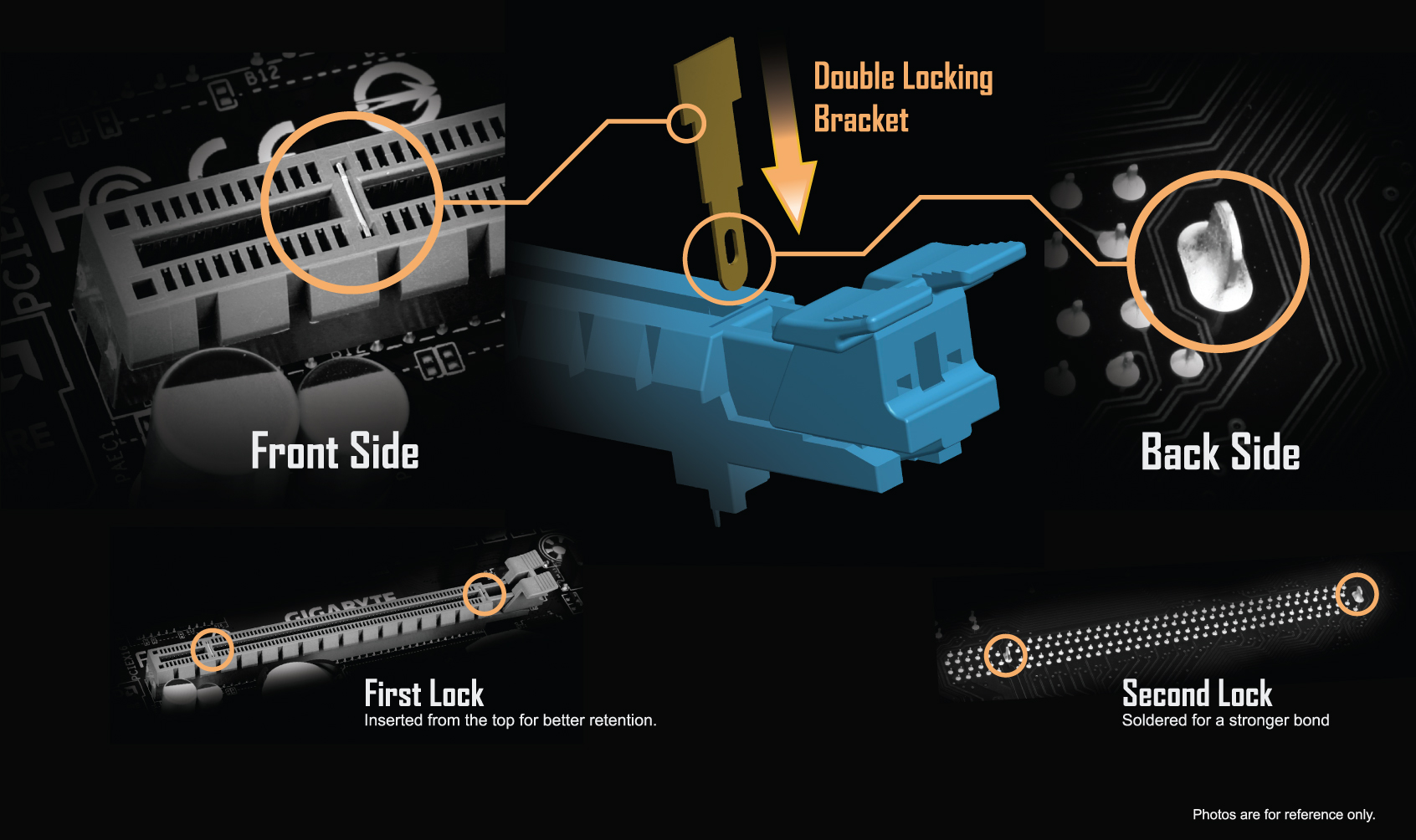

GIGABYTE Patented Double Locking Bracket

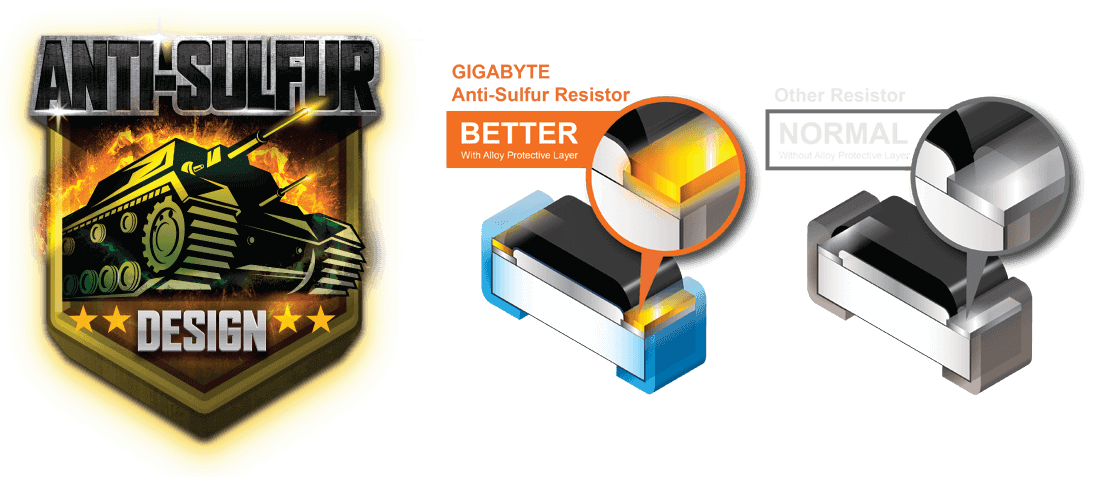

START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating
chemical change and causing these resistors to open or short. If either of these
occurs the motherboard will fail to function. By equipping resistors with an
Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new
meaning.
The Industry's Leading Surge Protection
GIGABYTE motherboards also feature special anti-surge IC that protect your
motherboard, helping to ensure that your PC is equipped to deal with any
potentially irregular electrical spikes.
Humidity Protection Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and
most parts of the world experience moisture in the air as humidity at some point
during the year. GIGABYTE motherboards have been designed to make sure that
humidity is never an issue, incorporating a new Glass Fabric PCB technology that
repels moisture caused by humid and damp conditions. Glass Fabric PCB technology
uses a new PCB material which reduces the amount of space between the fiber
weave, making it much more difficult for moisture to penetrate compared to
traditional motherboard PCBs. This offers much better protection from short
circuit and system malfunction caused by humid and damp
conditions.
High Temperature Protection Lower RDS(on) MOSFETs
Design
GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage
through unnecessary residual heat dissipation. This all amounts to tangible
energy savings which are beneficial for both end-users and the environment
without impacting system performance.
GIGABYTE BIOS & Applications
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most
optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has
been able to reinvent the BIOS to give users a better experience while setting
up their new system.

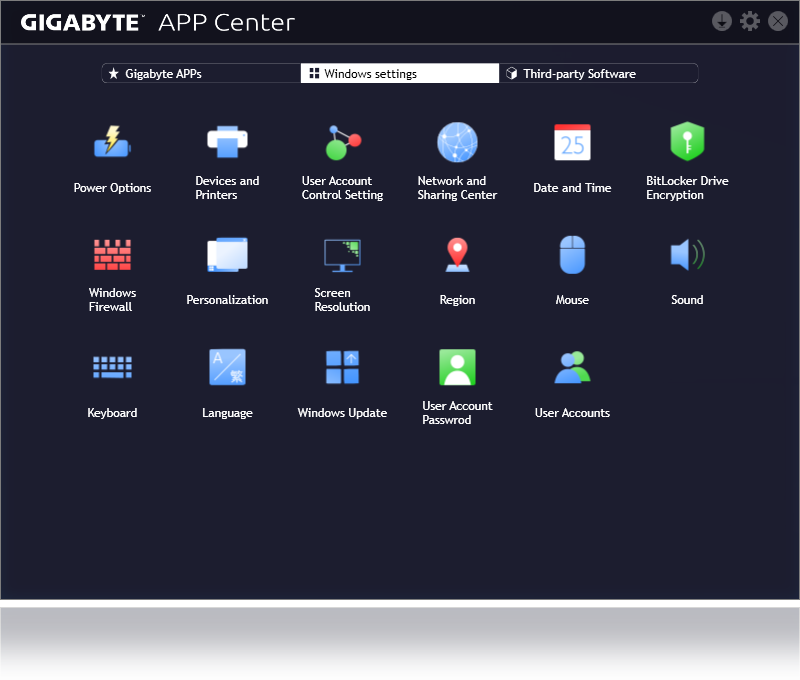

APP CENTER
GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and
drivers, you can choose any utility you want to install from APP CENTER and keep
you updated with latest utilities and drivers version.
EasyTune
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users
to fine-tune their system settings or adjust system and memory clocks and
voltages in a Windows environment. With Smart Quick Boost, one click is all it
takes to automatically overclock your system, giving an added performance boost
when you need it the most.

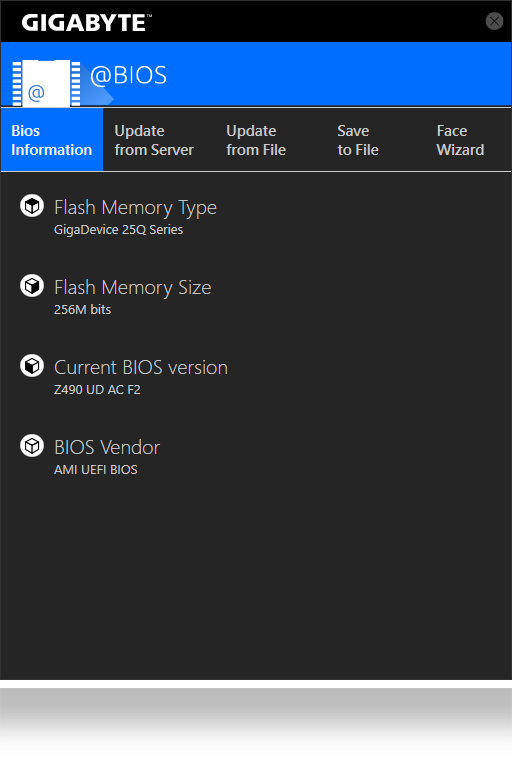

@BIOS
The GIGABYTE @BIOS app allows you to update your systems BIOS from within
Windows using a simple and slick graphical user interface. @BIOS can
automatically download the latest version from the GIGABYTE servers or you can
update your BIOS from a file on your computer. @BIOS also allows you to save
your current BIOS to a file, recover your previous BIOS from an image and backup
your BIOS to an image.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you
access to your current system status. Monitor components such as the clocks and
processor, set your preferred fan speed profile, create alerts when temperatures
get too high or record your system's behavior; these are the possibilities of
the System Information Viewer.
4K resolution is the next technological milestone in high-definition content
delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than
four times today's standard HD pixel density. GIGABYTE motherboards provide
native 4K support with integrated Intel HD Graphics via HDMI.
HDMI - The Next Generation Multimedia
Interface
HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s
video transmitting bandwidth and 8-channel high quality audio all through a
single cable. Able to transmit superior, uncompressed digital video and audio,
HDMI ensures the crispest rendering of digital content up to 1080p without the
quality losses associated with analog interfaces and their digital-to-analog
conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital
Content Protection), allowing the playback of Blu-ray/HD DVD and other protected
media content.
Specifications
|
CPU |
1.
Support for 10th Generation Intel Core i9 processors/Intel Core
i7 processors/Intel Core i5 processors/Intel Core i3
processors/Intel Pentium processors/Intel Celeron processors
in the LGA1200 package |
|
2.
L3 cache varies with CPU |
|
(Please
refer "CPU Support List" for more
information.) |
|
Chipset |
1.
Intel H410 Express Chipset |
|
Memory |
1.
Intel Core i9/i7 processors: |
|
Support
for DDR4 2933/2666/2400/2133 MHz memory
modules |
|
2.
Intel Core
i5/i3/Pentium/Celeron processors: |
|
Support
for DDR4 2666/2400/2133 MHz memory modules |
|
3.
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)
of system memory |
|
4.
Dual channel memory architecture |
|
5.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
non-ECC mode) |
|
6.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules |
|
7.
Support for Extreme Memory Profile (XMP) memory
modules |
|
(Please
refer "Memory Support List" for more
information.) |
|
Onboard
Graphics |
Integrated
Graphics Processor-Intel HD Graphics
support: |
|
1.
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60
Hz |
|
2.
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60
Hz |
|
*
The DVI-D port does not support D-Sub connection by
adapter. |
|
3.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30
Hz |
|
*
Support for HDMI 1.4 version and HDCP 2.3. |
|
Support
for up to dual-display at the same time |
|
Maximum
shared memory of 512 MB |
|
Audio |
1.
Realtek ALC887 codec |
|
2.
High Definition Audio |
|
3.
2/4/5.1/7.1-channel |
|
*
To configure 7.1-channel audio, you need to open the audio software and
select Device advanced settings > Playback Device to change the default
setting first. Please visit GIGABYTE's website for details on configuring
the audio software. |
|
LAN |
1.
Realtek GbE LAN chip (1000/100 Mbit) |
|
Expansion
Slots |
1.
1 x PCI Express x16 slot, running at x16 |
|
2.
2 x PCI Express x1 slot |
|
(The
PCI Express slots conform to PCI Express 3.0
standard.) |
|
Supports
up to ASPM L1.2 power management protocols. |
|
Storage
Interface |
1.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2
SSD support) |
|
2.
4 x SATA 6Gb/s connectors |
|
*
Refer to "1-7 Internal Connectors," for the installation notices for the
M.2 and SATA connectors. |
|
M.2
connectors support up to ASPM L1.2 PCIe power management
protocols. |
|
USB |
Chipset: |
|
1.
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available
through the internal USB header) |
|
2.
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available
through the internal USB header) |
|
Internal
I/O Connectors |
1.
1 x 24-pin ATX main power connector |
|
2.
1 x 8-pin ATX 12V power connector |
|
3.
4 x SATA 6Gb/s connectors |
|
4.
1 x CPU fan header |
|
5.
1 x system fan header |
|
6.
1 x RGB LED strip header |
|
7.
1 x front panel header |
|
8.
1 x front panel audio header |
|
9.
1 x speaker header |
|
10.
1 x USB 3.2 Gen 1 header |
|
11.
1 x USB 2.0/1.1 header |
|
12.
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI
2.0 module only) |
|
13.
1 x serial port header |
|
14.
1 x Clear CMOS jumper |
|
Back
Panel Connectors |
1.
1 x PS/2 keyboard port |
|
2.
1 x PS/2 mouse port |
|
3.
1 x D-Sub port |
|
4.
1 x DVI-D port |
|
5.
1 x HDMI port |
|
6.
2 x USB 3.2 Gen 1 ports |
|
7.
4 x USB 2.0/1.1 ports |
|
8.
1 x RJ-45 port |
|
9.
3 x audio jacks |
|
I/O
Controller |
1.
iTE I/O Controller Chip |
|
H/W
Monitoring |
1.
Voltage detection |
|
2.
Temperature detection |
|
3.
Fan speed detection |
|
4.
Overheating warning |
|
5.
Fan fail warning |
|
6.
Fan speed control |
|
*
Whether the fan speed control function is supported will depend on the
cooler you install. |
|
BIOS |
1.
1 x 128 Mbit flash |
|
2.
Use of licensed AMI UEFI BIOS |
|
3.
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI
5.0 |
|
Unique
Features |
1.
Support for APP Center |
|
*
Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications. |
|
@BIOS |
|
Ambient
LED |
|
EasyTune |
|
Fast
Boot |
|
Game
Boost |
|
ON/OFF
Charge |
|
Smart
Backup |
|
System
Information Viewer |
|
2.
Support for Q-Flash |
|
3.
Support for Xpress Install |
|
Bundled
Software |
1.
Norton Internet Security (OEM version) |
|
2.
Realtek 8118 Gaming LAN Bandwidth Control
Utility |
|
Operating
System |
1.
Support for Windows 10 64-bit |
|
Form
Factor |
1.
Micro ATX Form Factor; 22.6cm x 18.5cm |
|
Remark |
1.
Due to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party
website. |
|
2.
Most hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will
update them on the GIGABYTE
website. |
