Gigabyte B550 VISION D (rev. 1.0) Motherboard
Key Features
AMD B550 Creators Motherboard with Intel Thunderbolt 3 certification,
effective cooling solution, DDR4 ECC & Non-ECC memory, IntelWi-Fi
6 802.11ax and dual IntelLAN
with cFosSpeed, Triple PCIe 4.0/3.0 x16 slots, Dual PCIe4.0/3.0
M.2 Connectors
- Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with
Radeon Graphics Processors
- Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM
slots
- Multi-graphics configurations offer by dual PCIe 4.0/3.0 x16 and one PCIe
3.0 x16 slots
- Fully Quadro QVL Tested
- The limitless connectivity by Thunderbolt 3
- High-bandwidth and low-latency network support by dual Intel GbE LAN with
cFosSpeed
- Intel Wi-Fi 6 802.11ax makes latency a thing of the past
- Effective cooling solution design for the better thermal
dissipation
- Smart Fan 5 features hybrid fan headers and numerous temperature sensors
for fan mode configuration
- Ultra-Fast NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 interface M.2 connectors
with Thermal Guards
- Comprehensive connectivity with USB3.2 Gen 2 Type-C connection
- Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics
Card

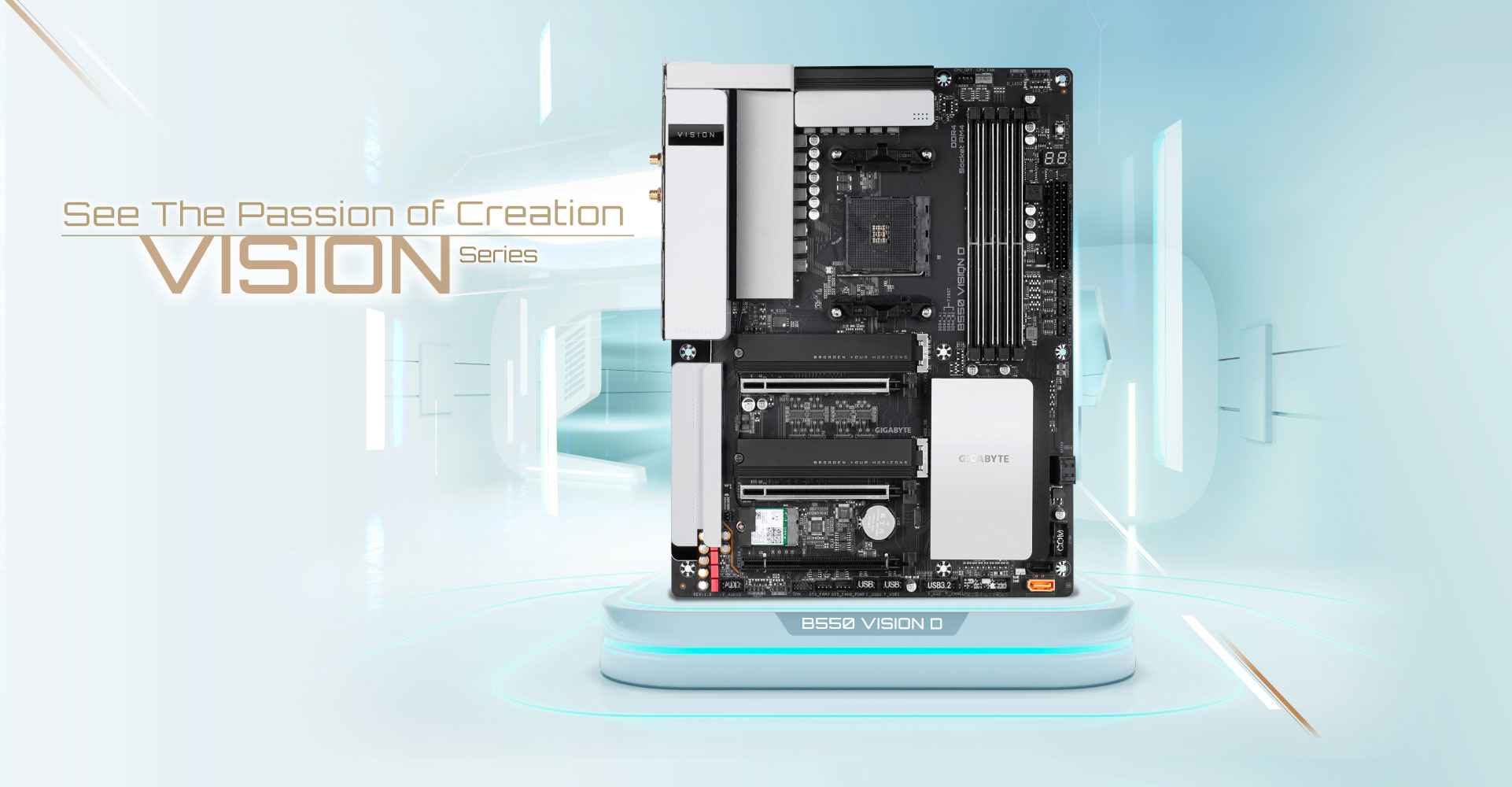

VISION Series motherboards are built for creator pc. It featured with
reliable performance, impressive connectivity, expandable on graphics, and
ultra-fast storage for creators to deal with heavy design workloads such as
video editing and 3D rendering. It's the perfect fit for DIY creators to build
their own ideal machine.

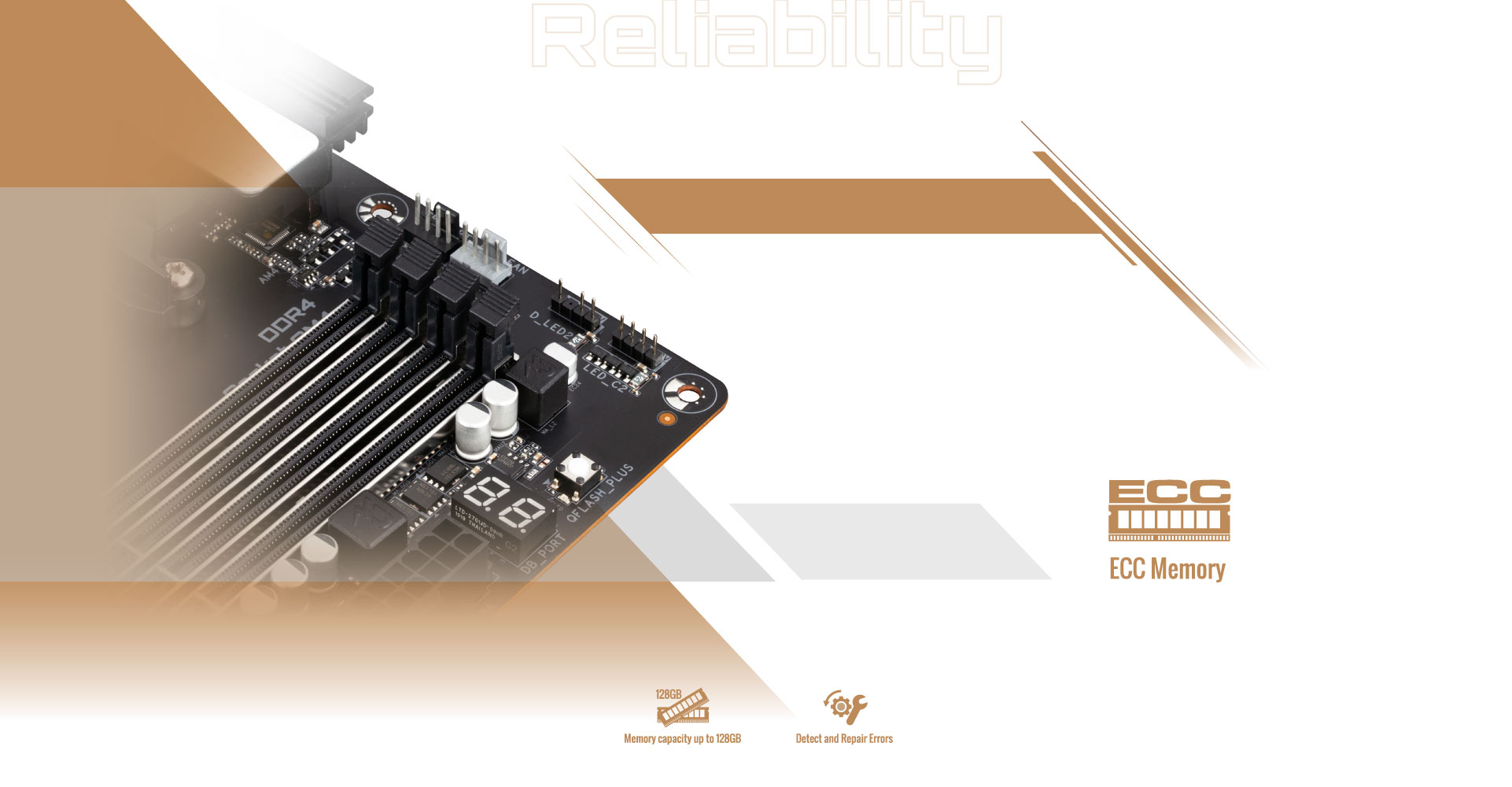

ECC Memory | To protect against data corruption
Error Correction Code (ECC) memory corrects errors in your data as it passes
in and out of memoryto ensure reliability for critical applications.

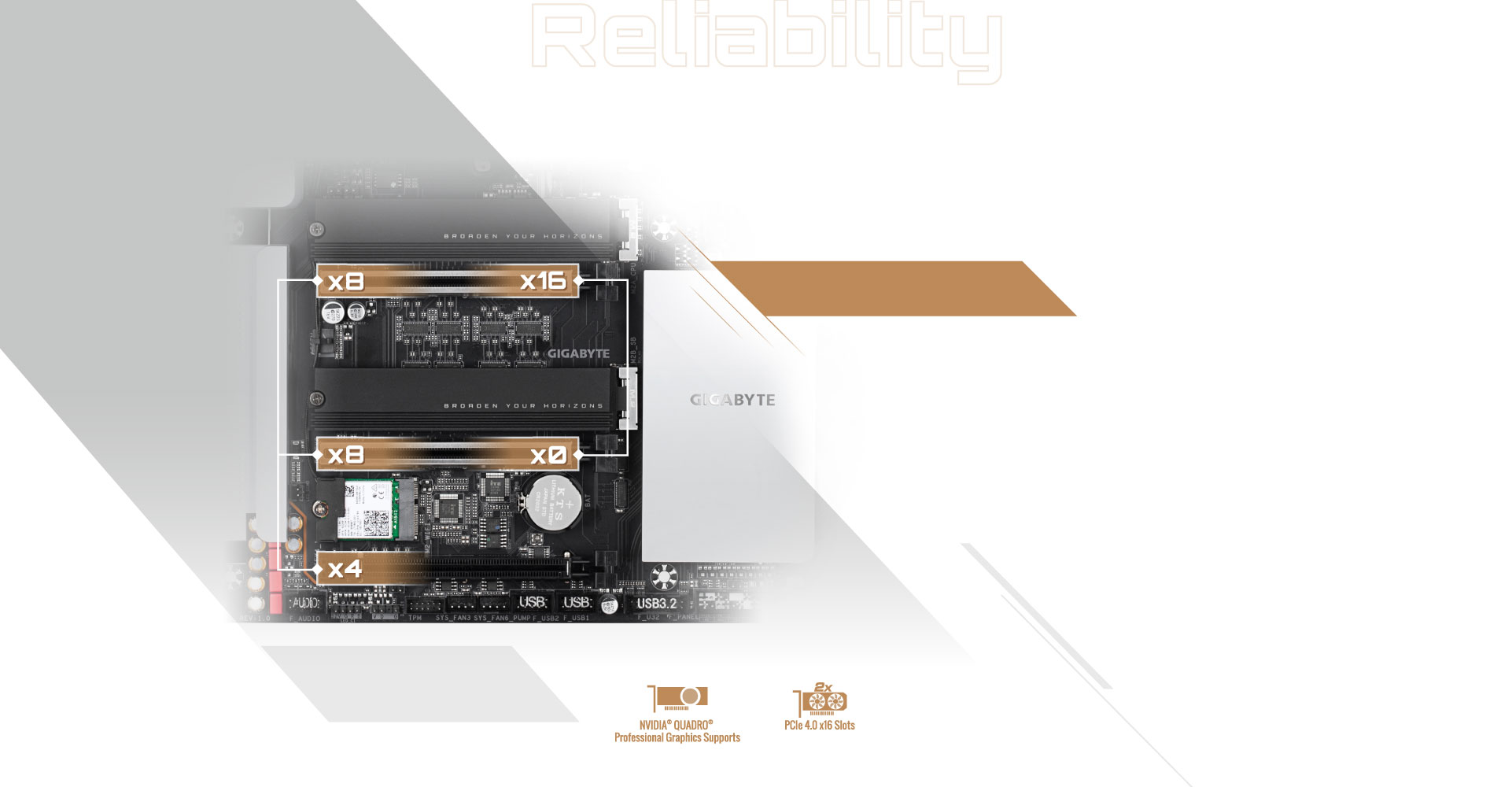

Multi-Card Support | Make Your Expandability Flexible
Multi-graphics configurations offer better graphics performance for
applications whichdemand the highest frame rates without compromising on
resolution.

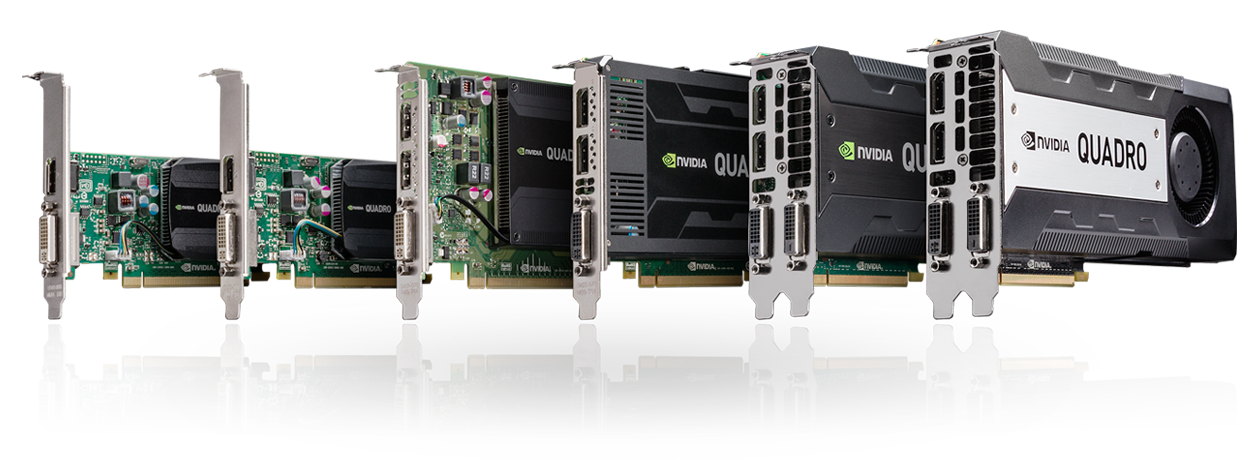

NVIDIAQUADROProfessional
Graphics Supports
NVIDIAQUADRO3D
Workstation Professional Graphics Solutions are designed and built specifically
for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100
professional applications across a broad range of industries. Professionals
trust them to enable their best work using applications such as AdobeCreative
Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and
SOLIDWORKS, Siemens NX, PTC Creo, and many
more.

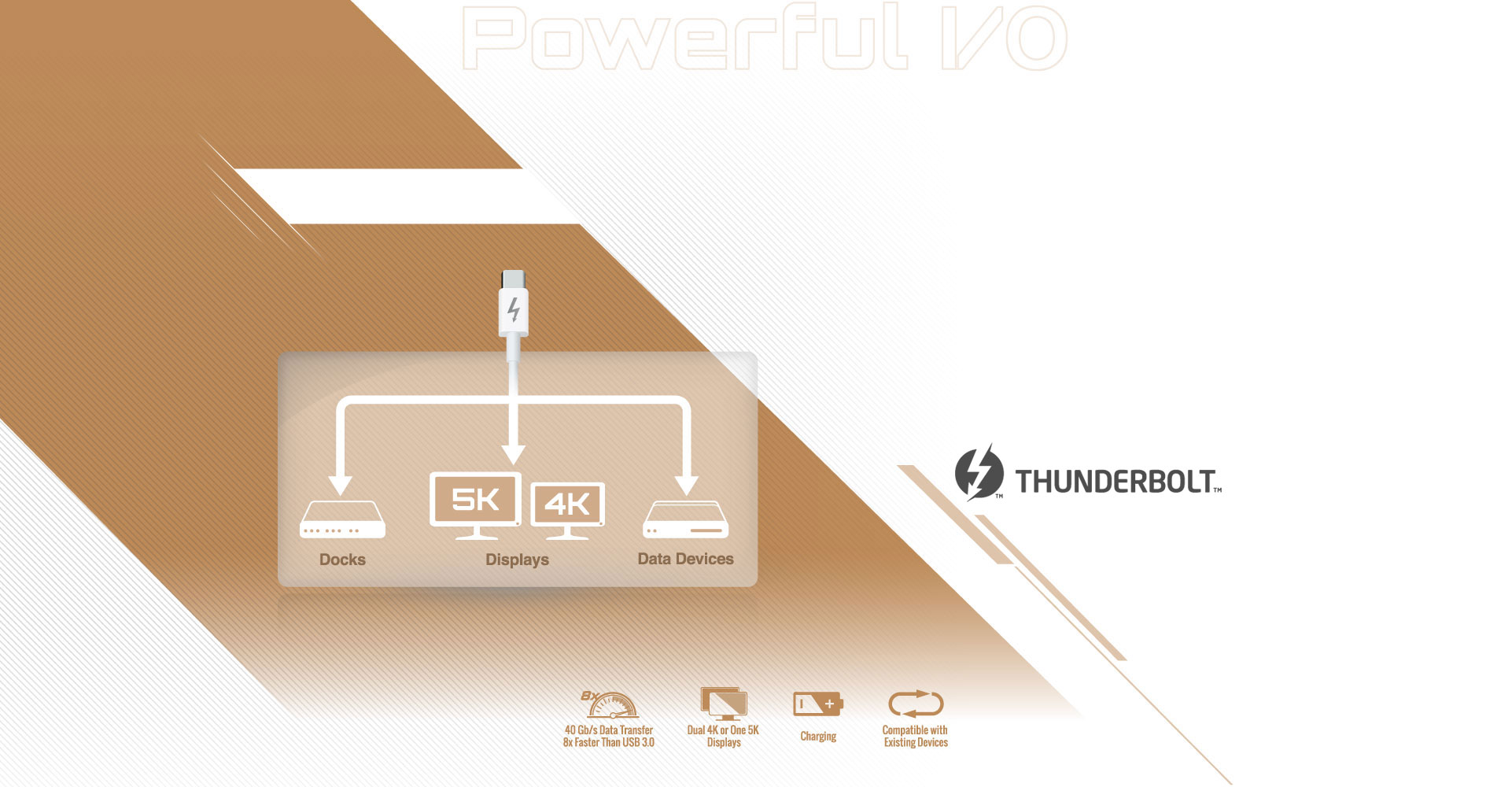

Thunderbolt 3 | More Speed. More Pixels. More
Possibilities.
Thunderbolt 3 is the single most advanced port available. It uses USB Type-C
connectors and cables but as a single cable solution, creating one compact port
that delivers the fastest connection to any dock display or data device. The
only cable you need brings the limitless connectivity with you.
Daisy-chain Multiple Devices
GIGABYTE Thunderbolt motherboards allow users to daisy chain up to 12 devices
simultaneously via an incredible bi-directional 40Gbps data pipeline that
includes both PCIe and DisplayPort traffic. It redefines desktop PC connectivity
to make it far easier to connect multiple high-speed storage devices and HD
displays to your PC than ever before.

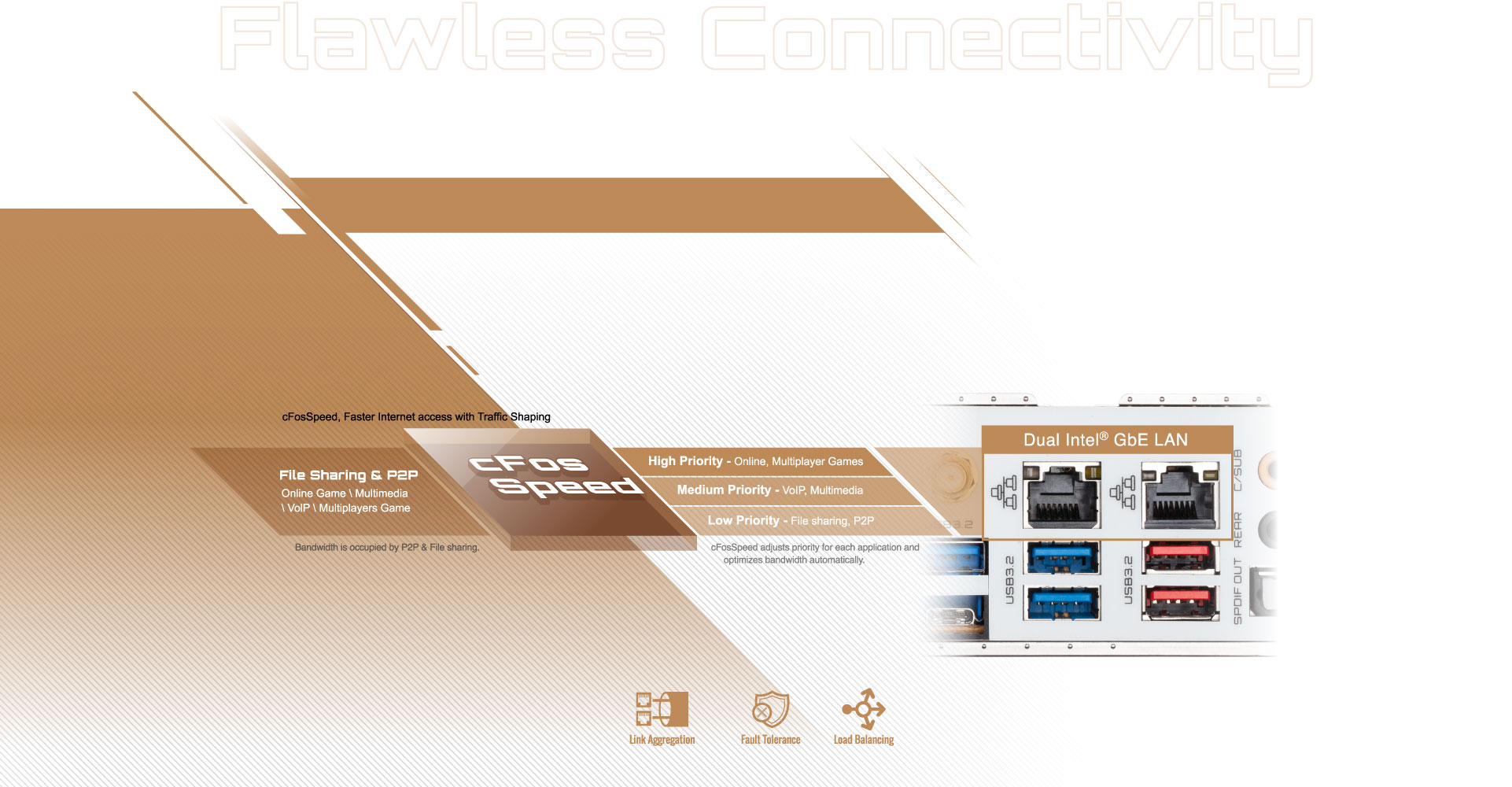

High-Bandwidth and Low-Latency Access-Layer Network Support Dual
IntelLAN
With both LAN ports designed, you'll benefit from increased bandwidth for
speed, automated load balancing for smoother data flow, and instant failover if
anything goes wrong. Dual IntelGbE
LAN ensures the best throughput performance as well as better support for
diverse operating systems. IntelLAN
features cFosSpeed, a network traffic management application which helps to
improve network latency and maintain low ping times.
IntelWi
Fi 6 (Gig+) Make latency a thing of the past
Intel Wireless solution supports 802.11ax, enables gigabit wireless
performance, provides smooth video streaming, better gaming experience, fewer
dropped connections, and speeds up to 2.4Gbps. Wi-Fi 6 is designed to improve
speed, increase efficiency, and reduce congestion in heavy bandwidth usage
scenarios.

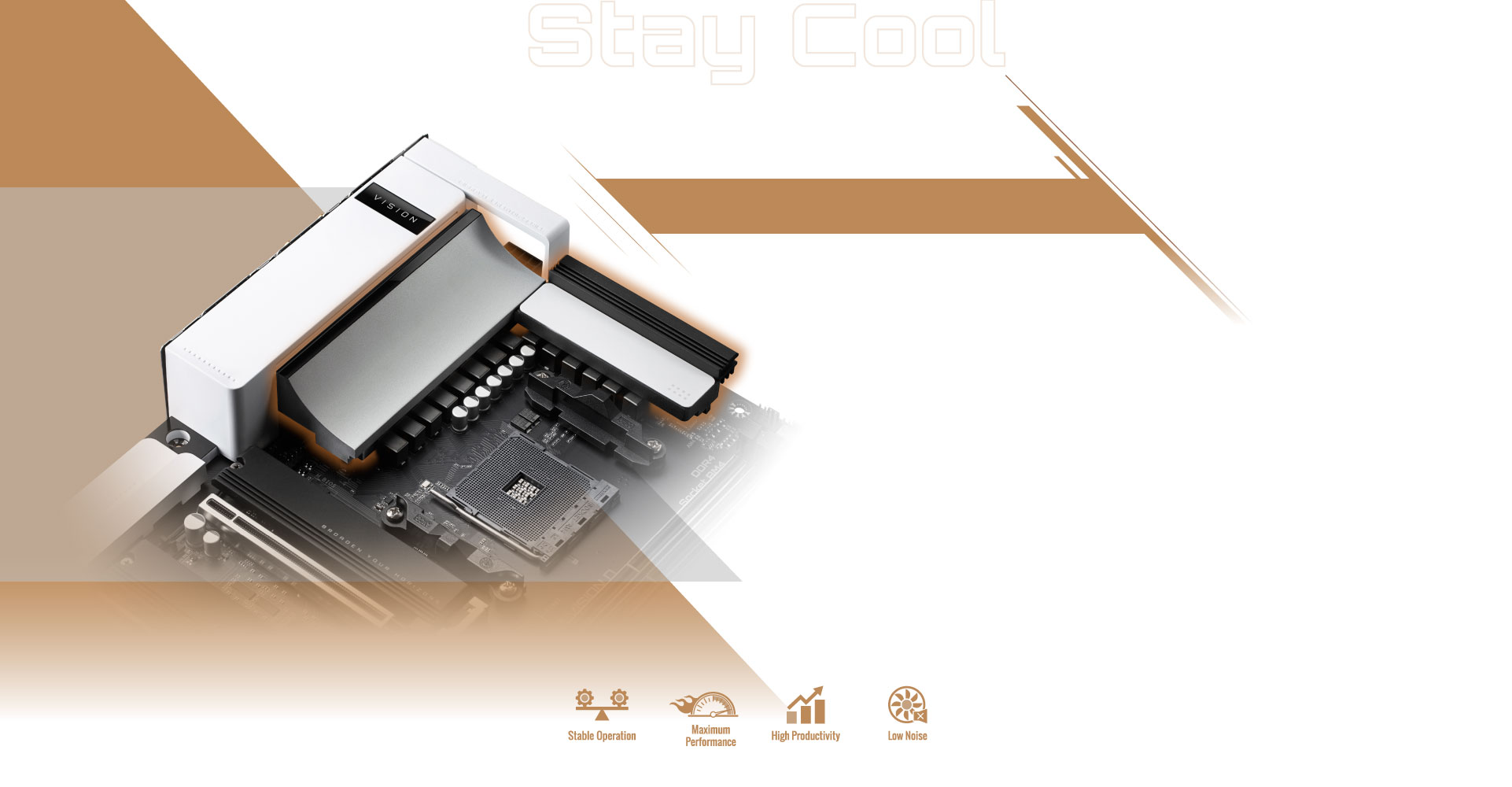

Cooling Technology
Effective cooling solution is essential for a heavy design workload to get
away with slow down, crashes, and unexpected shutdown. Unconventional Heatsinks
is designed for better thermal dissipation but also aesthetically appealing to
creators. Iconic curved heatsink covers the hottest VRM area to ensure efficient
power delivery for stable performance. Creators transfer larger file with
un-throttled storage performance by efficient M.2 heatsinks.
Smart Fan 5
Eight hybrid fan headers and numerous temperature sensors are planted on the
motherboard to monitor in real time and configure fan mode to fit different
workloads via Smart Fan 5. Creators are allowed to set the trigger point to
activate the fan and its corresponding speed. The fan completely stops when
performing light tasks to avoid noise.

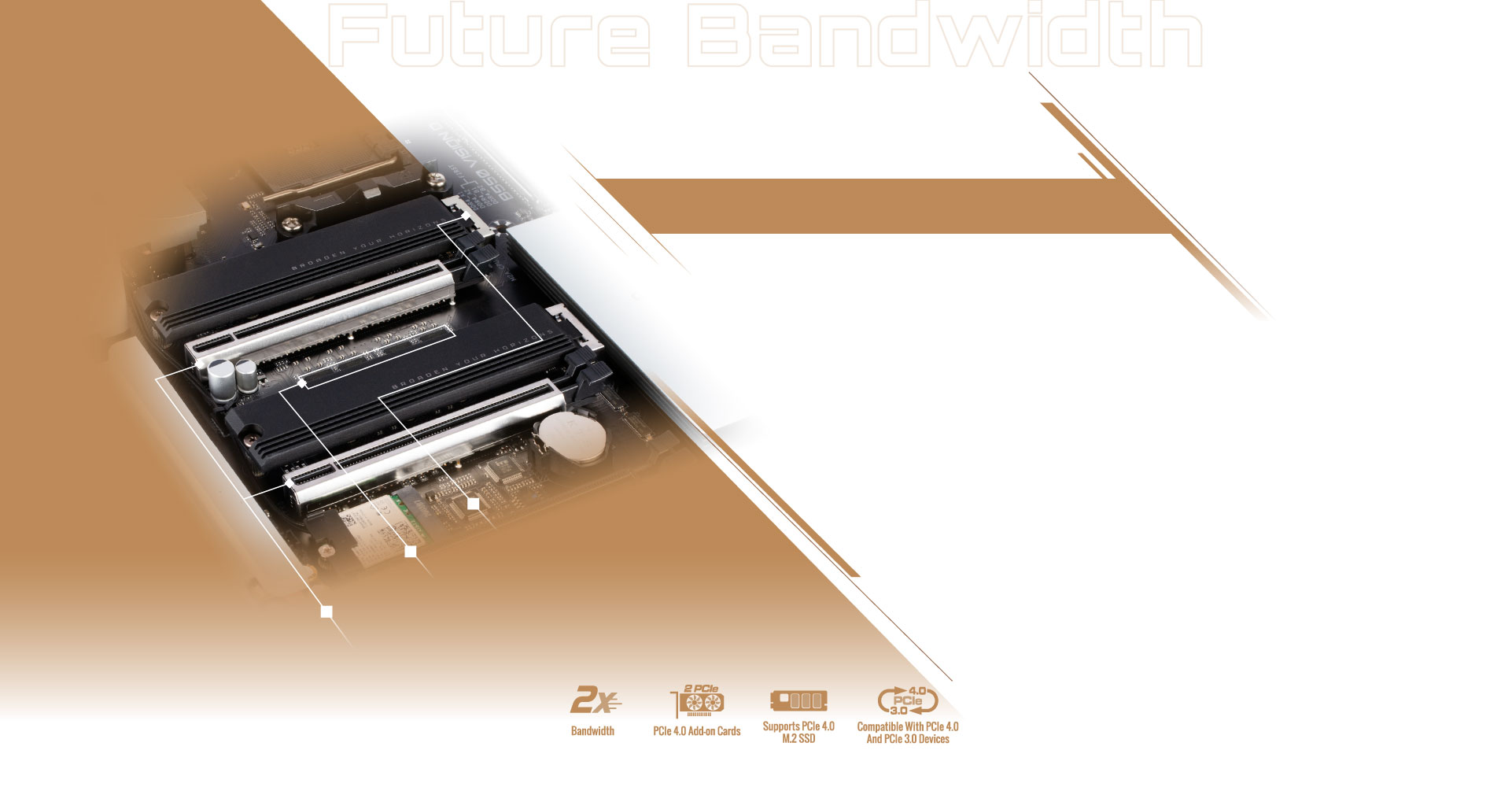

PCI Express 4.0 Hardware Design
For most prosumers and content creators, high bandwidth storage and high
performance graphics card or accelerator cards are critical for their projects.
This is especially true for 3D rendering and creating high resolution textures.
To support most cutting edge devices, this motherboard uses the groundbreaking
PCIe 4.0 hardware design. From PCB, several new IC to device connectors,
everything that the PCIe 4.0 signal goes is a completely new generation, to make
sure your content creation PC is future proof.
SSD read speed
Content creators workflows constantly involve huge files, such as images,
videos, and 3D models. Time for editing, saving, and transferring those huge
files can be substantially reduced with the new generation PCIe 4.0 SSD.

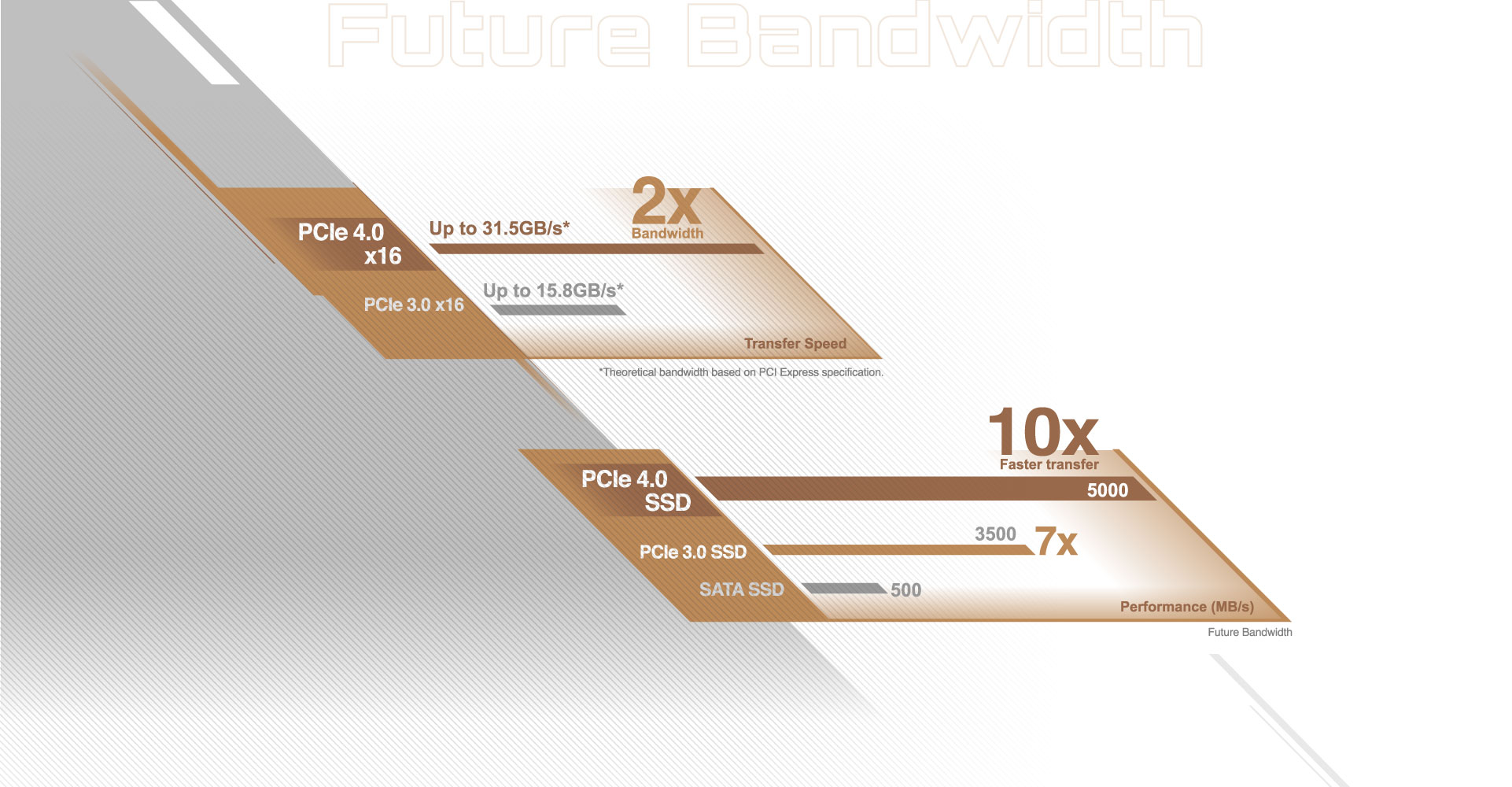

PCIe Bandwidth
Up to 31.5GB/s from new PCIe 4.0 x16 slot designs for the next generation add
on cards need tremendous bandwidth, including the graphics card, deep learning
accelerator card, and the video capture card.

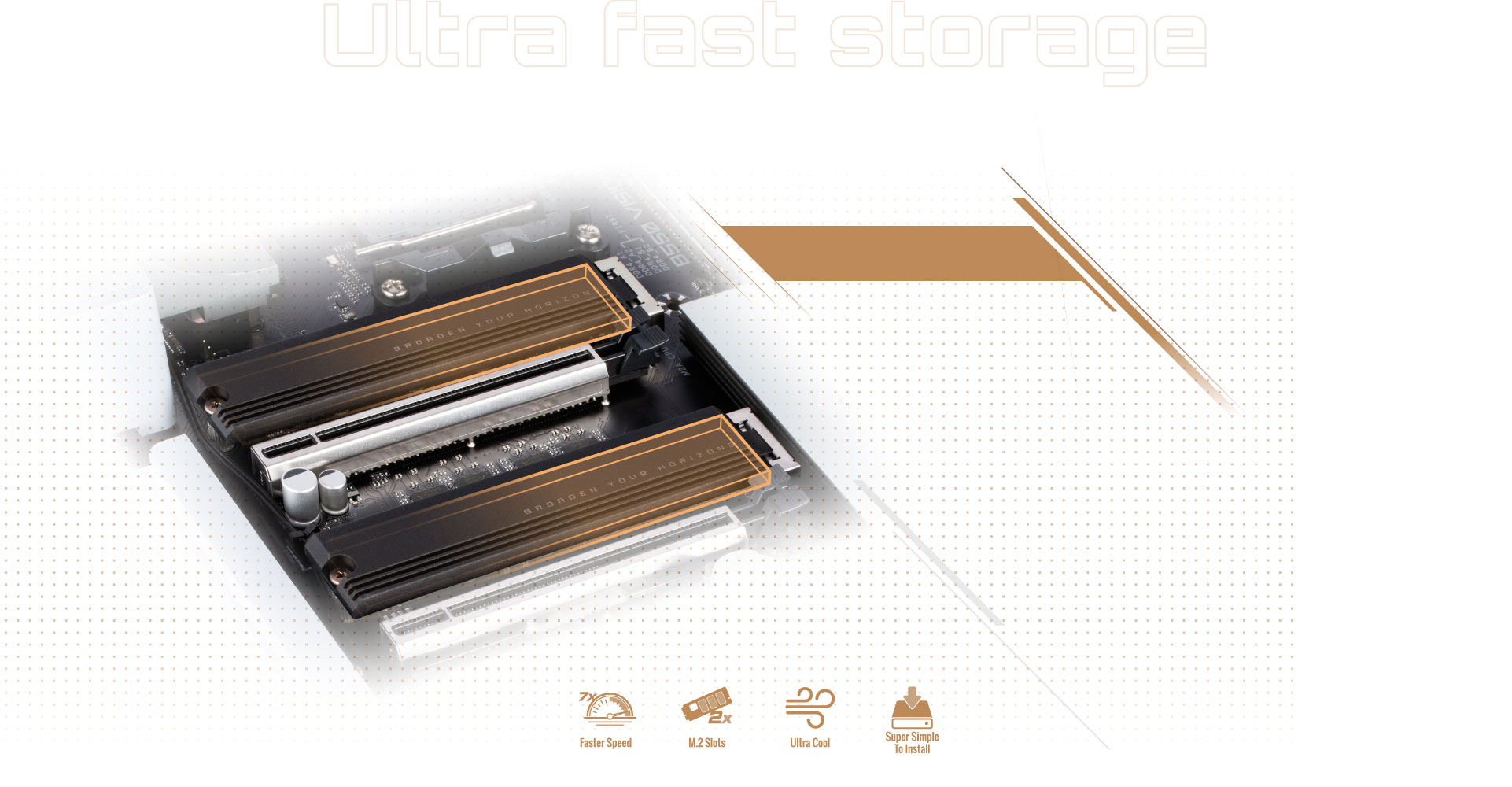

PCIe M.2 | Faster Speed. More Space.
M.2 Drives keep the load times away. Breaking the barriers of SATA
limitations. M.2 PCIe SSD gives you X7 faster data transferring experience
compared to 2.5" SATA solid state drives.

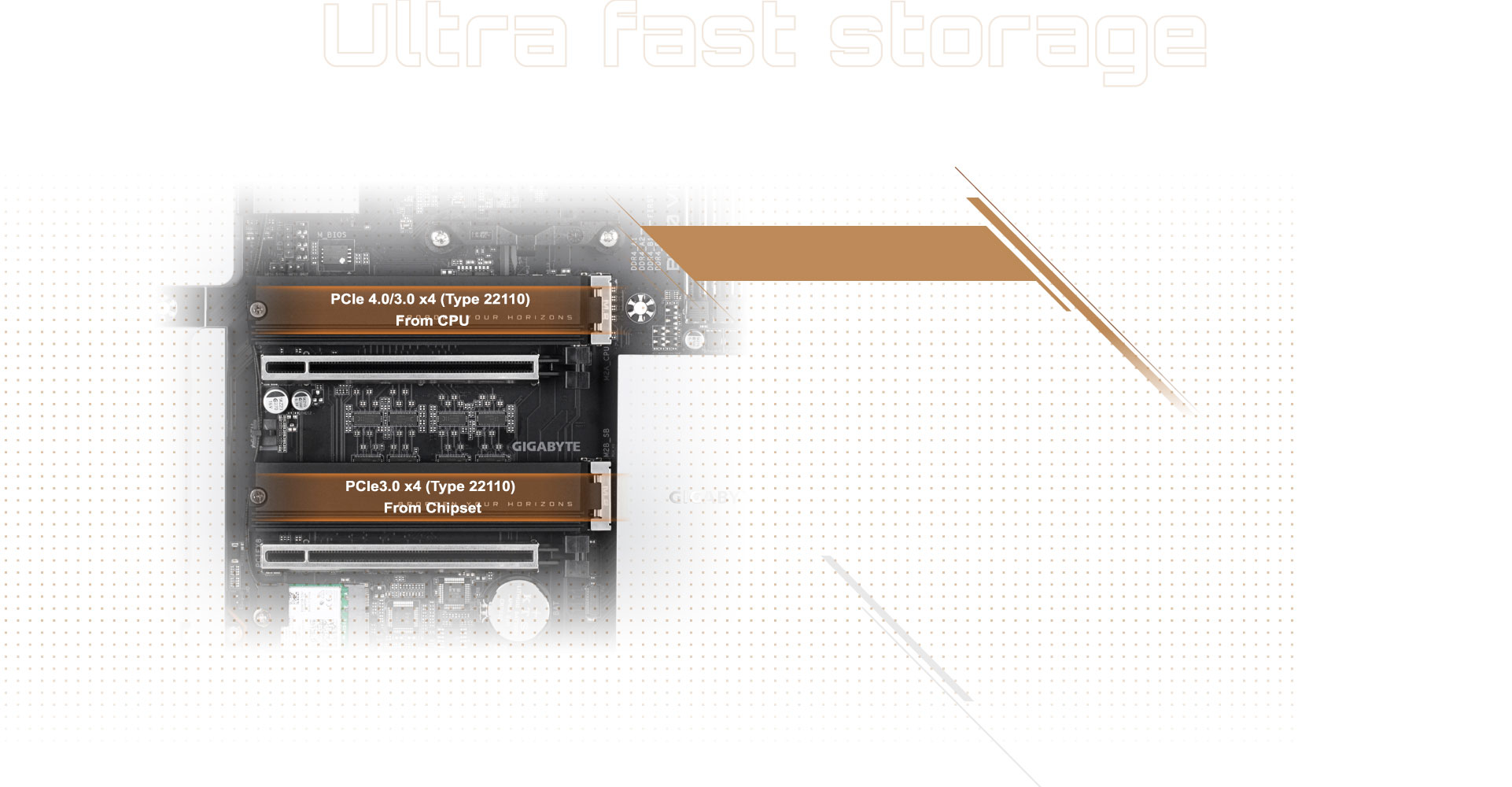

Dual NVMe PCIe x4 M.2
M.2, the latest storage technology. GIGABYTE M.2 solution offers considerably
faster storage performance and provides an ideal storage with RAID modes. To
feature PCIe 4.0*/3.0 x4 and PCIe 3.0 x4 M.2 connectors for offering the best
compatibility in terms of NVMe storage for creators who demand high capacity and
seek the best performance.

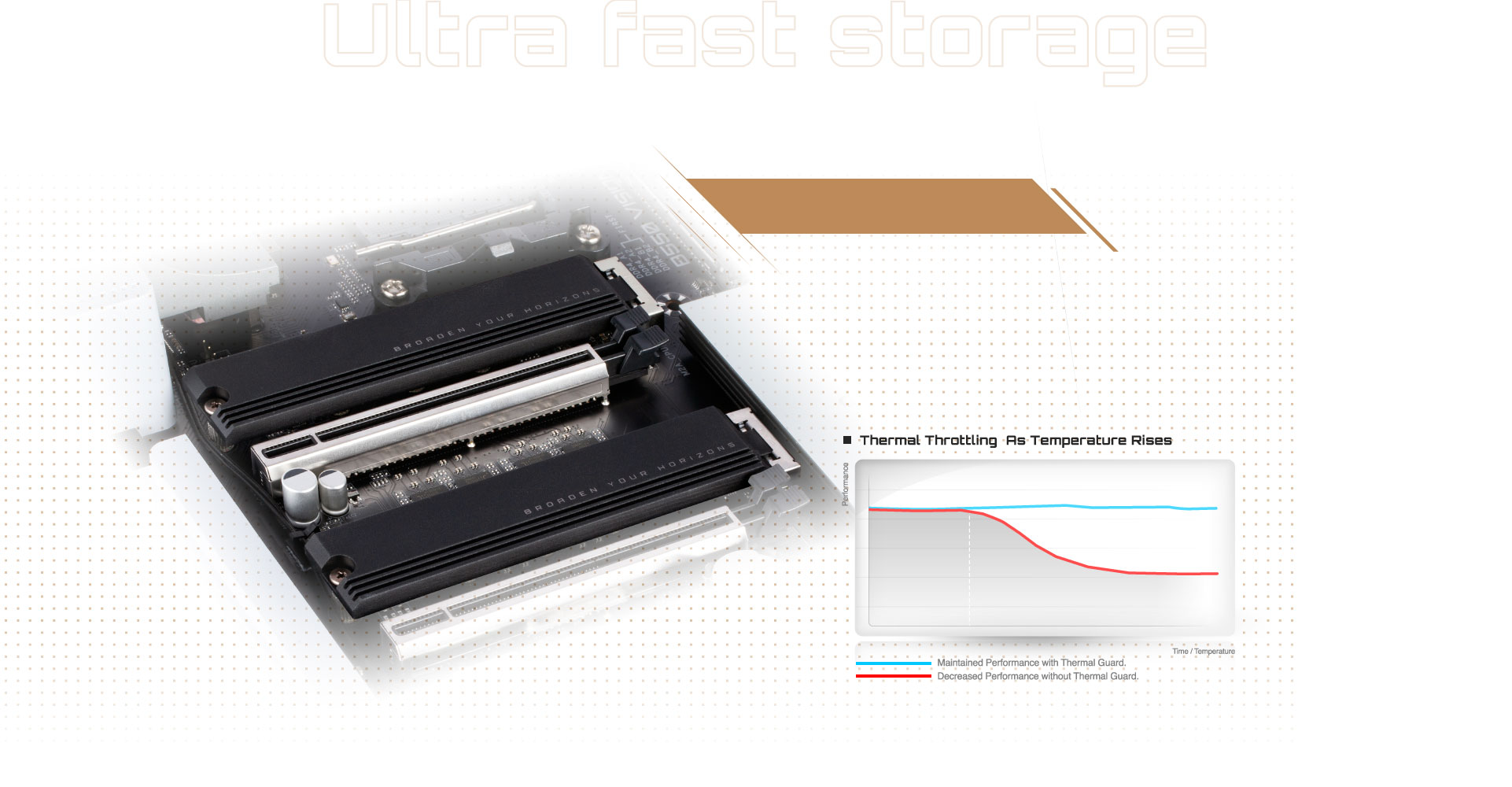

M.2 Ultra Cool
With durability in mind, GIGABYTE provides a thermal solution for M.2 drives.
This unique M.2 Thermal Guard prevents throttling and bottlenecks from M.2
devices as it helps to reduce and dissipate heat before it becomes an
issue.
DTS:XUltra
| Immersive sounds to go
DTS:X Ultra is capable of delivering
consumers a truly premium entertainment experience by completely surrounding the
listener and expanding the sound stage to create a more immersive environment.
Supports channel-based, scene based, and object-based audio. Also, it takes
movies, music, and interactive gaming experiences to an exciting new
level.
Specifications
|
CPU |
1.
AMD Socket AM4, support for : AMD Ryzen 5000 Series / 3rd Generation AMD
Ryzen processors / 3rd Gen AMD Ryzen with Radeon Graphics
processors |
|
(Please
refer "CPU Support List" for more
information.) |
|
Chipset |
1.
AMD B550 |
|
Memory |
1.
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
of system memory |
|
2.
AMD Ryzen 5000 series processors: |
|
Support
for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) /
4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory
modules |
|
3.
3rd Gen AMD Ryzen Processors: |
|
Support
for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) /
4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory
modules |
|
4.
3rd Gen AMD Ryzen with Radeon Graphics
processors: |
|
Support
for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) /
4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.)
/3200/2933/2667/2400/2133 MHz memory modules |
|
5.
Dual channel memory architecture |
|
6.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory
modules |
|
7.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules |
|
8.
Support for Extreme Memory Profile (XMP) memory
modules |
|
(Please
refer "Memory Support List" for more
information.) |
|
Onboard
Graphics |
Integrated
in the 3rd Generation AMD Ryzen with Radeon Graphics processors +
Intel Thunderbolt 3 Controller: |
|
1.
2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting
DisplayPort and Thunderbolt video outputs and a maximum resolution of
5120x2880@60 Hz with 24 bpp |
|
*
Because of the limited I/O resources of the PC architecture, the number of
Thunderbolt devices that can be used is dependent on the number of the PCI
Express devices being installed. (Refer to Chapter 1-6, "Back Panel
Connectors," for more information.) |
|
*
Support for DisplayPort 1.4 version, HDCP 2.3, and
HDR. |
|
Integrated
in the 3rd Generation AMD Ryzen with Radeon Graphics
processors: |
|
1.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60
Hz |
|
*
Support for HDMI 2.1 version, HDCP 2.3, and
HDR. |
|
Maximum
shared memory of 16 GB |
|
Audio |
1.
Realtek ALC1220-VB codec |
|
*
The back panel line out jack supports DSD
audio. |
|
2.
Support for DTS:X Ultra |
|
3.
High Definition Audio |
|
4.
2/4/5.1/7.1-channel |
|
5.
Support for S/PDIF Out |
|
LAN |
1.
2 x Intel GbE LAN chips (1000 Mbit/100
Mbit) |
|
Wireless
Communication module |
Intel Wi-Fi
6 AX200 |
|
1.
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz
Dual-Band |
|
2.
BLUETOOTH 5 |
|
3.
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data
rate |
|
*
Actual data rate may vary depending on environment and
equipment. |
|
Expansion
Slots |
1
x PCI Express x16 slot (PCIEX16), integrated in the
CPU: |
|
1.
3rd Generation AMD Ryzen processors support PCIe 4.0 x16
mode |
|
2.
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0
x16 mode |
|
*
For optimum performance, if only one PCI Express graphics card is to be
installed, be sure to install it in the PCIEX16
slot. |
|
1
x PCI Express x16 slot (PCIEX8), integrated in the
CPU: |
|
1.
3rd Generation AMD Ryzen processors support PCIe 4.0 x8
mode |
|
2.
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0
x8 mode |
|
*
The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8
slot is populated, the PCIEX16 slot operates at up to x8
mode. |
|
1
x PCI Express x16 slot (PCIEX4), integrated in the
Chipset: |
|
1.
Supporting PCIe 3.0 x4 mode |
|
*
The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4
slot becomes unavailable when a device is installed in the M2B_SB
connector. |
|
Multi-Graphics
Technology |
Support
for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire
technologies |
|
Storage
Interface |
1
x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M
key, type 2242/2260/2280/22110 SSDs: |
|
1.
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2
SSDs |
|
2.
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and
PCIe 3.0 x4/x2 SSDs |
|
1
x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3,
M key, type 2242/2260/2280/22110 SSDs: |
|
1.
Supporting SATA and PCIe 3.0 x4/x2 SSDs |
|
4
x SATA 6Gb/s connectors, integrated in the
Chipset: |
|
1.
Support for RAID 0, RAID 1, and RAID 10 |
|
USB |
Integrated
in the CPU: |
|
1.
4 x USB 3.2 Gen 1 ports on the back panel |
|
Chipset+Intel Thunderbolt
3 Controller: |
|
1.
2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2
support |
|
Chipset: |
|
1.
2 x USB 3.2 Gen 2 Type-A ports (red) on the back
panel |
|
2.
2 x USB 3.2 Gen 1 ports available through the internal USB
header |
|
3.
1 x USB 2.0/1.1 port on the back panel |
|
Chipset+2
USB 2.0 Hubs: |
|
1.
5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through
the internal USB headers) |
|
Internal
I/O Connectors |
1.
1 x 24-pin ATX main power connector |
|
2.
1 x 8-pin ATX 12V power connector |
|
3.
1 x CPU fan header |
|
4.
1 x water cooling CPU fan header |
|
5.
4 x system fan headers |
|
6.
2 x system fan/water cooling pump headers |
|
7.
2 x addressable LED strip headers |
|
8.
2 x RGB LED strip headers |
|
9.
1 x CPU cooler LED strip/RGB LED strip header |
|
10.
2 x M.2 Socket 3 connectors |
|
11.
4 x SATA 6Gb/s connectors |
|
12.
1 x SATA DOM power connector |
|
13.
1 x front panel header |
|
14.
1 x front panel audio header |
|
15.
1 x USB 3.2 Gen 1 header |
|
16.
2 x USB 2.0/1.1 headers |
|
17.
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S
module only) |
|
18.
1 x serial port header |
|
19.
1 x Clear CMOS jumper |
|
20.
2 x temperature sensor headers |
|
21.
1 x Q-Flash Plus button |
|
Back
Panel Connectors |
1.
1 x PS/2 keyboard/mouse port |
|
2.
1 x DisplayPort In port |
|
3.
1 x HDMI port |
|
4.
2 x SMA antenna connectors (2T2R) |
|
5.
2 x USB 3.2 Gen 2 Type-A ports (red) |
|
6.
2 x Thunderbolt 3 connectors (USB Type-C port, with USB 3.2 Gen 2
support) |
|
7.
4 x USB 3.2 Gen 1 ports |
|
8.
2 x USB 2.0/1.1 ports |
|
9.
2 x RJ-45 ports |
|
10.
1 x optical S/PDIF Out connector |
|
11.
5 x audio jacks |
|
I/O
Controller |
1.
iTE I/O Controller Chip |
|
H/W
Monitoring |
1.
Voltage detection |
|
2.
Temperature detection |
|
3.
Fan speed detection |
|
4.
Water cooling flow rate detection |
|
5.
Overheating warning |
|
6.
Fan fail warning |
|
7.
Fan speed control |
|
*
Whether the fan (pump) speed control function is supported will depend on
the fan (pump) you install. |
|
BIOS |
1.
1 x 256 Mbit flash |
|
2.
Use of licensed AMI UEFI BIOS |
|
3.
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI
5.0 |
|
Unique
Features |
1.
Support for APP Center |
|
*
Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications. |
|
@BIOS |
|
EasyTune |
|
Fast
Boot |
|
Game
Boost |
|
ON/OFF
Charge |
|
RGB
Fusion |
|
Smart
Backup |
|
System
Information Viewer |
|
2.
Support for Q-Flash Plus |
|
3.
Support for Q-Flash |
|
4.
Support for Xpress Install |
|
Bundled
Software |
1.
Norton Internet Security (OEM version) |
|
2.
cFosSpeed |
|
Operating
System |
1.
Support for Windows 10 64-bit |
|
Form
Factor |
1.
ATX Form Factor; 30.5cm x 24.4cm |
|
Remark |
1.
Due to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party
website. |
|
2.
Most hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will
update them on the GIGABYTE
website. |
