Gigabyte AORUS Gen4 SSD 2TB



Key Features

  • Form Factor: M.2 2280
  • Interface: PCI-Express 4.0 x4, NVMe 1.3
  • Total Capacity: 1000GB
  • Sequential Read Speed : up to 5000 MB/s
  • Sequential Write speed : up to 4400 MB/s
  • Wear Leveling, Over-Provision technologies
  • TRIM & S.M.A.R.T supported
  • Warranty: Limited 5-years

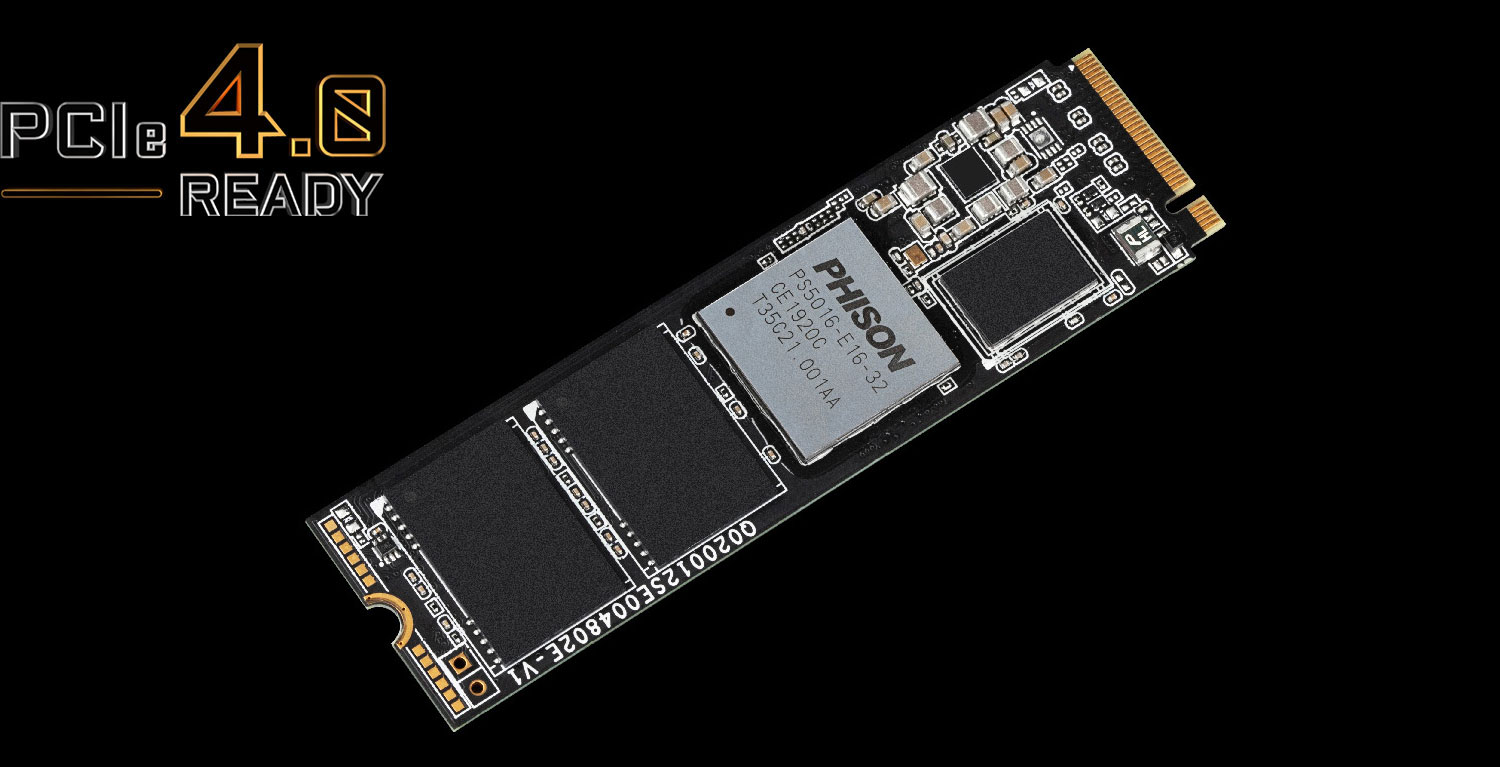

World First PCIe 4.0x4 Controller

The World First PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.

  • PCIe 4.0x4, NVMe 1.3 Interface
  • DDR4 DRAM cache
  • 8 CH with 32 CEs
  • Phison 4th Gen LDPC & RAID ECC
  • Support Pyrite
  • Heat spreader for controller

NAND Flash Selected for High Quality and Performance

Selected High Speed 3D TLC NAND Flash (800MT/s)

The selected and high quality NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS Gen 4 SSD far exceeds that of PCIe 3.0x4 devices for superior storage performance.

Xtreme Storage Performance

With the new PCIe 4.0 controller, AORUS Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,400MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.

SSD Tool Box

The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.

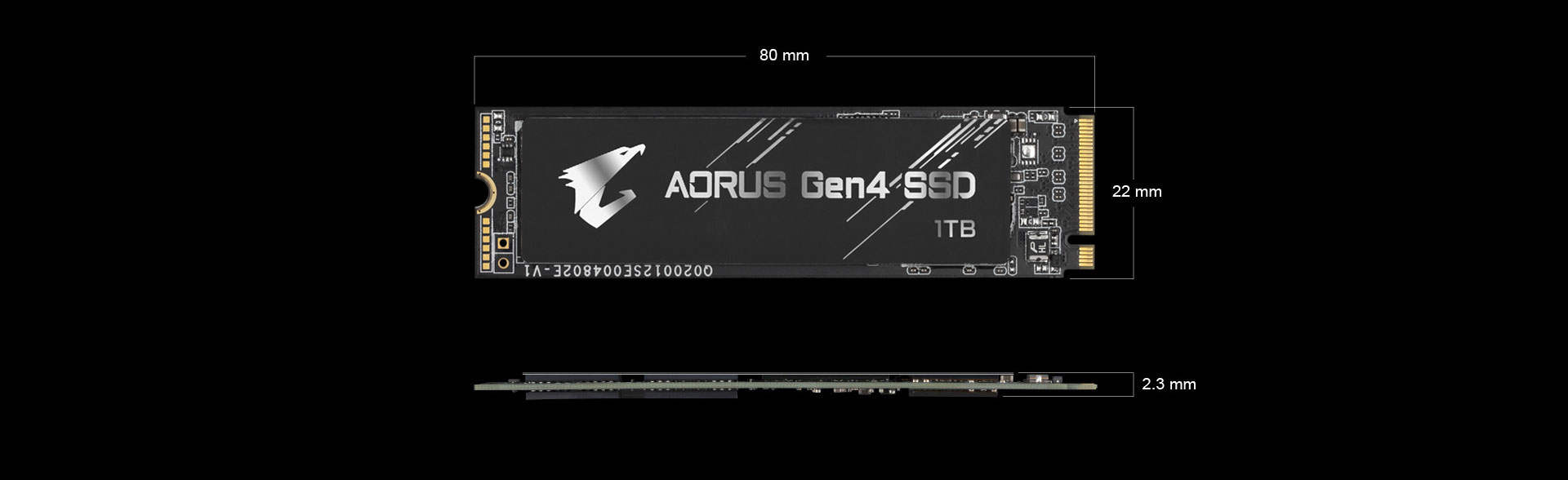

Dimension

Specifications

Interface

PCI-Express 4.0x4, NVMe 1.3

Form Factor

M.2 2280

Total Capacity

2000GB

Warranty

Limited 5-years or 1800TBW

NAND

3D TLC NAND Flash

External DDR Cache

DDR4 2GB

Sequential Read speed

Up to 5000 MB/s

Sequential Write speed

Up to 4400 MB/s

Random Read IOPS

up to 750k

Random Write IOPS

up to 700k

Dimension

80 x 22 x 2.3 mm

Mean time between failure (MTBF)

1.77 million hours

Power Consumption (Active)

Average: R : 6.5W; W : 6.6W

Power Consumption (Idle)

21.1mw

Temperature (Operating)

0C to 70C

Temperature (Storage)

-40C to 85C

Note

* Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

* Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.

* Speeds based on internal testing. Actual performance may vary.

* TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.

* 1GB = 1 billion bytes. Actual useable capacity may vary.

* 5 years or 1800TBW, whichever comes first.
