All stock codes associated to this product
TLPA7010PKIT, TL-PA7010PKIT, NWTLPA7010PKIT, NWTL-PA7010PKIT, 6935364099213

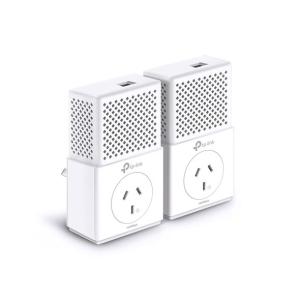

TP-Link TL-PA7010P KIT AV1000 Gigabit Passthrough Powerline Starter
Kit
Overview
- HomePlug AV2 standard compliant, high-speed data transfer rates of up to
1000Mbps, supports all your online needs
- Gigabit port provides secure wired networks for desktops, smart TVs or
games consoles
- Plug and play, no configuration required
- Integrated power socket ensures no power outlet goes to waste
- Patented Power-Saving Mode automatically reduces power consumption by up
to 85%
Specifications
HARDWARE
FEATURES |
Plug
Type |
AU |
Standards
and Protocols |
HomePlug
AV2, HomePlug AV, IEEE 1901, |
IEEE
802.3, IEEE 802.3u, IEEE 802.3ab |
Interface |
Gigabit
Ethernet Port |
Button |
Pair
Button |
Power
Consumption |
Maximum:
2.64W (220V/50Hz) |
Typical:
2.49W (220V/50Hz) |
Standby:
0.45W (220V/50Hz) |
LED
Indicator |
PWR,
PLC, ETH |
Dimensions
( W x D x H ) |
2.8
x 1.7 x 5.0 in. (71 x 42 x 126 mm) |
Range |
300
Meters over electrical circuit |
SOFTWARE
FEATURES |
Modulation
Technology |
OFDM
(PLC) |
Encryption |
Powerline
Security: 128-bit AES |
OTHERS |
Certification |
CE,
RoHS |
Package
Contents |
Powerline
Ethernet Adapter |
6.5
ft. (2 m) CAT.5 Ethernet cable (RJ45) |
Quick
Installation Guide |
System
Requirements |
Windows
2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac,
Linux |
Environment |
Operating
Temperature: 0C~40C (32F ~104F) |
Storage
Temperature: -40C~70C (-40F ~158F) |
Operating
Humidity: 10%~90% non-condensing |
Storage
Humidity: 5%~90% non-condensing |
Warranty |
Limited
3-Year Warranty |
For
further information on our warranty policy please visit:
https://www.tp-link.com.au/support/rma |
