Gigabyte X570 Aorus Pro Wifi (rev. 1.0) Motherboard
Key Features
AMD X570 AORUS Motherboard with 12+2 Phases IR Digital VRM, Fins-Array
Heatsink & Direct Touch Heatpipe, Dual PCIe 4.0 M.2 with Thermal Guards,
Intel WiFi 6 802.11ax, Intel GbE LAN with cFosSpeed, USB Type-C, RGB Fusion
2.0
- Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 2nd Gen
Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics
Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 12+2 Phases IR Digital VRM Solution with Power Stage
- Advanced Thermal Design with Fins-Array Heatsink and Direct Touch
Heatpipe
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal
Guards
- Intel WiFi 6 802.11ax 2T2R & BT 5
- ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA
Audio Capacitors
- Intel Gigabit LAN with cFosSpeed Internet Accelerator
Networking
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports
Addressable LED & RGB LED Strips
- Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with
FAN STOP
- Front & Rear USB 3.2 Gen2 Type-C Header & HDMI 2.0
support
- Integrated I/O Shield Armor
- Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics
card
In the dark, starless night, the falcon strikes fear into the heart of its
prey. Even with minimal visibility, the falcon pinpoints its prey and patiently
anticipates the perfect moment to swoop in for the kill. The falcon with its
laser sharp gaze dominates the darkness of night in the same manner that AORUS
Core Lighting illuminates the vast AORUS ecosystem.
GET READY FOR AMD RYZEN 5000 SERIES
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support
for latest AMD Ryzen 5000 Series Processors. The all-new design is a testament
to GIGABYTE dedication to design quality. GIGABYTE X570 motherboards offer a
rich list of features such as support for PCIe 4.0, USB Type-C interfaces on
select boards, refined audio, high speed of Ethernet and latest standard of WIFI
design, to fulfill users' performance, audio, and data transfer needs. The new,
advanced power and thermal design enables users to unleash the performance on
AMD Ryzen 5000 Series Processors, making the GIGABYTE X570 motherboards perfect
for users looking to build the best AMD platform gaming system.
AMD StoreMI technology
GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI
technology. StoreMI accelerates traditional storage devices to reduce boot times
and enhance the overall user experience. This easy-to-use utility combines the
speed of SSDs with the high capacity of HDDs into a single drive, enhances the
read/write speeds of the device to match that of SSDs, bolsters data performance
for incredible value, and transforms the everyday PC to a performance driven
system.
Ultimate Power Design
To unleash the full potential of the 3rd Generation of AMD Ryzen CPU, the
motherboard requires the best CPU power design. With the best quality components
and GIGABYTE R&D design capability, the X570 AORUS is a true beast among
motherboards.

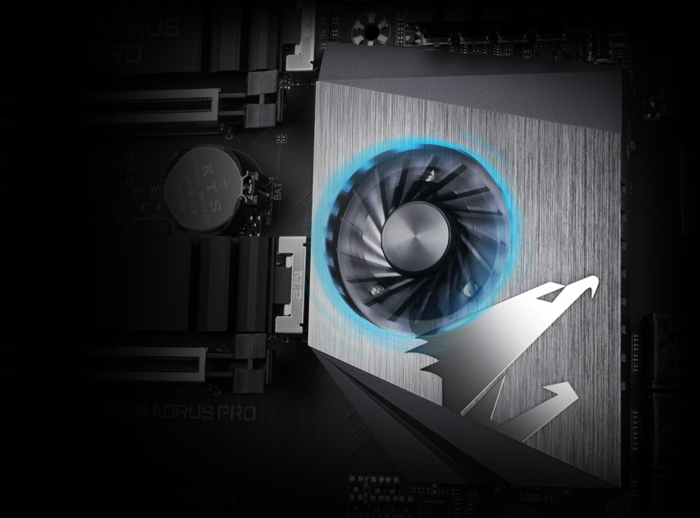

Smart Chipset Fan Heatsink
Smart Fan
Provides 3 different operating modes to minimize noise and extend the fans
longevity. Silent, Balanced and Performance modes, choose the mode that suits
you the best in any situation.
High Durability
X570 motherboards adopt a high quality ball bearing fan which guarantees
60,000* working hours.
Full PCIe 4.0 Design
X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design,
including PCIe 4.0 slots, PCIe 4.0 M.2 connectors and delivering highly
optimized performance and flexibility demanded for power users and extreme
gaming enthusiasts
Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date
with the latest technology. X570 AORUS motherboards provide all next generation
network, storage, and WIFI connectivity to keep you up to speed.
ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec

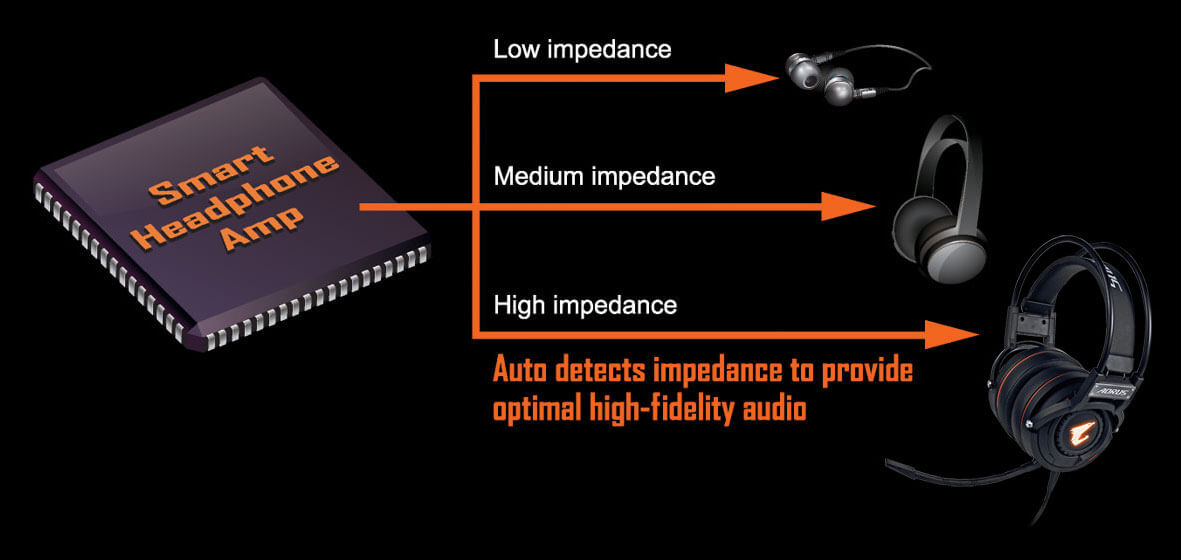

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects
impedance of your head-worn audio device, preventing issues such as low volume
and distortion.
With the new VB series audio controller, stream your voice to the world
vibrantly with both front/rear microphone SNR up to 110/114dB(A).

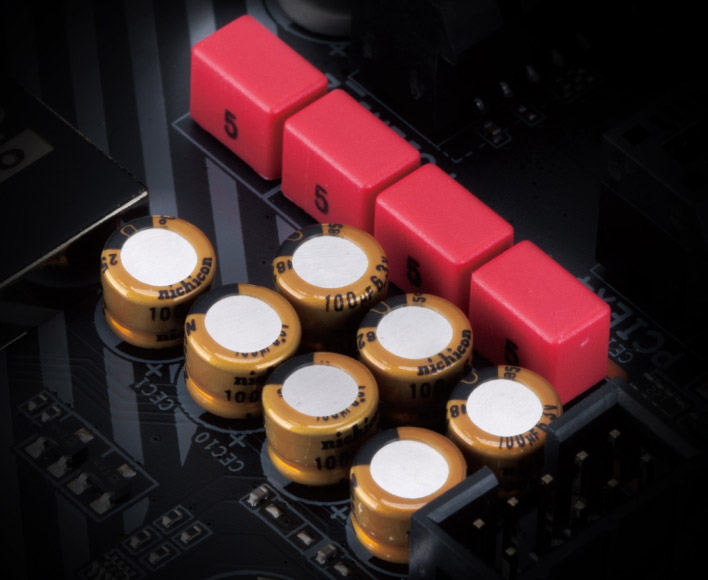

High-End WIMA & Audio Capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2
capacitors and high-end Chemicon audio capacitors. While the high-end audio
capacitors are suited for high-grade audio equipment, using state of the art
technology to provide rich sound in the bass and clearer high frequencies, the
WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The
addition of this to the exclusive AOURS AMP-UP Audio technology makes for the
ideal onboard sound solution for the most demanding audiophiles.
RGB Fusion 2.0
With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable
LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and
external RGB / Addressable LED light strips for their PC. Already feature filled
with colors and patterns, RGB Fusion 2.0 on X570 Series AORUS Motherboards are
now upgraded with Addressable LED support. With external Addressable LED
strips*, where each LED is digitally addressable, users can experience even more
patterns, styles, and illuminations.
AORUS Motherboards will support 5v Addressable LED lighting strips and up to
1000 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns
and various speed settings with more to come.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their
PC to represent their lifestyle. With full RGB support and a redesigned RGB
Fusion 2.0 application, the user has complete control over the LEDs which
surround the motherboard.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its
performance while staying cool. Smart Fan 5 allows users to interchange their
fan headers to reflect different thermal sensors at different locations on the
motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that
support both PWM and Voltage mode fans have been introduced to make the
motherboard more liquid cooling friendly.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics
card.
With GIGABYTE Q-Flash Plus, you dont need to install the CPU, memory and
graphics card nor enter the BIOS menu to flash the BIOS. Just download and save
a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the
dedicated Q-Flash Plus button and youre good to go!

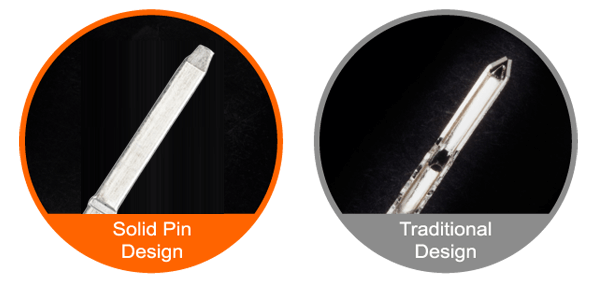

Solid Pin Power Connectors
X570 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin +
4pin power connectors to offer a stable power supply during CPU overloading.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime,
Anywhere
Now set up your stage and share the greatest gaming moments with XSplit
Gamecaster + Broadcaster! Fully optimized social media integration is ready for
real-time chatskeeping you notified yet focused in the game. It takes just one
click to stream your gameplay to Twitch. Host your game like a pro!
Specifications
|
CPU |
1.
AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Generation AMD
Ryzen processors/ 2nd Generation AMD Ryzen processors/ 2nd Generation AMD
Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega
Graphics processors |
|
(Please
refer "CPU Support List" for more
information.) |
|
Chipset |
1.
AMD X570 |
|
Memory |
1.
AMD Ryzen 5000 series processors: |
|
Support
for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) /
3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 /
2400 / 2133 MHz memory modules |
|
2.
3rd Generation AMD Ryzen processors: |
|
Support
for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) /
3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) /
3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133
MHz memory modules |
|
3.
2nd Generation AMD Ryzen processors/AMD Ryzen with Radeon Vega Graphics
processors: |
|
Support
for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 /
2400 / 2133 MHz memory modules |
|
4.
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
of system memory |
|
5.
Dual channel memory architecture |
|
6.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory
modules* |
|
*
ECC mode supported by 3rd Gen AMD Ryzen/ 2nd Gen AMD Ryzen and only PRO
sku of 2nd Gen AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen
with Radeon Vega Graphics processors. |
|
7.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules |
|
8.
Support for Extreme Memory Profile (XMP) memory
modules |
|
(Please
refer "Memory Support List" for more
information.) |
|
Onboard
Graphics |
Integrated
Graphics Processor: |
|
1.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60
Hz |
|
*
Support for HDMI 2.0 version, HDCP 2.2, and
HDR. |
|
Maximum
shared memory of 16 GB |
|
Note:
For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD
Ryzen with Radeon Vega Graphics processors
only. |
|
Audio |
1.
Realtek ALC1220-VB codec |
|
*
The back panel line out jack supports DSD
audio. |
|
2.
High Definition Audio |
|
3.
2/4/5.1/7.1-channel |
|
4.
Support for S/PDIF Out |
|
LAN |
1.
Intel GbE LAN chip (10/100/1000 Mbit) |
|
Wireless
Communication module |
1.
Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz
Dual-Band |
|
2.
BLUETOOTH 5.0 |
|
3.
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data
rate |
|
*
Actual data rate may vary depending on environment and
equipment. |
|
Expansion
Slots |
Integrated
in the CPU (PCIEX16/PCIEX8): |
|
3rd
Generation AMD Ryzen processors: |
|
1.
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
(PCIEX16) |
|
2.
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8
(PCIEX8) |
|
2nd
Generation AMD Ryzen processors: |
|
1.
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
(PCIEX16) |
|
2.
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
(PCIEX8) |
|
*
For optimum performance, if only one PCI Express graphics card is to be
installed, be sure to install it in the PCIEX16
slot. |
|
*
The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd
Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors and
PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8
mode. |
|
2nd
Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with
Radeon Vega Graphics processors: |
|
1.
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
(PCIEX16) |
|
Integrated
in the Chipset (PCIEX4/PCIEX1): |
|
1.
1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4
(PCIEX4) |
|
*
For 3rd Generation AMD Ryzen processors only. |
|
2.
2 x PCI Express x1 slots, supporting PCIe
4.0*/3.0 |
|
*
For 3rd Generation AMD Ryzen processors only. |
|
Multi-Graphics
Technology |
1.
Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI
technologies |
|
2.
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire
technologies |
|
Note:
For 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen
processors only. |
|
Storage
Interface |
Integrated
in the CPU (M2A_SOCKET): |
|
3rd
Generation AMD Ryzen processors: |
|
1.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and
PCIe 4.0 x4/x2 SSD support) |
|
2nd
Generation AMD Ryzen processors/2nd Generation AMD Ryzen with Radeon Vega
Graphics processors/AMD Ryzen with Radeon Vega Graphics
processors: |
|
1.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and
PCIe 3.0 x4/x2 SSD support) |
|
Integrated
in the Chipset (M2B_SOCKET): |
|
1.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and
PCIe 4.0*/3.0 x4/x2 SSD support) |
|
*
For 3rd Generation AMD Ryzen processors only. |
|
2.
6 x SATA 6Gb/s connectors |
|
3.
Support for RAID 0, RAID 1, and RAID 10 |
|
USB |
Integrated
in the CPU: |
|
1.
3 x USB 3.2 Gen 1 ports on the back panel |
|
2.
1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back
panel |
|
*
For 3rd Generation AMD Ryzen processors only. |
|
Chipset: |
|
1.
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the
internal USB header |
|
2.
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2
support |
|
3.
1 x USB 3.2 Gen 2 Type-A port (red) on the back
panel |
|
4.
4 x USB 3.2 Gen 1 ports available through the internal USB
headers |
|
Chipset+USB
2.0 Hubs: |
|
1.
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available
through the internal USB headers) |
|
Internal
I/O Connectors |
1.
1 x 24-pin ATX main power connector |
|
2.
1 x 8-pin ATX 12V power connector |
|
3.
1 x 4-pin ATX 12V power connector |
|
4.
1 x CPU fan header |
|
5.
1 x water cooling CPU fan header |
|
6.
3 x system fan headers |
|
7.
2 x system fan/water cooling pump headers |
|
8.
2 x addressable LED strip headers |
|
9.
2 x RGB LED strip headers |
|
10.
1 x CPU cooler LED strip/RGB LED strip header |
|
11.
2 x M.2 Socket 3 connectors |
|
12.
6 x SATA 6Gb/s connectors |
|
13.
1 x front panel header |
|
14.
1 x front panel audio header |
|
15.
1 x USB Type-C port, with USB 3.2 Gen 2
support |
|
16.
2 x USB 3.2 Gen 1 headers |
|
17.
2 x USB 2.0/1.1 headers |
|
18.
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S
module only) |
|
19.
1 x Clear CMOS jumper |
|
20.
2 x temperature sensor headers |
|
21.
1 x Q-Flash Plus button |
|
Back
Panel Connectors |
1.
2 x SMA antenna connectors (2T2R) |
|
2.
1 x HDMI port |
|
3.
1 x USB Type-C port, with USB 3.2 Gen 2
support |
|
4.
1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) |
|
*
For 3rd Generation AMD Ryzen processors only. |
|
5.
1 x USB 3.2 Gen 2 Type-A port (red) |
|
6.
3 x USB 3.2 Gen 1 ports |
|
7.
4 x USB 2.0/1.1 ports |
|
8.
1 x RJ-45 port |
|
9.
1 x optical S/PDIF Out connector |
|
10.
5 x audio jacks |
|
I/O
Controller |
1.
iTE I/O Controller Chip |
|
H/W
Monitoring |
1.
Voltage detection |
|
2.
Temperature detection |
|
3.
Fan speed detection |
|
4.
Water cooling flow rate detection |
|
5.
Overheating warning |
|
6.
Fan fail warning |
|
7.
Fan speed control |
|
*
Whether the fan (pump) speed control function is supported will depend on
the fan (pump) you install. |
|
BIOS |
1.
2 x 128 Mbit flash |
|
2.
Use of licensed AMI UEFI BIOS |
|
3.
Support for DualBIOS |
|
4.
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI
5.0 |
|
Unique
Features |
1.
Support for APP Center |
|
*
Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications. |
|
@BIOS |
|
AutoGreen |
|
Cloud
Station |
|
EasyTune |
|
Fast
Boot |
|
Game
Boost |
|
ON/OFF
Charge |
|
RGB
Fusion |
|
Smart
Backup |
|
Smart
Keyboard |
|
Smart
Survey |
|
System
Information Viewer |
|
USB
Blocker |
|
2.
Support for Q-Flash Plus |
|
3.
Support for Q-Flash |
|
4.
Support for Xpress Install |
|
Bundled
Software |
1.
Norton Internet Security (OEM version) |
|
2.
cFosSpeed |
|
3.
XSplit Gamecaster + Broadcaster (12 months
license) |
|
Operating
System |
1.
Support for Windows 10 64-bit |
|
Form
Factor |
1.
ATX Form Factor; 30.5cm x 24.4cm |
|
Remark |
1.
Due to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party
website. |
|
2.
Most hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will
update them on the GIGABYTE
website. |
