All stock codes associated to this product
CSSDF2000GBMP400, CSSD-F2000GBMP400, HBCSMP4002TB, HBCS-MP400-2TB, 840006623267, 840006644767
Corsair MP4 2TB NVMe M.2 SSD
Overview
The CORSAIR MP400 Gen3 PCIe x4 NVMe M.2 SSD delivers up to 3,400MB/s
sequential read and up to 3,000MB/s sequential write speeds,* utilizing
high-capacity 3D QLC NAND memory.
LIGHTING-FAST PERFORMANCE
Experience data speeds up to 3,400MB/s sequential read and 3,000MB/s
sequential write speeds, many times faster than traditional SATA
SSDs.
GEN3 PCIEx4 NVME INTERFACE
Ensures wide-ranging compatibility and high-bandwidth performance.

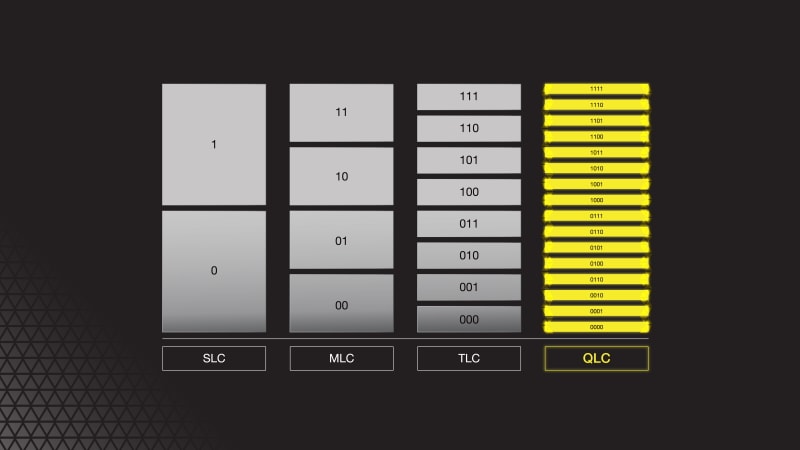

HIGH-DENSITY 3D QLC NAND
Offers even better value than previous generation TLC NAND, storing more data
in the same amount of physical space.
STRONG ENDURANCE
The MP400 reliably stores your data through years of use with endurance up to
1,440TB Written. Thats over 100 years of typical usage!
COMPACT M.2 2280 FORM FACTOR
Ultra-compact M.2 2280 size fits directly into your notebook or motherboard
with no additional cables or connectors.
COMPREHENSIVE FIVE-YEAR CORSAIR WARRANTY
Long-term reliability and industry leading customer support for peace of
mind. LIGHTING-FAST PERFORMANCE Experience data speeds up to 3,400MB/s
sequential read and 3,000MB/s sequential write speeds, many times faster than
traditional SATA SSDs.
GEN3 PCIEx4 NVME INTERFACE
Ensures wide-ranging compatibility and high-bandwidth
performance.
HIGH-DENSITY 3D QLC NAND
Offers even better value than previous generation TLC NAND, storing more data
in the same amount of physical space.

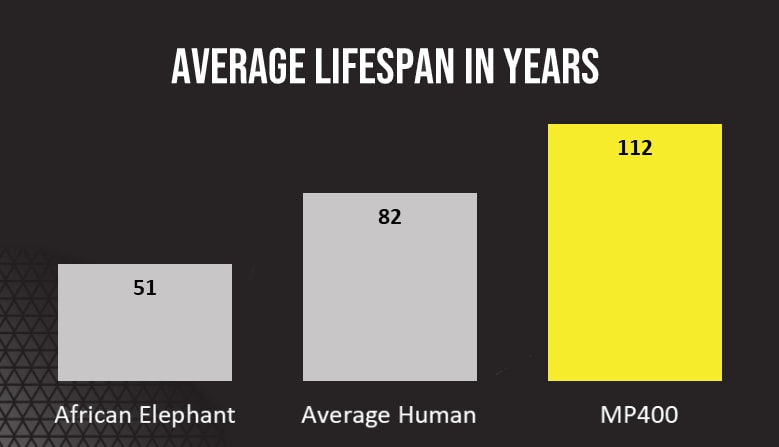

STRONG ENDURANCE
The MP400 reliably stores your data through years of use with endurance up to
1,440TB Written. Thats over 100 years of typical usage!
COMPACT M.2 2280 FORM FACTOR
Ultra-compact M.2 2280 size fits directly into your notebook or motherboard
with no additional cables or connectors.
COMPREHENSIVE FIVE-YEAR CORSAIR WARRANTY
Long-term reliability and industry leading customer support for peace of
mind.
Specifications
SSD
Unformatted Capacity |
2000GB |
SSD
Smart Support |
Yes |
Weight |
0.034kg |
SSD
Interface |
PCIe
Gen 3.0 x4 |
SSD
Max Sequential Read CDM |
Up
to 3,480MB/s |
SSD
Max Sequential Write CDM |
Up
to 3,000MB/s |
Max
Random Write QD32 IOMeter |
Up
to 560K IOPS |
Max
Random Read QD32 IOMeter |
Up
to 380K IOPS |
Power
Consumption active |
5.5W
Average |
Form
Factor |
M.2
2280 |
Dimensions |
80mm
x 23mm x 15mm |
Application
Consumer |
Client |
NAND
Technology |
3D
QLC NAND |
Voltage |
3.3V,
+/- 5% |
Endurance |
400TBW |
TBW |
400 |
MTBF |
1,800,000
Hours |
DEVSLP |
PS4:
<2mW |
Encryption |
AES
256-bit Encryption |
Storage
Temperature |
-40C
to +85C |
SSD
Operating Temperature |
0C
to +70C |
SSD
Shock |
1500
G |
Storage
Humidity |
93%
RH (40 C) |
Operating
Humidity |
90%
RH (40 C) |
Vibration |
20Hz~80Hz/1.52mm,
80Hz~2000Hz/20G |
