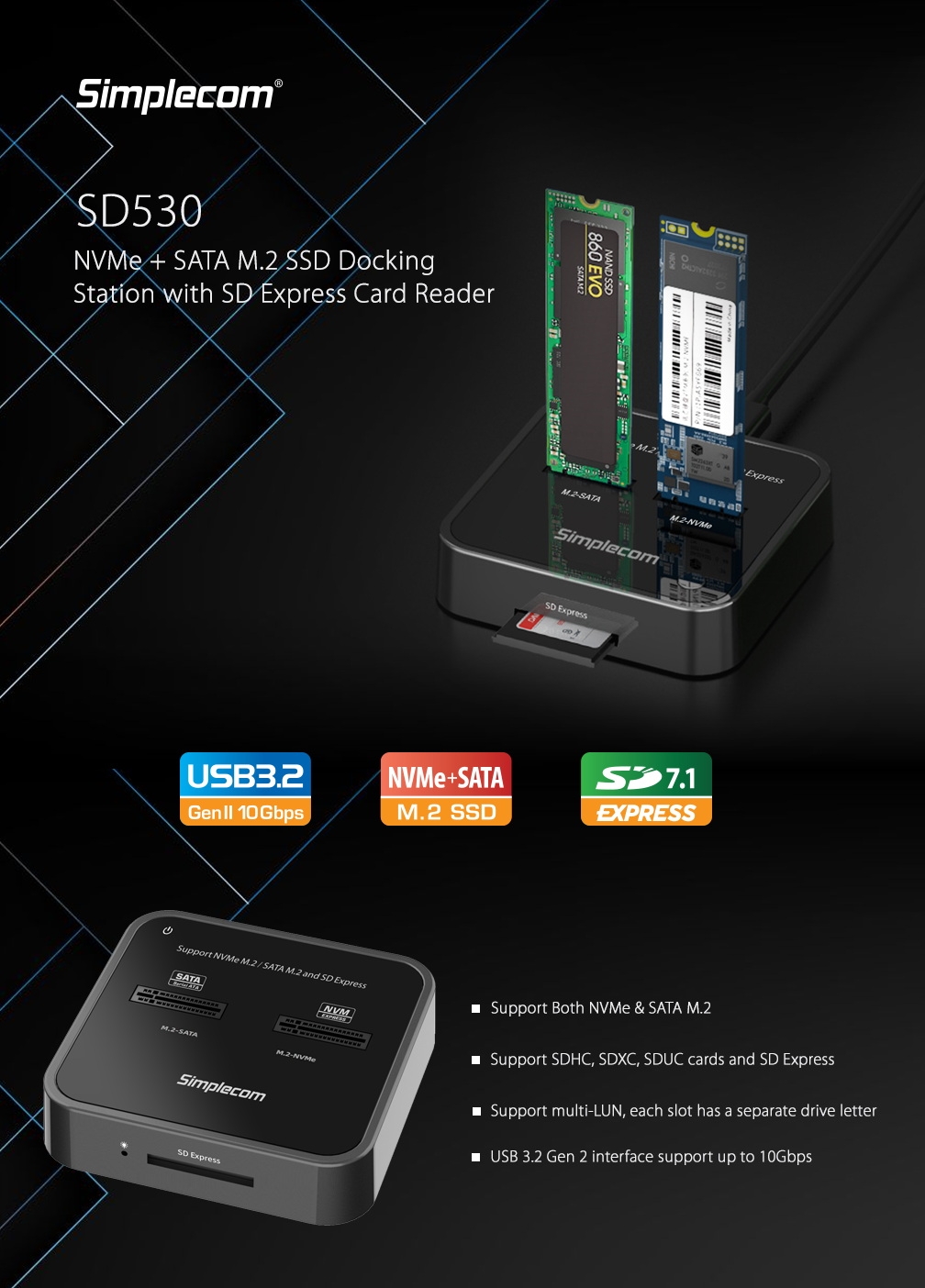

SD530 is an all-in-one USB 3.2 Gen2 docking station that supports both NVMe
and SATA based M.2 SSD, it also has latest SD 7.1 card reader with SD Express
support. USB 3.2 Gen2 interface support up to 10Gbps data transfer rate and can
be easily attached to computer USB port.
SD530 is designed for fast access to NVMe M.2, SATA M.2 SSD and SD Card. With
multi-LUN (logical unit number) support, it will show three separate drive
letters for NVMe M.2, SATA M.2 and SD 7.1 slot, so you can access data from NVMe
M.2, SATA M.2 and SD slot simultaneously, you can also copy files from one drive
to another easily. SD Express slot is compliant with SD 7.1 specification, and
its also backwards compatible with previous SD versions.
Save and tidy your desktop space, SD530 is the ideal all-in-one solution for
data backup and migration from any type of M.2 SSD and SD card. It provides a
simple and fast solution for data transfer from M.2 SSD or SD
card.
Specifications
- Model: SD530
- Interface: USB-C (USB 3.2 Gen 2)
- Transfer Rate: up to 10Gbps
- SSD Support: SATA M.2, NVMe M.2
- SSD Size Support: 2242 / 2260 / 2280 / 22110
- SD Card Support: SD 7.1 SD Express, SD 3.01 UHS-I, SD, SDHC, SDXC,
SDUC
- Multi-LUN Support: Yes
- Net Weight: 150g
- Dimensions: 79 x 77 x 19mm
- Operating System Support: Windows 7 and above, Mac OS 10.8 and
above
Package Contents
- 1x SD530 Docking Station
- 1x USB-C to USB-C Cable 80cm
- 2x USB-C to USB-A Cable 80cm
- 1x Power Adapter (5V3A)
- 1x User Manual
Important Note
- Please plug the NVMe M.2 or SATA M.2 to corresponding slot, it wont be
recognized if you plug to the wrong slot
- Please do not plug or unplug SSD or SD card when another slot is accessing
by PC, it will interrupt data transfer and may corrupt the data
- Do not touch the SSD during operation. Be careful of hot surface of M.2
SSD, M.2 drives temperature can reach up to 70c during operation
- The docking station will automatically go to sleep after 10 minutes of
inactivity
- Offline clone is not supported, however it supports multi-LUN and you can
use software clone (clone software is not included)
- For 10Gbps data transfer rate, the USB 3.2 Gen2 or Thunderbolt 3 interface
is required, USB 3.2 Gen2 is formerly known as USB 3.1 Gen2
- For new M.2 SSD drive, it has to be initialized and partitioned before
use
*M.2 SSD and SD card shown is for illustration purposes only and not included
in the box
