Gigabyte GC-MAPLE RIDGE (rev. 1.0) Motherboard
  • Intel Thunderbolt 4 Certified add-in card, Intel JHL8540 Thunderbolt 4 controller, Thunderbolt4(2), DisplayPort1.4, 4K Video Support

IMG 1 of 1
No Longer Available
Part Number:
496235
(?) Brand:
Gigabyte Web Site
Manuf No:
GC-MAPLE RIDGE
GCMAPLE RIDGE
Shipping Weight:
0.2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
GC-MAPLE RIDGE, GCMAPLERIDGE, GC-MAPLERIDGE, 4719331819729

Gigabyte GC-MAPLE RIDGE (rev. 1.0) Motherboard



Key Features

  • Intel Thunderbolt 4 Certified add-in card
  • Intel JHL8540 Thunderbolt 4 controller
  • Dual Thunderbolt 4 Ports (USB Type-C)
  • Max Bandwidth 40 Gb/s
  • DisplayPort 1.4 Capable with 4K Video Throughout
  • Daisy-chain up to 10 Devices (5 devices per port)
  • Support PD3.0 standard (up to 97W)

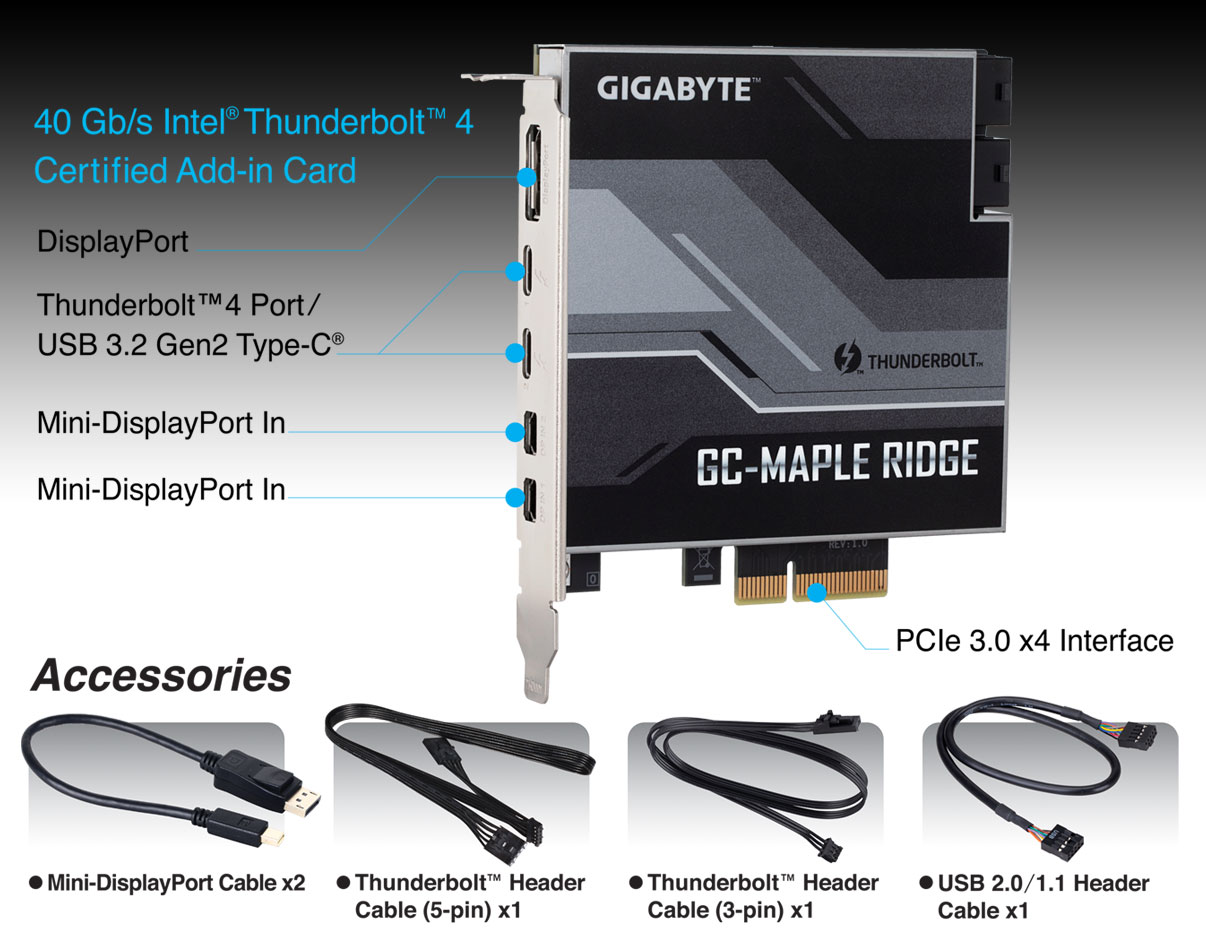

40 Gb/s Intel Thunderbolt 4 Certified Add-in Card

The GC-MAPLE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt ready motherboards with the new and faster Thunderbolt 4 connectivity without having to upgrade to a whole new system.

Port 1 : Support 5V/3A 9V/3A 15V/3A 19V/5A Power Delivery Spec

Port 2 : Support 5V/3A 9V/3A Power Delivery Spec

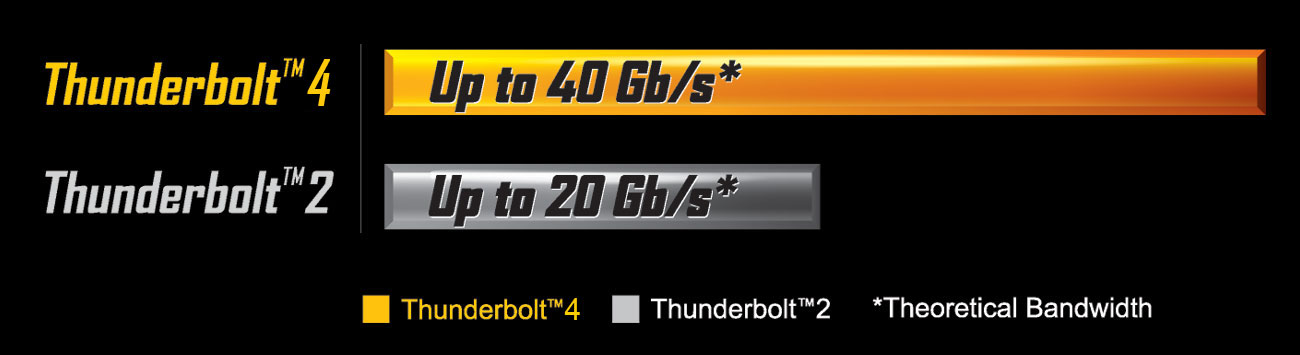

Dual Thunderbolt 4 The fastest 40Gb/s single-wire connection

Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt 2 and 8 times faster than USB3. Thunderbolt 4 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 5 Thunderbolt devices without an additional hub or switch.

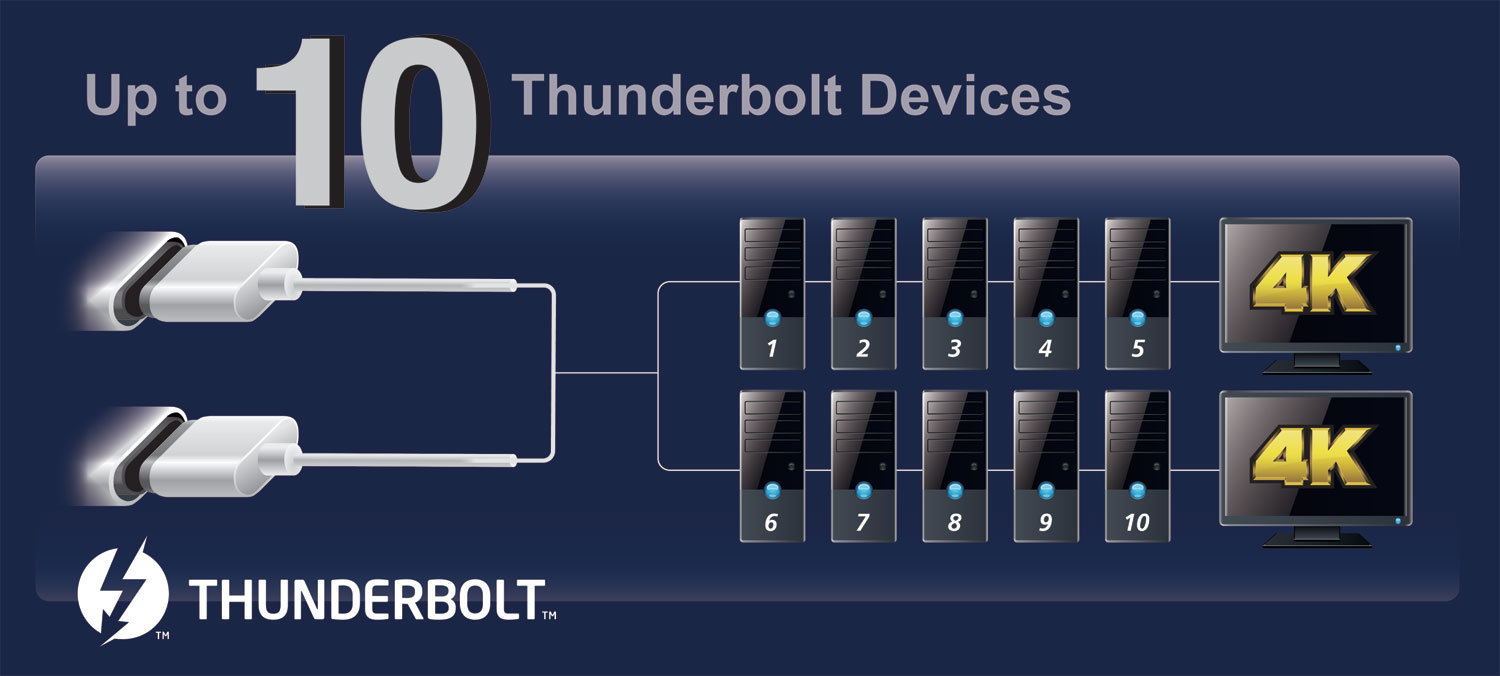

Daisy-chain Multiple Devices

Support for DisplayPort 1.4 makes Thunderbolt 4 a must have for any enthusiast. GIGABYTE GC-MAPLE RIDGE support two displays in 4K* resolution at 60 FPS. In addition, Thunderbolt 4 over USB Type-C has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 10 devices thanks to the dual USB Type-C ports.

Certified Motherboards with GC-MAPLE RIDGE

The GC-MAPLE RIDGE is compatible with GIGABYTE motherboards that featured a Thunderbolt header, refer the list as below.

* Supported status may vary depending on motherboard specifications.

* Support for Windows 10 64-bit with 20H2 or later.
