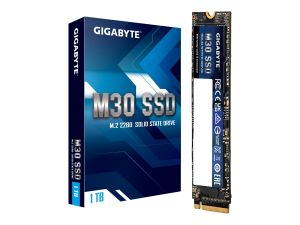

GP-GM301TB-G | Gigabyte 1000GB (1TB) M.2 2280 3D TLC NAND M30 Solid State Disk

Interface

PCIe 3.0x4, NVMe 1.3

Form Factor

M.2 2280

Total Capacity

1TB

Warranty

Limited 5-years or 650TBW

NAND

3D TLC NAND Flash

External DDR Cache

DDR3L 2Gb

Sequential Read speed

Up to 3500 MB/s

Sequential Write speed

Up to 3000 MB/s

Random Read IOPS

up to 308K

Random Write IOPS

up to 332K

Dimension

22 x 2.3 x 80 mm

Mean time between failure (MTBF)

2 million hours

Power Consumption (Active)

Average: R: 5.9W, W:5W

Power Consumption (Idle)

L0/L0s/L1: 900mw

L1.2 < 3mw

Temperature (Operating)

0C to 70C

Temperature (Storage)

-40C to 85C

Note

* Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

* Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.7 and IOmeter 1.1.0.

* Speeds based on internal testing. Actual performance may vary.

* TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.

* 1GB = 1 billion bytes. Actual useable capacity may vary.

* 5 years or 650TBW, whichever comes first.
