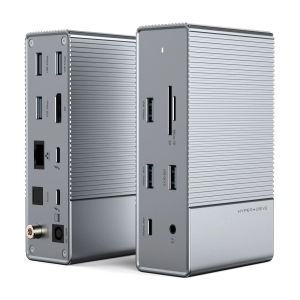

HyperDrive GEN2 16-Port Thunderbolt 3 Docking Station -
Silver
Overview
Universal Thunderbolt 3 USB-C hub for MacBook, Chromebook, and PC. The Gen2
USB-C docking station adds 16 ports with 2X more speed & power than previous
generation.
Features
Thunderbolt 3 Titan Ridge
Latest version of Thunderbolt 3 utilizing Intel Titan Ridge chipset which
supports backward compatibility with USB-C non-TB3 devices.
Supports 8K, Dual & Triple 4K Video
Output
Supports dual (8K+4K) video (Mac/PC) or triple 4K video (PC/Chrome only with
MST hub). See supported max video resolutions below.
Daisy Chain up to 6 x TB3 Devices
Daisy chain up to 6 x Thunderbolt 3 docks or devices.
Compatible with USB-C Host
Backward compatible with USB-C (non-TB3) host/computer. The difference
between TB3 vs USB-C connection would be upstream bandwidth (40Gbps vs 10Gbs),
downstream port (TB3 vs USB-C 2.0), and video resolution (see below). All other
port features remain the same.
Upstream TB3 40Gbps 85W PD
When connected to TB3 host/computer, Upstream TB3 port supports 40Gbps data
bandwidth and 85W Power Delivery to TB3 host
Upstream USB-C 10Gbps 85W PD
When connected to USB-C (non-TB3) host/computer. Upstream TB3 port supports
10Gbps data bandwidth and 85W Power Delivery to USB-C host
Downstrem TB3 40Gbps DP1.4, 15W
When connected to TB3 host, Downstream TB3 port supports 40Gbps data
transfer, DisplayPort 1.4 video, 15W power, and ability to daisy chain up to 6 x
TB3 devices.
Downstream USB-C USB 2.0 15W
When connected to USB-C (non-TB3) host/computer. Downstream TB3 port supports
USB 2.0 data transfer and 15W power.
DisplayPort 1.4
Supports DisplayPort 1.2 and 1.4 protocols. Connect to a single DP display
(Mac/PC/Chrome) or MST hub to expand up to 3 extended displays (PC/Chrome
only)
- 6 x USB High-Speed Data Ports
- USB-C 10Gbps 5V/1.5A
- USB-A 10Gbps 5V/900mA x 2
- USB-A 5Gbps 5V/900mA x 3
USB-A QC 3.0 18W Charging Port
- Charging only.
- Supports Quick Charge 2.0/3.0 5V/9V/12V
- Max 18W
Gigabit Ethernet
Supports 10Mbps/100Mbps/1Gbps. Half/full-duplex.
MicroSD/SD 4.0 UHS-II 312MB/s
Supports maximum read/write speed of 312MB/s. Supports SDHC/SDXC memory cards
up to 2TB. MicroSD and SD slots can read and write at the same
time.
Digital Coaxial Audio
SPDIF interface: Max 96KHz/24bit output, 0.4V~0.6V Vpp@50
load.
Optical Toslink Audio
Optical fiber SPDIF interface: Max 96KHz/24bit output, -21dBm~-15dBm light
intensity output.
3.5mm Audio Jack
Sample rate up to 96KHz/24bit. Supports auto-detection and auto-switch
between OMTP and CTIA.
DC 180W
Connect to included 180W (21V, 8.57A) power supply for dock to function.
Specifications
Model
Dimensions
- 130.18 x 88.9 x 44.45mm
- 5.13" x 3.5" x 1.75
Weight
- 589.7 g / 20.8 oz / 1.3 lbs
Computer Systems
