All stock codes associated to this product
GC555, 25AGC555, 25A-GC555, 4710710679729

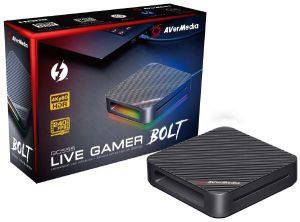

Avermedia GC555 Live Gamer BOLT External Capture Card
Overview
4K HDR... yes, but this time we thought outside of the
box.
Enjoy and record video as lifelike and smooth as possible, 60 FPS of pure 4K
HDR bliss with this external capture device. Youre welcome.
Smoother than smooth gameplay
All PC gamers know that victory or defeat can be decided in a fraction of a
second, keep that competitive edge while playing and record those precious
frames for your highlight reel. Record and passthrough Full HD 240 FPS, the Live
Gamer BOLT can do both.
Latency? Not really, not here.
The Live Gamer BOLT continues with our previously set ultra low latency
standard. When we say ultra low we mean it, less than 50ms.
Connectivity you can trust
Utilizing Intel's Thunderbolt 3 technology, we provide an even more stable
and smoother experience while capturing video at a massive 240 FPS in Full
HD.
All around you
We are keen on providing an immersive and unforgettable gaming experience
even while you're creating. With 7.1 surround sound passthrough, you will feel
as though you're right in the middle of your game.
No HDMI? No problem!
With our exclusive utility, you can customize your resolution and refresh
rates without ever connecting a passthrough display. If you want to use your
Display Port monitor just clone it with the BOLT and you won't have any tearing
or scaling issues.
Create with what you are most familiar with
Because LIVE matters, regardless of what streaming software you use, the Live
Gamer BOLT is ready to go. Give your viewers what they crave, the highest video
quality possible and the opportunity to interact with you here and now.

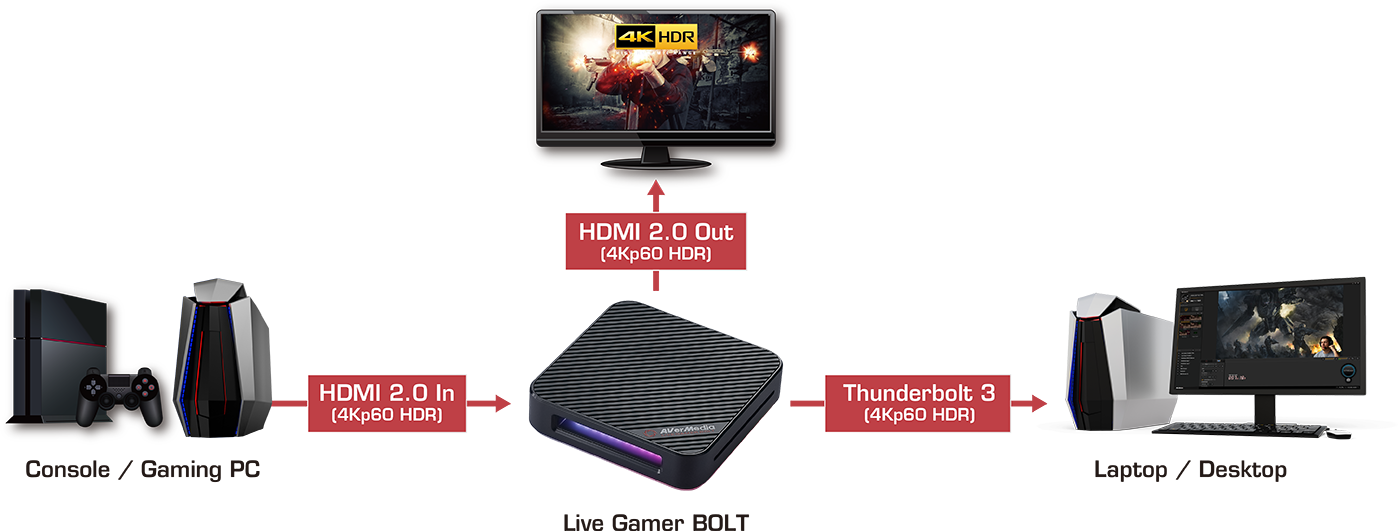

Connections
|
Technical
Specifications |
Interface: Thunderbolt
3* |
|
Input
&Output (Pass-Through): HDMI
2.0 |
|
Max.
Pass-Through Resolution : |
|
2160p60
HDR /1440p144/ 1080p240 |
|
Max.
Recording Resolution: |
|
2160p60
HDR* /1440p144/ 1080p240 |
|
Supported
Resolution: |
|
2160p,
1440p, 1080p, 1080i, 720p, 576p, 480p |
|
Record
Format: MPEG 4** |
|
Dimensions
(W x D x H): |
|
120
x 120 x 29.3 mm (4.72 x 4.72 x 1.15 in) |
|
Weight
:348 g (12.27 oz) |
|
*LGB
does not support USB 2.0, 3.0, 3.1, 3.2. You need to connect it to a
ThunderboltTM 3 port |
|
**H.264
&H.265 encoder is provided by GPU; Audio codec is provided by
OS |
|
-
LGB Supports 7.1/5.1 Ch. LPCM surround sound
pass-through |
|
-
LGB does not support viewing/recording/streaming of HDCP protected
signals |
|
System
Requirements |
Operating
system: Windows 10 x64 |
|
(For
dedicated streaming PC) |
Laptop |
|
For
4Kp60 HDR or 1080p240 recording: |
|
-
Intel Core i7-7700HQ or above |
|
-
NVIDIA GeForce GTX1050 Ti or above |
|
-
8 GB* |
|
For
1080p60 recording: - Intel Core
i7-4810MQ |
|
-
NVIDIA GeForce GTX 870M or above |
|
-
8 GB |
|
Desktop |
|
For
4Kp60 HDR or 1080p240 recording: |
|
-
Intel Core i5-6XXX / AMD Ryzen 3 XXX or
above |
|
-
NVIDIA GTX 1060 / AMD RX 5700 or above |
|
-
8 GB* |
|
For
1080p60 recording (4Kp60 HDR pass-through
supported): |
|
-
Intel Core i5-3330 or above (i7-3770
recommended) |
|
-
NVIDIA GeForce GTX 650 / AMD Radeon R7 250X or
above |
|
-
4 GB |
|
*
RAM must be DDR4 2400 or above |
|
The
Live Gamer BOLT works with ThunderboltTM 3 PCIe expansion cards for
desktops. Make sure to find a compatible expansion card for your specific
motherboard. |
|
If
you experience drop frames while using ThunderboltTM 3 expansion cards,
disconnect other external devices. |
|
If
you experience drop frames while using Thunderbotl 3 hub on a laptop,
disconnect other external devices or connect the Live Gamer BOLT directly
to the laptop's ThunderboltTM 3 port . |
|
The
Live Gamer BOLT does not support energy saving
CPUs. |
|
Make
sure you Laptop and PC meet the system requirements aside from having a
ThunderboltTM 3 port. |
|
Mac
system requirement : |
|
Operating
system: MacOS High Sierra 10.15 and above Mac Thunderbolt
3 |
|
For
4Kp60 or 1080p240 Recording (4Kp60 HDR pass-through
supported) |
|
iMac
2019: |
|
- 3.2GHz
6-core Intel Core i7 |
|
- Radeon
Pro 555X with 2GB of GDDR5 memory |
|
- 16GB
of 2400MHz DDR4 memory |
|
MacBook
Pro 2018: |
|
- 2.6GHz
6-core Intel Core i7 |
|
- Radeon
Pro 560X with 4GB of GDDR5 memory and above |
|
- 16GB
2400MHz DDR4 memory |
|
- GC555:
Macs with M1 chip are not supported, only the ones with Intel CPU are
supported |
|
Notes: |
|
1.
HDR recording not supported on MAC. |
|
2.
Preset color space NV12. |
|
3.
Thunderbolt 3 cable and port required. |
|
What's
in the box |
Live
Gamer BOLT (GC555) |
|
HDMI
2.0 cable |
|
Thunderbolt
3 cable |
|
3.5m
audio cable |
|
Quick
guide |
|
CyberLink
PowerDirector 15 Product Key Card* |
|
*4K
video editing software. Does not support HEVC encoded files or HDR
editing. Please note that this version of PowerDirector 15 is not the
retail version and some functionalities may be restricted or require paid
upgrades. |
