All stock codes associated to this product
AX310, 39AAX310, 39A-AX310, 4710710679958

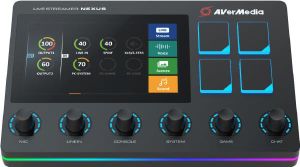

Avermedia AX310 Live Streamer Nexus Audio Mixer / Creator's Control Center
Overview
Find your Mastery
With a 6 track audio mixer and a fully customizable control panel, the Live
Streamer NEXUS will ensure you have full control over the live creation process.
Be more productive, create more efficiently, master your content.
Your most important Tracks, Mixed.
Your voice, alerts, music, even game sound are a huge part of your content.
Controlling and monitoring all 6 tracks withe ease and in
real-time.
Dual independent audio mixes
Keep your audio levels separate from your audience. With Dual Mix you and
your stream can have different audio experiences, allowing each to focus on
whats most important.
NEXUS App
The NEXUS app will have you up and in control in no time. Specially designed
with content creators in mind, simply drag and drop widgets, add hotkeys, tune
your mic, and more. Mastering your stream is only a few clicks
away.
NEXUS Widgets
Display follower, subscriber or viewer count, even real-time live chat!
Widgets bring a whole new Features to the game.
Ongoing development
The NEXUS app integrates widely used streaming platforms and softwares and
with its ongoing development, be sure that the NEXUS will only keep getting
better and better.
Switch ON. Switch OFF
We added a dedicated on/off switch to make it easier for you to power off
your NEXUS once you are done creating. Forget about looking for that USB port on
the back, Switch ON, Switch OFF, done.

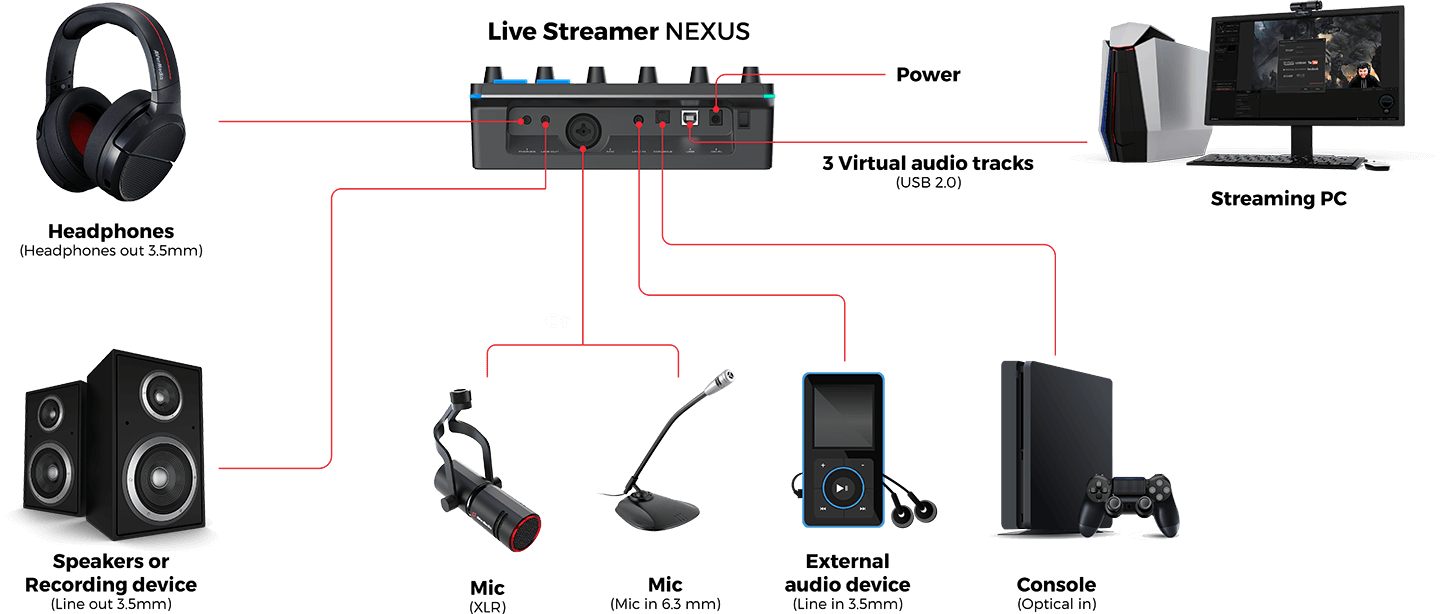

CONNECTIONS
Technical
Specifications |
Interface:
USB 2.0, Type B (Driver Required) |
Mic
In: XLR (Balanced) / 6.3mm (Single-End) x 1 |
Line
In: 3.5mm TRS, Stereo x 1 |
Console
In: Optical In (Toslink) x 1 |
Computer
Inputs: Digital Tracks x 3 |
Headphone
Out: 3.5mm TRS, Stereo |
Line
Out: 3.5mm TRS, Stereo |
Output
Mix (Independent Instances): |
oCreator
mix |
oAudience
mix |
Sampling
Rate: Up to 96kHz, 24 bits |
Microphone
Effects: |
Noise
Gate, Reverb, Compressor, Equalizer |
Frequency
Response: 10Hz to 20kHz |
Dynamic
Range: 114 dB |
Screen
Panel: 5" IPS Screen with CTP Touch Panel |
Widgets:
Interactive &Customizable Grid |
Rotational
Encoders: 6 |
Lighting:
RGB |
Function
Buttons: 4 |
Power
Switch: Yes |
Power
Input: Standard 12V DC, Center Negative, 1.5A |
Power
Consumption: <7W |
Dimensions
(W x D x H): |
Without
Stand: 21.7 x 14.5 x 6.1 cm (5.7 x 8.5 x 2.4
in) |
With
Stand: 21.7 x 14.5 x 9.4 cm (5.7 x 8.5 x 3.7
in) |
Weight: |
Without
Stand: 0.702 kg (24.76 oz) |
With
Stand: 0.847 kg (29.87 oz) |
-
Phantom Power +48V, switchable via NEXUS APP |
-
Optical output settings must be set to stereo, NEXUS doesnt support 5.1ch
or 7.1ch |
System
Requirements |
Windows:
Windows 10 (64bit) |
Mac:
macOS 10.15 and above |
Note:NEXUS
app is not compatible with M1 based MacBook. |
What's
in the box |
Live
Streamer NEXUS (AX310) |
Magnetic
Kick Stand |
USB
2.0 type B to Type A Cable (1.8 m / 5.9 ft.) |
3.5
mm TRS Audio Cable |
(1.8
m / 5.9 ft.) |
3.5
mm to 6.3 mm Adapter |
Power
Adapter |
Quick
Guide |
