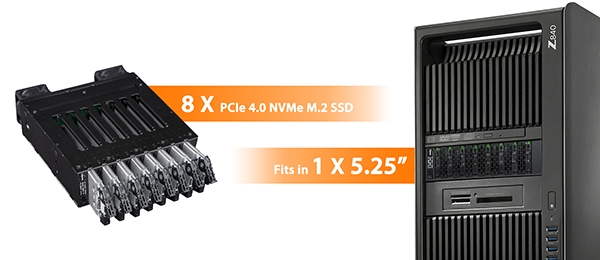

High Storage Density for High-Performance PCs |
 |

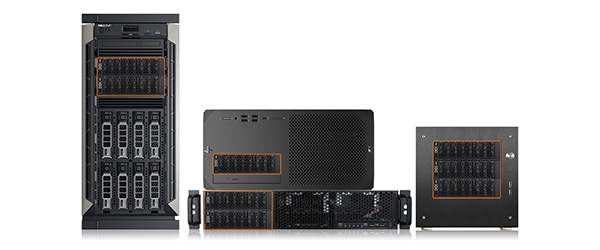

The ToughArmor MB873MP-B's Ultra-high storage density design makes it suitable for data-intensive systems with limited storage space, such as High-performance PCs, Compact Servers, Workstation PCs, and Data Centers. |
|
 |
Supporting up to eight PCIe 4.0 NVMe M.2 drives in a single 5.25" device bay increases the storage efficiency of your system. |
|
|

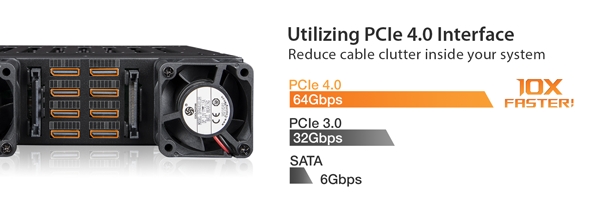

Superior PCIe 4.0 Performance |
 |
The MB873MP-B unlocks the full potential of the PCIe 4.0 M.2 NVMe SSDs by using 8x OCulink (SFF-8612) connection dedicated for each drive to allow up to 64Gbps transfer speeds per drive bay, which is two times faster than PCIe 3.0 and 10 times faster than SATA standards. |
|
|
State of the Art Tool-Less M.2 Drive Tray |
 |

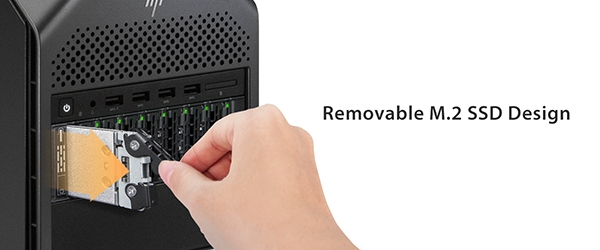

Typically, M.2 SSDs are installed on the motherboard or adapter card that is often secured by tiny screws and requires opening the computer case to access the drives. With the MB873MP-B's removable drive design, your M.2 NVMe SSDs are brought to the 5.25" optical bay of the computer system and lets you change the drives without opening up the case or using a tool, making drive maintenance an efficient, straightforward process. |
|
 |
The ToughArmor MB873MP-B is equipped with a patent-pending M.2 adjustable locker for tool-less drive installation/removal. Simply insert the M.2 NVMe SSD (2230, 2242, 2260, 2280, and 22110), move the adjustable M.2 locker until it firmly secures the SSD and closes the lid. The whole process takes less than 10 seconds to complete, saving your valuable time and resources. |
|
 |
|
|
High-performance Cooling System |
 |

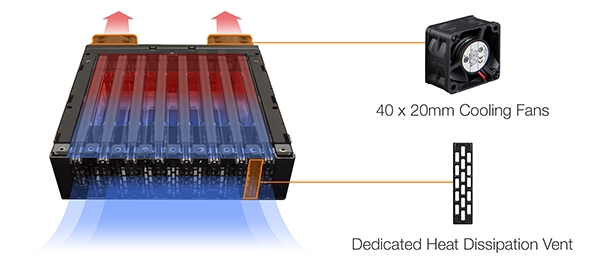

Powering up the eight M.2 NVMe SSD at once can accumulate heat. Therefore, we have included dual 40x20mm cooling fans, providing a massive amount of airflow throughout the entire enclosure to keep the M.2 NVMe solid-state drive at optimal operating temperatures, even under heavy load. |
|
 |

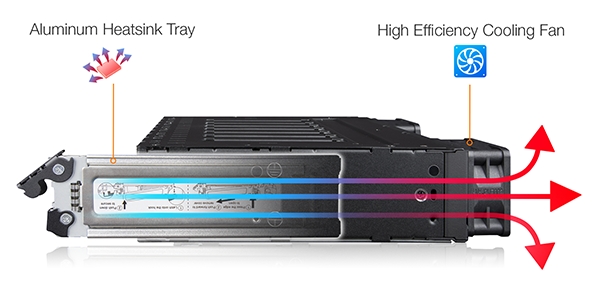

The specialized slimline drive tray is made with thick aluminum and acts as a heatsink to dissipate heat generated by M.2 NVMe SSDs. |
|
 |

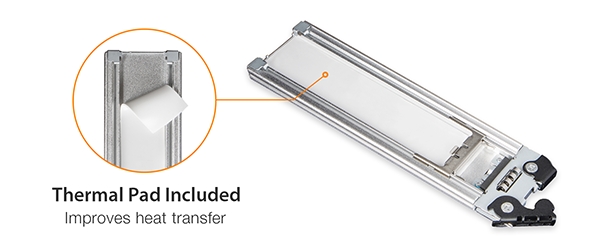

The included thermal pad fill the gaps between the contact surfaces and transfers heat away from the M.2 SSD to the heatsink tray, allowing airflow to dissipate the heat away efficiently. |
|
|
ToughArmor Protection for the Harshest Environment |
 |
Ensuring the enclosure can be relied upon for many years, the ToughArmor MB873MP-B can hold up in the harshest environment. It comes equipped with rugged full-metal protection throughout the entire device and tray, making it perfect for industrial devices that may require a flammability rating. The MB873MP-B is suitable for various enterprise systems, including the medical, military, law enforcement industries, and manufacturing conditions such as embedded control and factory automation systems. |
|
|

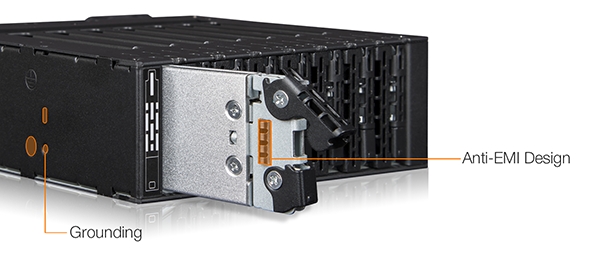

EMI Grounding Technology |
 |
Grounding your M.2 NVMe SSD is essential as swapping drives without proper grounding may lead to hardware damages due to static shocks. With our innovative EMI Grounding Technology, once the M.2 locker clips into the SSD screw hole, the SSD will be in a grounded state throughout the enclosure's tray and housing. After the enclosure is installed in the system with four screws on its' side, it will ground itself throughout the computer system. |
|
|
Packed with Features |
 |

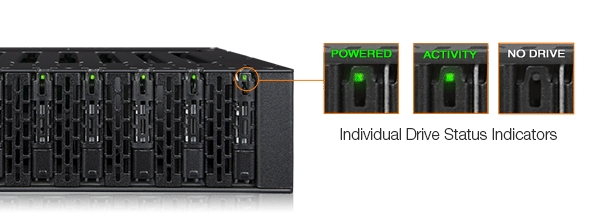

The LED status light in each of the trays gives you the drive status information with a glance. With Active Power Technology, the enclosure turns on when the drive is inserted and automatically shuts off when all drives are removed. |
|
 |

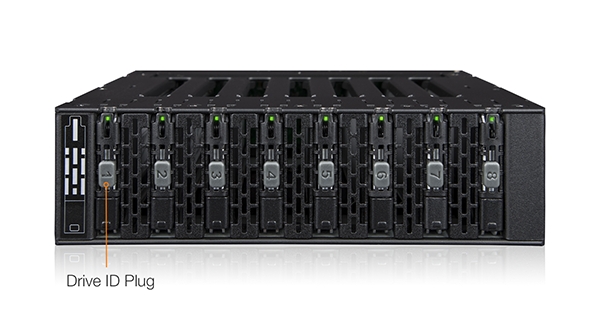

Never forget which drives belong in which bays. With drive ID plugs, you'll always know which drive tray belongs in your RAID array or which drives contains specific files. Rearrange them to suit your configurations better, or remove them for a simplified look. |
|
 |

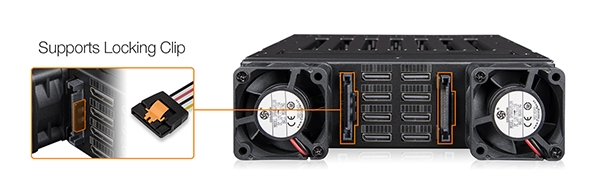

The ToughArmor MB873MP-B supports 15-pin SATA power cables with locking latches. As a result, you'll never need to worry about cables unintentionally disconnecting from your enclosure. Once the cables are connected, they will lock and stay in place securely. |
|
|
