All stock codes associated to this product
TS432PXURP2G, TS-432PXU-RP-2G, BAQNTS432PXURP2G, BAQN-TS-432PXU-RP-2G, QN17168, 29Q-432PXU-RP-2G, 4713213518168

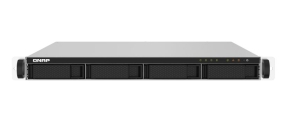

QNAP TS-432PXU-RP Quad-core 1.7GHz rackmount NAS with 10GbE SFP+ and
2.5GbE ports and redundant power supply for SMB IT environments
Overview
With 10GbE SFP+ and 2.5GbE network ports, the TS-432PXU-RP delivers high
network bandwidth to streamline team collaboration and file access. A PCIe Gen 2
2 slot allows for installing a QNAP expansion card to add network connectivity,
SSD caching capabilities, or wireless connectivity. The TS-432PXU-RP supports
file backup and synchronization, secure snapshot protection, and Google
Workspace and Microsoft 365 enterprise account backup services, while providing
instant recovery whenever needed. Coupled with the support for cloud gateways,
building a new hybrid cloud storage solution has never been easier. The
TS-432PXU-RP also features a redundant power supply to ensure uninterrupted
operation of mission-critical applications.
- Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file
sharing.
- HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and
cloud storage for comprehensive disaster recovery planning.
- Boxafe provides an extra layer of protection by backing up emails, cloud
drives, contacts, and calendars of Google Workspace and Microsoft
365.
- Snapshots fully record system status and data, allowing you to protect
files and data from accidental deletion and malware attacks.
- Expand the application potential of the TS-432PXU-RP by installing a
compatible PCIe card.
- Increase the storage capacity of the TS-432PXU-RP with QNAP TR RAID
expansion enclosures or TL JBOD.
Specifications
|
CPU |
AnnapurnaLabs
Alpine AL324 64-bit ARM Cortex-A57 quad-core 1.7GHz
processor |
|
CPU
Architecture |
64-bit
ARM |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
Yes |
|
System
Memory |
2
GB UDIMM DDR4 (1 x 2 GB) |
|
Maximum
Memory |
16
GB (1 x 16 GB) |
|
Memory
Slot |
1
x Long-DIMM DDR4 |
|
Flash
Memory |
512
MB (Dual boot OS protection) |
|
Drive
Bay |
4
x 3.5" SATA 6Gb/s, 3Gb/s |
|
Drive
Compatibility |
3.5-inch
bays: |
|
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
Hot-swappable |
Yes |
|
M.2
Slot |
Optional
via a PCIe adapter |
|
SSD
Cache Acceleration Support |
Yes |
|
2.5
Gigabit Ethernet Port (2.5G/1G/100M) |
2
(also support 10M) |
|
10
Gigabit Ethernet Port |
2
x 10GbE SFP+ |
|
Wake
on LAN (WOL) |
Only
the 2.5GbE port |
|
Jumbo
Frame |
Yes |
|
PCIe
Slot |
1 |
|
Slot
1: PCIe Gen 2 x2 |
|
PCIe
bandwidth limitations will restrict the NAS 10GbE
performance. |
|
USB
3.2 Gen 1 port |
4 |
|
Form
Factor |
1U
Rackmount |
|
LED
Indicators |
HDD
1-4, Status, LAN, Storage expansion |
|
Buttons |
Power,
Reset |
|
Dimensions
(HxWxD) |
44
x 439 x 499 mm |
|
Weight
(Net) |
8.12
kg |
|
Weight
(Gross) |
11.12
kg |
|
Operating
temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
250W
(x2) PSU, 100 - 240V |
|
Power
Consumption: Operating Mode, Typical |
53.343
W |
|
Tested
with drives fully populated. |
|
Fan |
2
x 40mm, 12VDC |
|
System
Warning |
Buzzer |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
700 |
