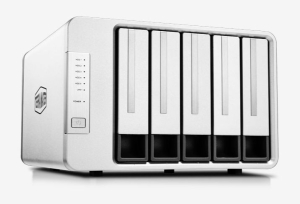

Terra Master F5-221 5-Bay NAS for Small Business
and Personal Cloud Storage
Overview
Powerful Configuration, Excellent Performance
TerraMasters F5-221 5-bay NAS unit comes with an Intel dual-core processor, a
frequency of up to 2.0 GHz, a read speed reaching 119 MB/s, and a write speed
reaching up to 118 MB/s. These devices are compatible with both AES hardware
encryption and 4K HD video transcoding, making the F5-221 an ideal candidate for
home multimedia entertainment and small office applications.
Multiple Layers of Data Security
The F5-221 device relies on the following five data security
layers:
- Automatic scheduled backup
- Btrfs file system and snapshot
- RAID 1,5,6 array security
- AES hardware folder encryption and network transport
encryption
- Cloud drive data backup
Enhance the Safety of your Data with a Next-Generation File
System
Superior storage technology and optimised snapshot technology are the
cornerstones of the Btrfs file system, which is what TerraMasters F5-221 5-bay
NAS unit relies on for advanced data protection, prevention of data corruption,
and minimal maintenance expenses. Use of this file system promotes high data
integrity, all the while promoting flexibility and efficiency in the areas of
data protection and data recovery.
Optimised snapshot technology generates 512 snapshots for every shared
folder, and up to 8,192 overall system snapshots. In this way, users can benefit
from flexible, storage-saving data protection.
Since data recovery takes place at the file or folder level, businesses can
also benefit from enhanced flexibility and efficient data
recovery.
4K Ultra HD Video Transcoding
Compatible with the DLNA protocol, third-partys multimedia servers enable
users to stream 4K media content from TNAS to multimedia playback devices. The
device offers 4K H.264 live transcodingMax size: 4K H.264/H.265 8-bit 30fps,
along with the opportunity to convert and playback 4K video on computers,
smartphones, and media players that lack native support for HD
formats.
A Private Space in the Cloud
TNAS offers users the opportunity to establish a personal cloud drive that
satisfies their remote access needs. Rights of access can be tailored for your
colleagues, relatives, or friends, and with support for two-way sync cloud
drive, enjoying the benefits of convenient cloud life has never been
easier.
TNAS.online for Simple Remote Access
TNAS.online spares you from setting up DDNS, complicated network settings,
and further port forwarding rules when trying to access files on TNAS through
the Internet. At no additional expense, the service provides a secure,
modifiable URL that you can use to engage with audio and video content, along
with other work files, on your Internet-enabled device.
Striving to Satisfy Small Businesses
Small businesses benefit from the opportunity to conveniently build file
storage servers, mail servers, web servers, FTP servers, MySQL databases, CRM
systems, Node.js, and Java virtual machines, as well as a host of other
commercial applications.
Exclusive worry-free warranty
Brand new replacement for 2 years, quick service in 24 hours!
Specifications
|
Processor |
|
|
Processor
Model |
Intel
Celeron J3355 |
|
Processor
Architecture |
X.86
64-bit |
|
Processor
Frequency |
Dual
Core 2.0GHz (Max burst up to 2.5GHz) |
|
Hardware
Encryption Engine |
Yes |
|
Memory |
|
|
System
Memory |
2GB |
|
Pre-installed
Memory module |
/ |
|
Total
Memory Slot Number |
1 |
|
Maximum
Supported Memory |
6
GB (2GB + 4 GB) |
|
Note |
TerraMaster
reserves the right to replace memory modules with the same or higher
frequency based on supplier's product life cycle status. Rest assured that
the compatibility and stability have been strictly verified with the same
benchmark to ensure identical performance. |
|
Storage |
|
|
Disk
Slot Number |
5 |
|
Compatible
Drive types |
3.5"
SATA HDD |
|
2.5"
SATA HDD |
|
2.5"
SATA SSD |
|
Maximum
Internal Raw Storage Capacity |
90TB
(18TB x 5) (Capacity may vary by RAID types) |
|
Max
Single Volume |
108TB |
|
Drive
Hot Swap |
Yes |
|
Note |
.
Hard drive vendors will release their latest models of hard drives, and
Maximum internal raw storage capacity may be adjusted
accordingly. |
|
.
The maximum single volume size is not directly related to the maximum raw
capacity. |
|
File
System |
|
|
Internal
Drive |
EXT4,
BTRFS |
|
External
Drive |
EXT3,
EXT4, NTFS, FAT32, HFS+ |
|
External
Ports |
|
|
RJ-45
1GbE Network Jack |
2 |
|
USB
3.0 Port |
2 |
|
USB
2.0 Port |
/ |
|
COM |
/ |
|
HDMI |
/ |
|
VGA |
/ |
|
LSI
9207-8i HBA Card |
/ |
|
PCIe
Slots |
/ |
|
Appearance |
|
|
Size
(H*W*D) |
227
x 225 x 136 mm |
|
Packaging
Size (H*W*D) |
300
x 275 x 186 mm |
|
Weight |
Net
Weight: 2.33Kg Gross Weight: 3.63Kg |
|
Others |
|
|
System
Fan |
80
mm x 80 mm x25mm 2 pcs |
|
Fan
Mode |
Smart,
High speed, Middle speed, Low speed |
|
Noise
Level |
19.8dB(A) |
|
Power
Supply |
90W |
|
AC
Input Voltage |
100V
- 240V AC |
|
Current
Frequency |
50/60
Hz, single frequency |
|
Power
Consumption |
56.6W
(read & write) |
|
Limited
warranty |
2
years |
|
Certificate |
FCC,
CE, CCC, KC |
|
Environment |
RoHS,
WEEE |
|
Temperature |
|
|
Working
Temperature |
5C
~ 40C (40F ~ 104F) |
|
Storage
Temperature |
-20C
~ 60C (-5F ~ 140F) |
|
Relative
Humidity |
5%
~ 95% RH |
|
Package
Contents |
|
|
Host
unit (x1) |
|
Power
cord (x1) |
|
RJ-45
network cable (x1) |
|
Quick
Installation Guide (x1) |
|
Limited
Warranty Note(x1) |
|
Screws(a
few) |
|
Power
adapter (x1) |
|
TOS
Features |
|
|
OS
Supported |
|
|
Supported
Client OS |
Windows
OS, Mac OS, Linux OS |
|
Supported
Web Browsers |
Google
Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30,Apple Safari
4.5 or later version; Microsoft Edge is not
recommened. |
|
Supported
mobile OS |
Ios
8.2, Android 6.0 or later version |
|
Storage
Management |
|
|
Supported
RAID Types |
Single,
JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID 10 |
|
Maximum
Internal Volume Number |
256 |
|
Maximum
iSCSI Target |
128 |
|
Maximum
iSCSI LUN |
256 |
|
Volume
Expansion with Larger HDDs |
RAID
1,RAID5,RAID 6,RAID10 |
|
Volume
Expansion by Adding a HDD |
RAID5,RAID6 |
|
RAID
Migration |
Yes |
|
SSD
Cache |
Yes |
|
Hot
Spare |
Yes |
|
SSD
TRIM |
/ |
|
Hard
Drive S.M.A.R.T. |
Yes |
|
Seagate
IHM |
Yes |
|
NVRAM
write cache(BBU-protected) |
/ |
|
WORM(Write
Once Read Many) |
/ |
|
Shared
Folder Snapshot |
Yes |
|
LUN
Snapshot |
/ |
|
Storage
QoS For Shared Folder |
/ |
|
File
Services |
|
|
File
Protocol |
SAMBA/AFP/NFS/FTP/WebDAV |
|
Maximum
Concurrent SAMBA/AFP/FTP Connections |
200 |
|
Windows
Access Control List (ACL) Integration |
Yes |
|
NFS
Kerberos Authentication |
Yes |
|
Account
& Shared Folder |
|
|
Maximum
local user's account number |
512 |
|
Maximum
local group number |
256 |
|
Maximum
shared folders number |
256 |
|
Maximum
shared folders syncing tasks |
4 |
|
Backup |
|
|
Rsync
Server |
Yes |
|
Rsync
Backup |
Yes |
|
Schedule
Backup |
Yes |
|
USB
Device Backup |
Yes |
|
Cloud
Sync |
Yes |
|
Time
Machine Server |
Yes |
|
File
System Gluster |
Yes |
|
Networking |
|
|
TCP/IP |
IPv4 |
|
Protocols |
CIFS/SAMBA,
NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP |
|
Link
Aggregation |
Yes |
|
DLNA
Compliance |
Yes |
|
VPN
Client |
Yes |
|
VPN
Server |
Yes |
|
Proxy
lient |
Yes |
|
Proxy
Server |
/ |
|
UPnP/Bonjour
Discovery |
Yes |
|
TNAS.online
Remote Access |
Yes |
|
DDNS |
Yes |
|
Access
Right Management |
|
|
Batch
users creation |
/ |
|
Import/Export
users |
/ |
|
User
Quota Managerment |
Yes |
|
Local
user access control for CIFS/SAMBA and FTP |
Yes |
|
Domain
Authentication |
|
|
Microsoft
Active Directory |
Yes |
|
LDAP
Client |
Yes |
|
LDAP
Server |
/ |
|
SSO |
/ |
|
Security |
|
|
Firewall
Protection |
Yes |
|
Account
Auto-block Protection |
Yes |
|
AES Shared
Folder Encryption |
Yes |
|
Importable
SSL certificate |
Yes |
|
Instant
Alert via email, SMS, Beep |
Yes |
|
Power
Managerment |
|
|
Automatic
Power On After Power Recovery |
Yes |
|
Scheduled
Power On/Off |
Yes |
|
Wakeup
On LAN |
/ |
|
UPS
Supported |
Yes |
|
Administration |
|
|
Multi-window,
Multi-task System Management |
Yes |
|
Custom
Desktop |
Yes |
|
Control
Panel |
Yes |
|
Resource
Monitor |
Yes |
|
Syslog |
Yes |
|
OS
UI Language |
English,German,
French, Spanish, Italian, Magyar,
Chineses,Japanese,Korean |
|
Applications |
|
|
Application
Center |
Yes |
|
Mail
Server |
Yes |
|
Web
Server |
Yes |
|
Clam
Antivirus |
Yes |
|
Download |
Yes |
|
Multi
Media Server |
Yes |
|
Docker |
Yes |
|
Plex
Media Server |
Yes |
|
Snapshot |
Yes |
