All stock codes associated to this product
PN50E1R7BAREBONENOA, PN50E1-R7BAREBONENOA

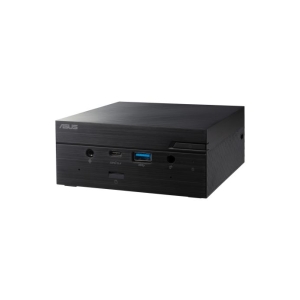

Asus Mini PC PN50 - Black
Overview
Ultra-compact computer with 4000 Series AMD Ryzen mobile processors, supports
up to 4 displays in 4K resolution and up to 64GB DDR4 RAM, M.2 SSD, WiFi 6,
Windows 10 and dual USB 3.2 Gen 2 Type-C
- Windows 10 Pro - ASUS recommends Windows 10 Pro for business. or other
editions available
- Powered by the latest AMD Ryzen 4000 Series Renoir Mobile Processor with
Radeon Vega 7 Graphics
- Support up to 4 displays simultaneously with 4K resolution
- Support up to 8K UHD at 60Hz through DisplayPort Dual-Mode
(DP++)
- Dual USB 3.2 Gen 2 Type-C port for data transfer, power delivery and
DisplayPort functionality
- Support INTEL WI-FI 6 (GIG+) + BT 5.0
- Configurable Ports support DP1.4/VGA/LAN/COM options
- Microsoft Cortana support with dual-array front
microphones
- Infrared (IR) receiver for remote control of applications
- Dual-storage design with up to a 2.5-inch HDD up to 1 TB and an M.2 SSD up
to 512 GB
- ASUS Corporate Stable Model program ensuring 36-month stable-supply
guarantee
- 24/7 reliability Extensively tested to ensure long-term
dependability
Specifications
|
CPU |
AMD
Ryzen 7 4700U Processor 2.0GHz (12M Cache, up to 4.1GHz); (Barebone
SKU) |
|
Graphics |
Integrated
- Radeon Vega Graphics |
|
Wireless
Data Network |
Wi-Fi
6, Bluetooth 5.0, 2*2 (Barebone SKU) |
|
Wi-Fi
5, Bluetooth 4.0, 2*2 (Barebone SKU) |
|
LAN |
10/100/1000
Mbps |
|
2.5G
LAN, Realtek RTL8125B-CG |
|
Side(Front)
I/O Ports |
1 x USB 3.1 Gen2 Type-C(w/ quick charge, DP output), 1 x USB3.1 Gen1 Type-A, 1x 4-in-1 Card Reader, 1 x Consumer Infrared Sensor, 2 x Microphone Array, 1x Audio Jack(optional), 1 x K-Lock(side) |
|
Back
I/O Ports |
1
x USB 3.2 Gen2 Type-C (w/ DP output), 1 x HDMI, 2 x USB 3.2 Gen1, 1 x
Configurable Port (options: Display Port 1.4/COM/ VGA/ LAN), 1 x RJ45
LAN(DASH), 1 x DC-in |
|
Configurable
I/O |
1 x Display1.4 Port
(Barebone SKU) |
|
Display1.2
Port |
|
Dimensions
(W x D x H) |
115 x 115 x 49 mm |
|
Weight |
700g
(include 2.5" HDD) |
|
Color |
Black |
