All stock codes associated to this product
NUSCAN2700R, NUSCAN 2700R, AD2700R

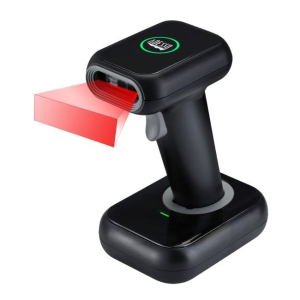

Adesso NuScan 2700R 2D Wireless Barcode Scanner with Charging
Cradle
Overview
The Adesso NuScan 2700R is the ultimate wireless barcode scanning solution.
Its new decoding engine allows it to decode both 2D barcodes, such as QR Code,
PDF417, and Data Matrix, and 1D barcodes. The scanning rate of 120 scans per
second increases accuracy, therefore increasing efficiency. The 2.4 GHz RF
technology provides a wireless range of up to 150 feet.Its built-in USB receiver
also makes the scanner completely Plug-n-Play!
Features

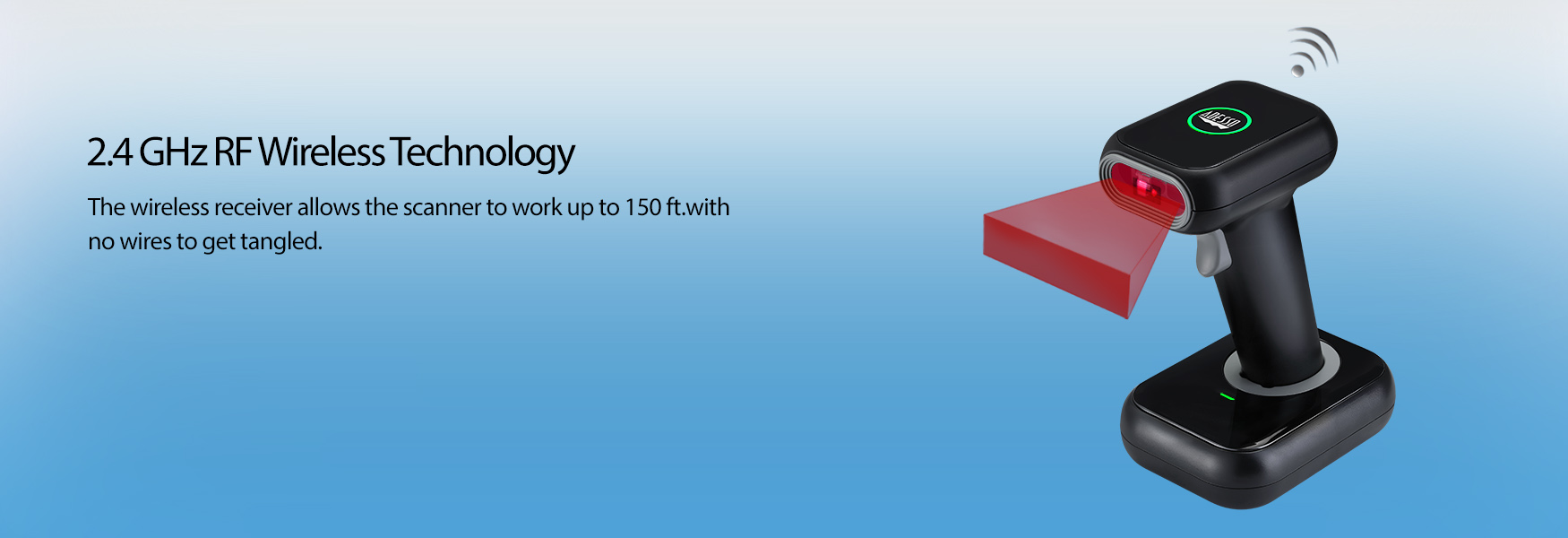

2.4 GHz RF Wireless Technology
Works up to 150 feet from the wireless receiver with no wires to get
tangled.

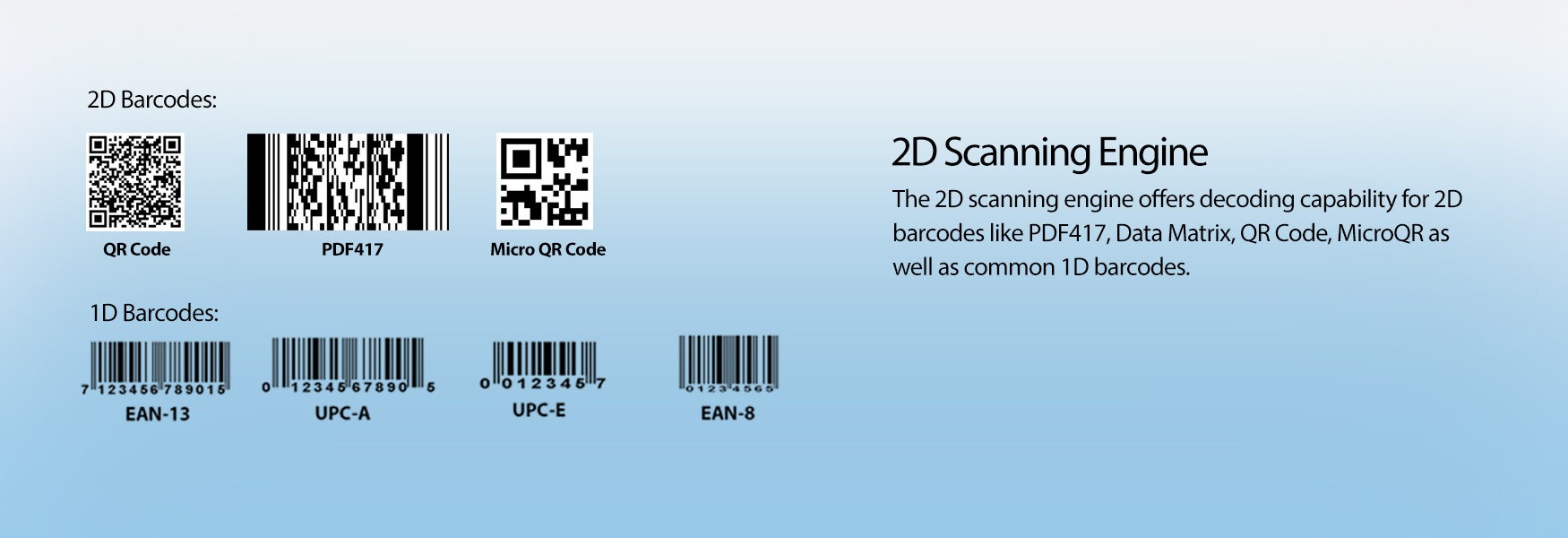

2D Scanning Engine
The 2D scanning engine offers decoding capability for 2D barcodes such as QR
Code, MicroQR, PDF417, Data Matrix, as well as common 1D
barcodes.

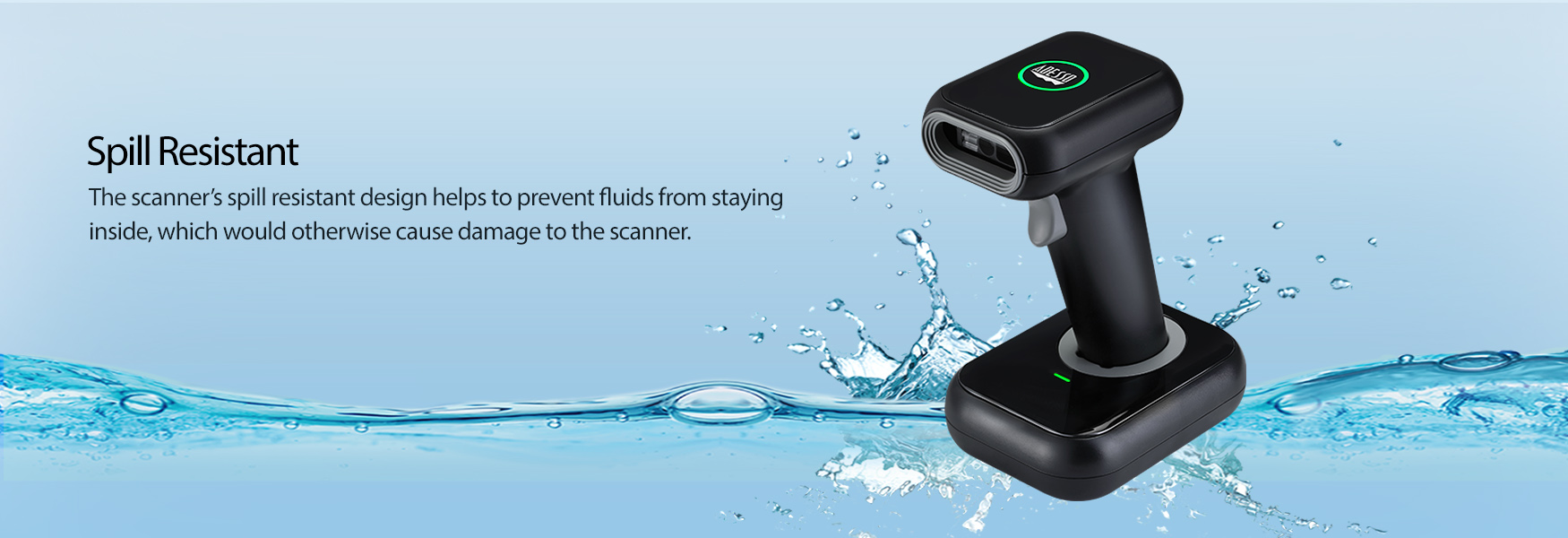

Spill Resistant
The scanners spill resistant design helps prevent internal damage due to
spills.

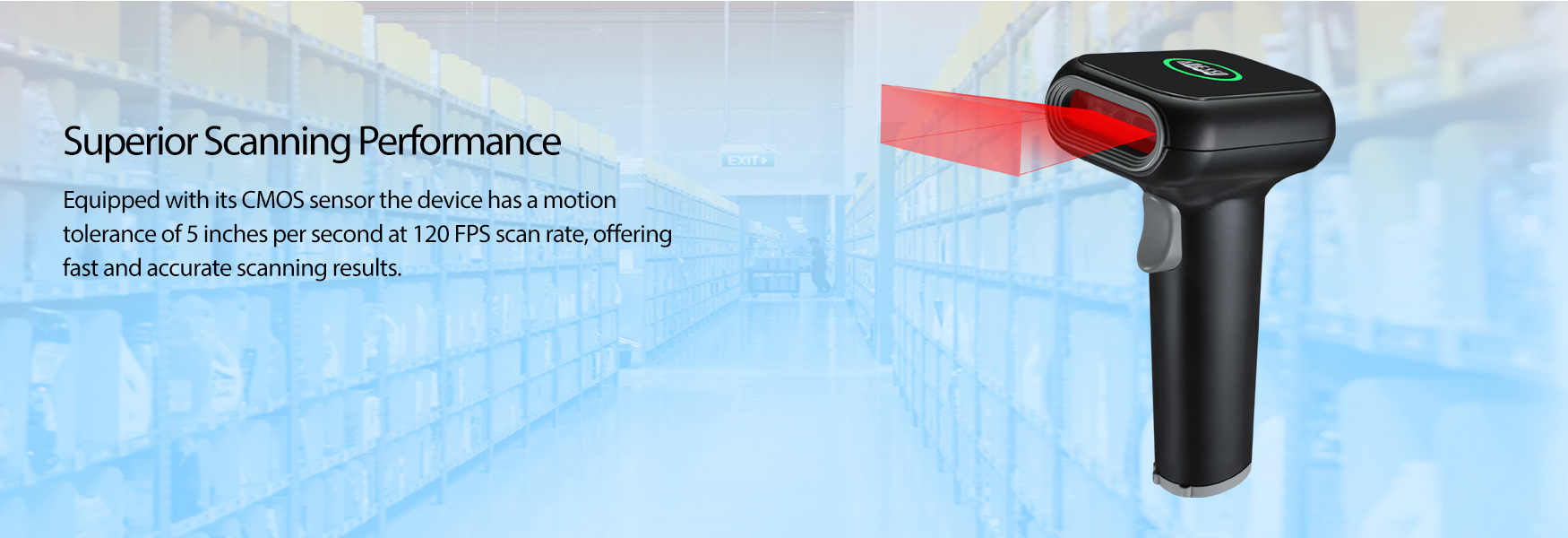

Superior Scanning Performance
Equipped with a 640*480 CMOS sensor, the NuScan 2700R has a motion tolerance
of 5 inches per second and maximum scan rate of 120 scans per second, offering
fast and accurate results.

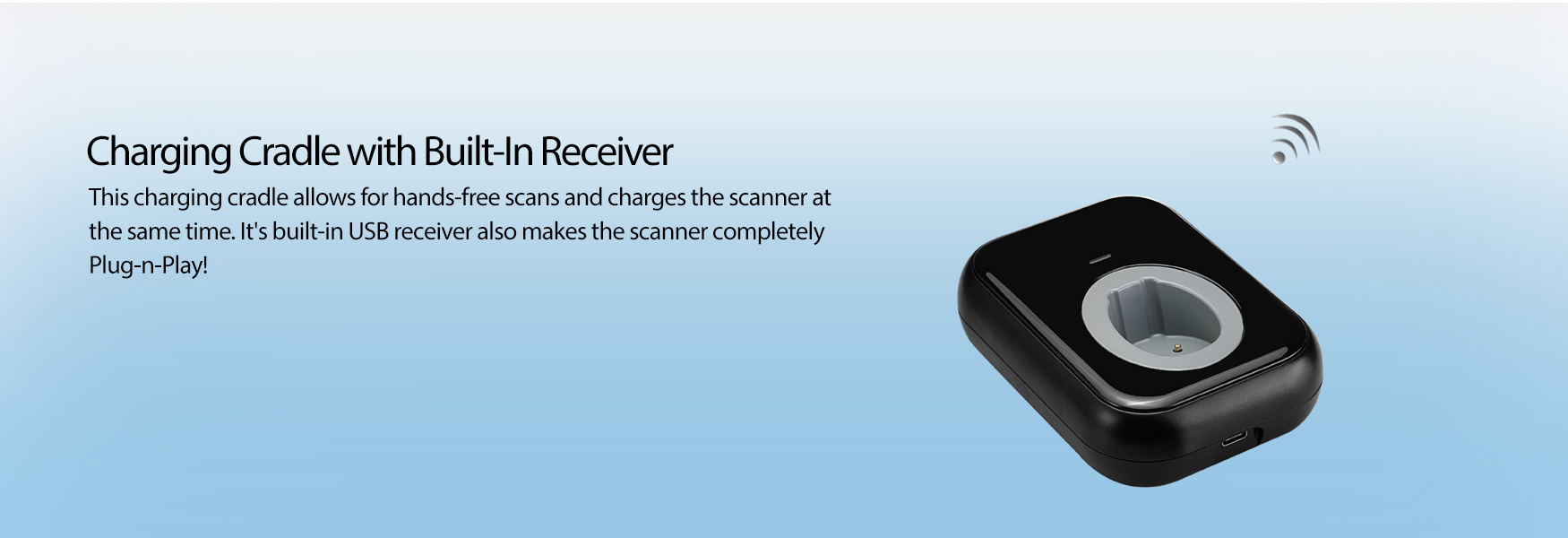

Charging Cradle with Built-In Receiver
The charging cradle allows for hands-free scans and charges the scanner
simultaneously. Its built-in USB receiver also makes the scanner completely
Plug-n-Play!
.jpg)
2D Common Uses
.jpg)
1D Common Uses
Specifications
|
Electrical
Specifications |
|
|
Power
Input voltage |
5
5% VDC |
|
Working
Current |
280mA |
|
Battery |
Lithium
Ion Battery |
|
Charging
Time |
3-4
hrs |
|
Light
Source |
640
nm visible red LED |
|
Performance |
|
|
Scan
Pattern |
Manual
Scan, Auto Scan |
|
Interface |
USB
Wired/2.4GHz Wireless |
|
Wireless
Range |
Up
to 150 ft. |
|
Sensor |
640*480
CMOS Sensor |
|
Scan
Rate |
120
FPS |
|
Light
Level |
0-70000LUX |
|
Depth
of Field |
0-12
inches (@20mil EAN-13, PC 100%) |
|
Motion
Tolerance |
5
inches per second (IPS) |
|
Scan
Angle |
Roll
360, Pitch 45, Yaw 40 |
|
Print
Contrast |
>25% |
|
Alert
Operation |
LED
light indicator and beeper |
|
Minimum
Resolution Supported |
40
mm 13 mil |
|
Environmental |
|
|
Operating
Temperature |
-20C
to 55C (-4F to 131F) |
|
Operating Humidity
|
5%
~ 95% (non-condensing) |
|
Shock
Resistance |
Withstanding
1.5m freefall drops |
|
Regulatory |
FCC,
CE, RoHS, IC |
|
Physical
Spec |
|
|
Dimensions
(L x W x H) |
6.61
x 3.34 x 2.44 (168 x 85 x 62mm) |
|
Weight |
0.22
lbs/100 g |
|
Cable
Length |
5
(1.5meters) |
|
Country
of Origin |
Made
in Taiwan |
Supported Symbologies
1D: EAN-8, EAN-13, EAN-13 2 add-on, EAN-13 5 add-on, ISSN, ISBN, UPC-A,
UPC-E, Code 11, Code 32 Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5,
Interleaved 2 of 5, Matrix 2 of 5, GS1-128 GS1 Databar (RSS14), GS1 DataBar
Limited, GS1 DataBar Expanded
2D: PDF417, MicroPDF417, MicroQR, Data Matrix, QR, Aztec
System Requirements
- Windows2000 / XP / Vista / 7 / 8 / 10
- Mac OS X
- Interface: USB or Wireless 2.4GHz
Includes
- Adesso NuScan 2700R Wireless 2D Barcode Scanner
- Charging Cradle
- Quick Start Guide
