All stock codes associated to this product
VLUCTDMH, VL-UCTDMH, II41763

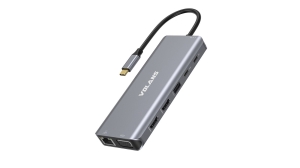

Volans VL-UCTDMH Aluminium 14-in-1 Triple Display Multifunctional
USB-C Dock
Overview
Truly Universal: Connect all you want
This USB-C Dock features a full array of ports ranging from 2x HDMI, 1x VGA,
1x RJ45 Gigabit Ethernet, 1xUSB-C PD charging, 1x USB-C data transfer, 3x
USB3.0, 2xUSB2.0, 1x 3.5mm Audio/Mic, 1x TF & 1x SD card reader. The USB-C
port and Data transmission from the same port. The USB-C port also supports Data
transmission from the same port along with power.
Single 4K or Triple 1080p Monitors
The Dock supports either a single monitor with up to 4K resolution when use
one of the HDMI ports or It can also support three monitors with up to 1080p
FULL HD resolution simultaneously when both HDMI and VGA outputs are used
together.
Power Delivery 3.0 Technology
The Docking station uses the latest Power Delivery (PD 3.0) specifications,
that lets you charge your Chromebook, MacBook or other USB-C enabled laptop with
up to 100W of power.
Specifications
|
S/N |
Function |
Interface |
Total |
Description |
|
1 |
Video
output |
HDMI |
2 |
Up
to 4K@30Hz/60Hz |
|
2 |
VGA |
1 |
Up
to 1080P@60Hz |
|
3 |
Data
Transfer |
USB-A
2.0 |
2 |
480Mb/s
data speed |
|
4 |
USB-A
3.0 |
3 |
5Gb/s
data speed |
|
5 |
USB-C
1 |
1 |
5Gb/s
data speed |
|
6 |
Power |
USB-C
2 |
1 |
Upstream
charge: Power Delivery 3.0 up to 100W |
|
7 |
Audio |
Audio
jack |
1 |
3.5mm
audio 2-in1 jack |
|
8 |
Lan
port |
RJ45 |
1 |
Gigabit
Ethernet up to 1000Mbps |
|
9 |
Data |
Card
slot |
2 |
SD
/ MicroSD |
|
IC
Solution |
VL103+2*VL817+RTD2183+SN75DP149+RTL8153+FE8.1+GL3224+SSS1530 |
|
Product
Material |
Aluminum
+ ABS |
|
Product
Color |
Space
Grey |
|
Product
Certificate |
FCC/CE/ROHS |
