All stock codes associated to this product
7X08A09HAU, 4788922, SVLSR530V8, SVL-SR530-V8, 7X08A09HAU
| Processor |
|---|
| Processor generation | 2nd Generation Intel ® Xeon ® Scalable |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Processor cache | 11 MB |
| Processor frequency | 2.1 GHz |
| Processor family | Intel Xeon Silver |
| Processor model | 4208 |
| Number of processors installed | 1 |
| Processor boost frequency | 3.2 GHz |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C622 |
| Memory |
|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 12 |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory clock speed | 2933 MHz |
| ECC | Yes |
| Storage |
|---|
| Supported RAID controllers | 530-8i |
| RAID support | Yes |
| RAID levels | 0,1,5,10,50 |
| Optical drive type | No |
| Internal drive bays | 8 |
| Graphics |
|---|
| On-board graphics adapter model | Matrox G200 |
| On-board graphics adapter | Yes |
| Network |
|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Design |
|---|
| Chassis type | Rack (1U) |
| Redundant fans support | Yes |
| Rack rails | Yes |
| Rack mounting | Yes |
| Optical drive type | No |
| Product colour | Black, Metallic |
| Performance |
|---|
| Performance management | XClarity Enterprise |
| Compatible operating systems | Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux (RHEL) 7 and 8; SUSE Linux Enterprise Server (SLES) 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7 |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Software |
|---|
| Compatible operating systems | Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux (RHEL) 7 and 8; SUSE Linux Enterprise Server (SLES) 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7 |
| Processor special features |
|---|
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Power |
|---|
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies installed | 1 |
| Power supply input frequency | 50 - 60 Hz |
| Power supply | 750 W |
| Operational conditions |
|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
| Technical details |
|---|
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions |
|---|
| Width | 435 mm |
| Height | 43 mm |
| Depth | 750 mm |

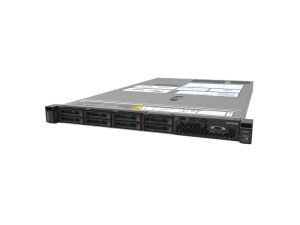

Essential and priced within reach Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.
Flexible to grow with your business ThinkSystem SR530 offers numerous features to increase performance and flexibility. Incorporating two Intel ® Xeon ® Scalable family CPUs with 43 percent more cores, faster memory, increased I/O, and more storage capacity than the previous generation*, SR530 offers a balance of performance, capacity and value. With M.2 storage support, it provides robust boot drive options, freeing up the other drive bays for additional storage capacity. SR530 supports up to three PCIe adapter slots; several choices of network options via embedded LOM, selectable LOM, ML2, and PCIe adapters for additional 1GbE/10GbE ports; and software and hardware RAID options for added configuration flexibility. In addition, features such as 80 PLUS Platinum and Titanium PSUs, continuous operation at 45 °C (with limitations), and various technologies that speed upgrades and maintenance all combine to reduce your operating costs and increase uptime.
Easily managed Lenovo XClarity Controller is an all-new hardware embedded management engine common in every ThinkSystem server. XClarity Controller features an uncluttered graphical user interface, industry standard Redfish-compliant REST APIs, and enables booting in half the time of prior generation servers, with up to 6x faster firmware updates. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking. Via reusable patterns and policies, it ramps up and scales infrastructure provisioning and maintenance. It serves as a central integration point to extend your data center management processes to physical IT. Running XClarity Integrators in external IT applications, or integrating through REST APIs, helps you further speed services provisioning, streamline IT management, and contain costs. Lenovo servers continue to be the industry’s #1 most reliable†, with the industry’s highest customer satisfaction‡ rating.
